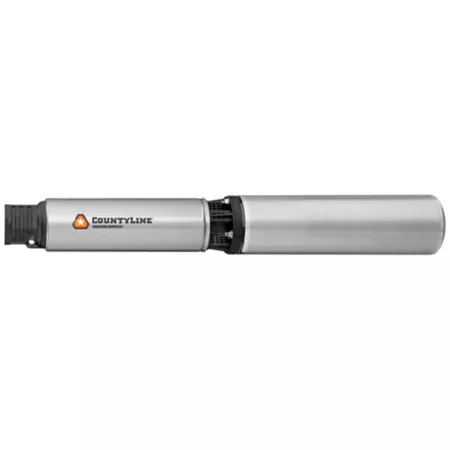

CountyLine 1/2 HP 230V Electric Submersible Pump 4 in 2-Wire Series 13.2 GPM Well Pumps Home Improvement

The CountyLine 1/2 HP 4 in. Electric Powered 2-Wire 10 GPM Series Submersible Pump is for residential water systems and agricultural applications to 150 ft. depth to water or less. Featuring a proven floating stack impeller design for sand resistance and reduced sand locking, this heavy-duty stainless steel construction is built to handle more. The pump is rated for 230V and is CSA approved.

1/2 HP
Maximum depth to water: 150 ft.
230V
4-3/4 in. x 4-3/4 in. x 34 in.
29 lb.
Stainless steel body
CSA approved

CountyLine 1/2 HP 230V Electric Submersible Pump 4 in 2-Wire Series 13.2 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Made in USA
Amperage	5 Amp
Body Material	Stainless steel
Compatible Pipe Material	Other
Compatible Well Diameter	4 in.
Discharge Connection	Threaded Female
Discharge Diameter	1.25 in.

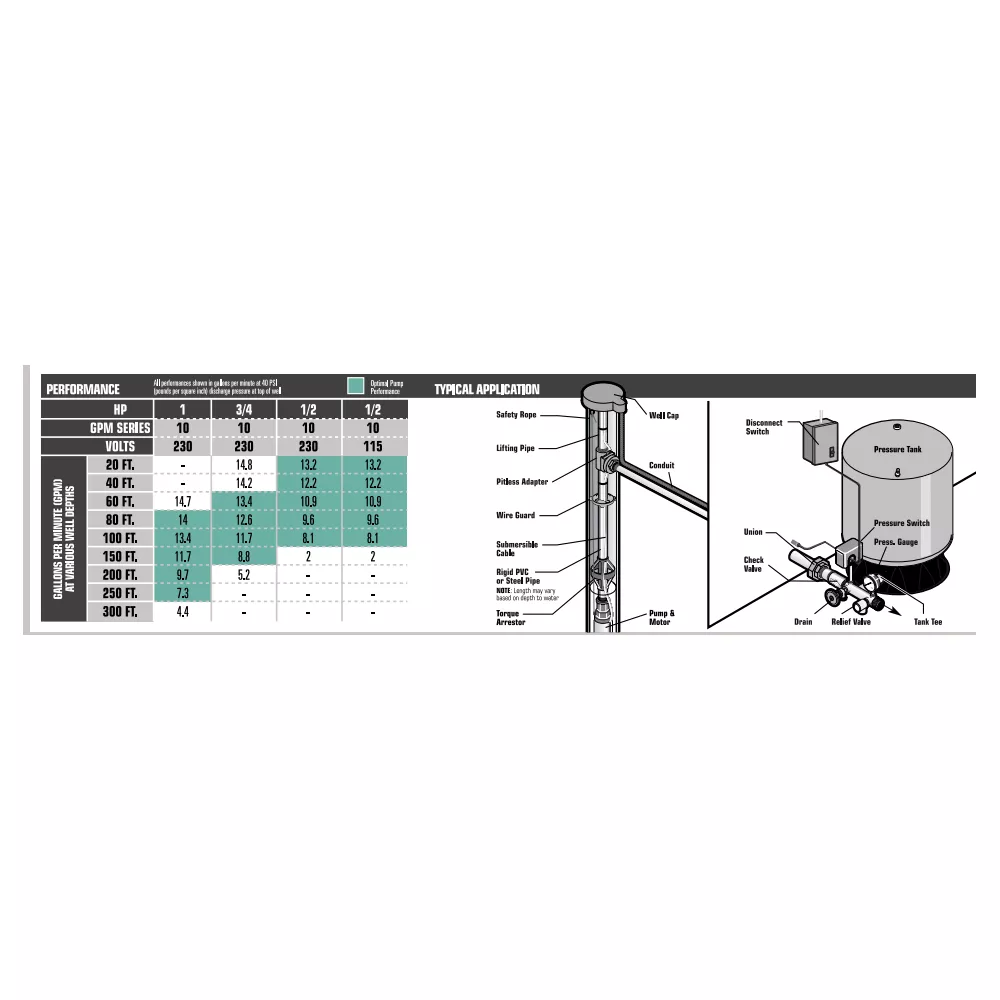

Discharge Rate at 0 ft.	13.2 GPM
Discharge Rate at 25 ft.	13.2 GPM
Discharge Rate at 50 ft.	11 GPM
Features	CSA Approved
Head Pressure	65 PSI
Horsepower	1/2 HP
Impeller Material	Engineered thermoplastic
Inlet Connection	None
Inlet Diameter	0 N/A
Maximum Flow Rate	13.2 GPM
Maximum Head Lift	0 ft.
Maximum Operating Depth	150 ft.
Maximum Operating Temperature	86 degrees F
Minimum Operating Temperature	32 degrees F
Power Type	Electric
Product Height	33 in.
Product Length	5 in.
Product Weight	29 lb.
Product Width	5 in.
Motor Type	Submersible
Voltage	230V
Warranty	3 Year Limited
Manufacturer PartNumber	CLA201

CountyLine 1/2 HP 230V Electric 4 in. 2-Wire Series Submersible Pump, 13.2 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Made in USA Amperage 5 Amp Body Material Stainless Steel Compatible Pipe Material Other Compatible Well Diameter 4 in. Discharge fitting Female threaded Discharge diameter 1.25 in. Discharge rate at 0 ft. 13.2 GPM Discharge Rate at 25 ft. 13.2 GPM Discharge Rate at 50 ft. 11 GPM Features CSA Approved Head Pressure 65 PSI Power 1/2 HP Impeller Material Engineered Thermoplastic Inlet Connection None Diameter d Input 0 N/A Maximum Flow 13.2 GPM Maximum Head Lift 0 ft. Maximum Operating Depth 150 feet Maximum Operating Temperature 86 degrees F Minimum Operating Temperature 32 degrees F Power Type Electric Product Height 33 in. Product Length 5 in. Product Weight 29 lb. Product Width 5 in. Motor Type Submersible Voltage 230 V 3-year limited warranty Manufacturer part numberCLA201
