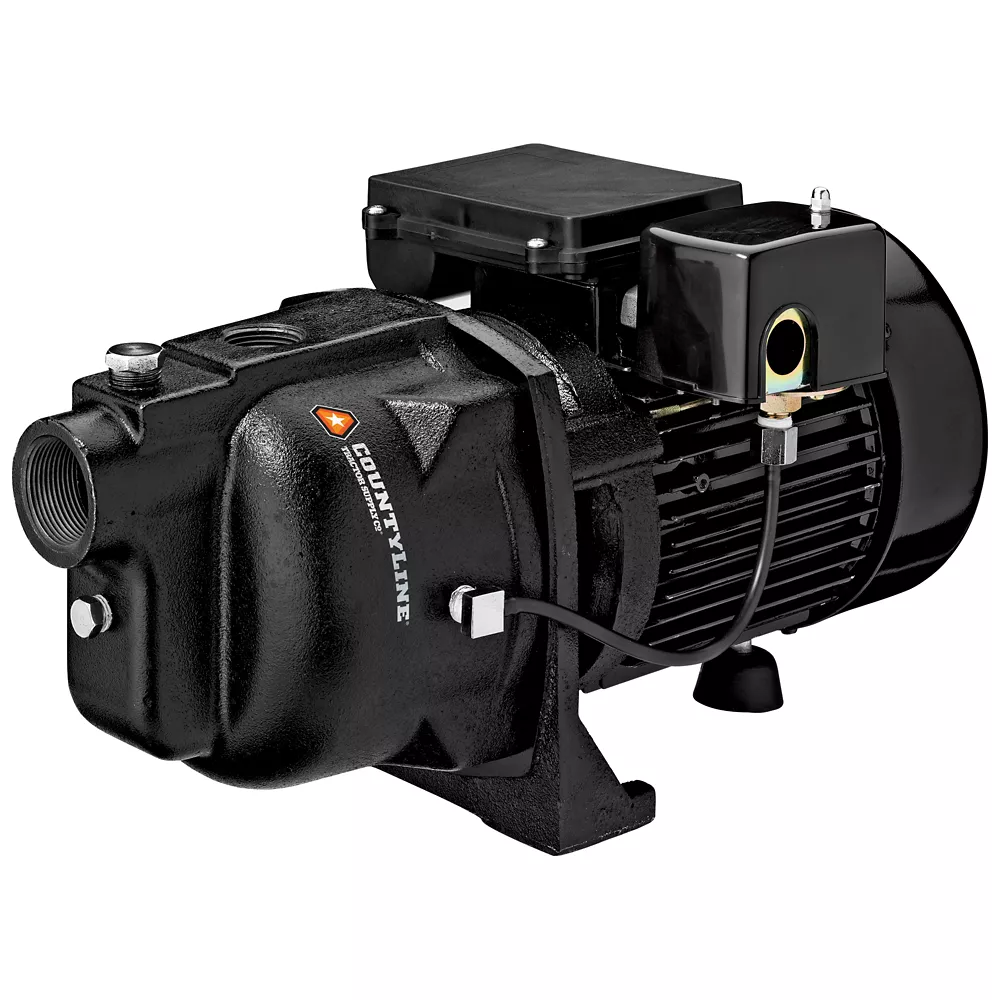

CountyLine Electric Cast Iron Shallow Well Jet Pump 1 HP 115/230 Volt 21 GPM Well Pumps Home Improvement

The CountyLine Shallow Well Cast Iron Jet Pump delivers water from 25 ft. or less. Built of heavy duty rugged cast iron for durability, this jet pump is designed for a long life.

1 HP
Maximum Depth to Water: 25 ft.
115V/230V
Maximum GPM: 21 GPM
Suction Port Size: 1-1/4 in. NPT
Outlet Port Size: 1 in. NPT
19 in. x 10-5/6 in. x 10-1/2 in.
53 lb.
Cast Iron Body

CountyLine Electric Cast Iron Shallow Well Jet Pump 1 HP 115/230 Volt 21 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Amperage	12 115V 6 230V
Body Material	Cast iron
Compatible Pipe Material	Other
Compatible Well Diameter	1-1/4 in. NPT
Discharge Connection	Threaded Female
Discharge Diameter	1 in. NPT
Discharge Rate at 0 ft.	21 GPM
Discharge Rate at 25 ft.	9 GPM
Discharge Rate at 50 ft.	0 N/A
Features	0 N/A
Head Pressure	70 PSI
Horsepower	1 HP
Impeller Material	Glass-filled polycarbonate
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	21 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	77 degrees F
Minimum Operating Temperature	32 degrees F
Power Type	Electric
Product Height	11 in.
Product Length	19 in.
Product Weight	53 lb.
Product Width	11 in.
Motor Type	TEFC
Voltage	115V230V
Warranty	1 Year Limited
Manufacturer PartNumber	CLTS10

CountyLine 1 HP 115/230V Electric Shallow Well Cast Iron Jet Pump, 21 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Amperage 12115V 6230V Body Material Cast Iron Compatible Pipe Material Other Compatible Well Diameter 1-1/4 in. NPT discharge fitting 1 in. threaded female discharge diameter. Discharge Rate NPT at 0 21 GPM Discharge Rate at 25 ft. 9 GPM Discharge Rate at 50 ft. 0 N/A Specifications 0 N/A Head Pressure 70 PSI Horsepower 1 HP Impeller Material Glass Filled Polycarbonate Connection Inlet Female Threaded Inlet Diameter 1.25" Maximum Flow Rate 21 GPM Maximum Lift Height 25 Feet Maximum Operating Depth 25 Feet Maximum Operating Temperature 77 Degrees F Minimum Operating Temperature 32 Degrees F Power Type Electric Height Product 11" Product Length 19" Product Weight 53 lbs Product Width 11" Motor Type TEFC Voltage 115V 230V 1 Year Limited Warranty Manufacturer Part Numbernt CLTS10.
