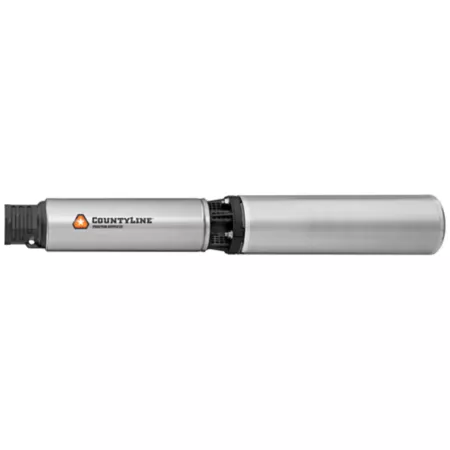

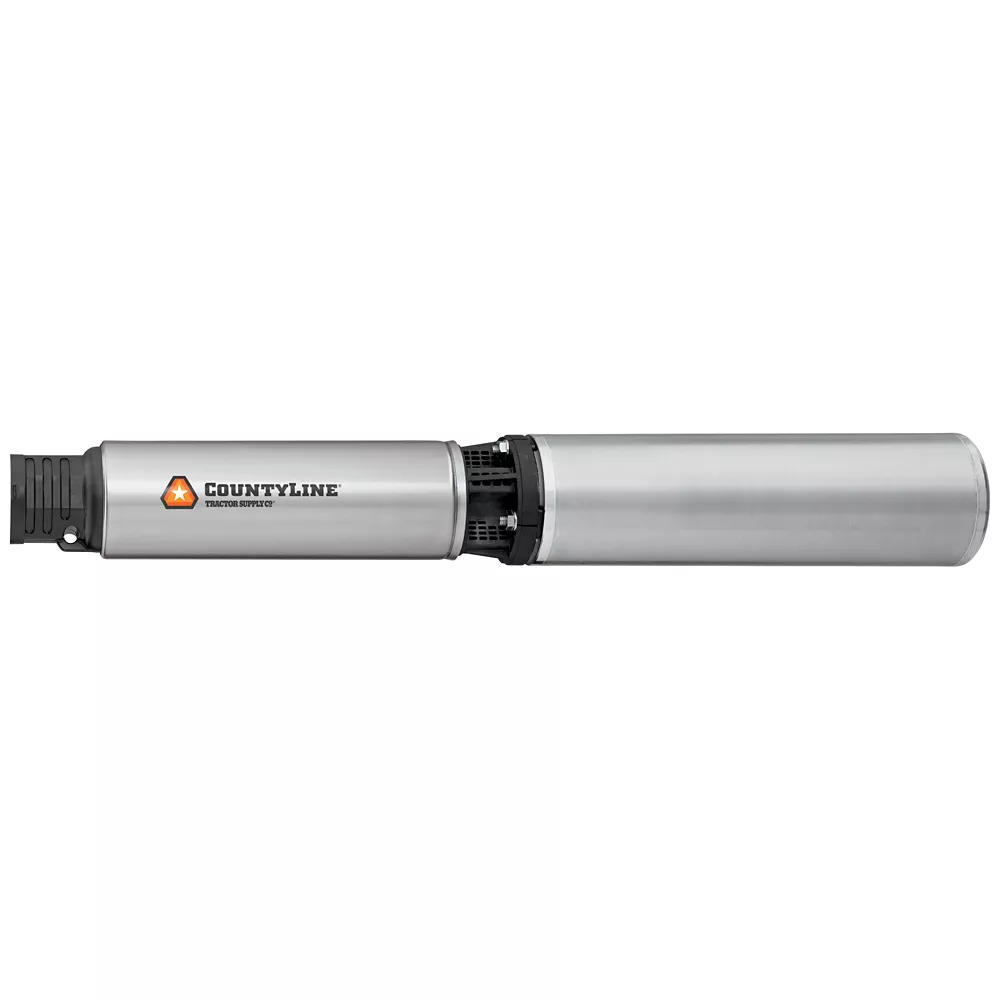

CountyLine 1 HP 230V 2-Wire Electric Series 4 in Submersible Pump 14.7 GPM Well Pumps Home Improvement
The CountyLine 2-Wire 1 HP 10 GPM Series 4 in. Submersible Pump is ideal for residential water systems and agricultural applications 300 ft. deep or less. Featuring a proven floating stack impeller design for sand resistance and reduced sand locking, this heavy-duty stainless steel pump is built to last. The pump is rated for 230V and is backed by a 3 year limited warranty.- 1 HP
- Maximum depth to water: 300 ft.
- 230V
- 4-5/8 in. x 5 in. x 29 in.
- 37 lb.
- Stainless steel body
- CSA approved
- Includes: Control Box
- Tractor Supply is proud to introduce CountyLine, our brand of high quality, competitively priced agricultural products; with a full line of 3-point equipment for your tractor, as well an assortment of sub-compact pieces
- 3 year limited warranty
CountyLine 1 HP 230V 2-Wire Electric Series 4 in Submersible Pump 14.7 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | CountyLine |
| Country of Origin | Made in USA |
| Amperage | 7.2 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | Other |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1.25 in. |
| Discharge Rate at 0 ft. | 14.7 GPM |
| Discharge Rate at 25 ft. | N/A |
| Discharge Rate at 50 ft. | 15 GPM |
| Features | N/A |
| Head Pressure | 130 PSI |
| Horsepower | 1 HP |
| Impeller Material | Engineered thermoplastic |
| Inlet Connection | None |
| Inlet Diameter | N/A |
| Maximum Flow Rate | 14.7 GPM |
| Maximum Head Lift | N/A |
| Maximum Operating Depth | 300 ft. |
| Maximum Operating Temperature | 86 degrees F |
| Minimum Operating Temperature | 32 degrees F |
| Power Type | Electric |
| Product Height | 29 in. |
| Product Length | 5 in. |
| Product Weight | 37 lb. |
| Product Width | 5 in. |
| Motor Type | Submersible |
| Voltage | 230V |
| Warranty | 3 Year Limited |
| Manufacturer PartNumber | CLA203 |
