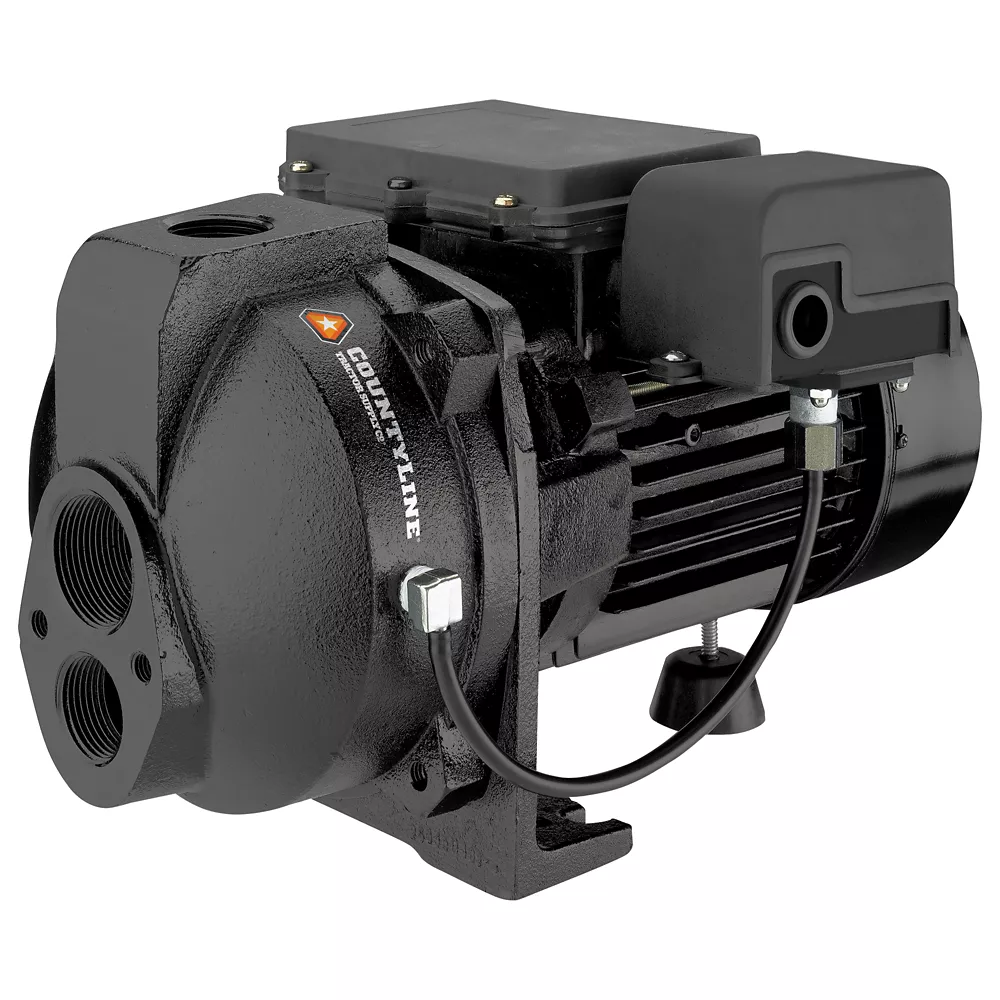

CountyLine Cast Iron Convertible Electric Jet Pump 1/2 HP 115/230 V 1-1/4 in 10 GPM Well Pumps Home Improvement

The CountyLine 1/2 HP 1-1/4 in. Convertible Cast Iron Jet Pump delivers water from 70 ft. or less. Featuring a rugged cast iron construction, this jet pump includes a pressure regulator, pressure gauge and ejector kit for 4 in. wells or larger. The jet pump comes backed by a 1 year warranty for purchasing assurance. It is a powerful 10 GPM, 115V/230V and 1/2 HP jet pump.

1/2 HP
Maximum depth to water: 70 ft.
115V/230V
Maximum GPM: 10 GPM
Suction port size: 1-1/4 in. NPT
Outlet port size: 1 in. NPT
Dimensions: 17-1/3 in. x 13-1/3 in. x 10-4/9 in.
Weighs 38 lb.
Cast iron body offers enhanced durability
CSA-approved

CountyLine Cast Iron Convertible Electric Jet Pump 1/2 HP 115/230 V 1-1/4 in 10 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Amperage	7 115V 3.5 230V
Body Material	Cast iron
Compatible Pipe Material	Other
Compatible Well Diameter	1-1/4 in. NPT
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	10 GPM
Discharge Rate at 25 ft.	3.5 GPM
Discharge Rate at 50 ft.	2.5 GPM
Features	CSA Approved
Head Pressure	65 PSI
Horsepower	1/2 HP
Impeller Material	Glass-filled polycarbonate
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	10 GPM
Maximum Head Lift	70 ft.
Maximum Operating Depth	70 ft.
Maximum Operating Temperature	77 degrees F
Minimum Operating Temperature	32 degrees F
Power Type	Electric
Product Height	11 in.
Product Length	18 in.
Product Weight	38 lb.
Product Width	14 in.
Motor Type	TEFC
Voltage	115V230V
Warranty	1 Year Limited
Manufacturer PartNumber	CL520

CountyLine 1/2 HP 115/230V Electric 1-1/4 in. Convertible Cast Iron Jet Pump, 10 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Amperage 7 115V 3.5 230V Body Material Cast Iron Compatible Pipe Material Other Compatible Well Diameter 1-1/4 in. NPT Discharge Fitting Female Threaded Discharge Diameter 1 in. Discharge rate at 0 ft. 10 GPM Discharge rate at 25 ft. 3.5 GPM Discharge rate at 50 ft. 2.5 GPM Features CSA Approved Head Pressure 65 PSI Power 1/2 HP Impeller Material Glass Filled Polycarbonate Inlet Connection Female Threaded Inlet Diameter 1.25 in. Maximum Flow 10. GPM Maximum Head Lift 70 ft. Maximum operating depth 70 ft. Maximum Operating Temperature 77 degrees F Minimum Operating Temperature 32 degrees F Power Type Electric Product Height 11 in. Product length 18 in. Product weight 38 lbs. Product width 14 in. Motor Type Voltage TEFC 115V 230V 1 Year Limited Warranty Manufacturer Part Number CL520
