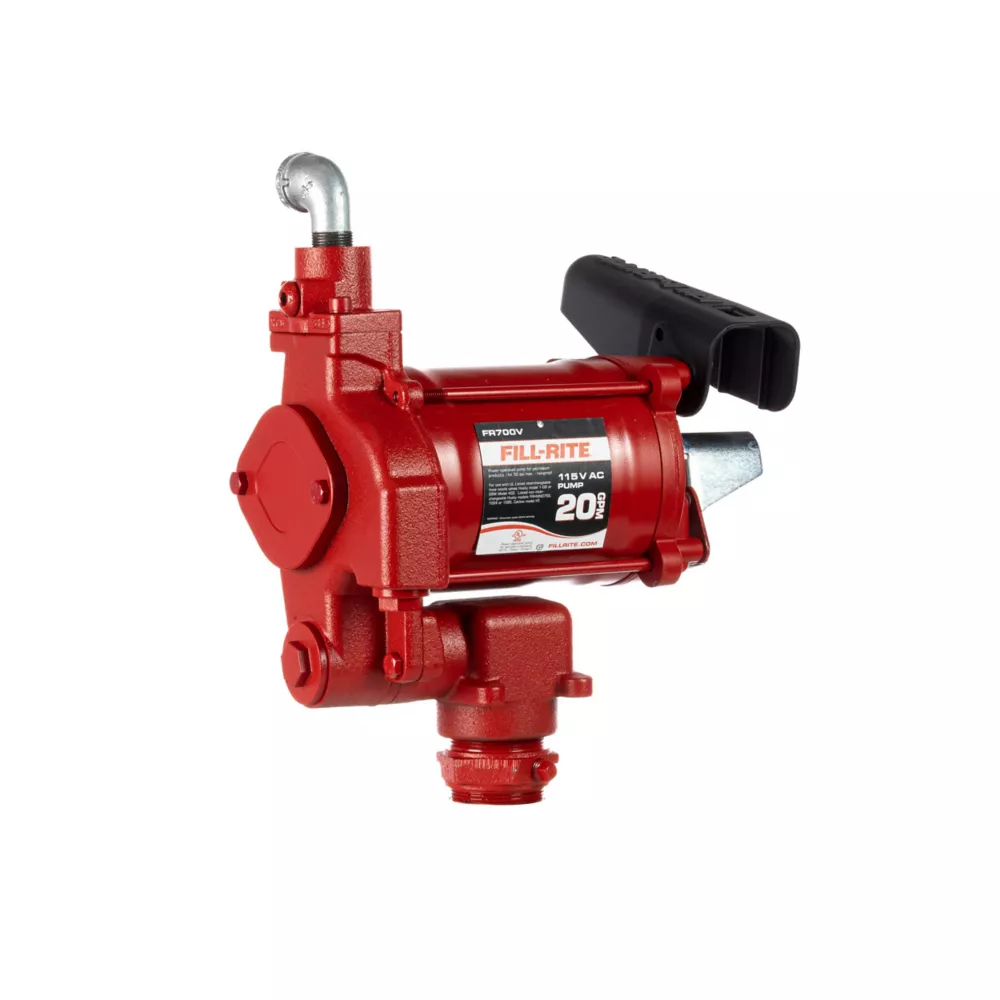

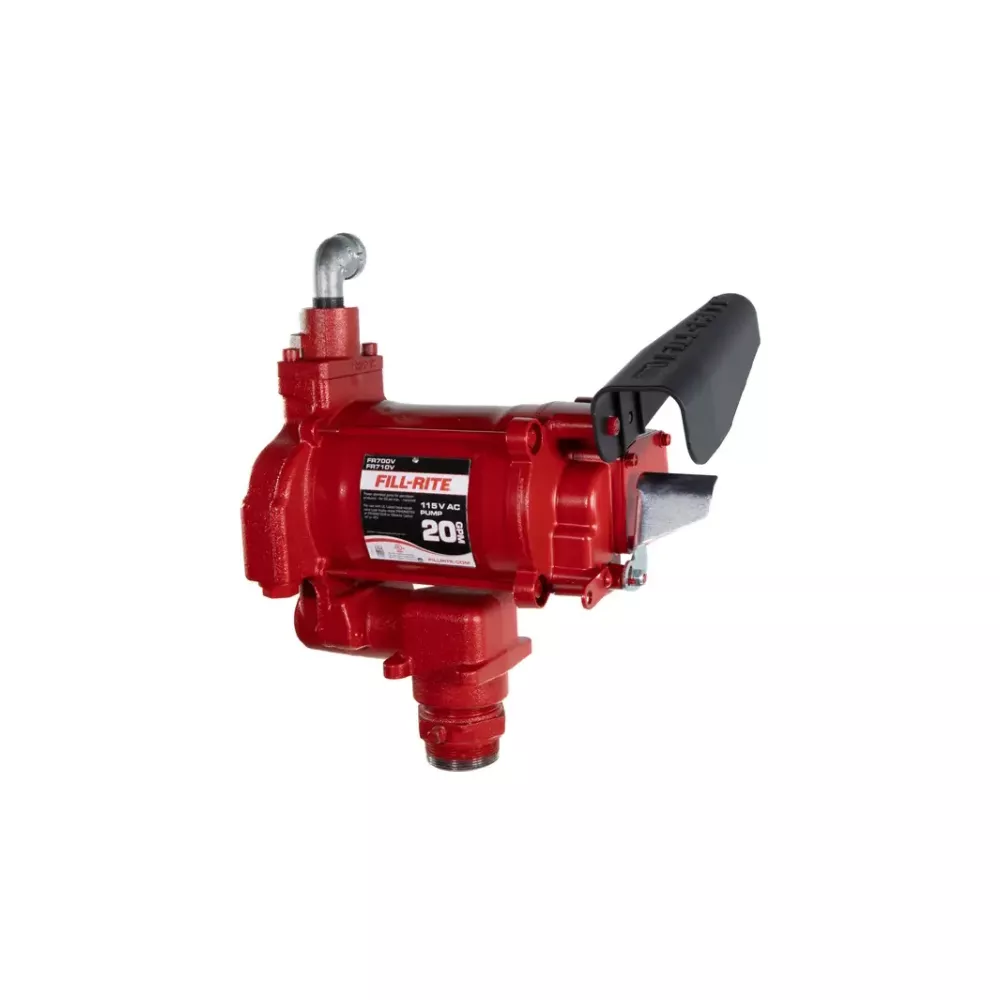

Fill-Rite 1/3 HP 115VAC Electric Fuel Transfer Pump 20 GPM Pump Only Fuel Transfer Pumps Truck & Automotive

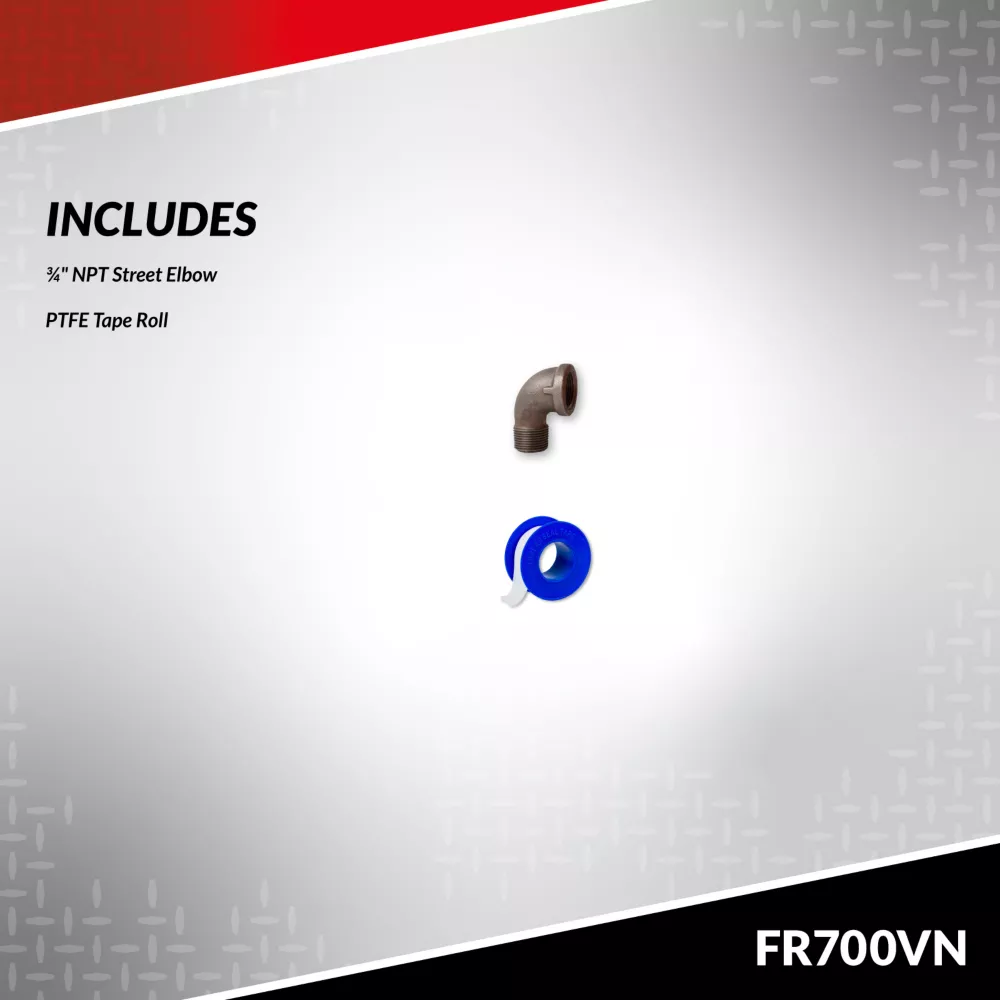

The Fill-Rite 115VAC 20 GPM Fuel Transfer Pump is a versatile, heavy-duty fuel transfer pump. This Fill-Rite pump includes installation components and no additional accessories. It is designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits.- AC pump transfers fuel at 20 GPM, making it a tremendous entry-level option that is ideal for filling medium-sized equipment from aboveground storage tanks
- Rotary vane technology produces consistent flow performance over the entire life of your fuel transfer pump
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
- Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Limited lifetime warranty to protect your purchase and your business
- Powered by a 115VAC motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks
- Built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
Fill-Rite 1/3 HP 115VAC Electric Fuel Transfer Pump 20 GPM Pump Only Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
| Specification | Description |
|---|---|
| Brand | Fill-Rite |
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 5.5A |
| Body Materials | Cast iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Self Priming |
| Horsepower | 0.33 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 720 in. |
| Maximum Operating Pressure | 23 PSI |
| Maximum Operating Temperature | 140 deg. |
| Minimum Operating Pressure | 15 PSI |
| Minimum Operating Temperature | -15 deg. |
| Power Type | Electric |
| Product Height | 11.75 in. |
| Product Length | 6.75 in. |
| Product Weight | 45.2 lb. |
| Product Width | 14.5 in. |
| Voltage | 115V |
| Warranty | Limited Lifetime |
| Manufacturer PartNumber | FR700VN |
