DeWALT 13 RHP 30 gal Truck Mounted 2-Stage Gasoline Horizontal Air Compressor 175 PSI Stationary Air Compressors Air Compressors

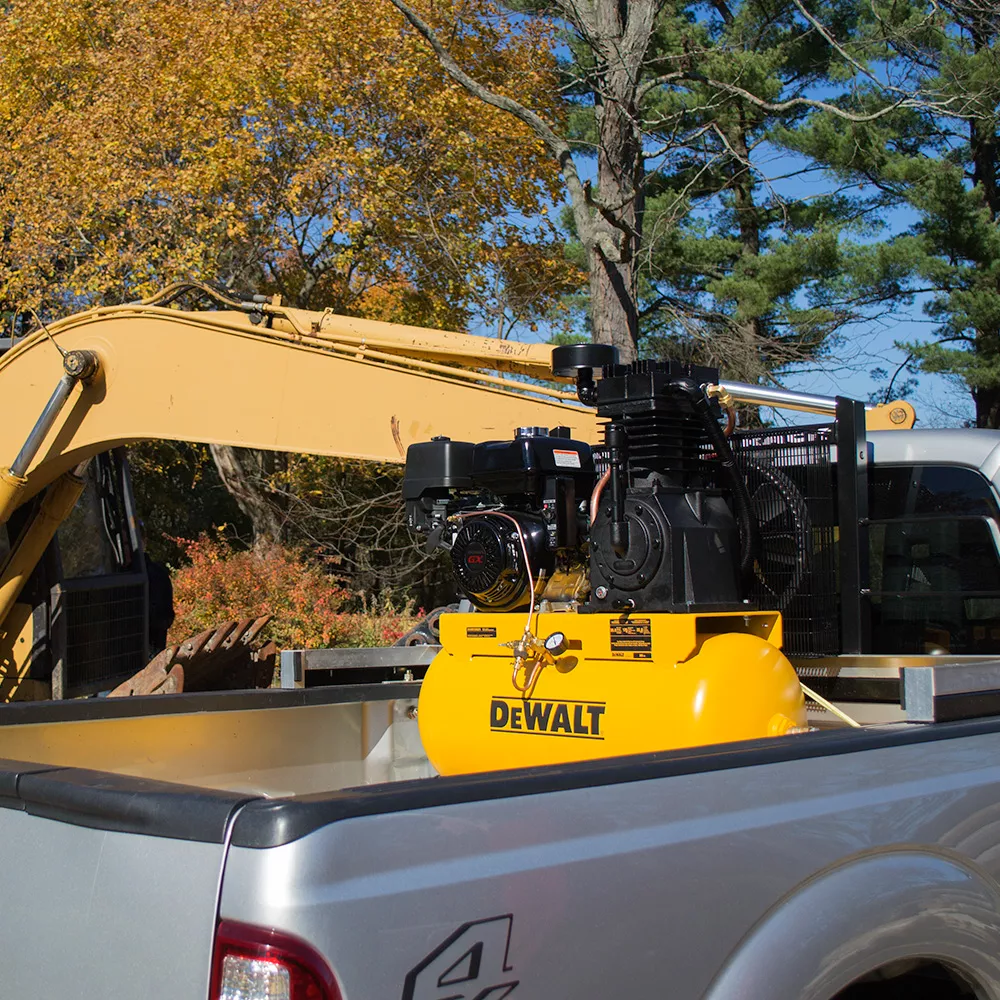

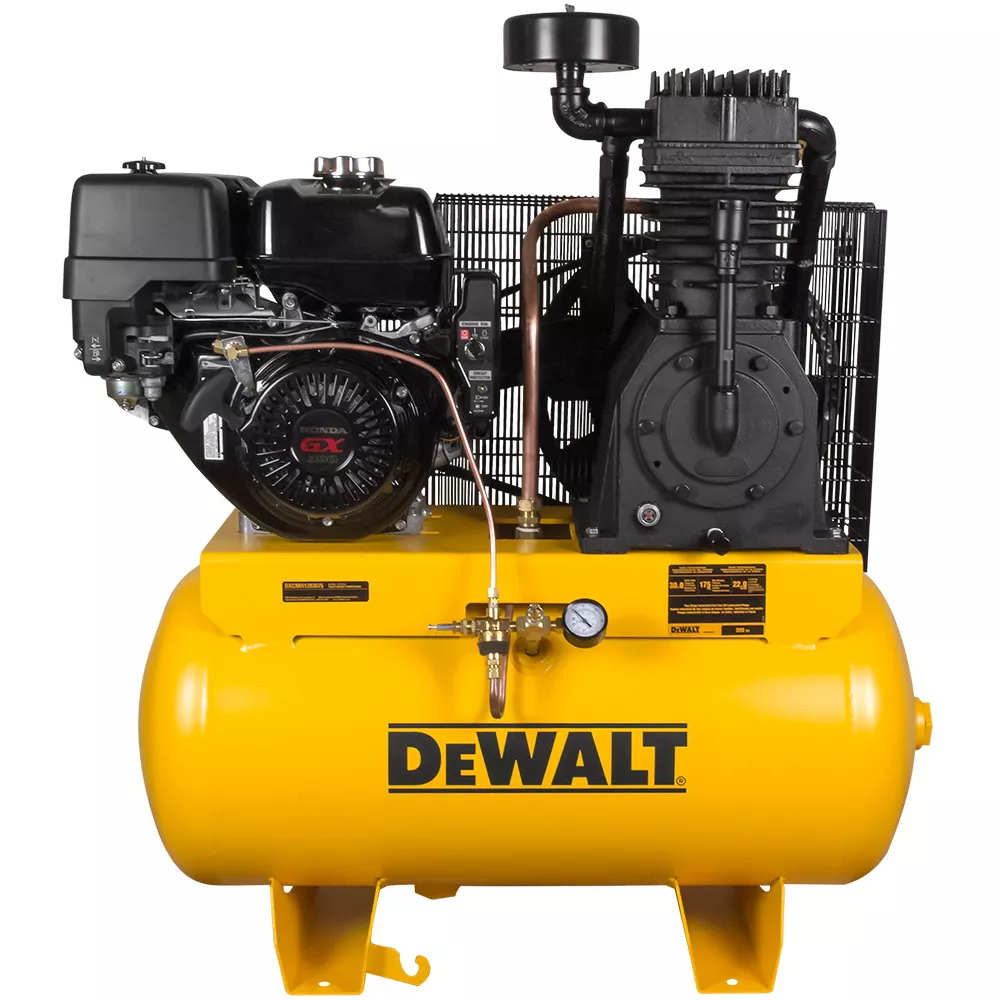

The DeWALT 13.0 RHP 30 Gallons Horizontal Truck Mount Gas Powered Air Compressor is engineered with an overall rugged functionality. The gas powered air compressor's design utilizes a reliable and electric start Honda GX390 OHV gas engine for increased efficiency and optimal power transfer. This air compressor is also EPA and CARB approved and features an automatic low-oil shutdown function.

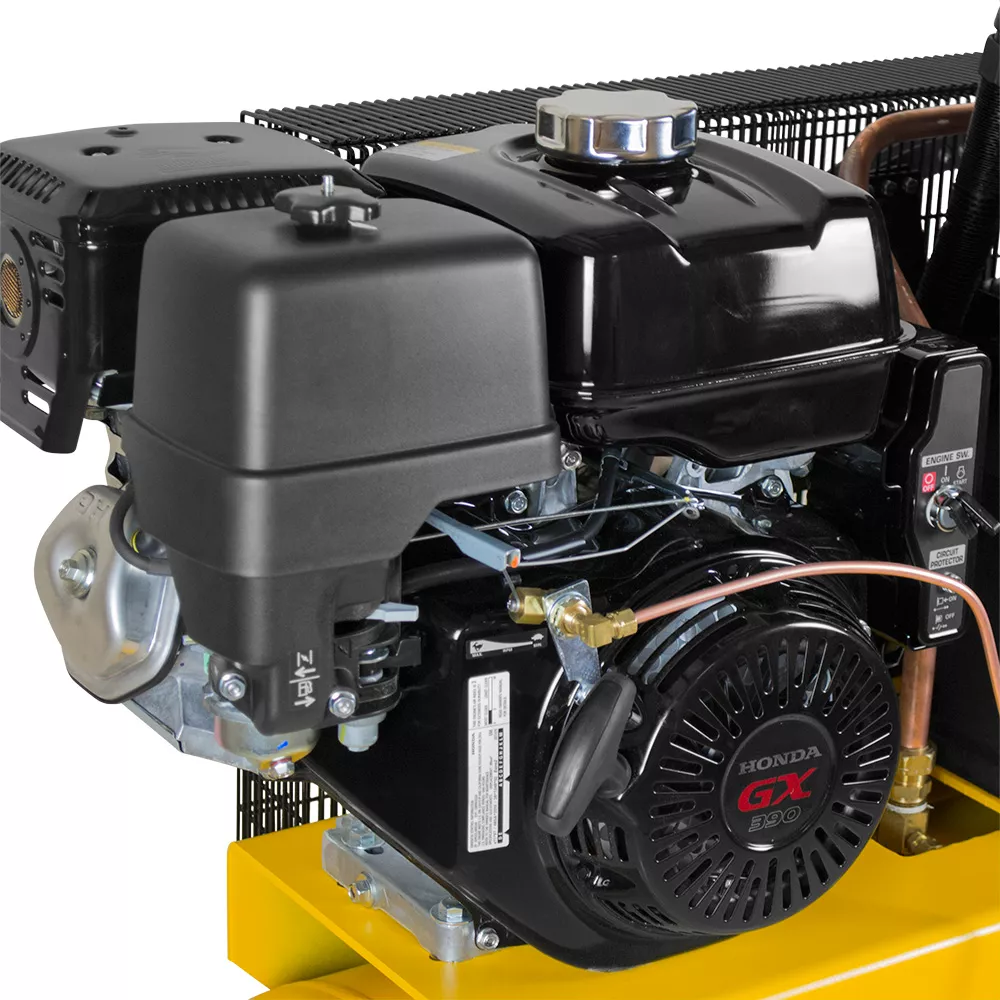

HONDA GX390 OHV gas engine with electric start
Offers a 390-CC engine with a rate of 24.0 CFM at 100 PSI or 22.0 CFM at 175 PSI
Industrial grade Solberg air intake filter provides better filtration and sound dampening

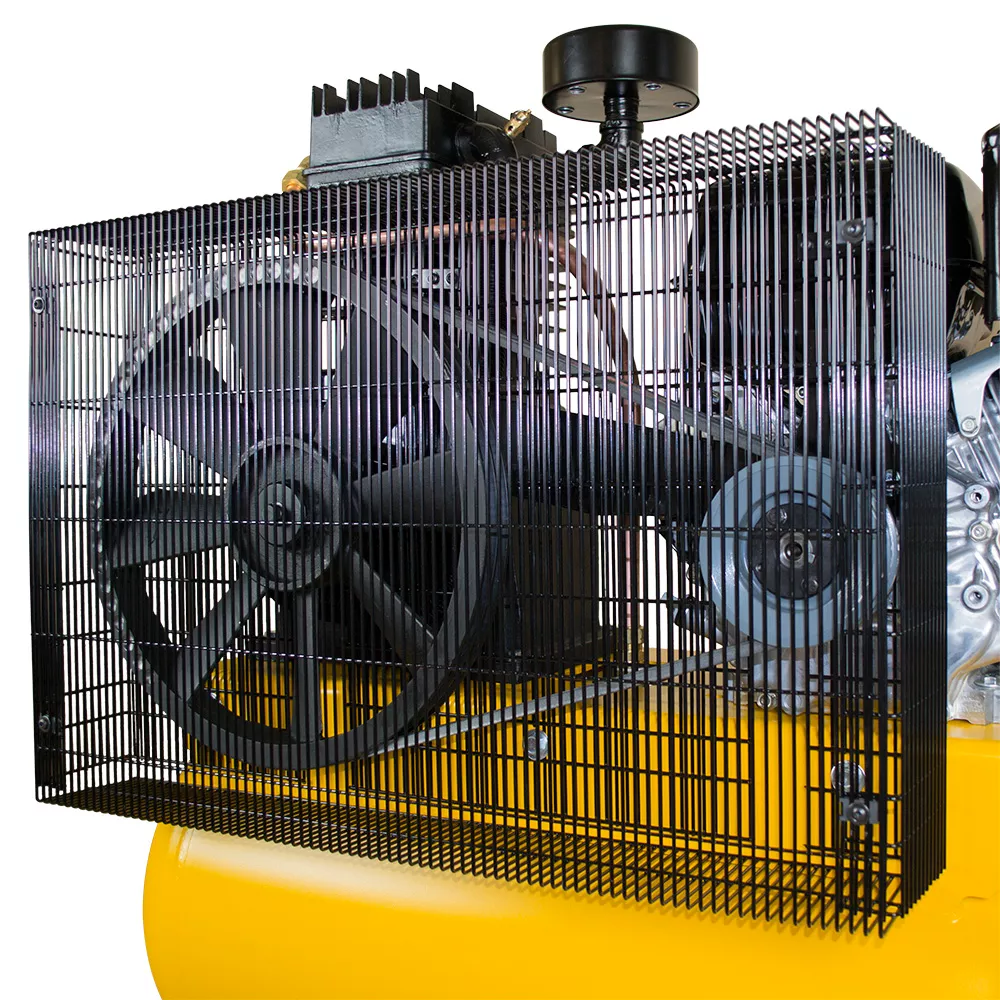

Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs

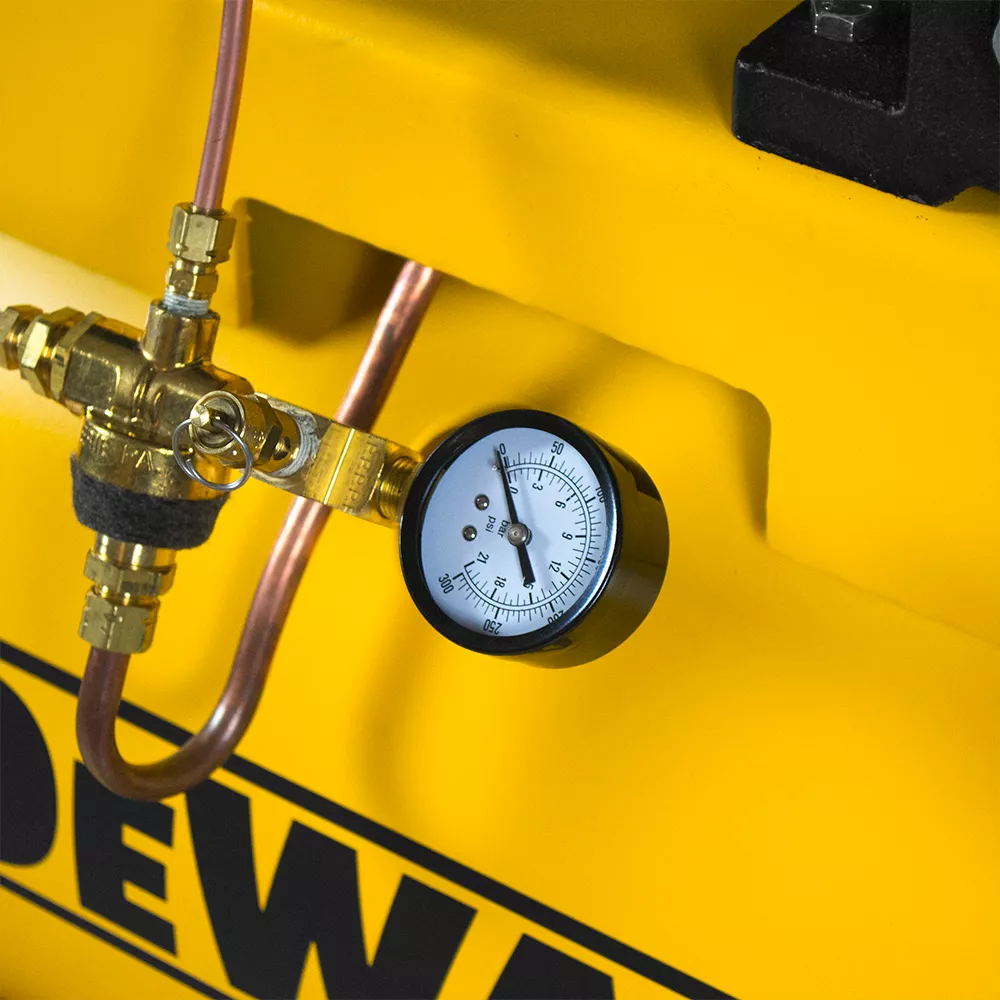

Liquid filled gauge provides more accurate tank pressure rating
Equipped with high flow port to serve complete air system with multiple users demanding continuous air flow
2 year limited pump; 1 year all other components
Air compressor with EPA and CARB approved for safety
Automatic low-oil shutdown function for convenience

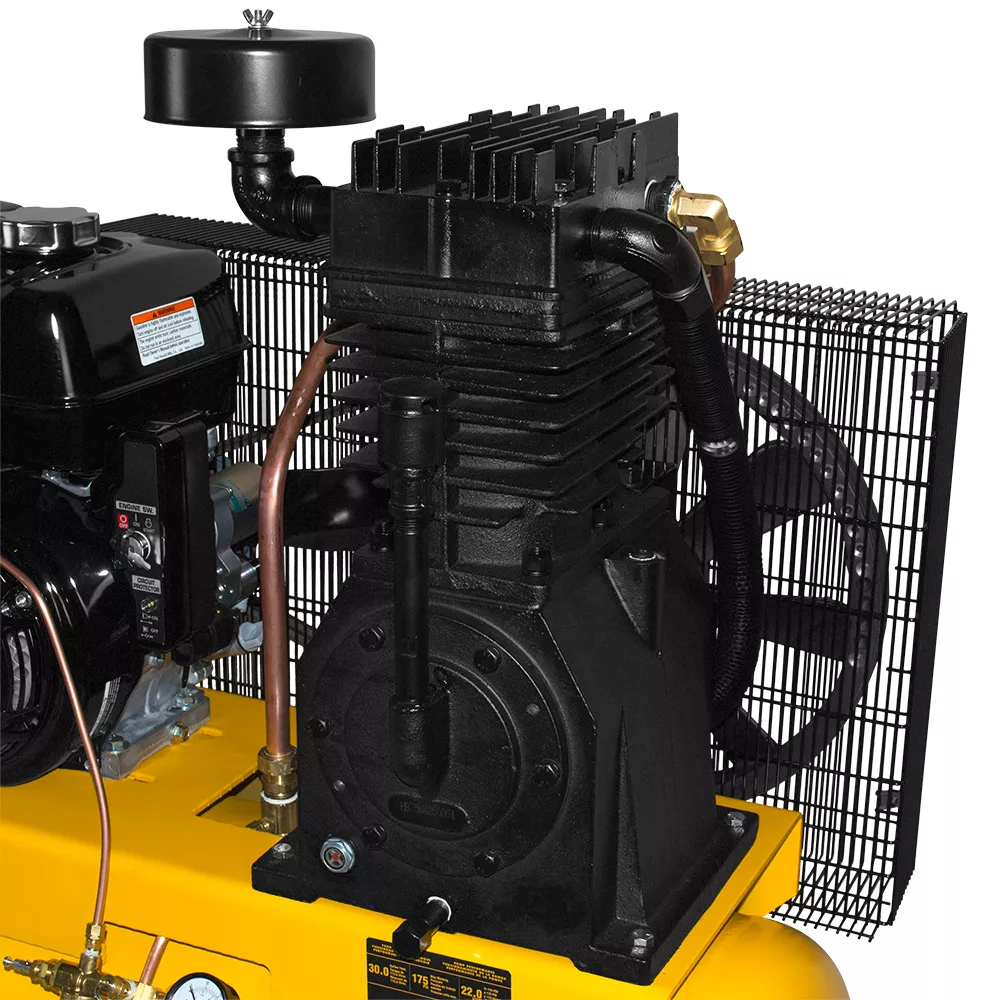

Crafted with patented piston design and cast iron precision board cylinder head
Set of patented asymmetrical deep-groove directional turning fins and patented cast iron flywheel design

DeWALT 13 RHP 30 gal Truck Mounted 2-Stage Gasoline Horizontal Air Compressor 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	DeWALT
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	24 @ 100 PSI
Air Delivery SCFM At 90 PSI	22 CFM @ 175 PSI
Airflow Volume	24 SCFM @ 100 PSI, 22 SCFM @ 175 PSI
Air Outlet Size	3/4 in.
Compressor Horsepower	13 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	30 gal
Compressor Type	Oil lubricated
Compressor Voltage	N/A
Drain System	Manual Drain Valve
Drive Type	Belt
Features	Honda, GX390 OHV Gas Engine, Maximum CFM @ 175 PSI, 30 Gallon Truck Mount Style Tank, ASME Certified Tank
Fuel Tank Capacity	30 gal.
Maximum RPM	3,600 RPM
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Gas
Primary Color	Yellow
Primary Material	Cast Iron
Product Height	46.4 in.
Product Length	42 in.
Product Weight	427 lb.
Product Width	19.5 in.
Pump Material	Cast iron
Pump Oil Capacity	30 gal.
Stage Type	Two-Stage
Tank Fill Time	2.25 minutes
Tank Orientation	Horizontal
Warranty	2 Year Limited
Manufacturer PartNumber	DXCMH1393075

DeWALT 13 RHP 30 gal. 2-Stage Truck-Mounted Horizontal Gas-Powered Air Compressor, 175 PSI Specifications Expand/Collapse Specification Description Brand DeWALT Country of Origin Made in USA Air Flow SCFM at 40 PSI 24 to 100 PSI Air Flow SCFM at 90 PSI 22 CFM at 175 PSI Air Flow Volume 24 SCFM at 100 PSI, 22 SCFM at 175 PSI Air Outlet Size 3/4 in. Compressor Power 13 HP Maximum Compressor PSI 175 PSI Compressor Operation Auto Start/Stop Compressor Tank Capacity 30 gal Compressor Type Oil Lubricated Compressor Voltage N/A Drain System Manual Drain Valve Drive Type Features Honda Gas Engine, GX390 OHV, Maximum CFM at 175 PSI, 30 Gallon Truck Style Tank, ASME Certified Fuel Tank Capacity 30 gal. Maximum RPM 3,600 RPM Number of Power Speeds Single Number of Wheels 0 Power Type Gas Main Color Yellow Main Material Cast Iron Product Height 46.4 in. Product length 42 in. Product weight 427 lbs. Thereproduct width 19.5 in. Pump Material Cast Iron Pump Oil Capacity 30 gallons. Stage Type Two-Stage Tank Fill Time 2.25 minutes Tank Orientation Horizontal Warranty2-year limited warranty, manufacturer part number DXCMH1393075
