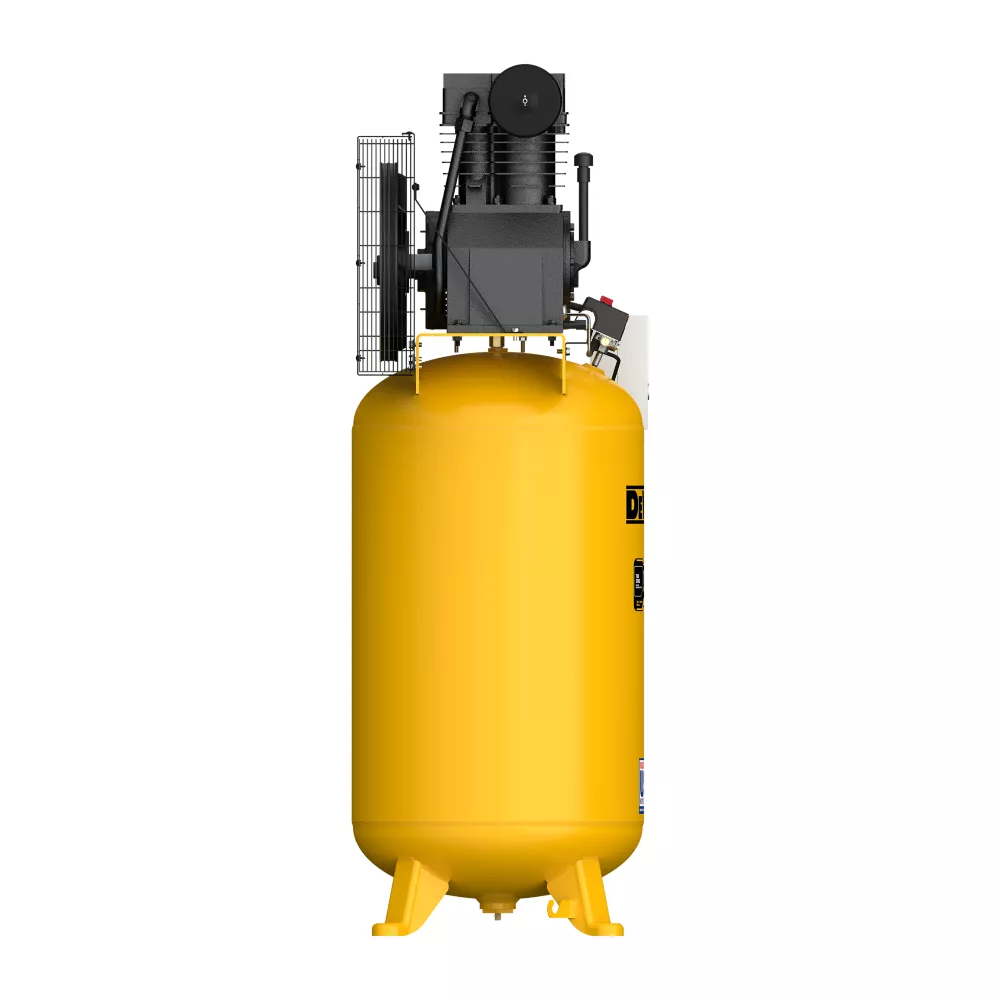

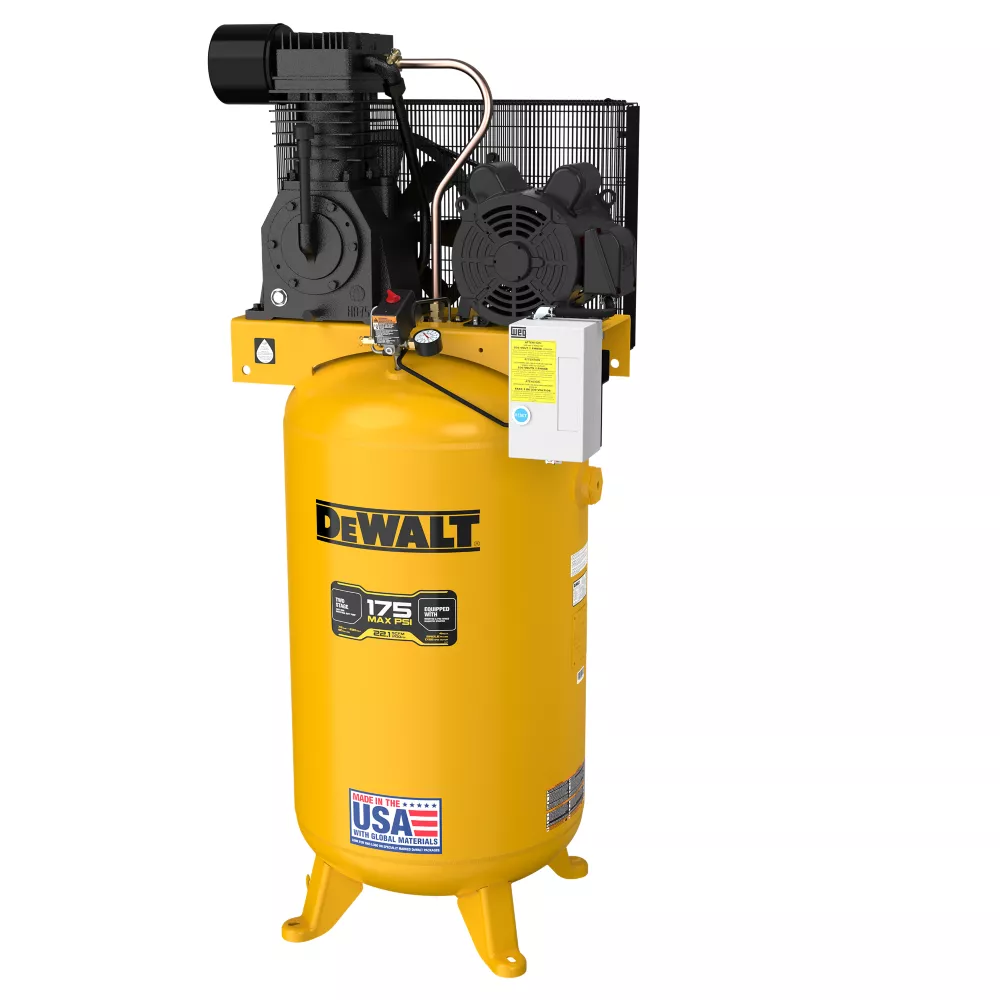

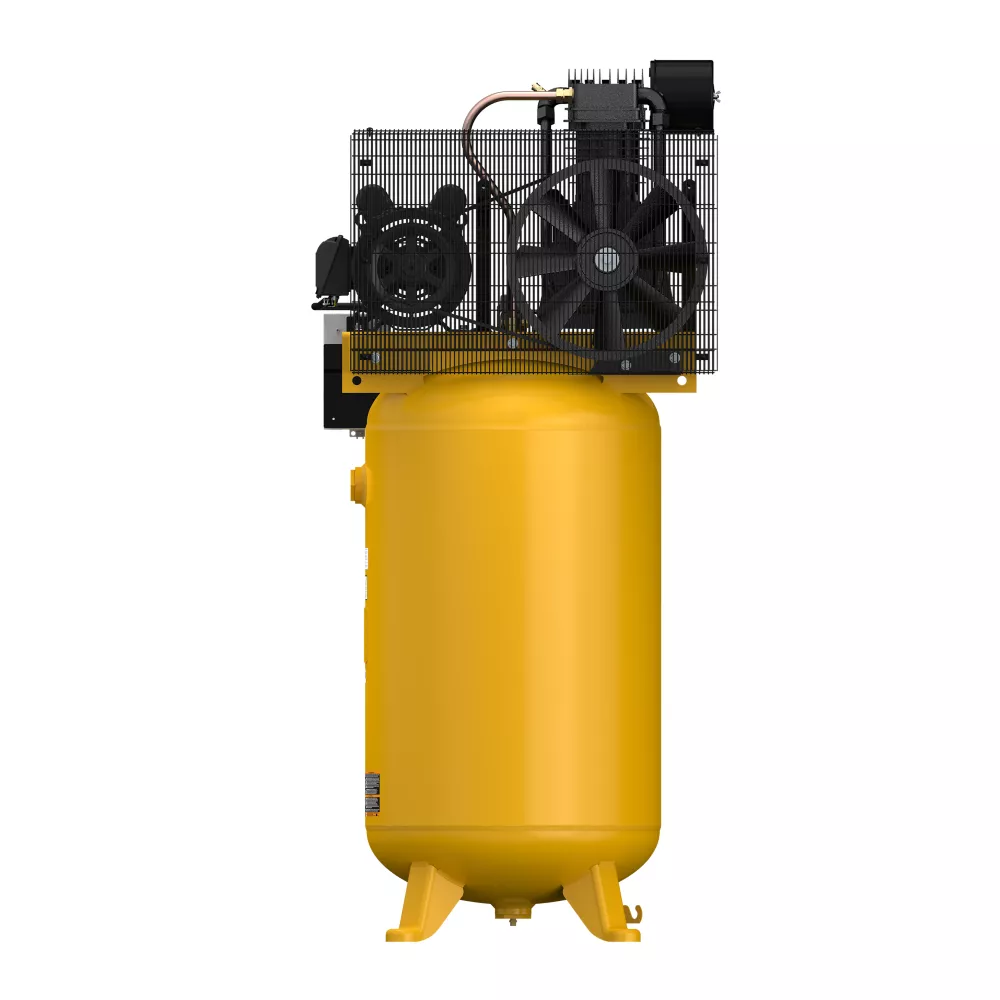

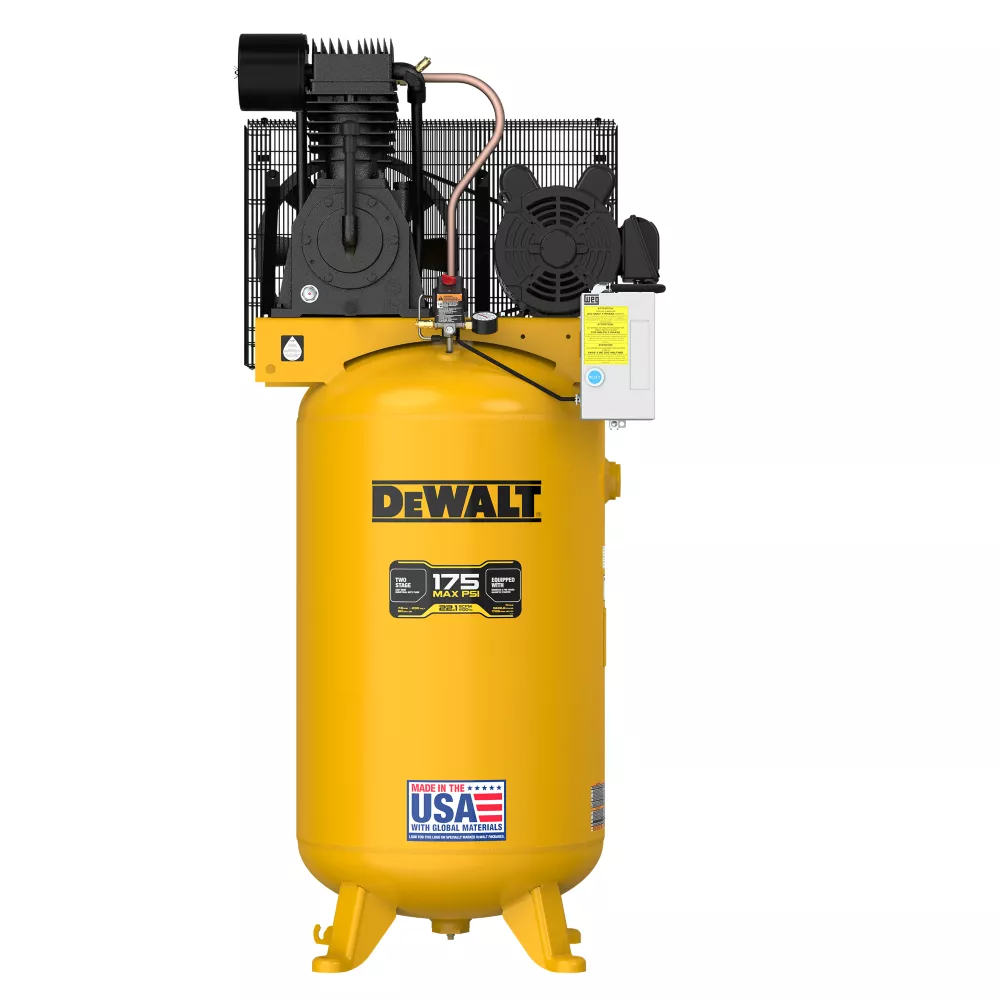

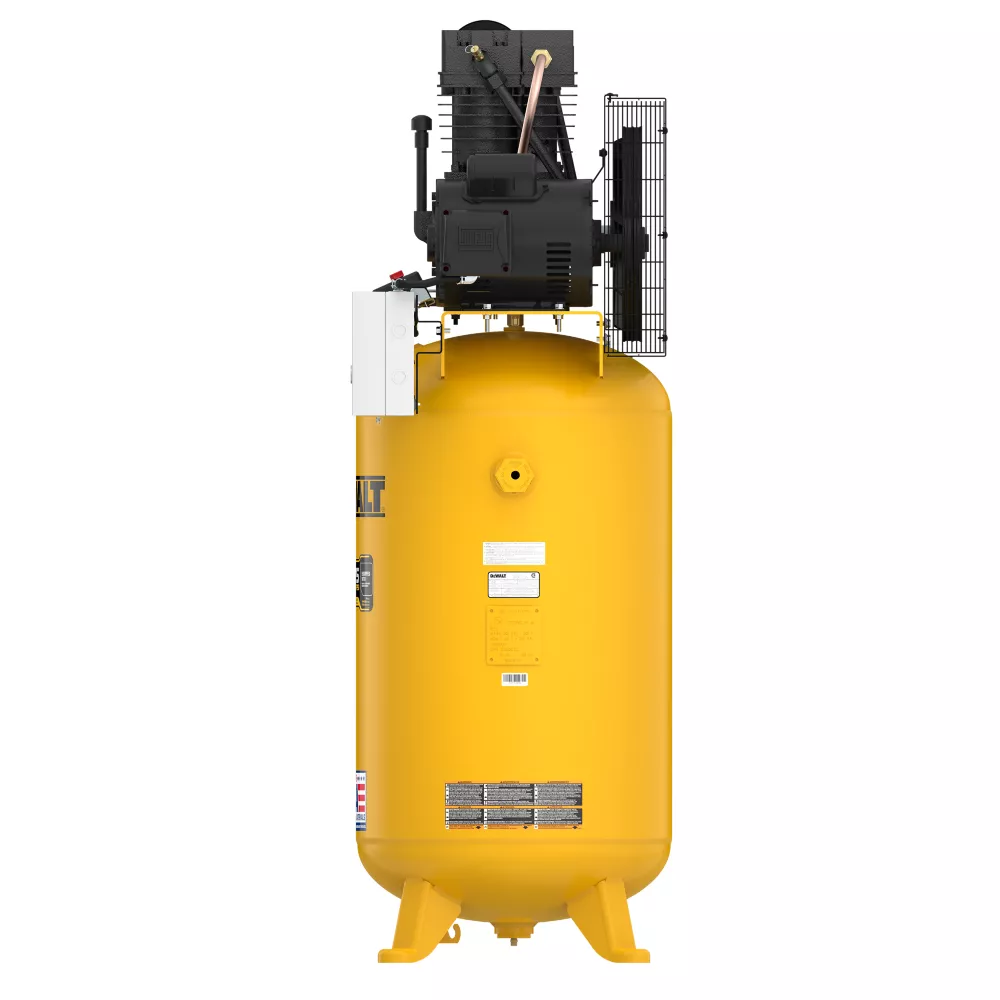

DeWALT 7.5 HP 80 gal 2-Stage Air Compressor 175 PSI Single Phase Stationary Air Compressors Air Compressors
The DEWALT 80 gal. 2 stage air compressor uses a powerful 7.5 HP induction motor to deliver a steady 21.2 SCFM at 175 PSI. This DEWALT air compressor features an industrial class electric motor, which provides enough power to operate more than one air tool or device at one time. with a capacity for serious work, this machine has the endurance to keep pneumatic tools big and small running. This machine is ready for any job. Install this powerhouse into your work area, wire it up and get to work. This unit features a 230v electric motor. It should be connected to a power supply that is 230 Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 40-amp double pole breaker for proper installation.) This compressor does not include a power cord.- Cast iron, 2 stage, oil lubricated pump
- Heavy duty 230 volt induction motor
- 80 gal. tank is ASME certified to meet all safety standards
- Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs
- Shipped with synthetic oil for optimum pump performance and long life
- Equipped with pre-wired and mounted magnetic starter
DeWALT 7.5 HP 80 gal 2-Stage Air Compressor 175 PSI Single Phase Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | DeWALT |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 90 PSI | 22.1 SCFM |
| Airflow Volume | 22.1 CFM @ 100 PSI, 21.2 CFM @ 175 PSI |
| Air Outlet Size | 3/4 in. |
| Amperage | 31A |
| Compressor Horsepower | 7.5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Type | Oil lubricated |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Belt |
| Features | Equipped with pre-wired and mounted magnetic starter |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Cast Iron |
| Product Height | 73.5 in. |
| Product Length | 43 in. |
| Product Weight | 510 lb. |
| Product Width | 33 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 53 oz. |
| Stage Type | Two-Stage |
| Tank Fill Time | 5 minutes |
| Tank Orientation | Vertical |
| Warranty | Limited Warranty: 2 Year Pump,1 Year All Other Parts |
| Manufacturer PartNumber | DXCM804 |
