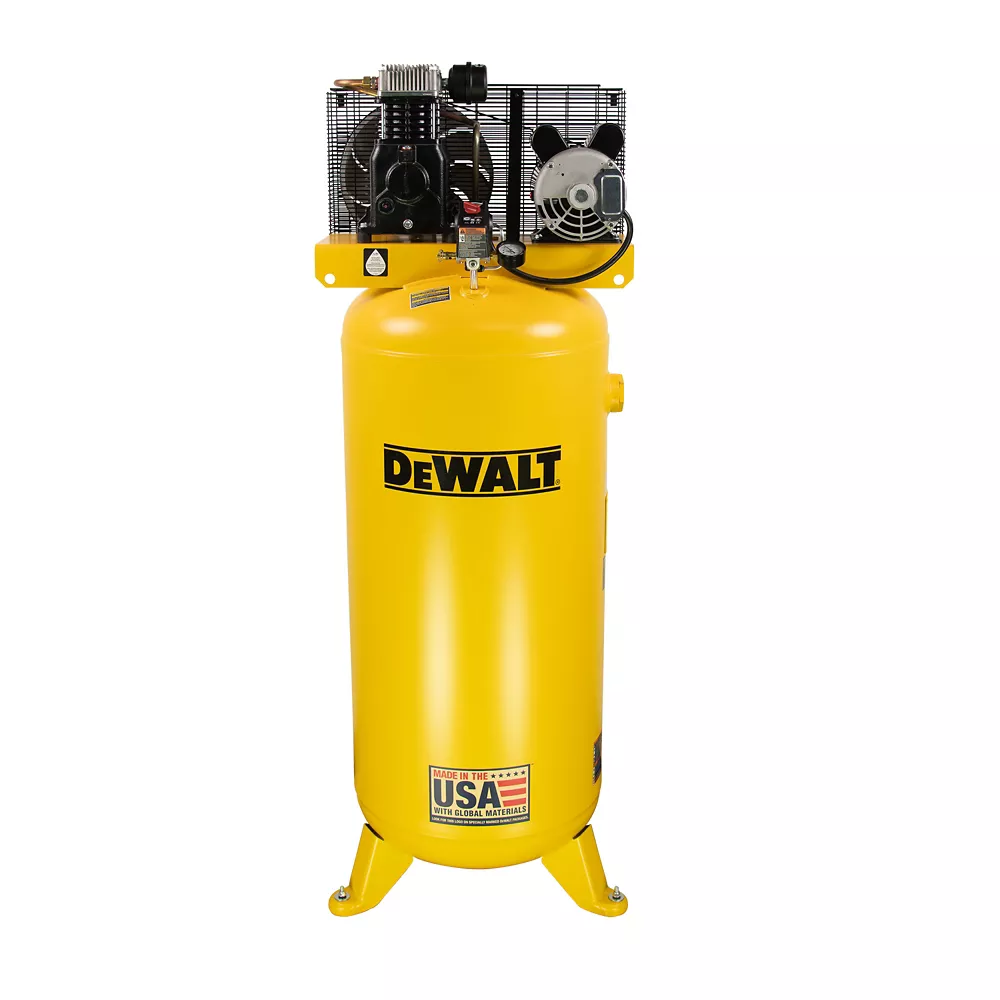

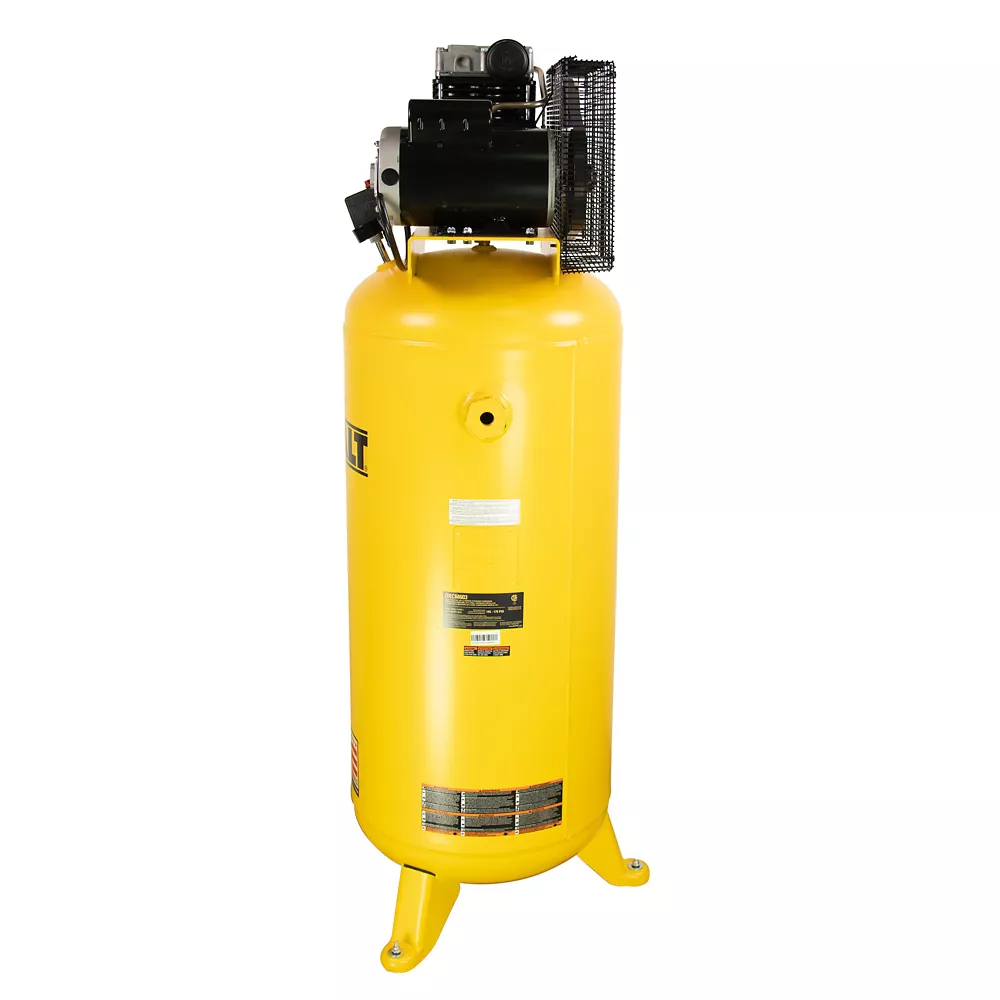

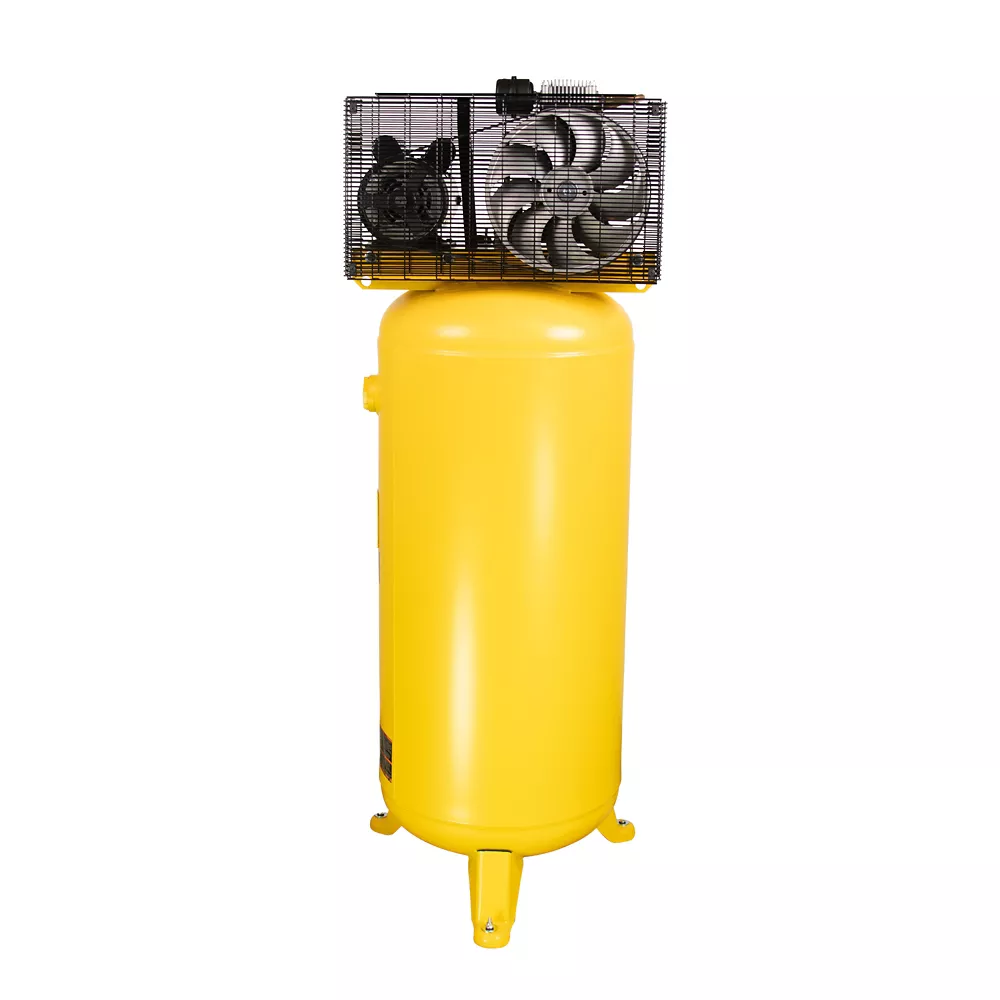

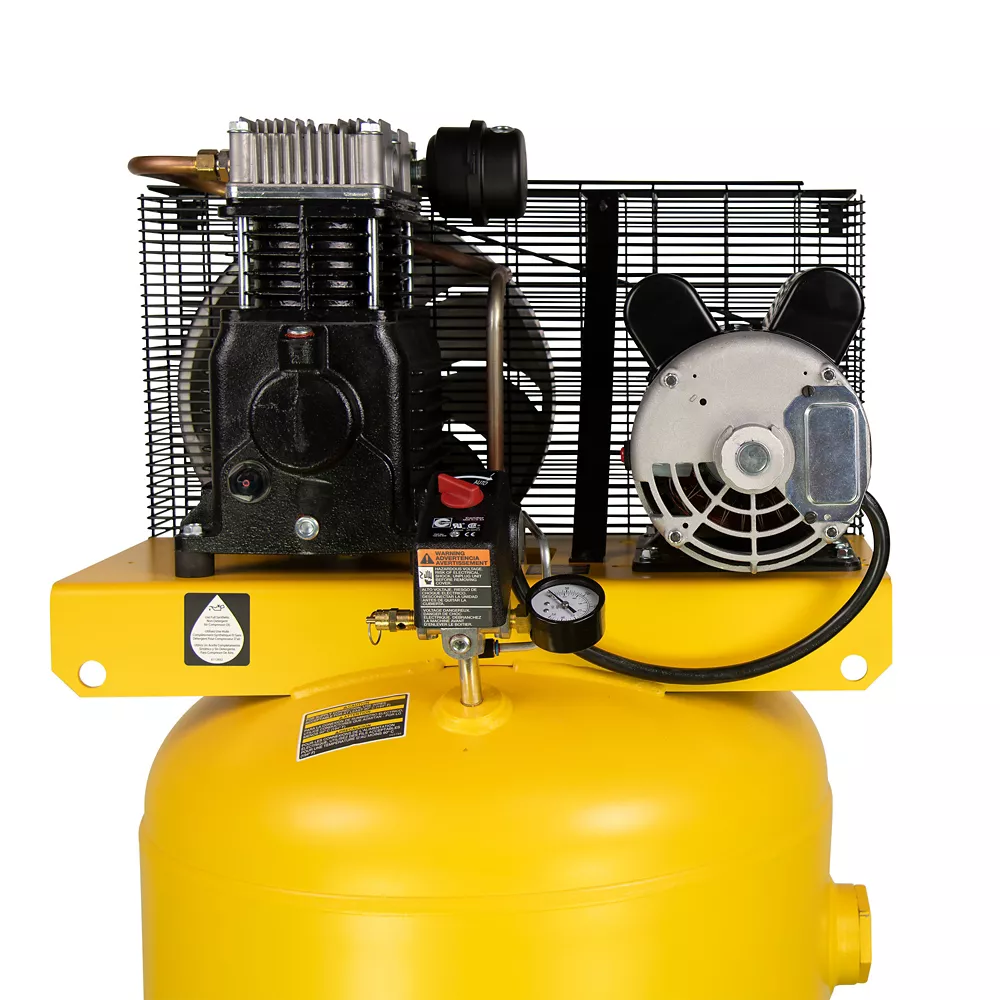

DeWALT 5 HP 60 gal High Flow Electric Stationary Air Compressor 1 Stage 175 PSI Stationary Air Compressors Air Compressors

Designed with performance and durability in mind, this DEWALT 60 gal. High Flow Single Stage Air Compressor at 175 PSI provides 33% longer air tool run time versus other 60 gal. 175 PSI compressors. It features an air delivery of 14.6 SCFM @ 90 PSI, which is 27% higher SCFM compared to other 60 gal. 175 PSI compressors. The DEWALT 60 Gal. 175 PSI air compressor is perfect for a small shop, automotive enthusiast or serious DIY user. This unit features a 208-230 spread volt electric motor. It should be connected to a power supply that is 240 Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 30 amp double pole breaker for proper installation) This compressor does not include a power cord.

High Air Flow, Single Stage with 14.6 SCFM @ 90 PSI
175 PSI Max Pressure typically found in two stage compressors, for optimum tool performance - 175 PSI combined with a 60 gallon tank provides more stored energy which allows for longer air tool run times
Heavy duty, 208-230 spread volt induction motor designed to operate at both 208 and 230 volt applications
Large capacity, 60 gal. ASME air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc.

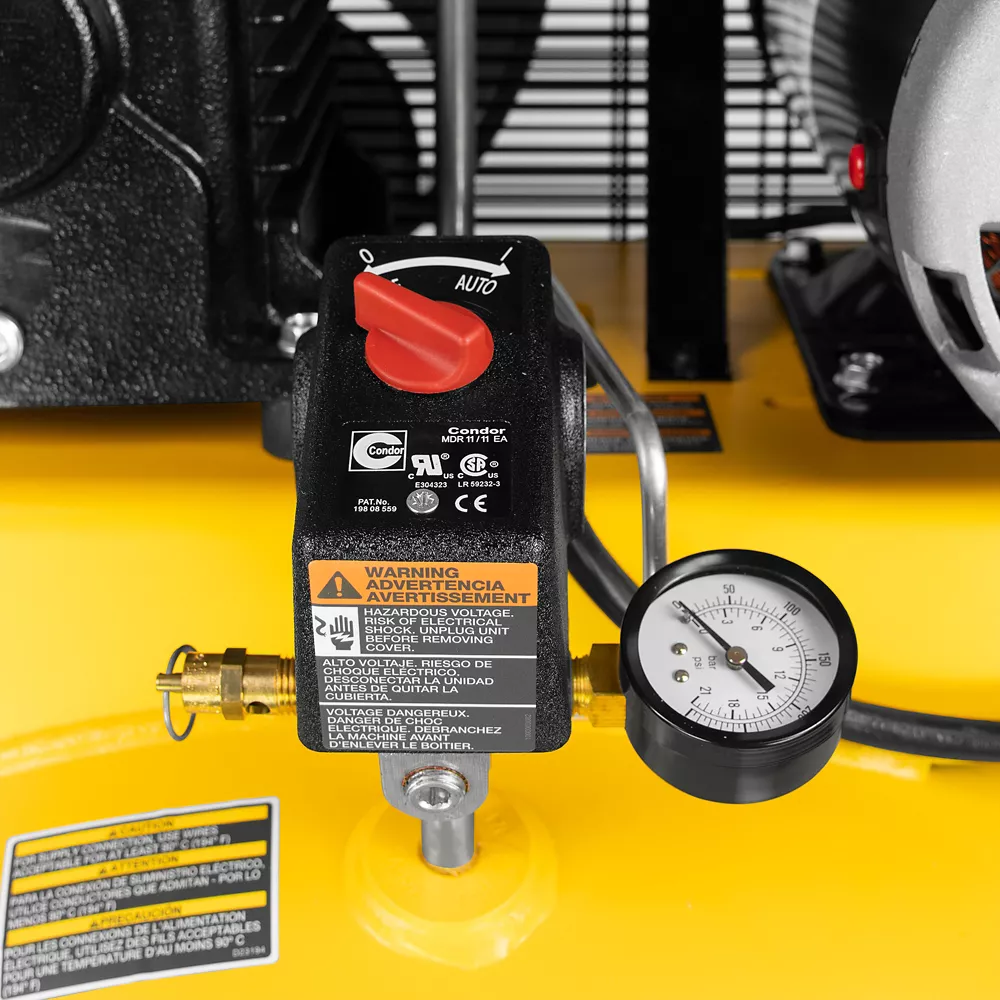

Equipped with pressure gauge and on/off switch

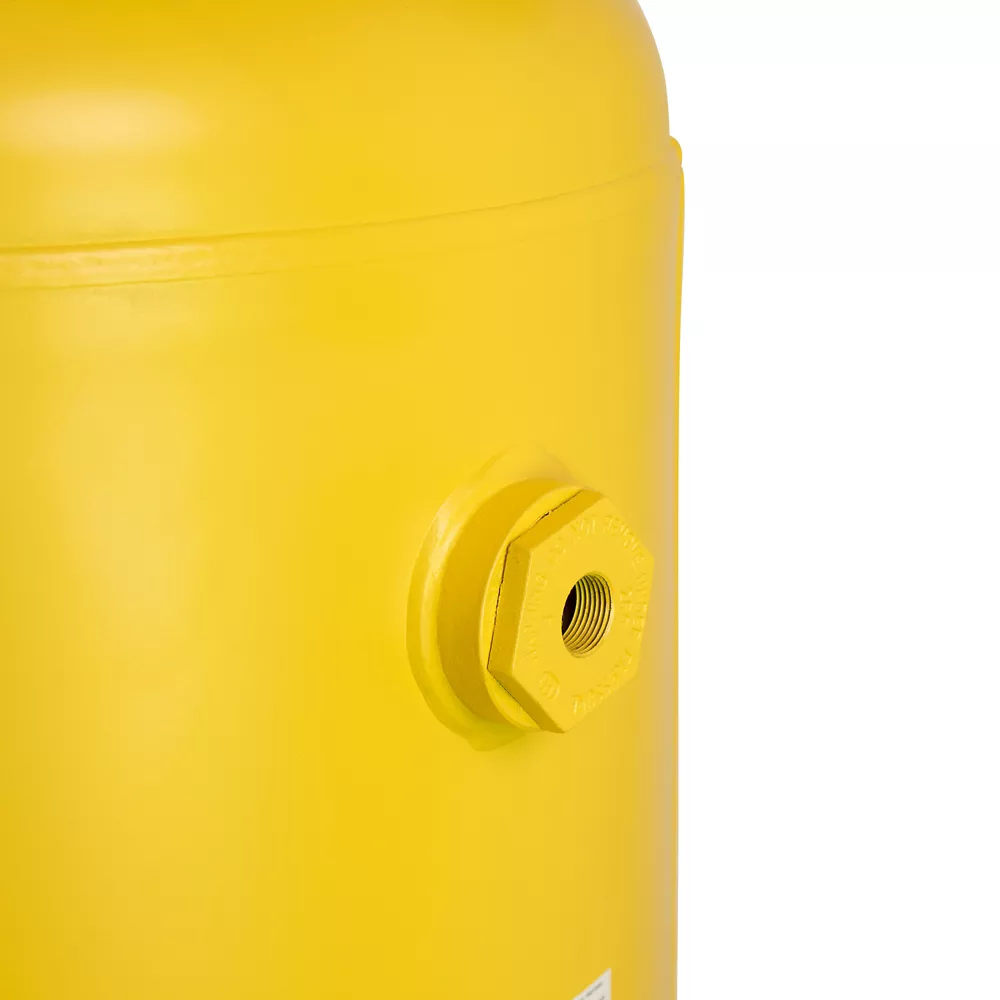

Large air outlet port
Tie down holes on platform sides to secure unit when transporting

Limited Warranty - 2 Year Pump, 1 Year All Other Parts

DeWALT 5 HP 60 gal High Flow Electric Stationary Air Compressor 1 Stage 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	DeWALT
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	17.5 CFM
Air Delivery SCFM At 90 PSI	14.6 CFM
Airflow Volume	17.5 SCFM at 40 PSI and14.6 SCFM at 90 PSI
Air Outlet Size	0.75 in.
Amperage	30A
Compressor Horsepower	5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Vertical
Compressor Voltage	240V

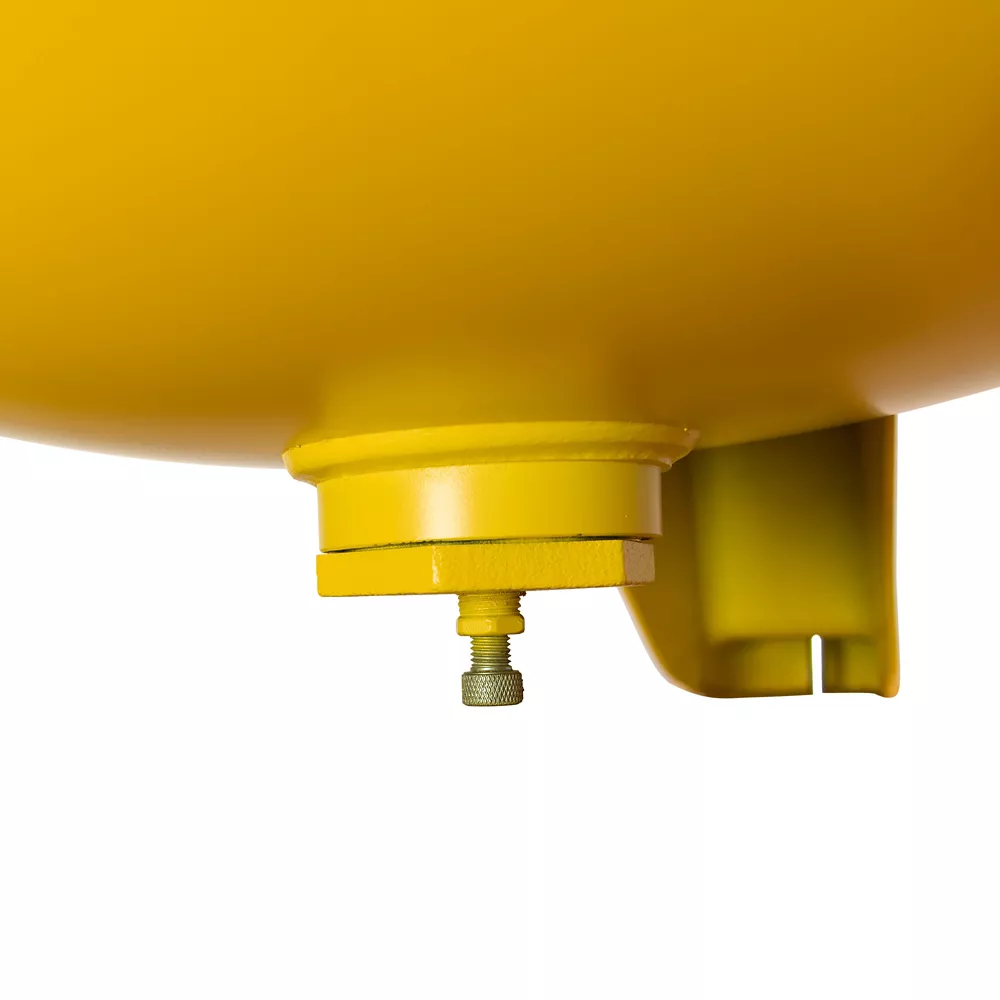

Drain System	Manual Tank Drain
Drive Type	Belt Drive
Features	High Air Flow, Single Stage, Heavy duty, 208-230 spread volt induction motor, 175 PSI Max Pressure
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	65.25 in.
Product Length	23.64 in.
Product Weight	237 lb.
Product Width	23.7 in.

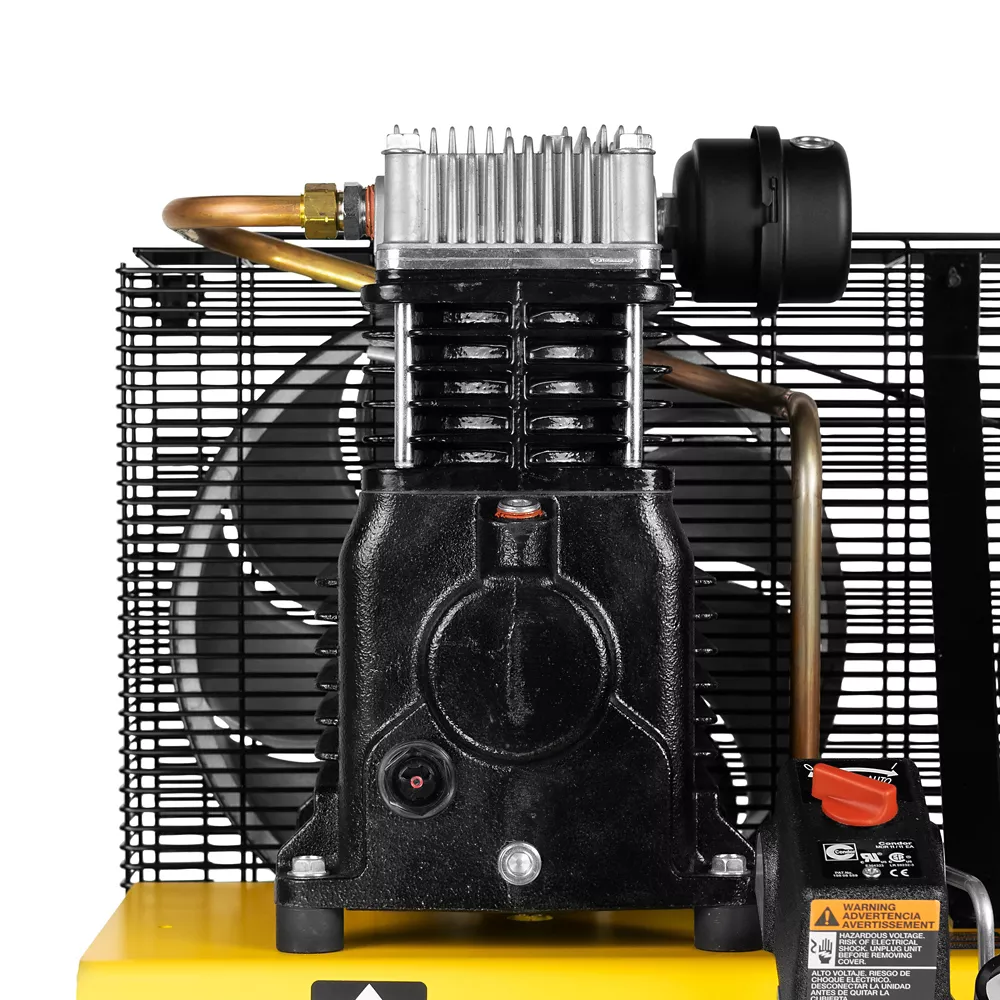

Pump Material	Cast iron
Stage Type	Single-Stage
Tank Orientation	Vertical
Warranty	2 Year Pump, 1 Year All Other Parts
Manufacturer PartNumber	DXCM603
