ECO-FLO Products Inc 1/3 HP Cast Iron Sump Pump with Vertical Switch Sump Pumps Farm & Ranch

The heavy-duty ECO-FLO Cast Iron Sump Pump is designed for strength & durability. This sump pump system handles 1/2 in. solids without clogging. The sump pump has built-in overload motor protection and is made with thermoplastic construction for extra durability.

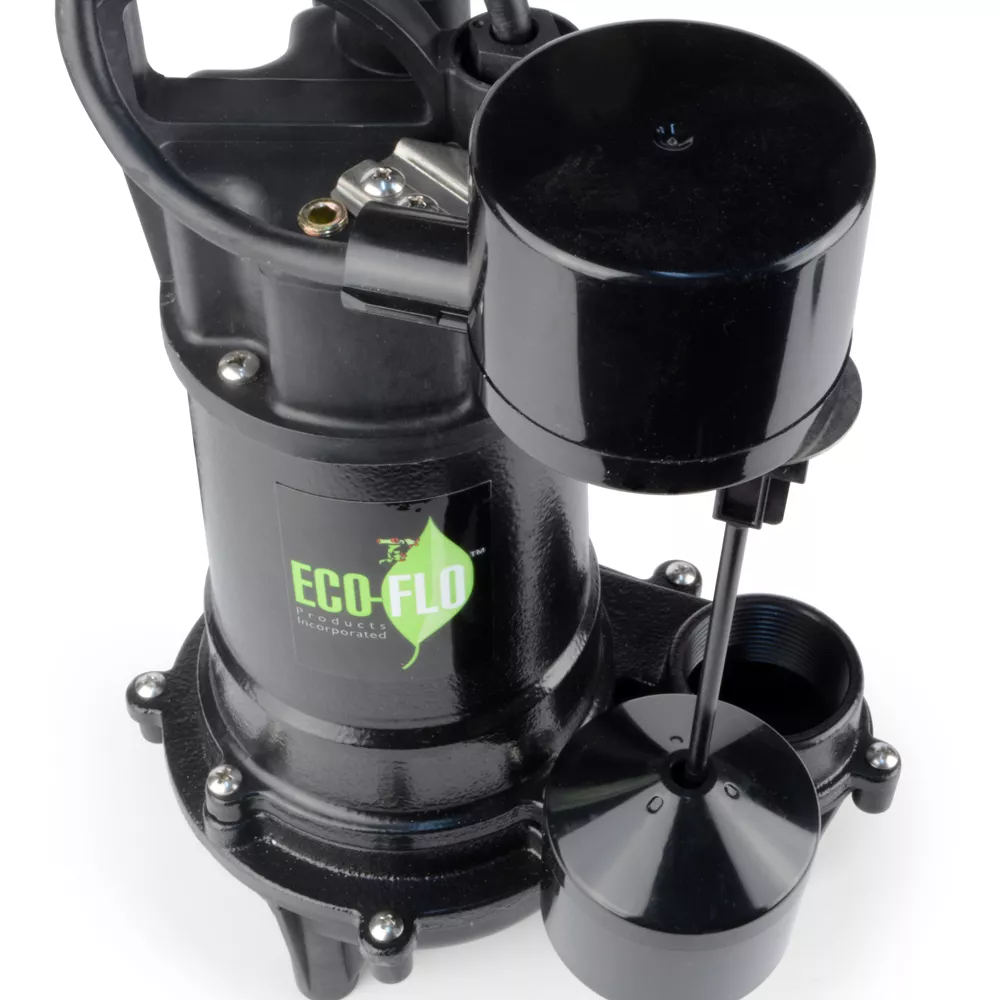

Vertical automatic on/off switch operates in basins 11 in. in diameter x 24 in. depth
Continuous duty, efficient 115V PSC motor for lower carbon footprint; higher efficiency using less energy to operate
Submersible for quiet operation

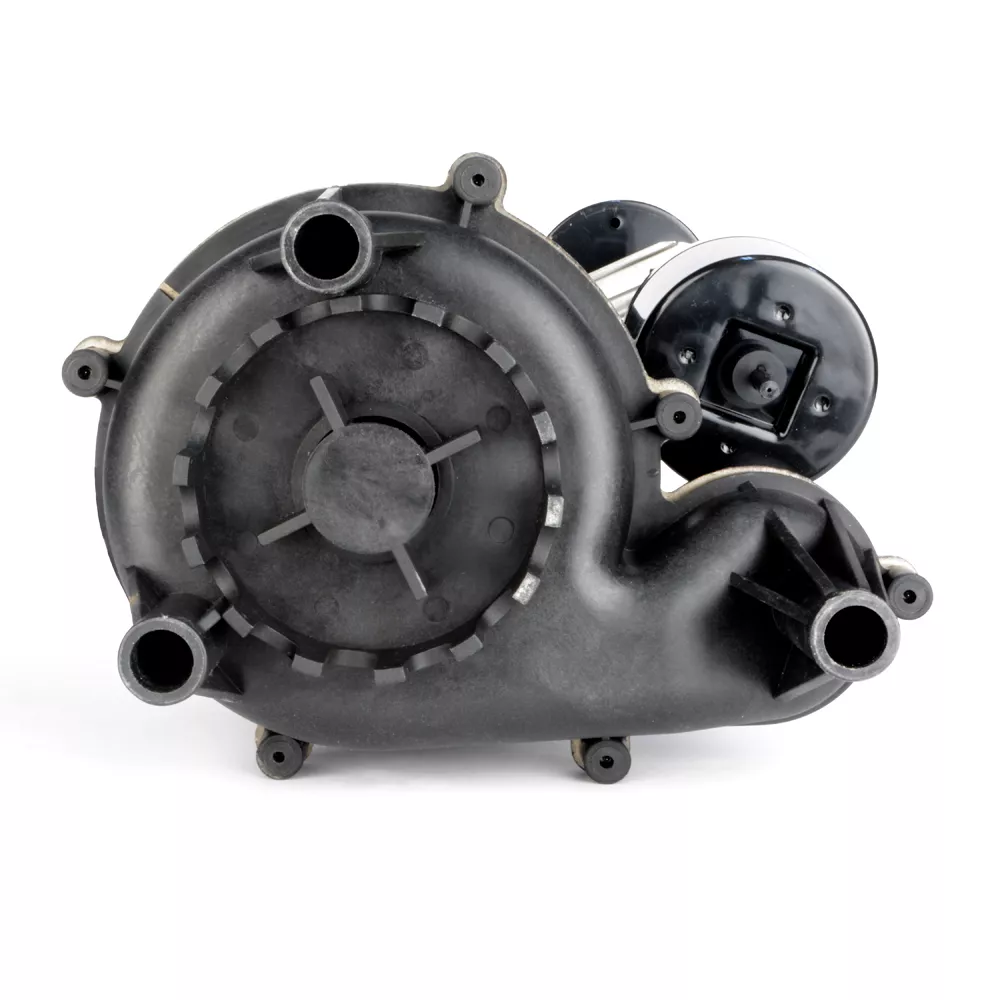

Non-clogging thermoplastic vortex impeller passes 1/2 in. solids
2 year limited warranty
1/3 HP - 3300 GPH
Sump pump has built-in overload motor protection
Sump pump system is available in black

ECO-FLO Products Inc 1/3 HP Cast Iron Sump Pump with Vertical Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Basin Diameter	11 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1.5 in.
Discharge Rate at 0 ft.	3,300 ft.
Discharge Rate at 10 ft.	2,700 ft.
Engine Displacement	0 N/A
Features	Horsepower 3300 GPH Heavy Duty Cast Iron Construction Built-in Overload Motor Protection Vertical Switch Operates in basins 14 in. in diameter x 24 in. depth Solids Handling Vortex, Thermoplastic Impeller - 1/2 in. Solids Handling
Hose Diameter	1.5 in.
Inlet Connection	None
Inlet Diameter	0 N/A
Maximum Flow Rate	3,300 GPH
Maximum Head Lift	28 ft.
Maximum Operating Pressure	12.1 ft.
Maximum Operating Temperature	104 deg. F
Maximum Solids Diameter	1/2 in.
Maximum Suction Lift	28 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	33 deg. F
Power Type	Electric
Product Height	16.5 in.
Product Length	10 in.
Product Weight	17.16 lb.
Product Width	9-13/16 in.
Pump Mechanism	Centrifugal
Motor Type	115V PSC
Switch-Off Height	4.6 in.
Switch-On Height	8.2 in.
Voltage	115v
Warranty	2 Year
Manufacturer PartNumber	ECD33V
