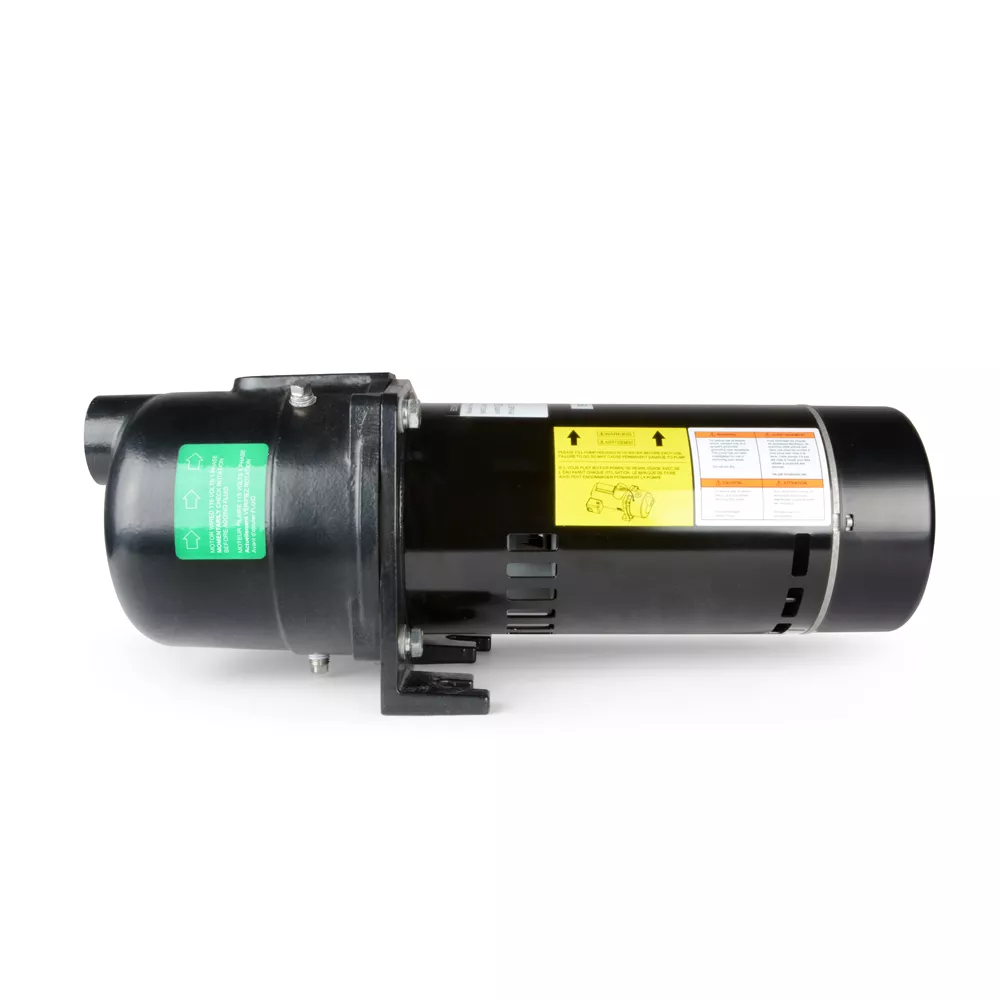

ECO-FLO Products Inc Cast Iron Shallow Well Jet Pump 1/2 HP 115/230 Volt Well Pumps Home Improvement

The ECO-FLO Products Inc. 1/2 HP 115/230V Cast-Iron Shallow Well Jet Pump is easy to use and is a great option for applications involving water depths from 25 ft. or less. The pump's heavy-duty, dual-voltage motor delivers reliable power, and its rugged construction ensures lasting use. Included with the utility pump is a detailed owner's manual.

Pumps 8 GPM at 0 degrees lift; 6 GPM at 10 ft. lift
63 PSI max pressure rating with an adjustable and replaceable prewired pressure switch
Powered by a heavy-duty, 1/2 HP dual-voltage 115/230V motor
Pumps water from 25 ft. or less
Built-in overload protection
Rugged cast-iron construction with thermoplastic pump head ensures lasting quality
Utility pump includes: detailed owner's manual
Moderate installation (plumbing skills required)
For operation, a check valve, hacksaw, screwdriver, fuse box or circuit breaker, adjustable wrench, well seal, pipe wrench, tank tee and PVC cement may be needed (sold separately)
1 in. discharge
Made in China
Backed by a 2-year warranty

ECO-FLO Products Inc Cast Iron Shallow Well Jet Pump 1/2 HP 115/230 Volt Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Amperage	12.2-6.1 Amp
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	3 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	8.1 ft.
Discharge Rate at 25 ft.	4.5gpm
Discharge Rate at 50 ft.	0 N/A
Features	1/2 HP - pumps up to 7 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor has Corrosion-resistant Nozzle and Venturi 11/4 in. Suction, 1 in. Discharge
Head Pressure	40 PSI
Horsepower	0.5hp
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	8.1 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	33 deg. F
Power Type	Electric
Product Height	13.15 in.
Product Length	21.65 in.
Product Weight	38.3 lb.
Product Width	11.57 in.
Motor Type	PCS
Voltage	115V/230V
Warranty	1 Year
Manufacturer PartNumber	EFSWJ5

ECO-FLO Products Inc. 1/2 HP 115/230V Cast-Iron Shallow Well Jet Pump Specifications expand/collapse Specification Description Brand ECO-FLO Products Inc. Country of Origin Imported Amperage 12.2-6.1 Amps Body Material Cast Iron Compatible Pipe Material PVC Compatible Well Diameter 3 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge rate at 0 ft. Discharge rate of 8.1 feet at 25 feet. Discharge rate of 4.5 gpm at 50 feet. 0 N/A Features 1/2 HP - pumps up to 7 GPM Dual voltage - 115/230 V (factory set to 230 V) Built-in overload motor. has a corrosion resistant 11/4 in. nozzle and venturi. Suction, 1 in. Discharge Head Pressure 40 PSI Power 0.5 hp Inlet Connection Female Threaded Inlet Diameter 1.25 in. Maximum flow 8.1 GPM Maximum head lift 25 ft. Maximum operating depth 25 ft. Maximum operating temperature 104 degrees. F Minimum operating temperature 33 degrees. F Power Supply Type Product Height 13.15 in. Lengthof product 21.65 in. Product weight 38.3 lbs. Product width 11.57 in. Motor type PCS Voltage 115 V/230 V 1 year warranty manufacturer part number EFSWJ5
