K2 Pumps SPA03301TDK 1/3 HP Cast Aluminum Sump Pump with Direct Connected Switch Sump Pumps Farm & Ranch

The K2 Pumps 1/3 HP sump pump with direct-in tethered float switch, discharges 3600 GPH at 0 ft, with a maximum lift of 28 ft. The motor housing is constructed of epoxy-coated aluminum, which dissipates heat and promotes efficient motor cooling. This pump is ideal for applications that require a rugged submersible sump pump. The energy-efficient, oil-filled PSC motor provides continuous lubrication and extends the life of the pump.

Constructed of epoxy-coated aluminum
Removes water at 3600 GPH at 0 ft. of lift, Maximum lift 28 ft.
Direct-in tethered float switch for automatic operation

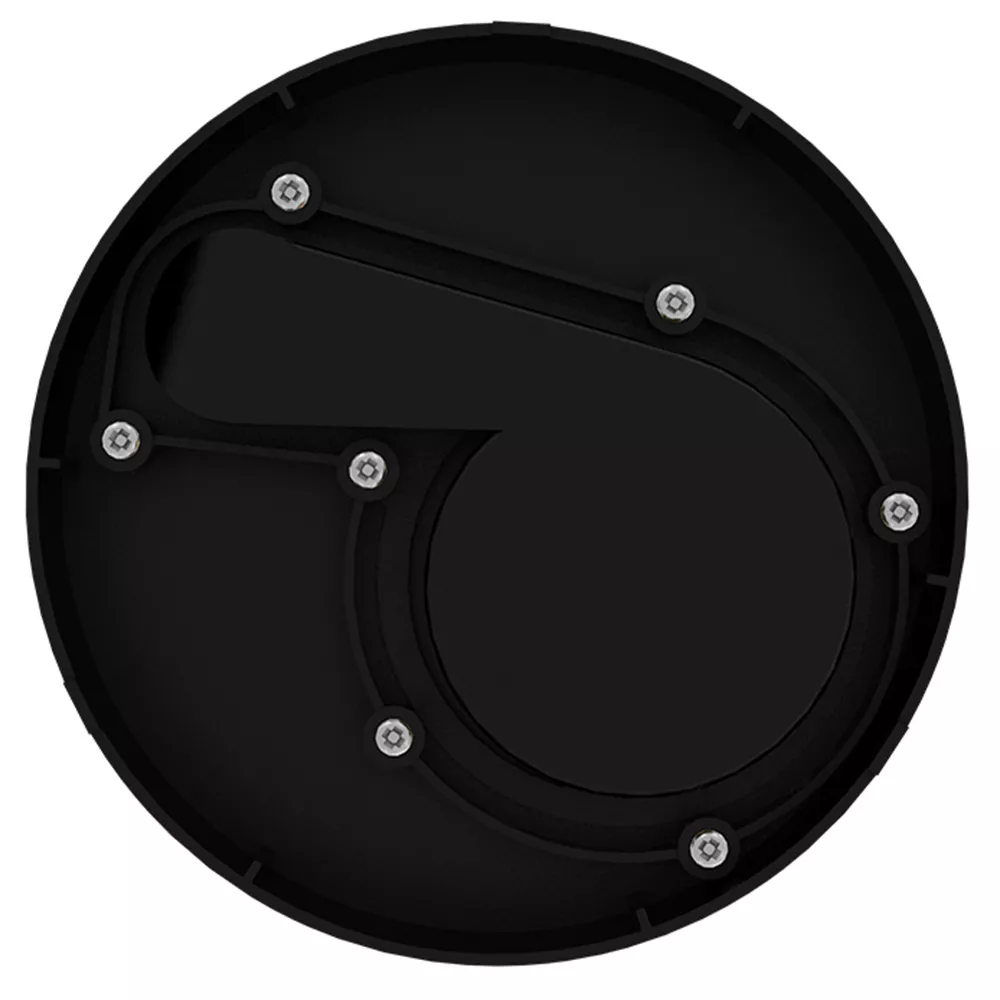

Top suctions design filters debris and handles up to 1/4 in. solids
1-1/2 in. or 1-1/4 in. (with adapter) FNPT Discharge size
Comes with a 10 ft. power cord
1 Year Warranty

K2 Pumps SPA03301TDK 1/3 HP Cast Aluminum Sump Pump with Direct Connected Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	7.6 Amp
Basin Diameter	14 in.
Body Material	Cast aluminum
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1-1/2 in.
Discharge Rate at 0 ft.	60 GPM
Discharge Rate at 10 ft.	50 GMP
Engine Displacement	0 N/A
Features	Top suction design filters debris and minimizes clogging, reduces airlock
Horsepower	1/3 HP
Hose Diameter	1-1/2 in.
Impeller Material	Thermoplastic
Inlet Connection	None
Inlet Diameter	4.85 in.
Maximum Flow Rate	60 GPM
Maximum Head Lift	28 ft.
Maximum Operating Pressure	0 N/A
Maximum Operating Temperature	95 deg.
Maximum Solids Diameter	0.25 in.
Maximum Suction Lift	28 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	32 deg.
Power Cord Length	10 ft.
Power Type	Corded/Plug-in
Product Height	11 in.
Product Length	7.88 in.
Product Weight	8.25 lb.
Product Width	9.63 in.
Pump Mechanism	Centrifugal
Motor Type	Permanent Split Capacitor (PSC)
Switch-Off Height	5.5 in.
Switch-On Height	13.5 in.
Voltage	115 V
Warranty	1 Year
Manufacturer PartNumber	SPA03301TDK
