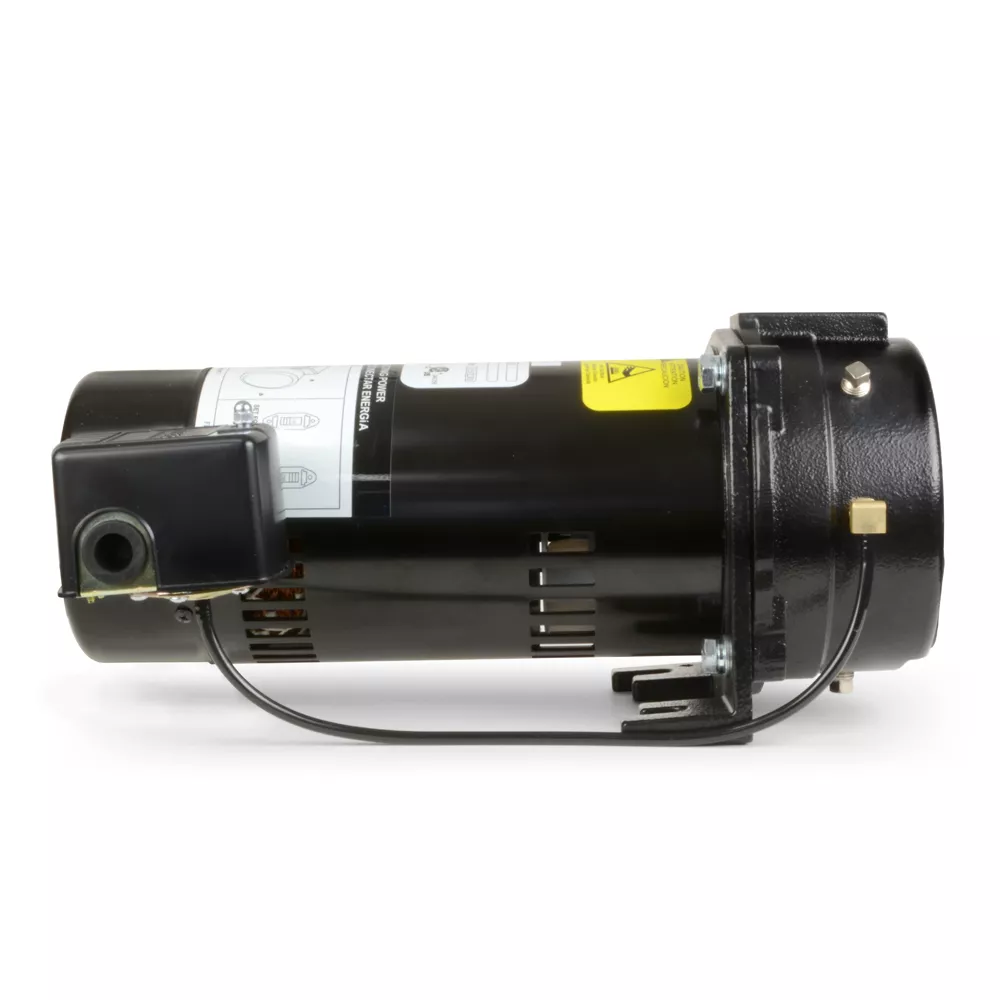

ECO-FLO Products Inc Convertible Electric Deep Well Jet Pump 1 HP 115/230 V 14.8 GPM Well Pumps Home Improvement

The ECO-FLO Products Inc. Convertible Deep Well Jet Pump can be used in either shallow or deep well installations in 4 in. wells. The well pump replacement helps provide superior performance and high capacities with more pressure for deep water wells at 20 ft. Ideal for shallow well applications with pumping levels to 25 ft., and for deep well applications with pumping levels to 90 ft. The pump has a dual voltage design of 115/230V.

Convertible Well pump with cast-iron construction
Open drip proof motor protects all electrical components from dust and insects
30/50 pressure switch
Motor consists of stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal and insulated windings
Well ejector kit included
Dual voltage 115/230V
1-1/4 in. suction and 1 in. discharge

ECO-FLO Products Inc Convertible Electric Deep Well Jet Pump 1 HP 115/230 V 14.8 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Amperage	11.9 Amp -6 Amp
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	4 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	14.8gpm
Discharge Rate at 25 ft.	8.7gpm
Discharge Rate at 50 ft.	5gpm
Features	1 HP - pumps up to 9.0-14.8 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor, Well Injector Kit included (Well Injector Casting, Jet Nozzle, Venturi Tubes,and Hardware) 1-1/4 in. Suction, 1 in. Discharge
Horsepower	1hp
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	14.8gpm
Maximum Head Lift	90 ft.
Maximum Operating Depth	90 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	33 deg. F
Power Type	Electric
Product Height	13.15 in.
Product Length	21.65 in.
Product Weight	46.74 lb.
Product Width	11.57 in.
Motor Type	PSC
Voltage	115-230v
Warranty	2 Year
Manufacturer PartNumber	EFCWJ10

ECO-FLO Products Inc. 1 HP 115/230V Electric Convertible Deep Well Jet Pump, 14.8 GPM Specifications expand/collapse Specification Description Brand ECO-FLO Products Inc. Country of Origin Imported Amperage 11.9 A -6 A Body Material Cast Iron Compatible Pipe Material PVC Compatible Well Diameter 4 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge rate at 0 14.8 gpm Discharge rate at 25 ft. 8.7 gpm Discharge rate at 50 ft. 5 gpm Features 1 HP - pumps up to 9.0-14.8 GPM Dual voltage - 115/230 V (factory set to 230 V) Built-in overload motor, well injector Kit included (well injector casting, jet nozzle, Venturi tubes and hardware) 1-1/4 in. Suction, 1 in. Discharge Power 1 HP Inlet Connection Female Threaded Inlet Diameter 1.25 in. Maximum flow 14.8 gpm Maximum head lift 90 ft. Maximum operating depth 90 ft. Maximum operating temperature 104 degrees. F Minimum operating temperature 33 degrees. F Power Supply Type Product Height 13.15 in. lonproduct height 21.65 in. Product weight 46.74 lbs. Product width 11.57 in. Motor Type PSC Voltage 115-230 V2 Year Warranty Manufacturer Part Number EFCWJ10
