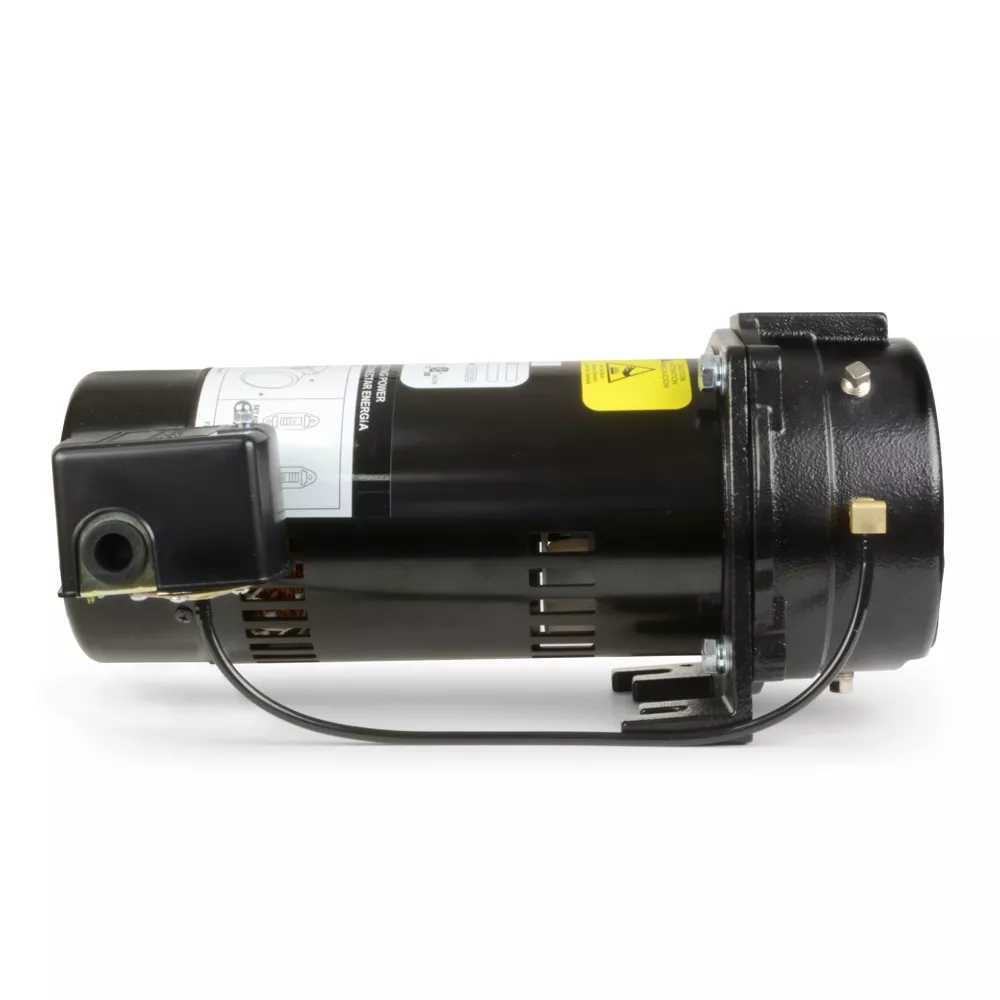

ECO-FLO Products Inc Deep Well Convertible Electric Jet Pump 1/2 HP 115/230V 4.5 GPM Well Pumps Home Improvement

The ECO-FLO Convertible Deep Well Jet Pump can be used in either shallow or deep well installations in 4 in. wells. The well pump replacement helps provide Superior Performance and High Capacities with more Pressure for Deep Water Wells at 20 ft. Ideal for shallow well applications with pumping levels to 25 ft., and for deep well applications with pumping levels to 90 ft.

Well pump replacement with cast-iron construction

ECO-FLO Products Inc Deep Well Convertible Electric Jet Pump 1/2 HP 115/230V 4.5 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Amperage	108 Amp -5.4 Amp
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	4 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	4.5gpm
Discharge Rate at 25 ft.	4 ft.
Discharge Rate at 50 ft.	2.3 ft.
Features	1/2 HP - pumps up to 4.5 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor, Well Injector Kit included (Well Injector Casting, Jet Nozzle, Venturi Tubes,and Hardware) 11/4 in. Suction, 1 in. Discharge
Head Pressure	40 PSI
Horsepower	0.5hp
Impeller Material	Plastic
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Maximum Flow Rate	4.5gpm
Maximum Head Lift	60 ft.
Maximum Operating Depth	60 ft.
Maximum Operating Temperature	0 N/A
Minimum Operating Temperature	0 N/A
Power Type	Electric
Product Height	12.6 in.
Product Length	17.13 in.
Product Weight	42.33 lb.
Product Width	8.66 in.
Motor Type	PCS
Voltage	115-230v
Warranty	2 Year
Manufacturer PartNumber	EFCWJ5

ECO-FLO Products Inc. 1/2 HP 115/230V Electric Convertible Deep Well Jet Pump, 4.5 GPM Specifications expand/collapse Specification Description Brand ECO-FLO Products Inc. Country of Origin Imported Amperage 108 A -5.4 A Body Material Cast Iron Compatible Pipe Material PVC Compatible Well Diameter 4 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge Rate at 0 4.5 FPM Discharge Rate at 25 ft 4 ft Discharge Rate at 50 ft 2.3 ft Features 1/2 HP - pumps up to 4.5 GPM Dual Voltage - 115/230 V (factory set to 230V) Built-in overload motor, Well Injector Kit Included (well injector casting, jet nozzle, Venturi tubes and hardware) 11/4 in. Suction, 1 in. Discharge Head Pressure 40 PSI Horsepower 0.5 hp Impeller Material Plastic Inlet Fitting Female Threaded Inlet Diameter 1.25 in. Maximum Flow Rate 4.5 gpm Maximum Head Lift 60 ft. Maximum operating depth 60 ft. Maximum operating temperature 0 N/A Minimum operating temperature 0 N/A Power supply typen Electric Product height 12.6 in. Product length 17.13 in. Product weight 42.33 lbs. Product width 8.66 jen. Motor Type PCS Voltage 115-230V Warranty 2 Years Manufacturer Part Number EFCWJ5
