ECO-FLO Products Inc Electric Submersible Deep Well Pump 1 HP 230 V 4 in 10 GPM 2 Wire Well Pumps Home Improvement

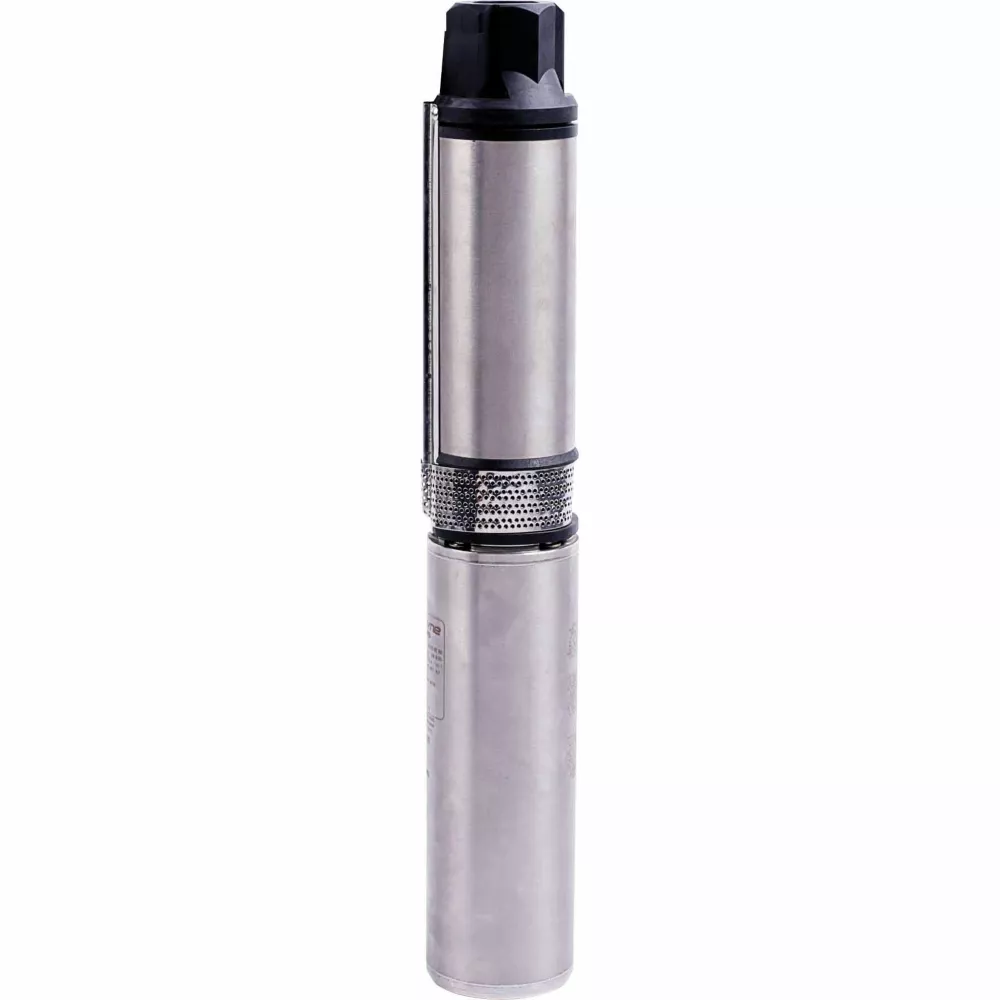

The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump has 1-1/4 in. FNPT discharge connection, includes built in check valve and provides smooth water passage for maximum efficiency. It comes with heavy-duty cast iron construction with a thermoplastic volute. This well pump is compatible with poly, PVC and steel pipe materials.- Reliable contractor type vertical switch operates in basins 14 in. in diameter
- 1/2 HP - 5,100 GPH
- Heavy-duty cast iron construction with a thermoplastic volute
- Sump pump has a built-in thermal overload motor protection
- Vortex, cast iron impeller; 1/2 in. solids handling
- Sump pump system is available in black
- Compatible with poly, PVC and steel pipe materials

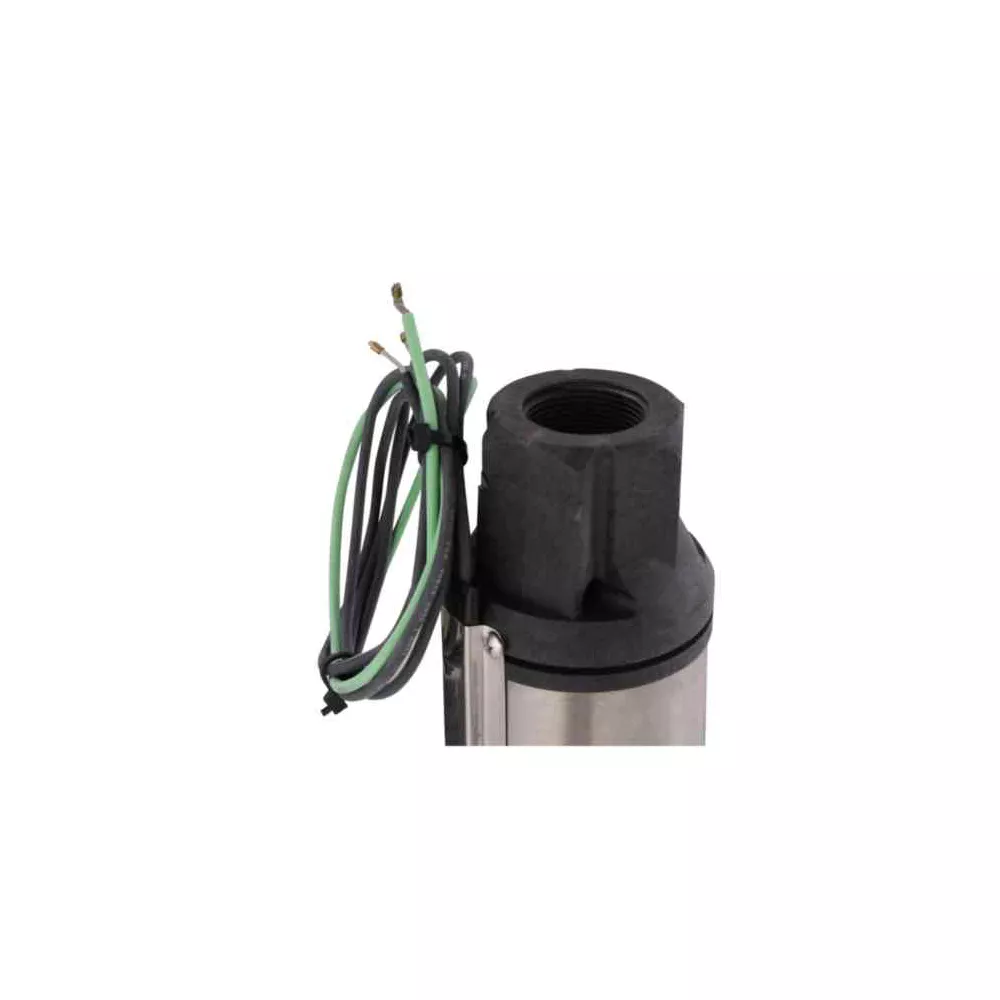

- 1-1/4 in. FNPT discharge connection; includes a built-in check valve
ECO-FLO Products Inc Electric Submersible Deep Well Pump 1 HP 230 V 4 in 10 GPM 2 Wire Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | ECO-FLO Products Inc. |
| Country of Origin | Imported |
| Amperage | 7.1 Amp |
| Body Material | Cast iron |
| Compatible Pipe Material | Steel, Poly, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 10 gpm |
| Discharge Rate at 25 ft. | 10 gpm |
| Discharge Rate at 50 ft. | 10 gpm |

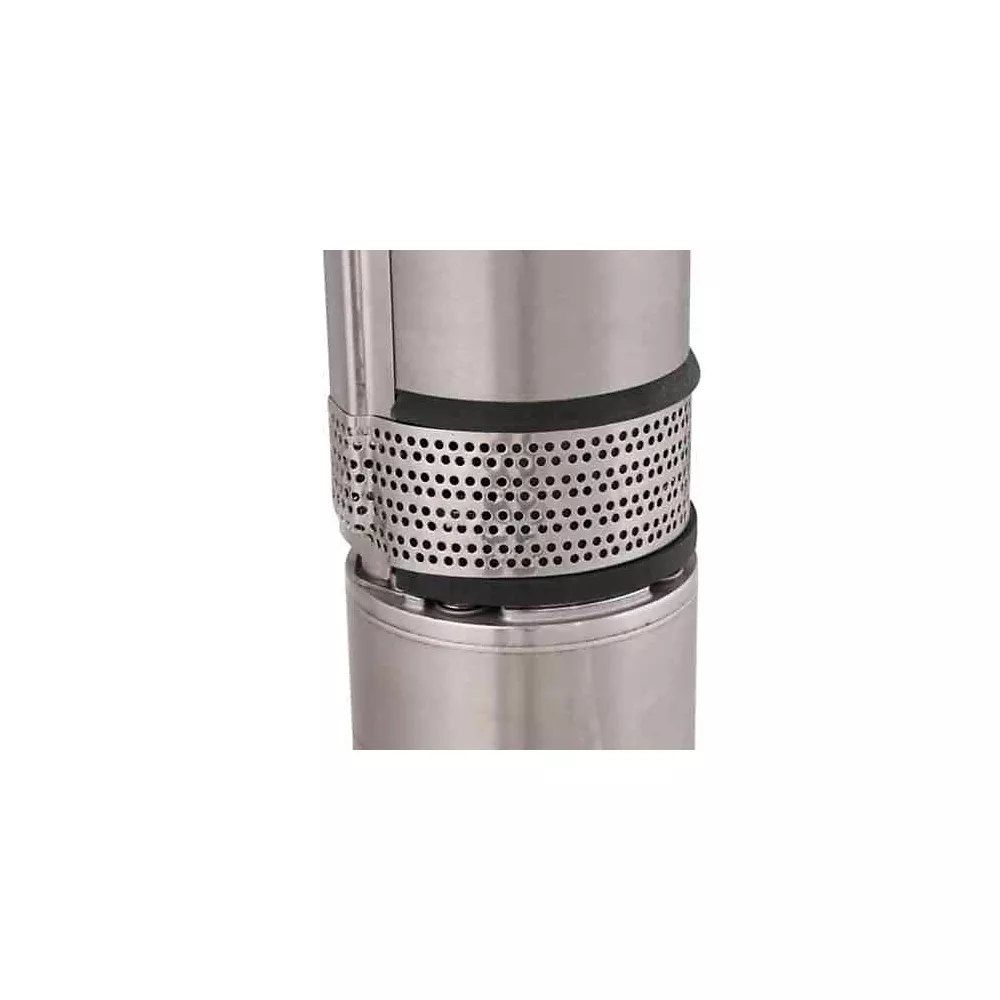

| Features | 1 1/4 in. FNPT discharge connection, incudes built-in check valve. Stainless steel pump shaft is precision ground for exact bearing fit and straightness. Stainless steel inlet screen. |
| Horsepower | 1 HP |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 10 pgm |
| Maximum Head Lift | 250 ft. |
| Maximum Operating Depth | 250 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 32 deg. F |
| Power Type | Electric |
| Product Height | 30.59 in. |
| Product Length | 3.54 in. |
| Product Weight | 30.1 lb. |
| Product Width | 3.54 in. |
| Motor Type | PSC Motor |
| Voltage | 230v |
| Warranty | 3 Year |
| Manufacturer PartNumber | EFSUB10-122 |
