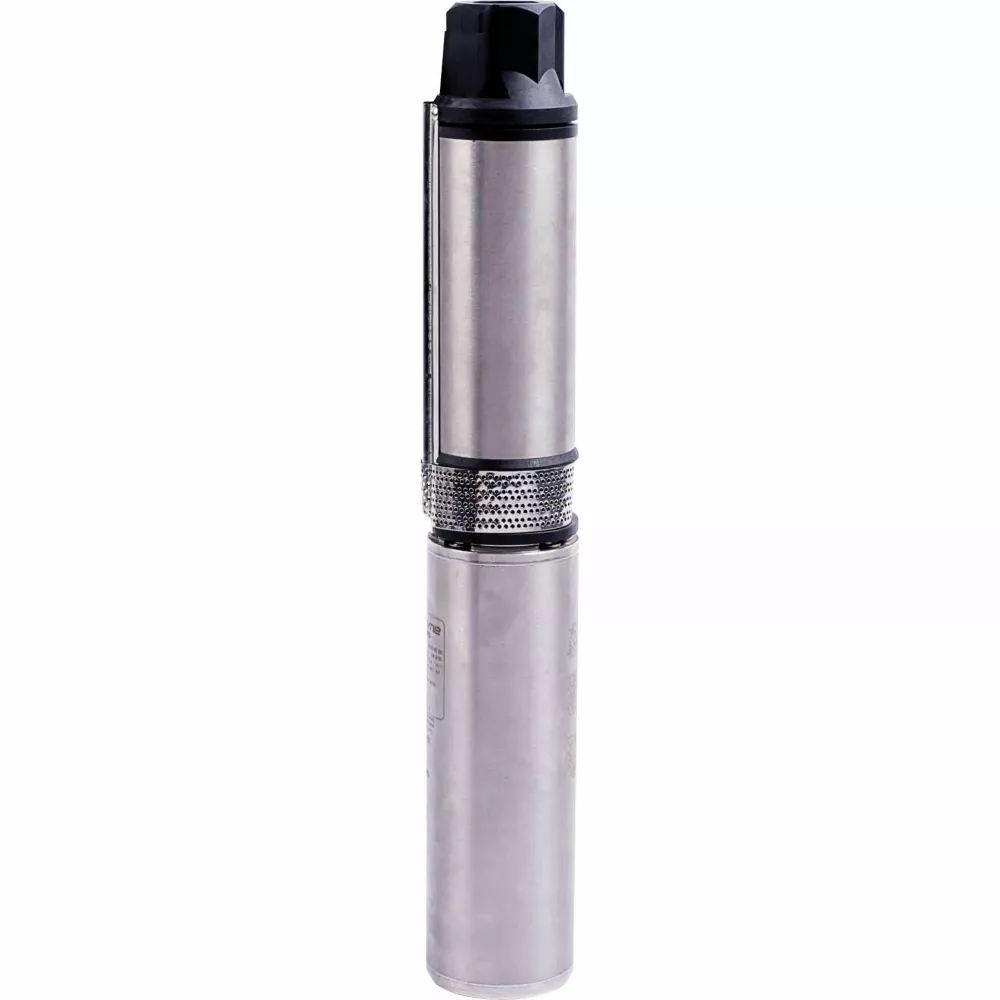

ECO-FLO Products Inc Electric Submersible Deep Well Pump 3/4 HP 230V 4 in 11.5 GPM 2 Wire Well Pumps Home Improvement
The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. This submersible well pump offers a self-healing resin system and hermetically sealed windings. The stainless-steel pump housing offers maximum protection against corrosion.- Stainless-steel deep well pump shaft is precision-ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless-steel pump housing for maximum protection against corrosion
- Stainless-steel splined shaft
- Submersible well pump with hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Removable water-bloc lead connector
ECO-FLO Products Inc Electric Submersible Deep Well Pump 3/4 HP 230V 4 in 11.5 GPM 2 Wire Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | ECO-FLO Products Inc. |
| Country of Origin | Imported |
| Amperage | 5.9 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 0 N/A |
| Discharge Rate at 25 ft. | 0 N/A |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 1/2 HP, 115V - 10 GPM Provides Smooth Water Passages for Maximum Efficiency 11/4 in. FNPT Discharge Cast Iron Discharge Connection, includes Built-in Check Valve |
| Horsepower | 0.75hp |
| Inlet Connection | None |
| Inlet Diameter | 0 N/A |
| Maximum Flow Rate | 11.5gpm |
| Maximum Head Lift | 175 ft. |
| Maximum Operating Depth | 175 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Power Type | Electric |
| Product Height | 26.5 in. |
| Product Length | 22.1 in. |
| Product Weight | 23.6 lb. |
| Product Width | 3.5 in. |
| Motor Type | Faradyne |
| Voltage | 230v |
| Warranty | 1 Year |
| Manufacturer PartNumber | EFSUB7-122 |
