Piusi USA SuzzaraBlue Tote 0.67 HP 120V Electric Fuel Pump Basic Kit with Manual Nozzle 9 GPM Fuel Transfer Pumps Truck & Automotive

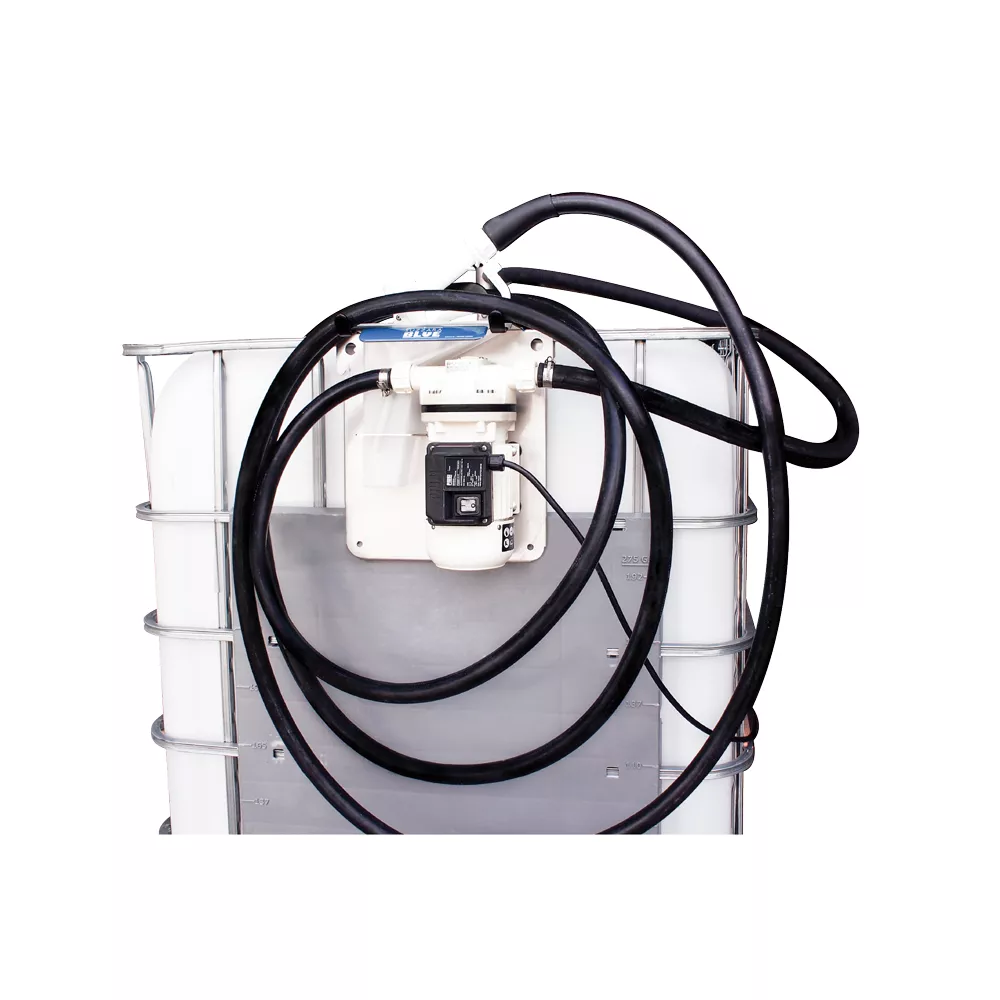

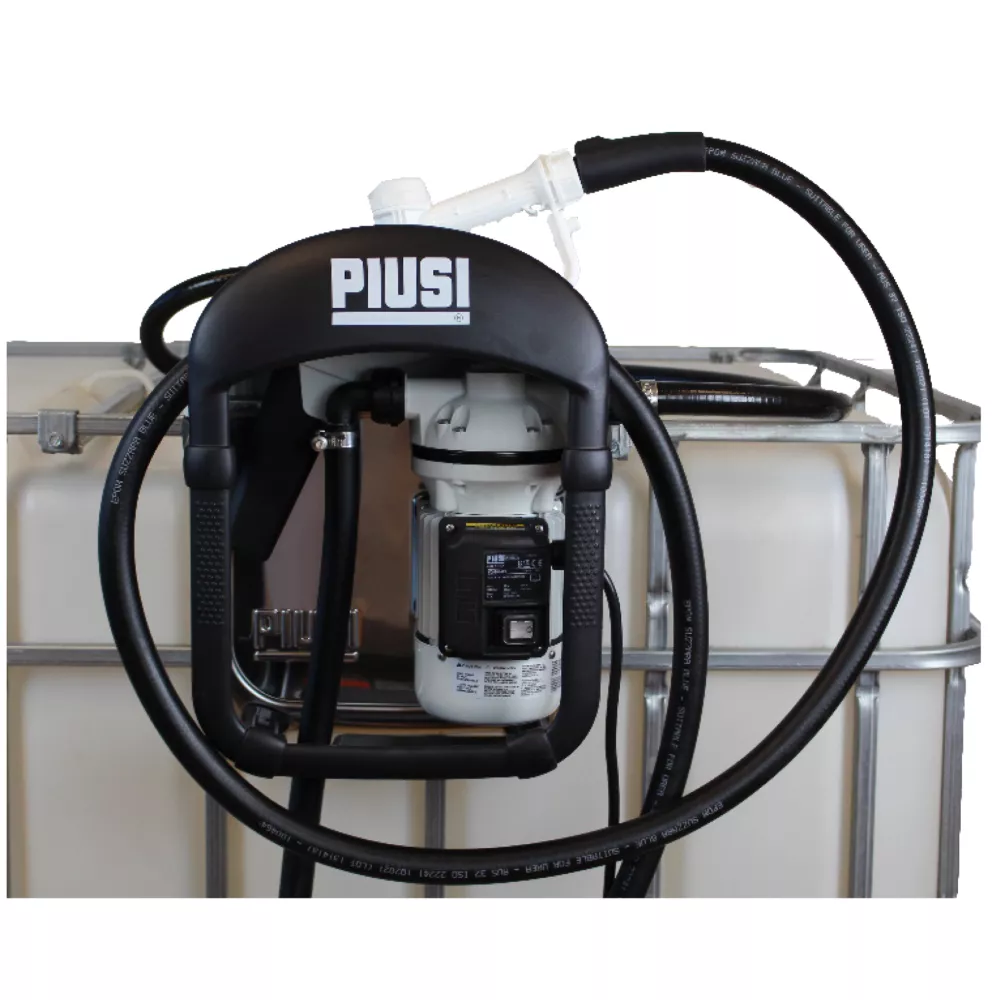

The Piusi SuzzaraBlue DEF 120V Basic Kit is the perfect economical solution for a DEF IBC tote or mini bulk application. The system is equipped with the SuzzaraBlue heavy-duty industry standard 9GPM DEF transfer pump, an easily transferable side-mount bracket, a manual nozzle, 20 ft. of dispense hose and 4ft of suction hose.

7-9 GPM flow rate
120V/60hz
20 min. on/ 20 off duty cycle
25 PSI operating pressure
6.7 ft. suction height
3/4 in. inner diameter hose
cCSAus-certified membrane pump
6.5 minute safety shut-off timer

Piusi USA SuzzaraBlue Tote 0.67 HP 120V Electric Fuel Pump Basic Kit with Manual Nozzle 9 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	4.7A
Body Materials	Polypropylene
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	20 min. on/off
Features	Self-Priming
Horsepower	0.67 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	16 PSI
Minimum Operating Temperature	12 deg. F
Power Cord Length	6 ft.
Power Type	Electric
Product Height	10.5 in.
Product Length	18.5 in.
Product Weight	28 lb.
Product Width	15 in.
Voltage	120V
Warranty	2 year
Manufacturer PartNumber	F00201A2J
