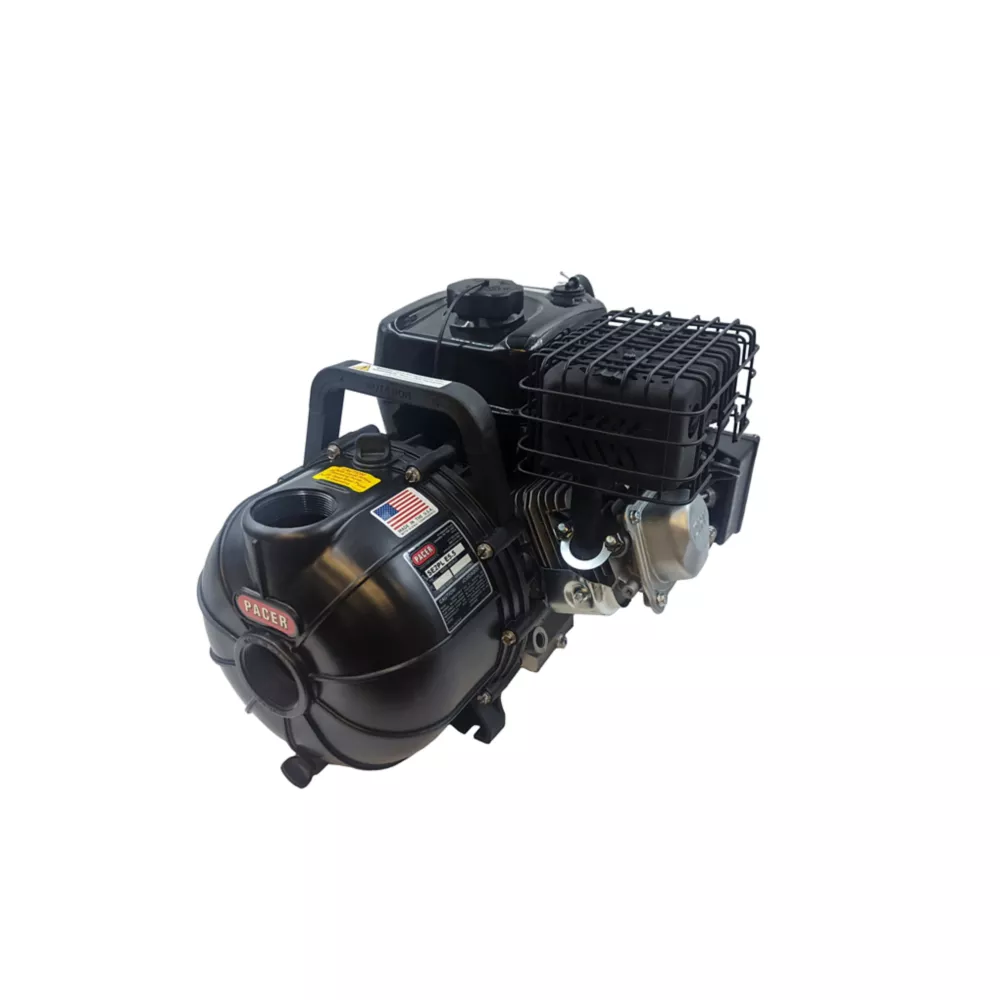

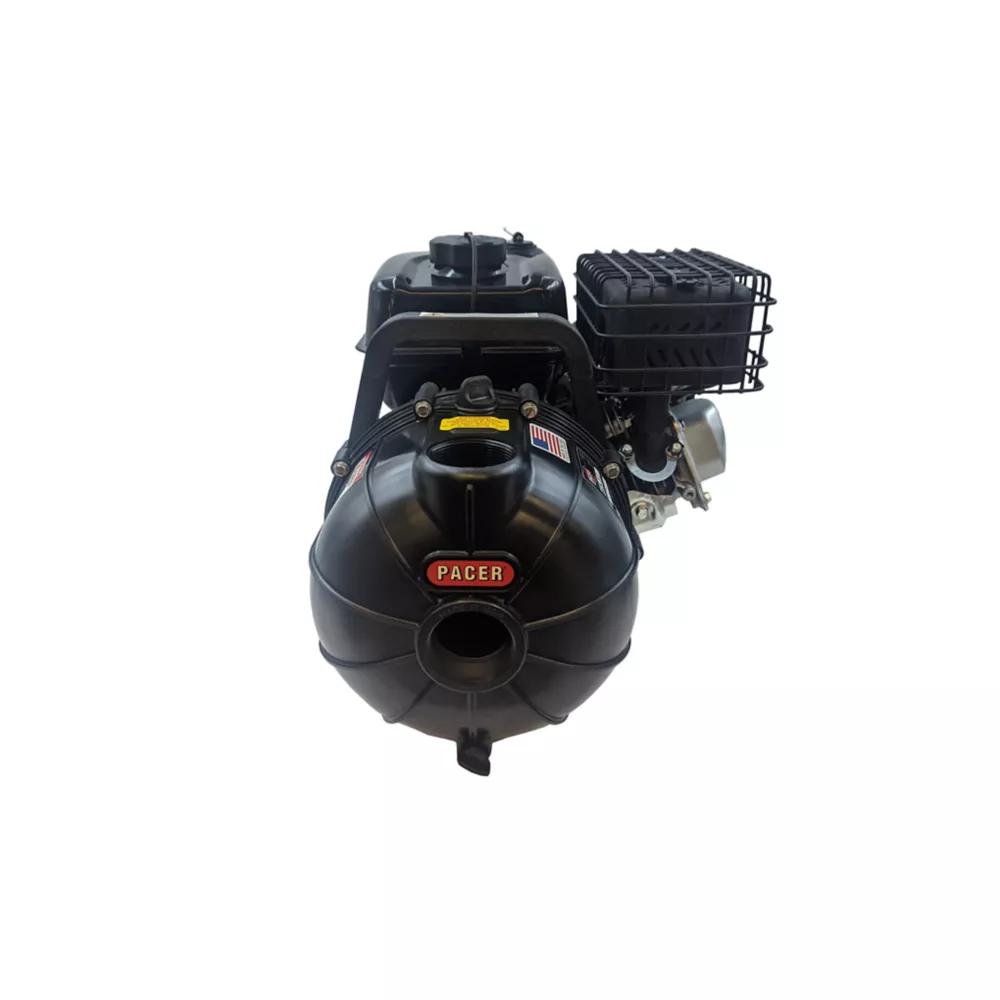

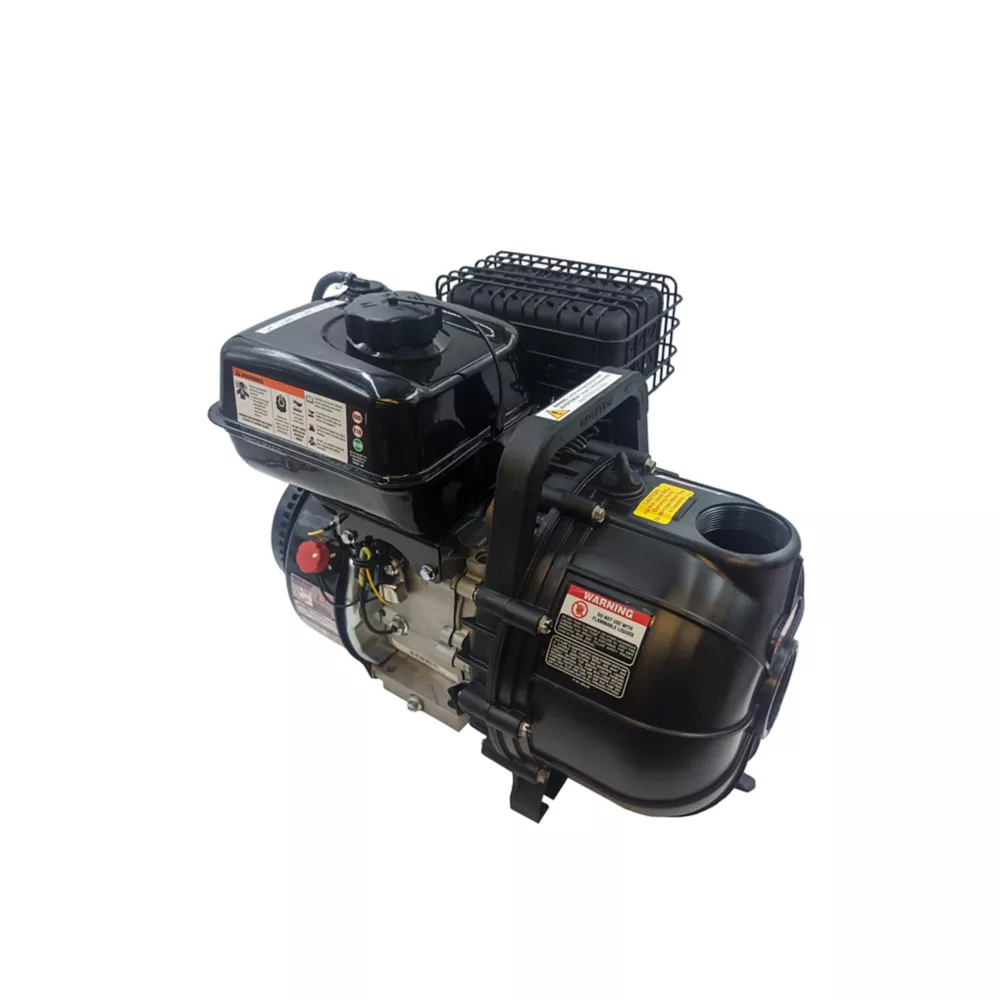

Pacer Gasoline Chemical and Clear Water Transfer Pump 150 GPM Engine Driven Transfer Pumps Farm & Ranch

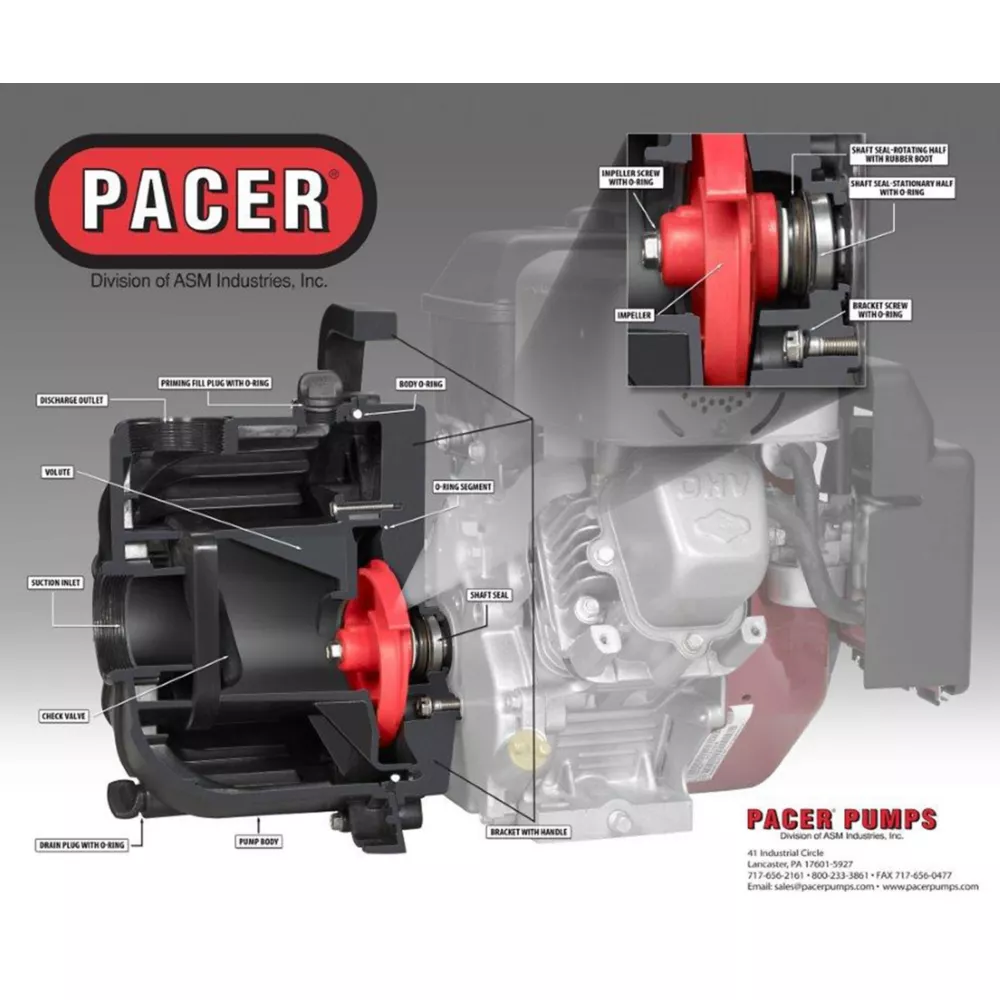

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 2" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a LCT MAXX 208cc gasoline engine with flow rates of up to 150 GPM or 100 ft. TDH. The LCT motor has a low oil shut-off and meets carb and EPA emission standards. Please Call Pacer with any chemical compatibility or application questions.

2" Suction & Discharge ports
150 Max GPM
100 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers

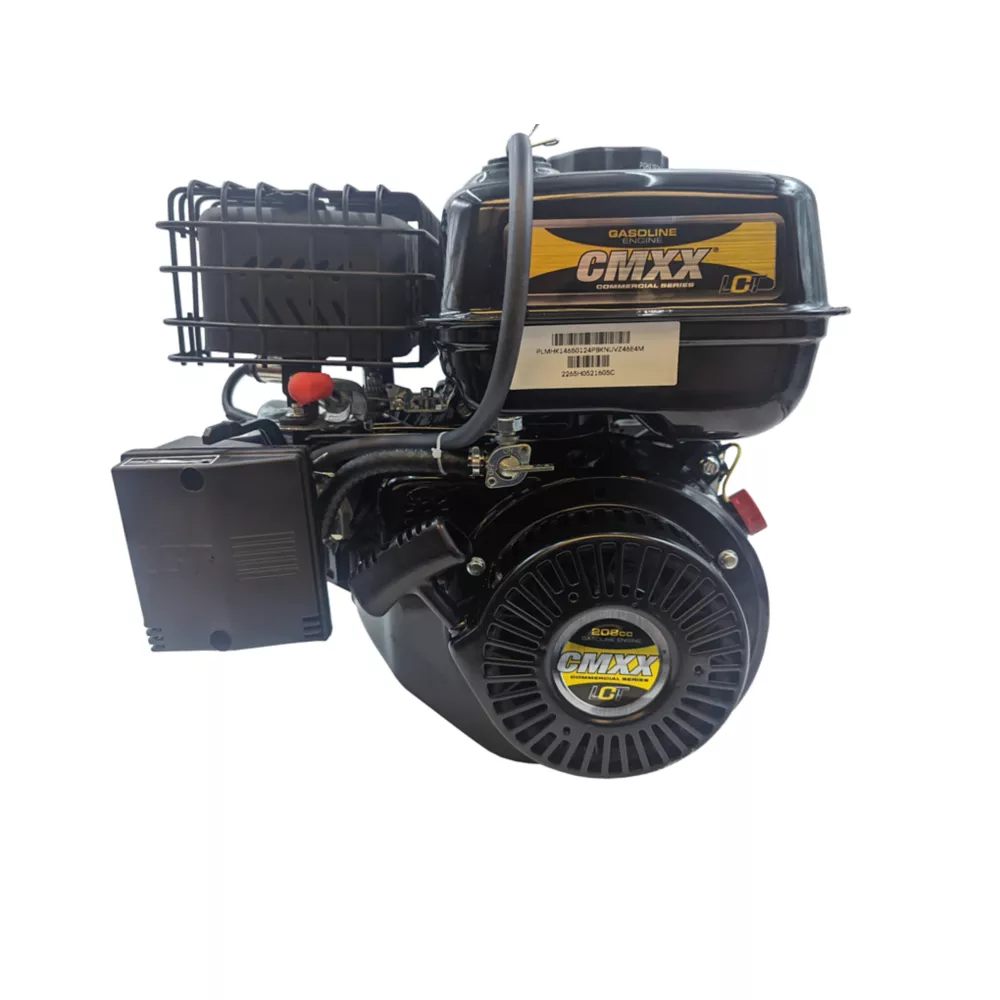

LCT MAXX 208 CC gasoline engine
LCT Feature - Low oil shut-off
LCT Feature - Cast iron cylinder sleeve, Dual ball bearings, and forged crankshaft
LCT Feature - Meets Carb & EPA standards
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Gasoline Chemical and Clear Water Transfer Pump 150 GPM Engine Driven Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	150 GPM
Discharge Rate at 10 ft.	130 GPM
Engine Brand	LCT
Engine Displacement	208 cc
Features	2 in. suction and discharge ports, 150 Max GPM, 100 ft. TDH max, 25 ft. suction lift, Built in check valve, LCT Maxx 208 cc gasoline engine, low oil shut-off, Meets carb and EPA emission standards
Hose Diameter	2 in.
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	150 GPM
Maximum Head Lift	100 ft.
Maximum Operating Pressure	45 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg. F
Power Type	Gas
Product Height	16 in.
Product Length	21 in.
Product Weight	50 lb.
Product Width	18 in.
Pump Mechanism	Centrifugal
Motor Type	Gasoline
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-12P4-E5.5

Pacer Gas-Powered Chemical and Clear Water Transfer Pump, 150 GPM, Engine Driven Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Material Polyester Compatible Hose Material Plastic Discharge Connection Female Threaded Discharge Diameter 2 in. Discharge Rate at 0 ft. 150 GPM Discharge Rate at 10 ft. 130 GPM Engine Brand LCT Engine Displacement 208 cc Features 2-inch suction and discharge ports, 150 GPM max, 100 ft TDH max, suction head of 25ft, Built-in Check Valve, 208cc LCT Maxx Gas Engine, Low Oil Shutdown, Carburetor and EPA Compliant. emission standards Pipe diameter 2 in. Inlet fitting Female thread Inlet diameter 2 in. Maximum flow 150 GPM Maximum head lift 100 feet. Maximum operating pressure 45 PSI Maximum operating temperature 130 deg. F Maximum suction height 25 feet Minimum operating pressure 0 PSI Minimum operating temperature -10 deg.F Power Type Gas Product Height 16 in. Product length 21 in. Product weight 50 lbs. Product width 18 in. Pump Mechanism Centrifugal Engine Type Gasoline 1 Year Warranty Limited Manufacturer Part Number P-58-12P4-E5.5
