Fill-Rite 1/4 HP 12V Fuel Transfer Pump with Discharge Hose 15 GPM Auto Nozzle (Leaded) and Suction Hose Fuel Transfer Pumps Truck & Automotive

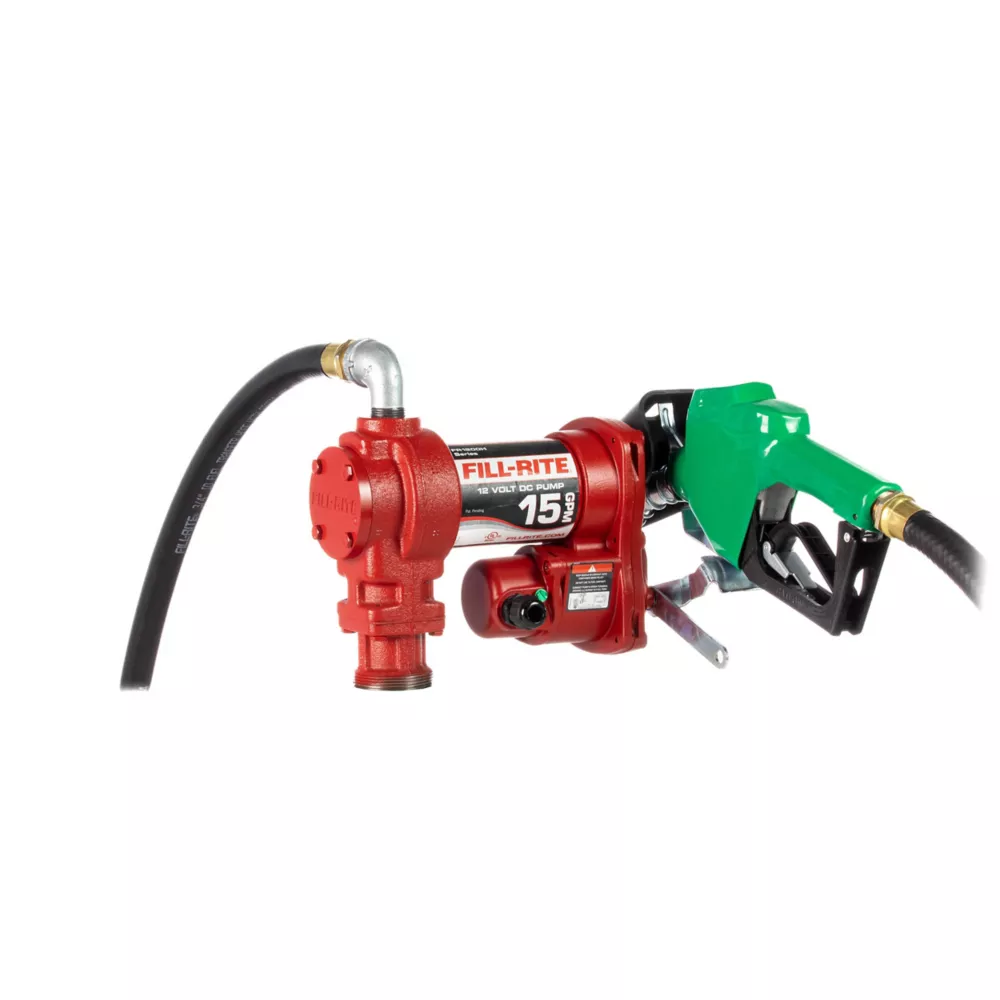

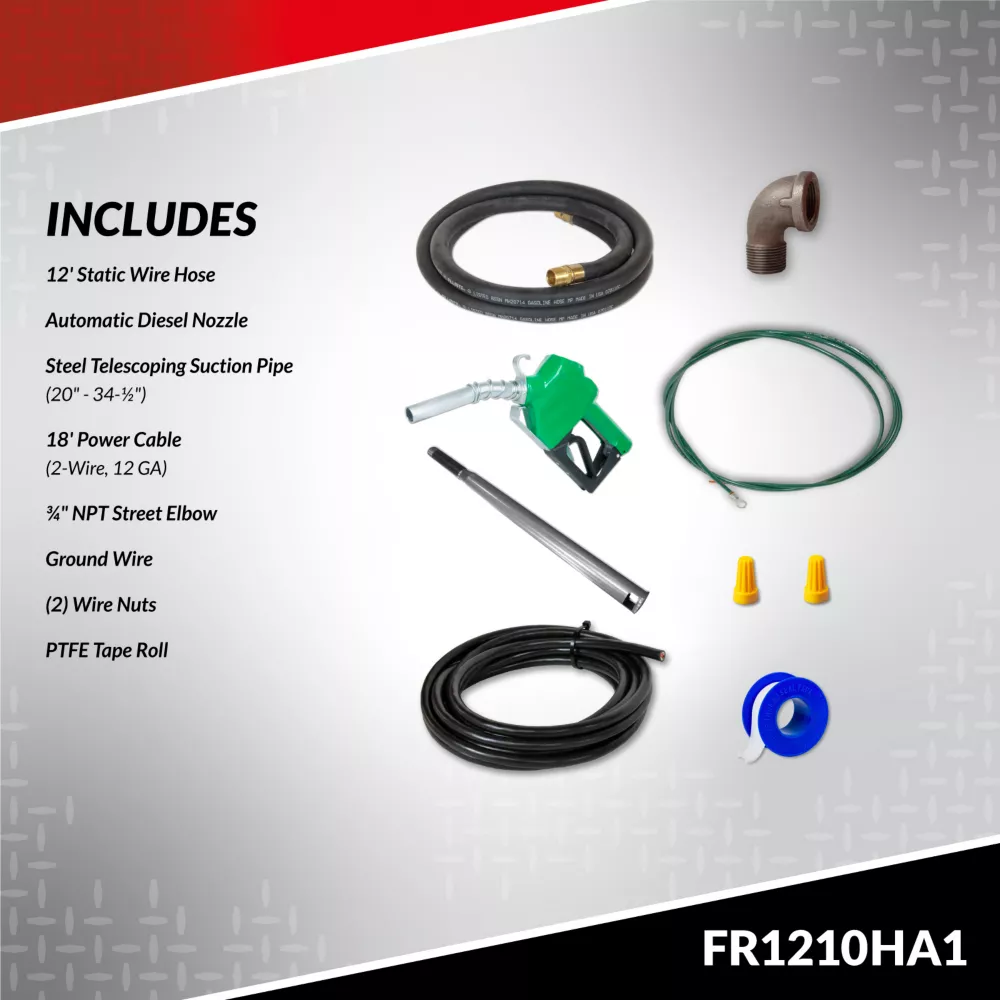

The Fill-Rite 12V 15 GPM Fuel Transfer Pump with Discharge Hose, Automatic Nozzle (Leaded) and Suction Pipe is a heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe and installation components. Proudly manufactured in the USA, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. This fuel transfer pump also features a thermally-protected motor.

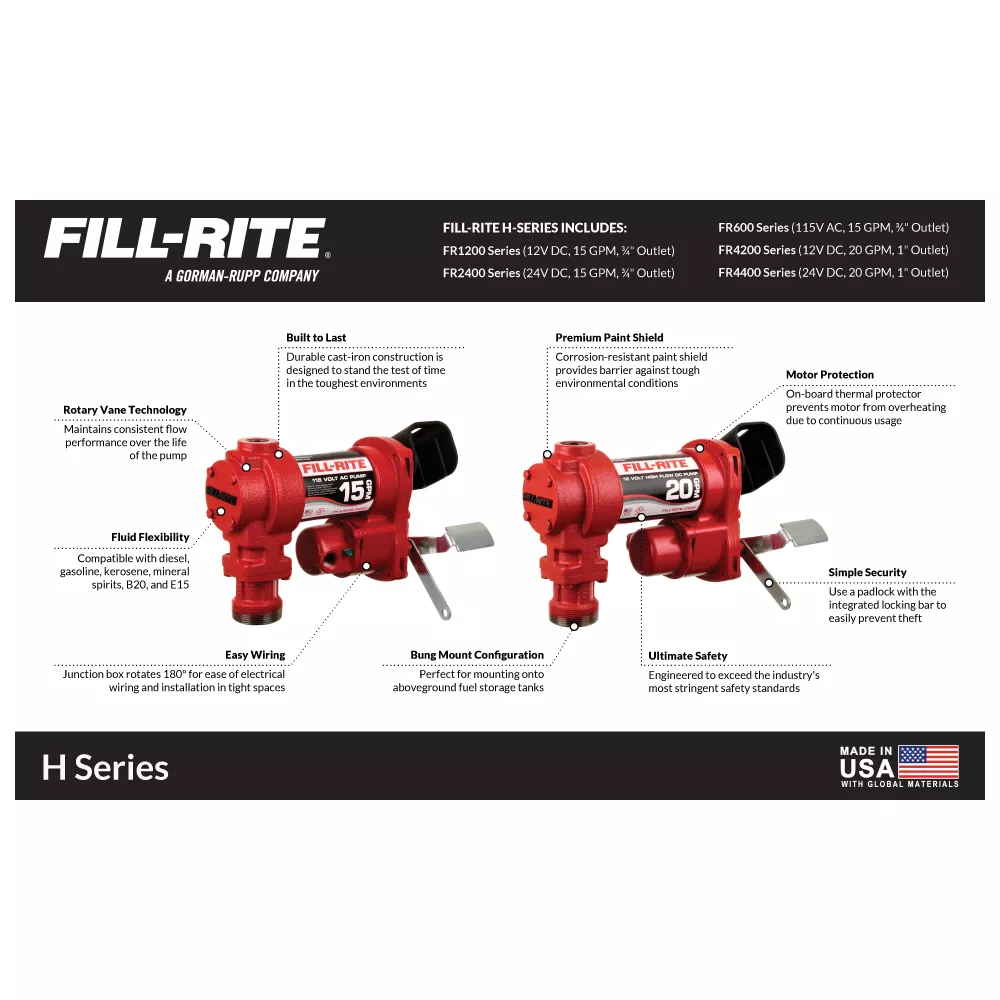

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Adjustable electrical junction box rotates 180 for added flexibility while wiring and improved installation in tight spaces
Thermally-protected motor prevents the fuel transfer pump from overheating, ensuring your pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
We stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
Flow rate range of the fuel pump: 0 to 15 GPM (57 LPM)

Fill-Rite 1/4 HP 12V Fuel Transfer Pump with Discharge Hose 15 GPM Auto Nozzle (Leaded) and Suction Hose Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20A
Body Materials	Cast Iron
Compatible Fluids	Gasoline
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Self Priming
Horsepower	0.25 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	444 in.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Cord Length	18 ft.
Power Type	12 Volt
Product Height	6.5 in.
Product Length	15.5 in.
Product Weight	19.1 lb.
Product Width	10 in.
Voltage	12V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR1210HA1
