GPI 1/2 HP 115V Electric L 5116 Heavy Duty Oil Transfer Pump 4 GPM Oil Pumps Truck & Automotive

The GPI Electric 115V 4.0 GPM L 5116 Heavy-Duty Oil Transfer Pump is ideal for use with new oil (up to 90 wt.), waste oil, hydraulic fluid, antifreeze or other non-flammable oil-based solvents. The pump features a gerotor gear design and durable, lightweight cast aluminum housing. With a rugged 115-/230VAC motor delivering flow rates up to 16 QPM (15 LPM), it is engineered for long life and limited maintenance. The oil transfer pump comes complete with a ball valve nozzle, 8 ft. (2.5 m) dispensing hose, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., and 3-prong plug-in. The motor is a UL recognized component and CSA approved with a 1-year warranty.

Ideal oil transfer pump for use with new oil (up to 90 wt.), waste oil, hydraulic fluid, antifreeze or other non-flammable oil-based solvents

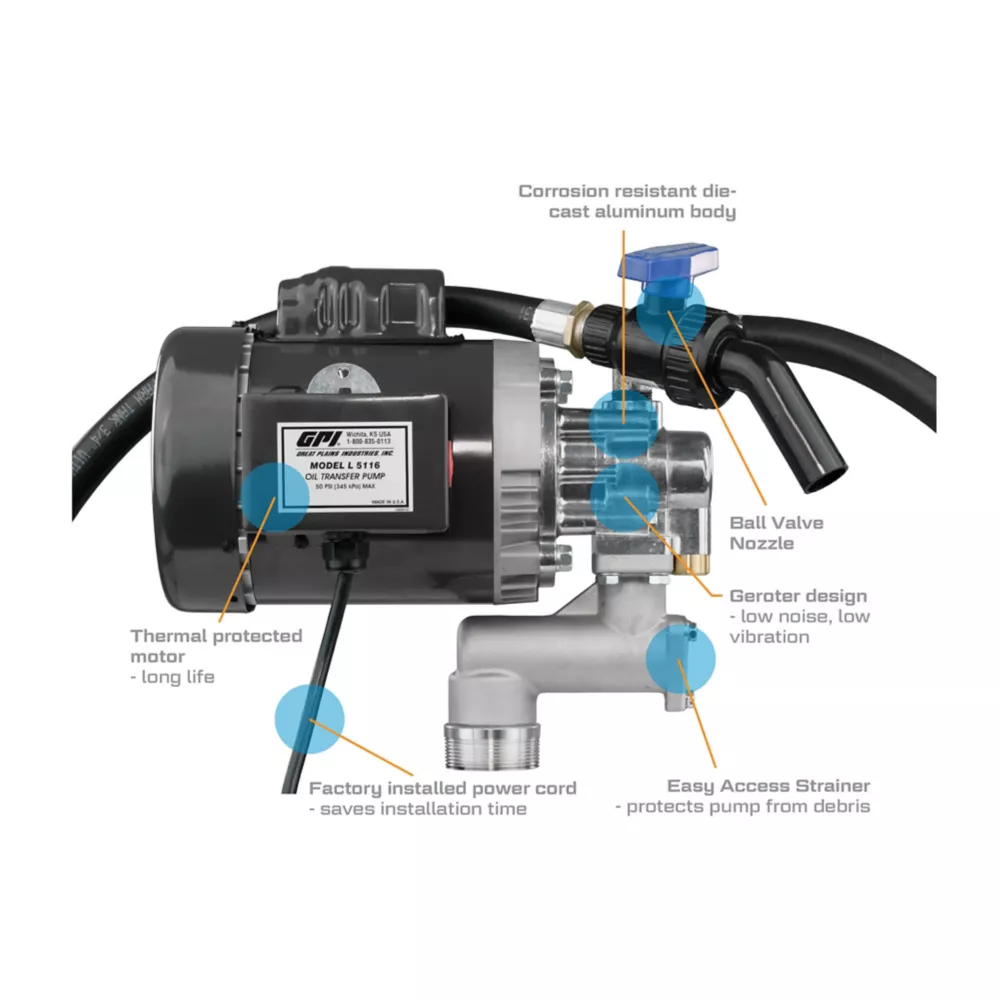

Gerotor gear design and durable, lightweight cast aluminum housing
Rugged 115-/230VAC motor
Flow rates up to 16 QPM (15 LPM)
Oil pump is engineered for long life and limited maintenance
Complete with a ball valve nozzle, 8 ft. (2.5 m) dispensing hose, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., and 3-prong plug-in
Motor is a UL recognized component and CSA approved
1-year warranty
Made in USA
Duty cycle is 30 minutes on/off
Commercial-grade oil transfer pump
Heavy-duty construction

GPI 1/2 HP 115V Electric L 5116 Heavy Duty Oil Transfer Pump 4 GPM Oil Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Grease & Lubrication Tools> Oil Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	3A
Body Materials	Aluminum
Compatible Fluids	Hydraulic Fluids
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min. on/off
Features	Self-Priming
Horsepower	1/2 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	4.0 GPM
Maximum Head Lift	0 ft.
Maximum Operating Pressure	50 PSI 3.45 bar
Maximum Operating Temperature	125 deg.
Minimum Operating Pressure	50 PSI 3.45 bar
Minimum Operating Temperature	20 deg.
Power Cord Length	3 ft.
Power Type	Electric

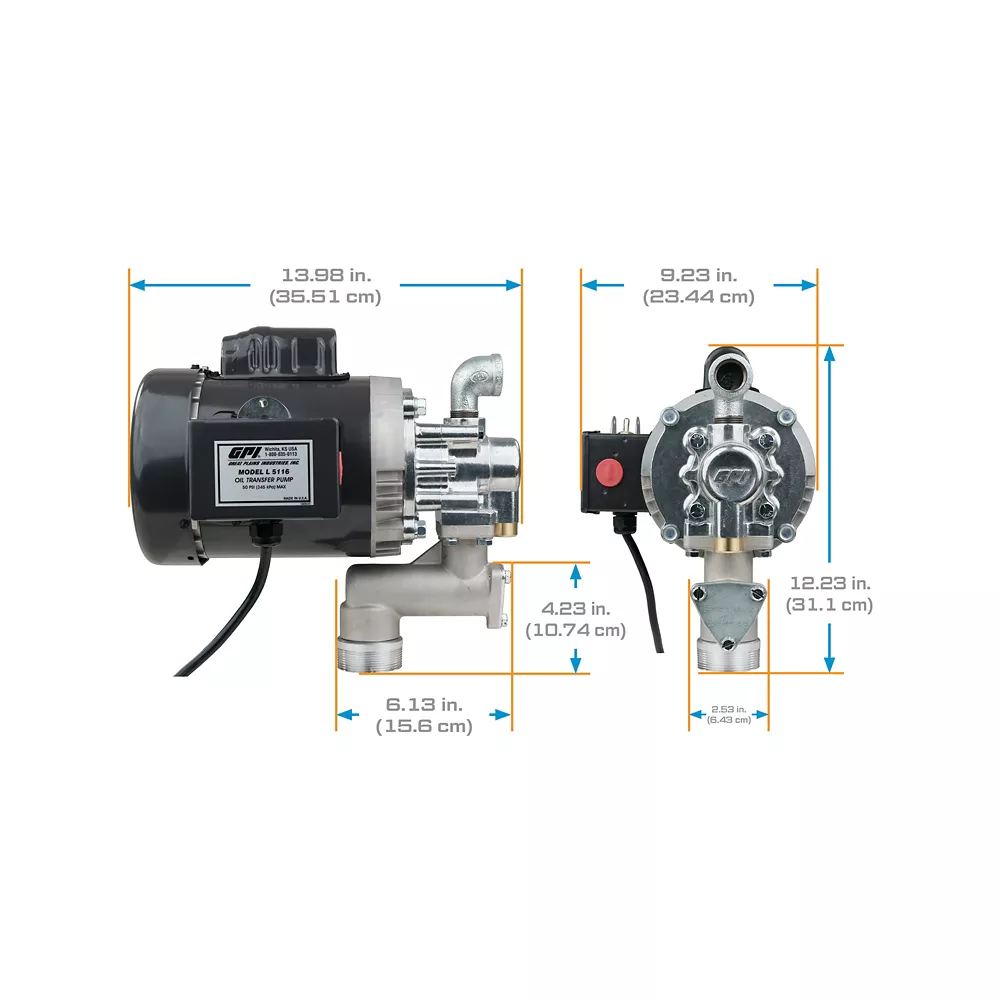

Product Height	11-3/4 in.
Product Length	12-5/8 in.
Product Weight	1 in.
Product Width	9-3/8 in.
Voltage	115/230V
Warranty	1 Year Limited
Manufacturer PartNumber	142100-01

GPI 1/2 HP 115V Electric L 5116 Heavy-Duty Oil Transfer Pump, 4 GPM Specifications expand/collapse Specification Description Brand GPI Country of Origin Made in USA AC or DC Power Supply AC Amps 3A Body Materials Aluminum Compatible Fluids Hydraulic Fluids Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. On/Off Features Self-Priming Power 1/2 HP Hose Diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow Rate 4.0 GPM Maximum Head Lift 0 Feet Maximum Operating Pressure 50 PSI 3.45 Bar Maximum Operating Temperature 125 degrees. Minimum operating pressure 50 PSI 3.45 bar Minimum operating temperature 20 deg. Power cord length 3 ft. Power Type Electric Product Height 11-3/4 in. Product length 12-5/8 in. Product weight 1 in. Product width 9-3/8 in. Voltage 115/230 V 1 year limited manufacturer's warranty Part number 142100-01
