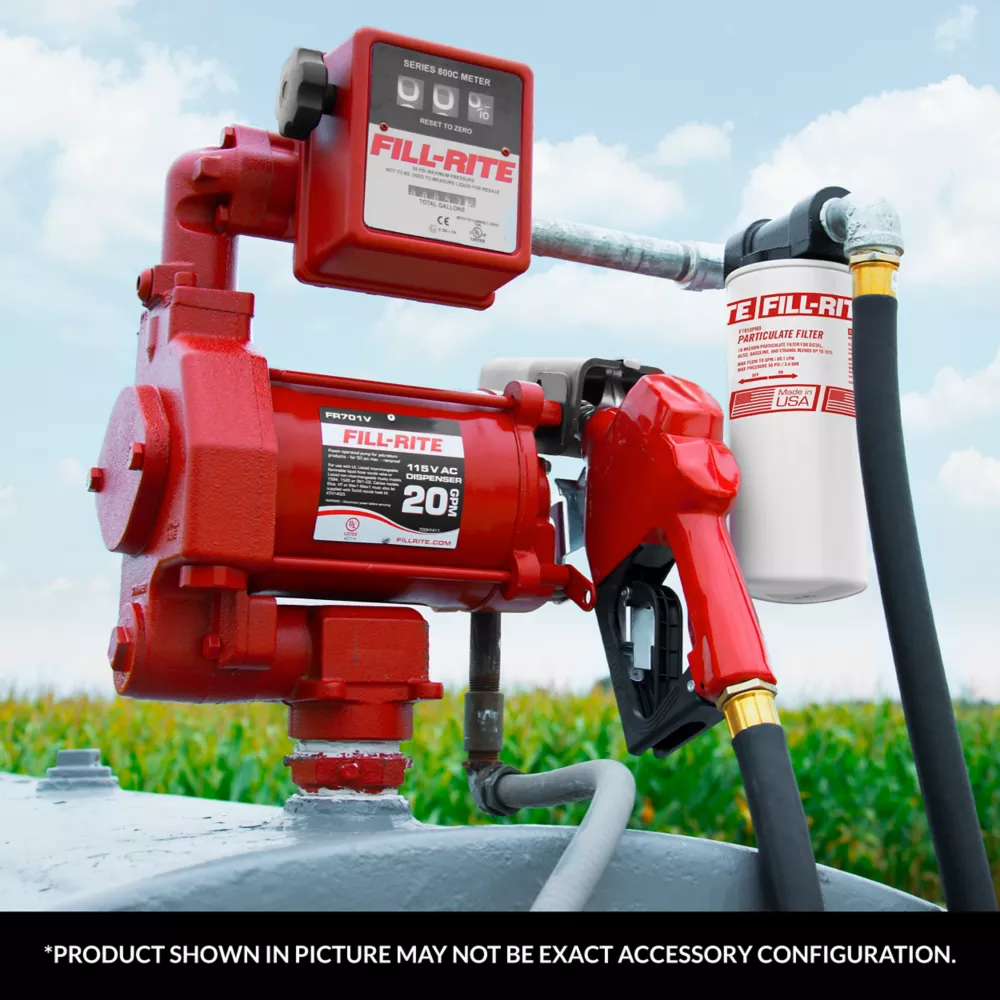

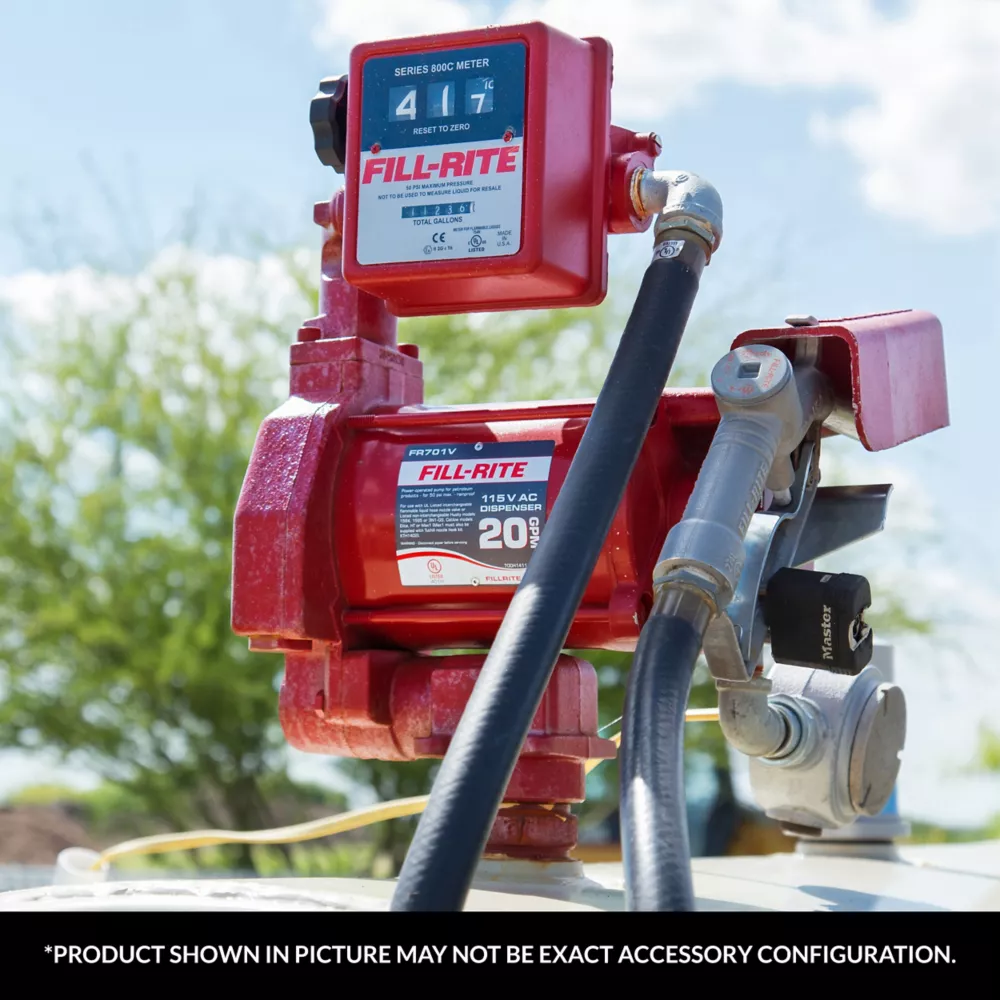

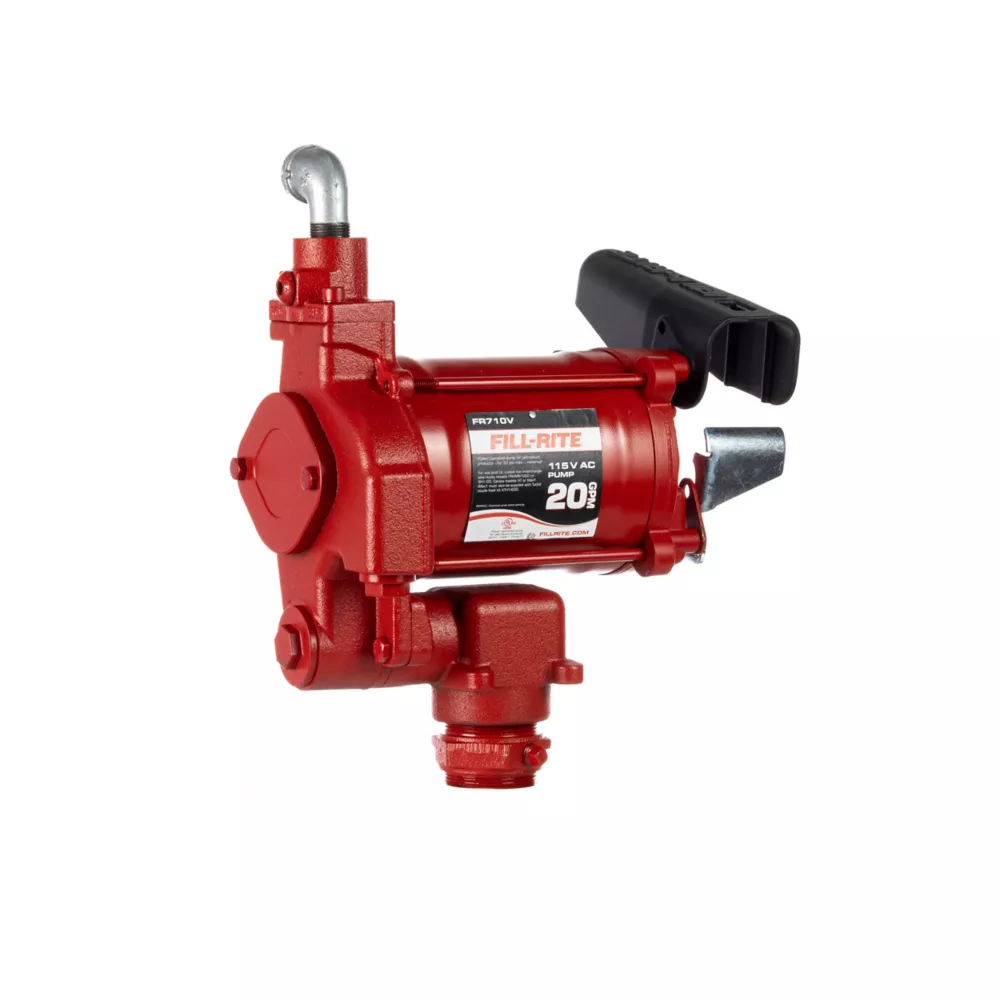

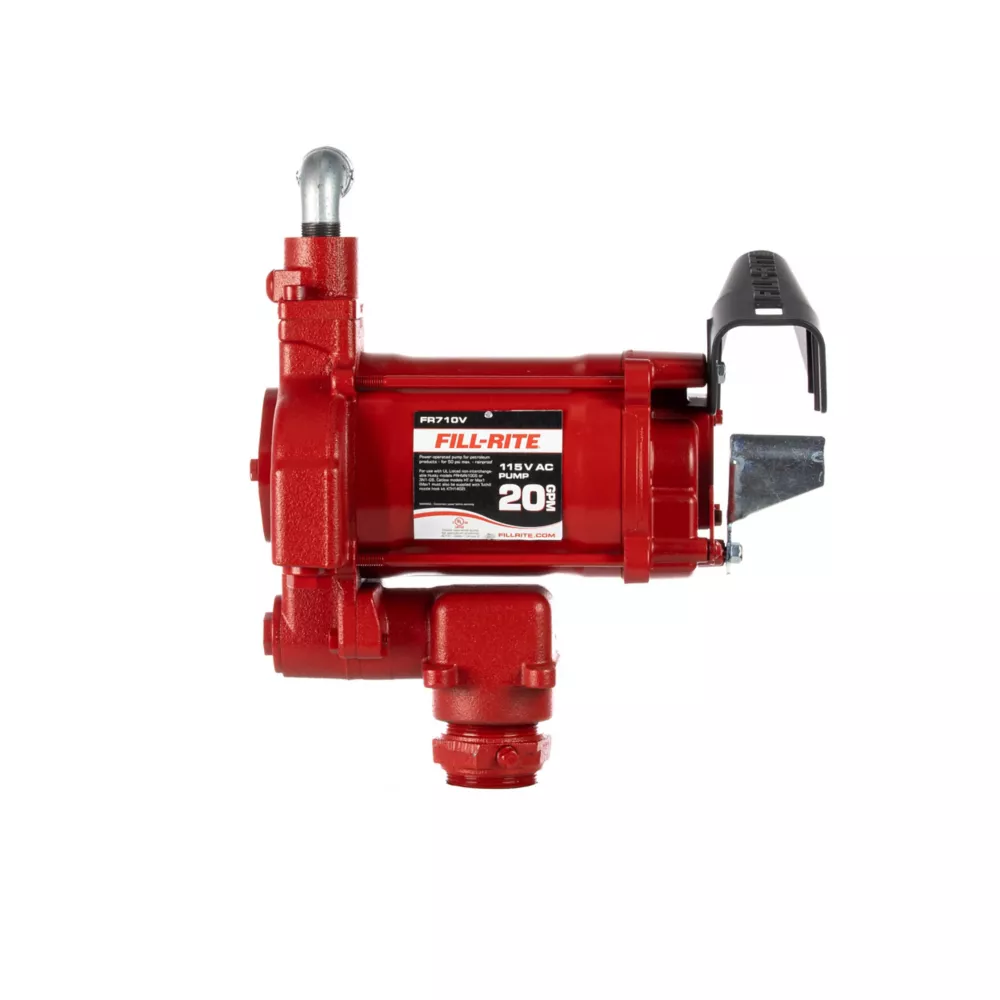

Fill-Rite 1/3 HP 115V Electric Fuel Transfer Pump 20 GPM 1" Outlet Pump Only Fuel Transfer Pumps Truck & Automotive

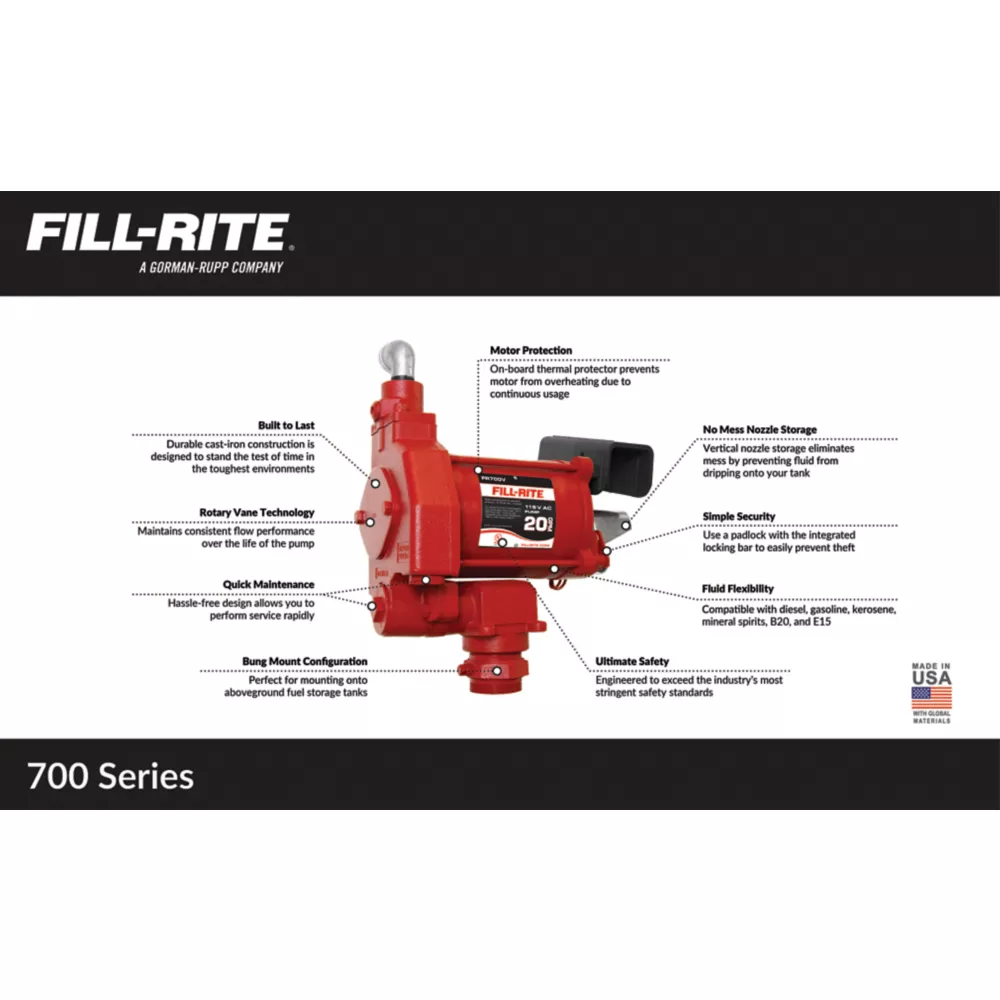

The Fill-Rite 115V 20 GPM Fuel Transfer Pump is a heavy-duty fuel transfer pump built for performance and longevity. Designed with all cast-iron construction, thermal overload protection, and provided in a variety of supplied configurations, it's no surprise why this fuel transfer pump is considered the most dependable AC pump in the industry. You name the application and the durability and dependability of Fill-Rite's 20 GPM FR700V Series will meet the challenge. These rugged pumps are also backed by the industry's most stringent safety standards like UL/cUL, ATEX, CE, and carry Fill-Rite's Limited Lifetime Warranty.

High volume fuel transfer at a rapid 20 GPM
All cast-iron construction provides rugged durability
Onboard thermal overload protection protects your fuel transfer pump from overheating
Superior flexibility working with gasoline, diesel, biodiesel, B20, E15, kerosene, and mineral spirits
Explosion-proof motor and UL listing assure the highest level of safety engineering
Limited Lifetime Warranty, protecting your purchase and your business
Proudly manufactured in the USA
Constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications

Fill-Rite 1/3 HP 115V Electric Fuel Transfer Pump 20 GPM 1" Outlet Pump Only Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	5.5A
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Self Priming
Horsepower	0.33 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Intended Use Grade	Commercial
Maximum Flow Rate	20 GPM
Maximum Head Lift	720 in.
Maximum Operating Pressure	23 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	15 PSI
Minimum Operating Temperature	-40 deg.
Power Type	Electric
Product Height	11.75 in.
Product Length	6.75 in.
Product Weight	45.2 lb.
Product Width	14.5 in.
Voltage	115V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR710VN

Fill-Rite 1/3 HP 115V Electric Fuel Transfer Pump, 20 GPM, 1 in. Outlet, Pump Only Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power AC Amps 5.5 A Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. Features Self-Priming Power 0.33 HP Hose Diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1.25 in. Intended Use Commercial Grade Maximum Flow 20 GPM Maximum Head Lift 720 in. Maximum operating pressure 23 PSI Maximum operating temperature 140 degrees. Minimum operating pressure 15 PSI Minimum operating temperature -40 deg. Power Type Electrical Product Height 11.75 in. Product Length 6.75 in. Product Weight 45.2 lb. Product Width 14.5 in. Voltage 115 V Limited Lifetime Warranty Manufacturer Part Number FR710VN
