Outbuilding 52 gal Vertical pressurized well tank Pressure Tanks Farm & Ranch

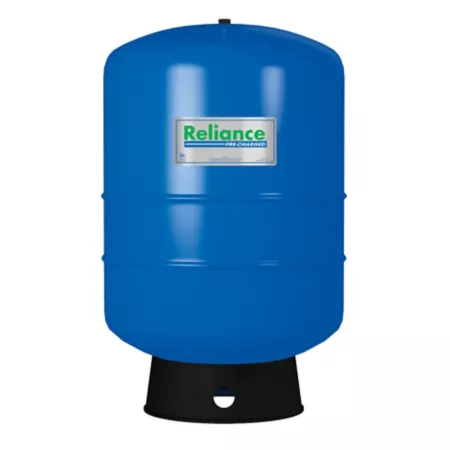

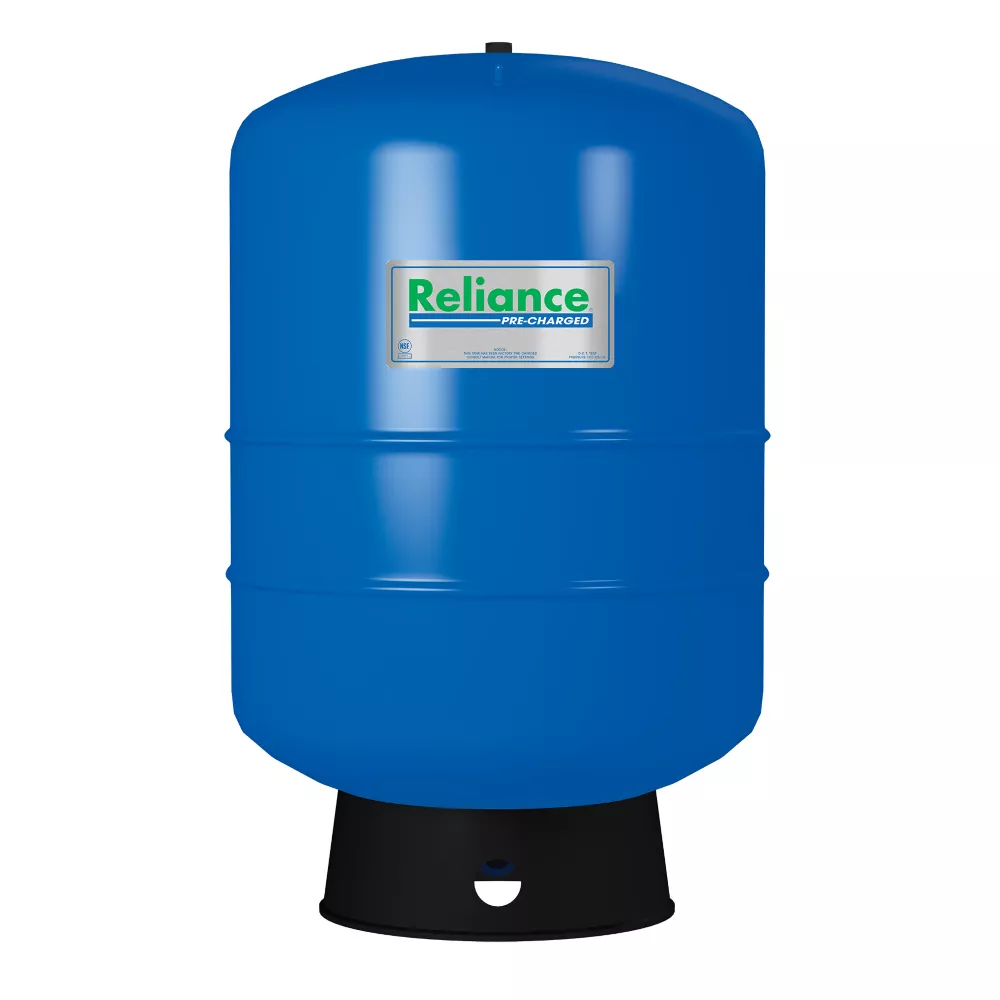

The Reliance Vertical Pressurized Well Tank is factory pre-charged for efficiency. The air charge valve is conveniently located for easy pressure adjustment.

Designer finish - high gloss exterior powder coat provides positive protection against corrosion and UV Rays
Corrosion-resistant base, maximum life, base rotates for easy alignment to pipe connection
Slotted and notched for maximum air flow, reduced condensation build-up
Air charge valve is conveniently located for easy pressure adjustment
Butyl rubber parabolic diaphragm eliminates rubbing on the tank wall or rolling over on itself

Outbuilding 52 gal Vertical pressurized well tank Pressure Tanks Farm & Ranch> Tanks & Pumps> Pressure Tanks

Specification	Description
Brand	Reliance
Country of Origin	Made in USA
Capacity	52 gal.
Drawdown at 30 PSI	16.1 gal.
Inlet Diameter	1 in.
Maximum Water Temperature	0 in.
Outlet Diameter	1 in.
Precharge Pressure	38 PSI
Primary Color	Blue
Primary Material	Other
Product Height	38.625 in.
Product Length	23.75 in.
Product Weight	77 lb.
Product Width	23.75 in.
Tank Orientation	Vertical
Warranty	5 Year
Manufacturer PartNumber	100130652

Reliance 52 gal. Vertical Pressurized Well Tank Specifications expand/collapse Specification Description Brand Reliance Country of Origin Made in USA Capacity 52 gal. Draft at 30 PSI 16.1 gal. Inlet diameter 1 in. Maximum water temperature 0 in. Outlet diameter 1 in. Precharge Pressure 38 PSI Primary Color Blue Primary Material Other Product Height 38.625 in. Product length 23.75 in. Product weight 77 lbs. Product width 23.75 in. Tank orientation 5-year vertical warranty manufacturer reference 100130652
