Dutton-Lainson Goldenrod 496 Water Block Fuel Tank Filter 1 in NPT Fuel Transfer Tank Accessories Truck & Automotive

Goldenrod fuel tank filters are ideal for farm and ranch, construction, service stations, light industrial, and recreational uses. Two distinct filtering systems are available- See-Thru bowl models with replaceable elements or Spin-On models with disposable canisters. Both feature heavy duty top caps with 3/4 in. or 1 in. NPT pipe fittings and include a gasket. Fuel flows from the inward port of the filter top cap through the paper element inside, which removes microscopic particles from the fuel. Clean fuel then flows up through the center of the element and out through the outward port. Change filter element or canister when fuel flow is restricted.

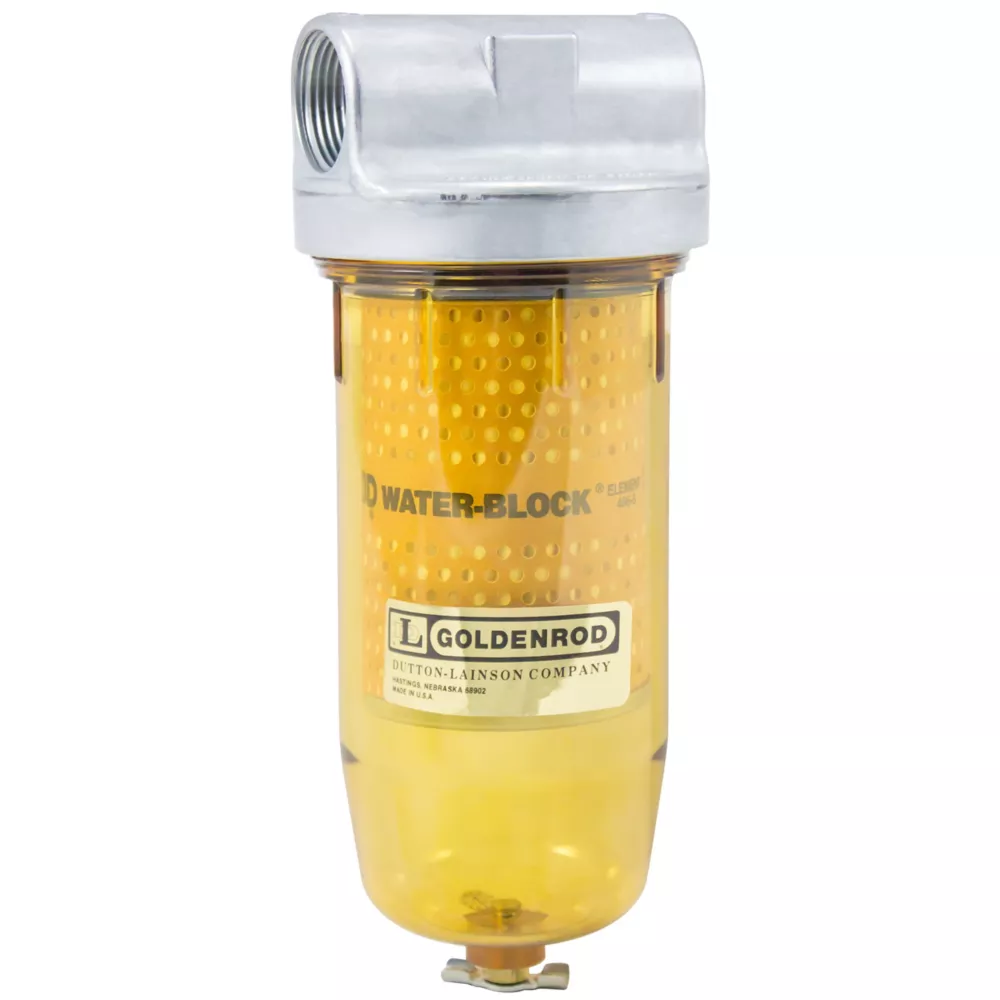

Goldenrod WATER-BLOCK water absorbing fuel tank filter for farm, construction, and industrial applications
For use with common fuels including regular and unleaded gasoline, diesel fuel, gasohol, and various fuel oils; related additives including methyl, ethyl, and isopropyl alcohol 20%
Water-absorbing polymers trap water (up to approximately one-half cup), restricting fuel flow when it's time to replace the element
Replaceable element removes water and microscopic particles of contaminants (rust, sand, dirt, scale, and lint) as small as 17 microns
See-Thru translucent polymer bowl allows for visual monitoring of fuel flow, is alcohol and impact resistant, and stands up to harsh weather conditions
Heavy duty zinc die-cast top cap with 1 in. NPT pipe fittings provides durability and an excellent bowl to top cap seal
Easy-to-use sediment drain valve at bottom of bowl
Maximum recommended flow rate is 25 gpm
Gravity flow rate is approximately 5 gpm with a 24 in. head
Working pressure up to 150 psi

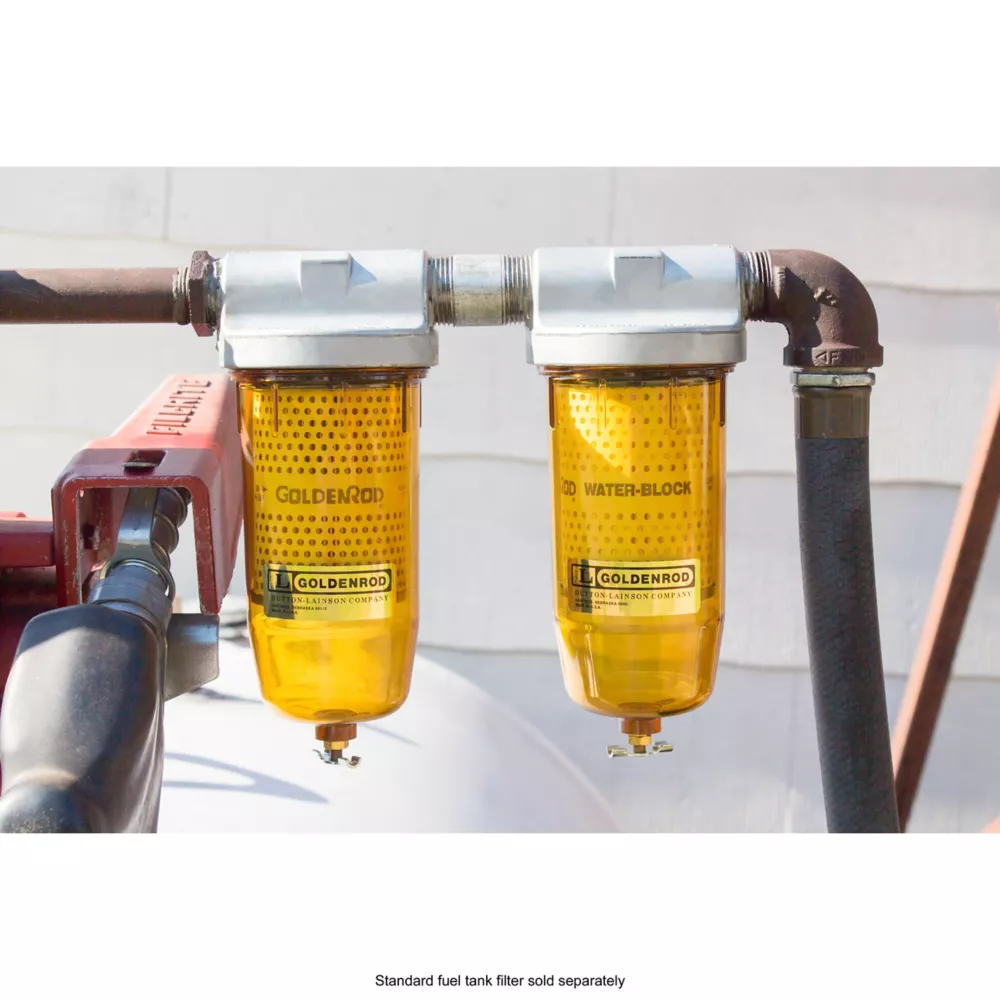

Works well by itself or in combination with a 495 general purpose filter for greater filtering efficiency and longer element life
Includes a top cap, a gasket, a bowl, and an element
Made in the U.S.A.

Dutton-Lainson Goldenrod 496 Water Block Fuel Tank Filter 1 in NPT Fuel Transfer Tank Accessories Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tank Accessories

Specification	Description
Brand	Dutton-Lainson
Country of Origin	Made in USA
Compatibility	Goldenrod fuel tank filter
Package Quantity	1
Primary Color	Yellow
Primary Material	Steel
Product Height	9-5/8 in.
Product Length	4-5/32 in.
Product Weight	2-1/2 lb.
Product Width	4-5/32 in.
Transfer Tank Accessory Type	Filters
Warranty	N/A
Manufacturer PartNumber	56602

Dutton-Lainson Goldenrod 496 Water-Block Fuel Tank Filter, 1 in. NPT Specifications expand/collapse Specification Description Brand Dutton-Lainson Country of Origin Made in USA Compatibility Goldenrod Fuel Tank Filter Package Quantity 1 Primary Color Yellow Primary Material Steel Product Height 9-5/8 in. Product length 4-5/32 in. Product weight 2-1/2 lbs. Product width 4-5/32 in. Transfer Tank Accessory Type Filters Warranty N/A Manufacturer Part Number 56602
