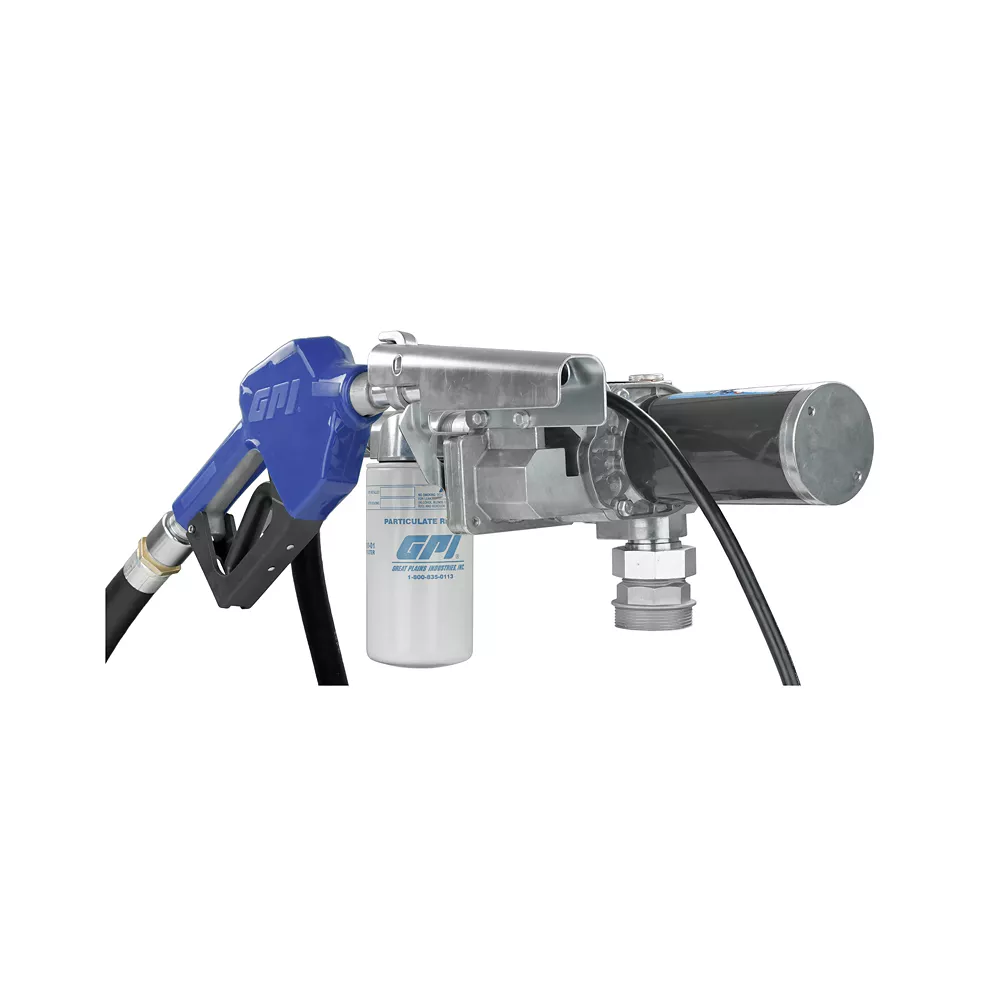

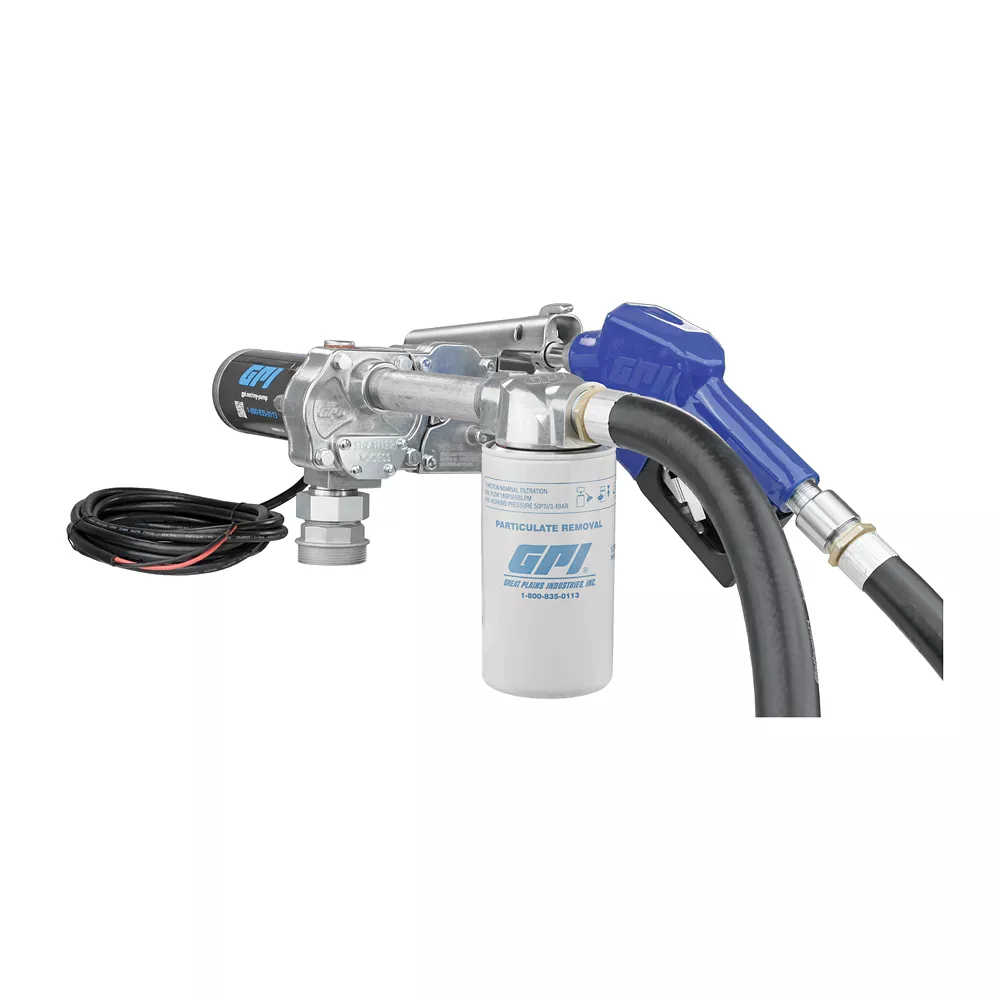

GPI 1/4 HP 12V M-180S-AU Fuel Transfer Pump with Filter 18 GPM Fuel Transfer Pumps Truck & Automotive

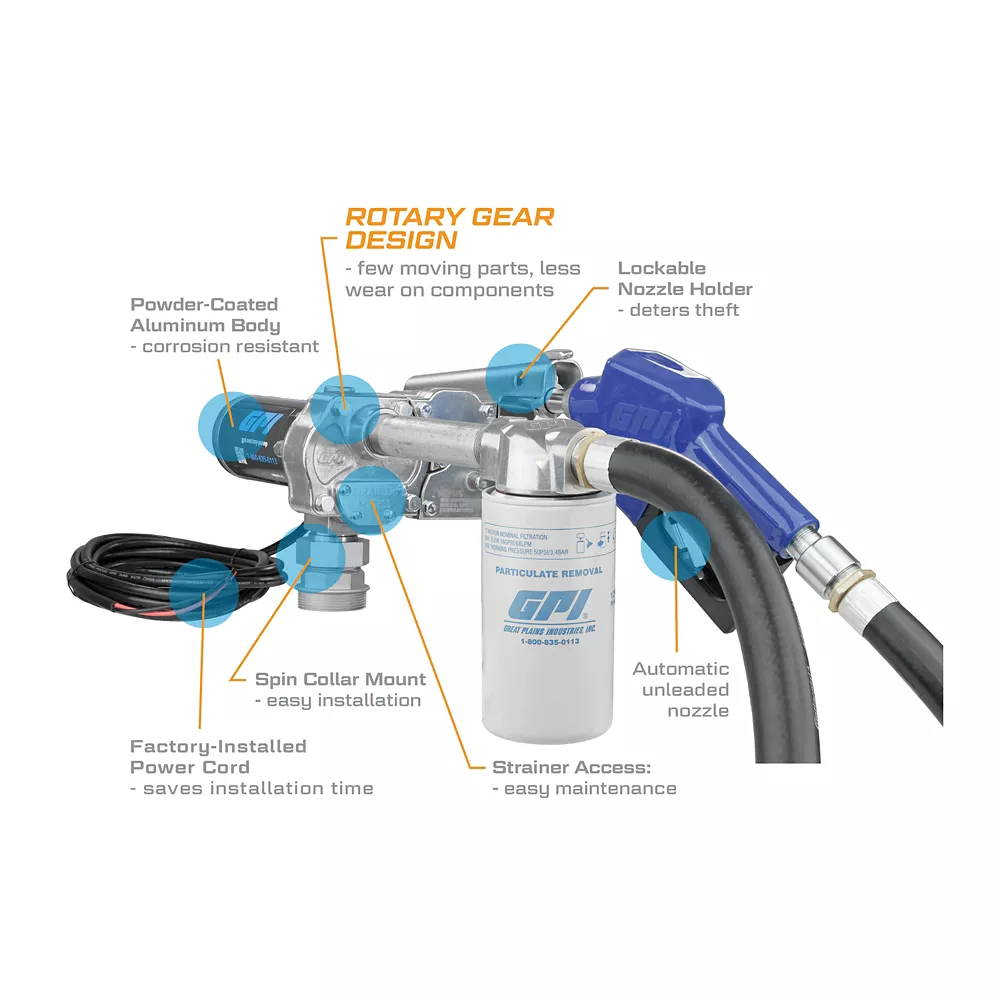

As a GPI best-seller, the GPI 18 GPM M-180S-AU 12V Fuel Transfer Pump with Filter provides longer run times and reliable performance year-over-year. It's the fuel pump of choice for agricultural, automotive and construction applications dispensing gasoline, diesel fuel, and kerosene with flow rates up to 18 GPM (68 LPM). The fuel transfer pump features a self-priming rotary gear design, a 12VDC motor, and a lightweight cast aluminum body that resists corrosion. The included 18 GPM (68 LPM) particulate filter kit with 10 micron nominal filtration to remove fuel contaminants that can damage your equipment. This transfer pump and filter combo is UL listed and comes with a automatic unleaded nozzle for ease of use, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., convenient spin collar for easy installation, a lockable nozzle holder to deter theft, a fuel dispensing hose, and a factory-installed, 18 ft. (5.5 m) power cord.

Fuel transfer pump includes an 18 GPM 10 micron, 1-12 UNF particulate filter that removes debris from fuel that may damage your equipment
Higher flow rate reduces time spent refueling
Convenient spin collar for easy installation
Powder-coated, lightweight aluminum fuel pump provides corrosion resistance and reduces tank stress
Lockable nozzle holder protects your investment and deters theft
Designed for permanent mounting on vented storage tanks
Low profile design does not block line of vision
UL listed motor and CSA certified
High 18 GPM (69 LPM) flow rate reduces time spent refueling
Overload protected motor extends the GPI fuel transfer pump motor's life
2-year warranty
Overload protected motor extends motor life
Fuel transfer pump of choice for agricultural, automotive, and construction applications dispensing gasoline, diesel fuel, and kerosene

Note: This product may require up to 2 additional days for order processing prior to shipping

GPI 1/4 HP 12V M-180S-AU Fuel Transfer Pump with Filter 18 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20A
Body Materials	Aluminum
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min. on/off
Features	Self-Priming
Horsepower	1/4 HP
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	18 GPM
Maximum Head Lift	4.8 ft.
Maximum Operating Pressure	15 PSI
Maximum Operating Temperature	125deg F
Minimum Operating Pressure	15 PSI
Minimum Operating Temperature	-20deg F
Power Cord Length	18 ft.
Power Type	Electric, 12 Volt
Product Height	9 in.
Product Length	19 in.
Product Weight	30.3 in.
Product Width	16 in.
Voltage	12V
Warranty	2 Year Limited
Manufacturer PartNumber	110612-02

GPI 1/4 HP 12V M-180S-AU Fuel Transfer Pump with Filter, 18 GPM Specifications expand/collapse Specification Description Brand GPI Country of Origin Made in USA AC or DC Power Supply DC Amps 20 A Body Materials Aluminum Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 1 in. Duty cycle 30 min. On/Off Features Self-Priming Power 1/4 HP Hose Diameter 1 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Residential Grade Maximum Flow Rate 18 GPM Maximum Head Lift 4.8 Feet Maximum Operating Pressure 15 PSI Maximum Operating Temperature 125 Degrees F Minimum Operating Pressure 15 PSI Minimum Operating Temperature -20 Degrees F Power Cord Length 18 ft. Power supply type, 12 volts Product height 9 in. Product length 19 in. Product weight 30.3 in. Product width 16 in. Voltage 12V 2-year limited warranty Manufacturer part number 110612-02
