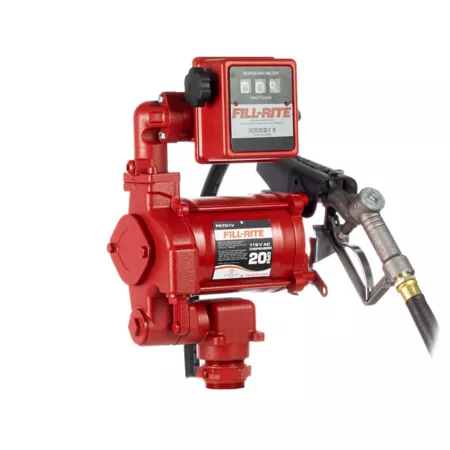

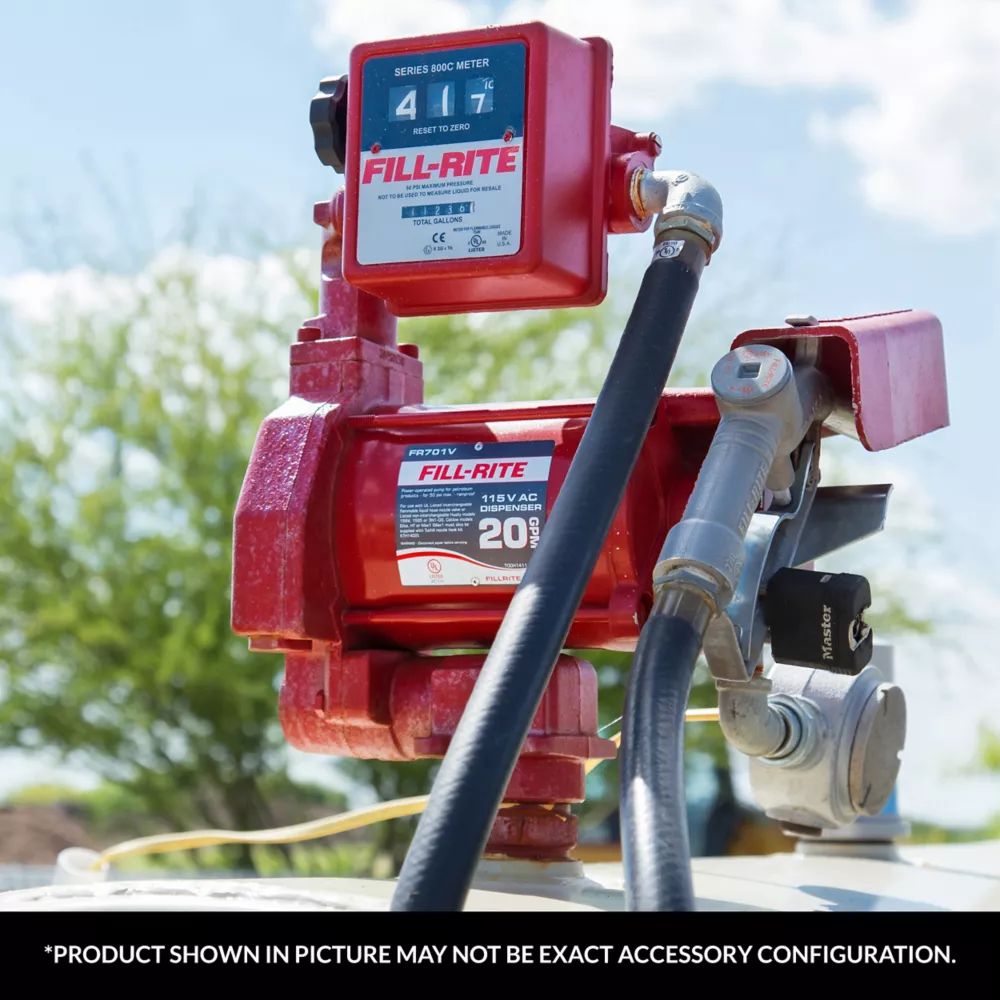

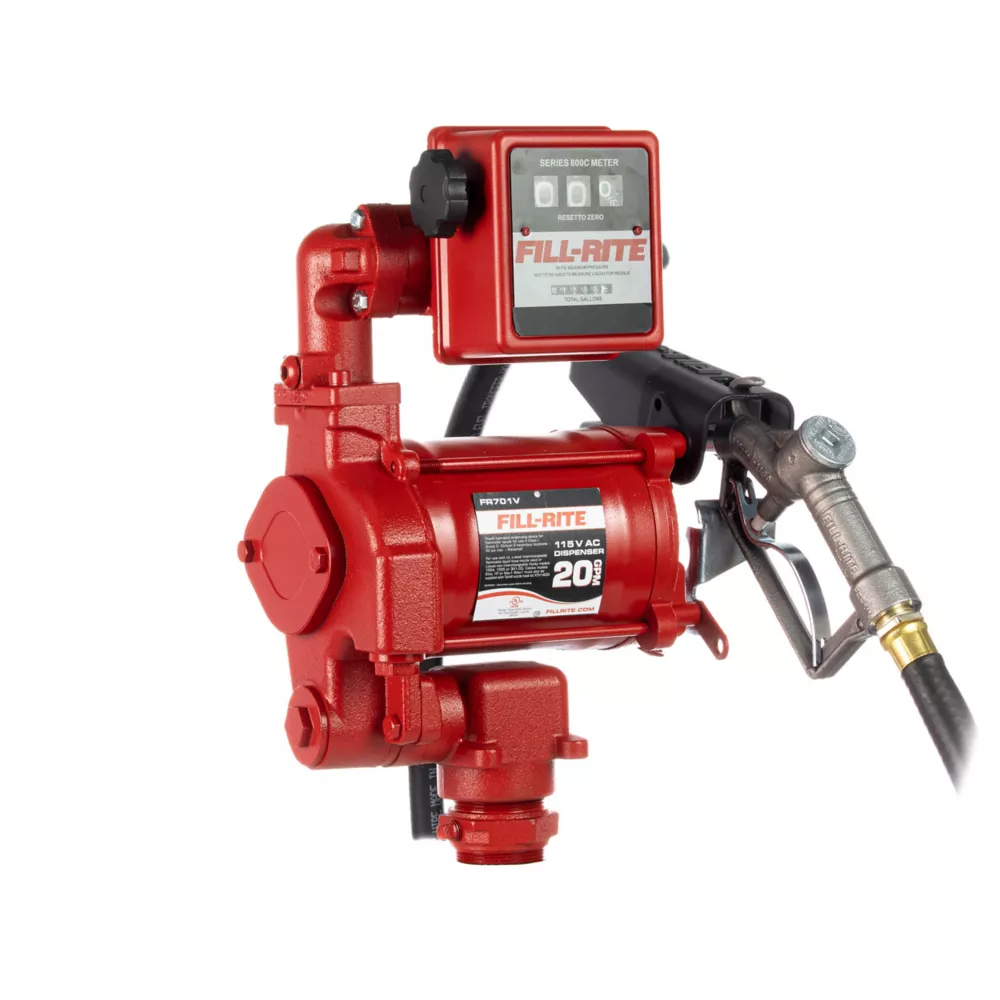

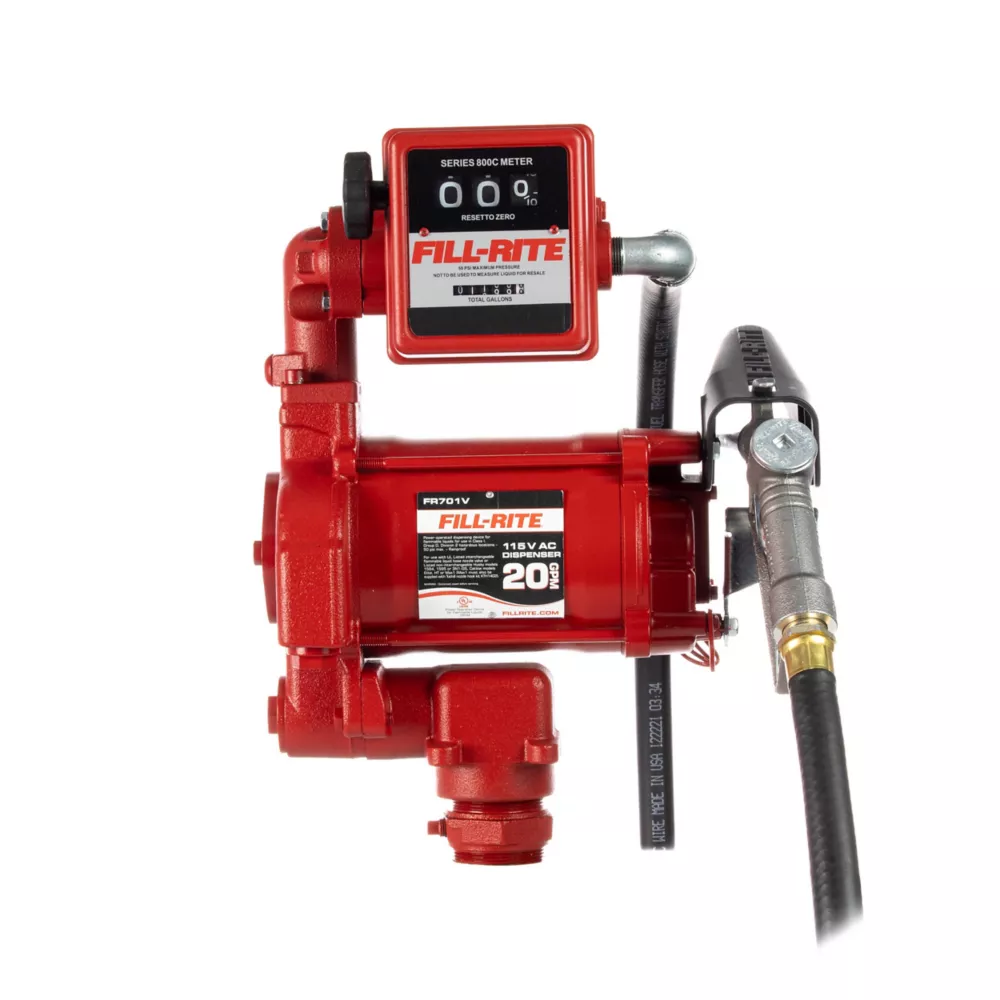

110VAC 20 GPM Fuel Transfer Pump with Meter Fuel Transfer Pumps Truck & Automotive

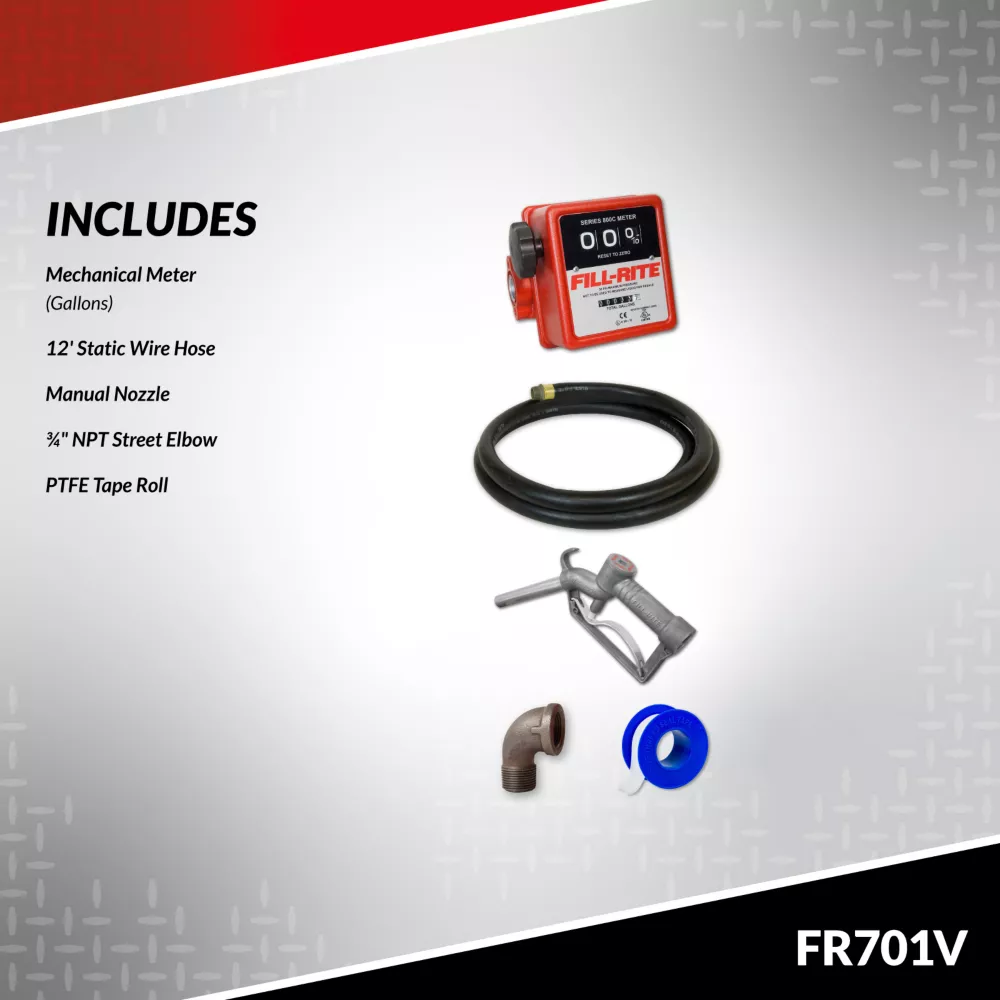

The 110VAC 20 GPM Fuel Transfer Pump with Meter is a heavy-duty fuel transfer pump with a thermally protected motor. This AC pump and accessory bundle comes complete with a meter, a hose, a nozzle, and installation components.

AC pump transfers fuel at 20 GPM, making it a tremendous entry-level option that is ideal for filling medium-sized equipment from aboveground storage tanks
Rotary vane technology produces consistent flow performance over the entire life of your pump
Durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Limited lifetime warranty to protect your purchase and your business

110VAC 20 GPM Fuel Transfer Pump with Meter Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Unbranded
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	5.5 Amp
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Compatible with Diesel and Gasoline
Horsepower	0.33 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Intended Use Grade	Commercial
Maximum Flow Rate	20GPM
Maximum Head Lift	15 ft.
Maximum Operating Pressure	23 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Type	Electric
Product Height	17.5 in.
Product Length	7 in.
Product Weight	50.6 lb.
Product Width	14 in.
Voltage	115v
Warranty	Limited Lifetime
Manufacturer PartNumber	FR701

110VAC 20 GPM Fuel Transfer Pump with Meter Specifications expand/collapse Specification Description Brand Unbranded Country of Origin Made in USA AC or DC Power AC Amps 5.5 A Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. Features Compatible with diesel and gasoline Power 0.33 HP Hose diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1.25 in. Intended Use Commercial Grade Maximum Flow Rate 20GPM Maximum Head Lift 15 Feet Maximum Operating Pressure 23 PSI Maximum Operating Temperature 105 Degrees. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power Type Electric Product Height 17.5 in. Product Length 7 in. Product Weight 50.6 lb. Product Width 14 in. Voltage 115 V Limited Lifetime Warranty Manufacturer Part Number FR701
