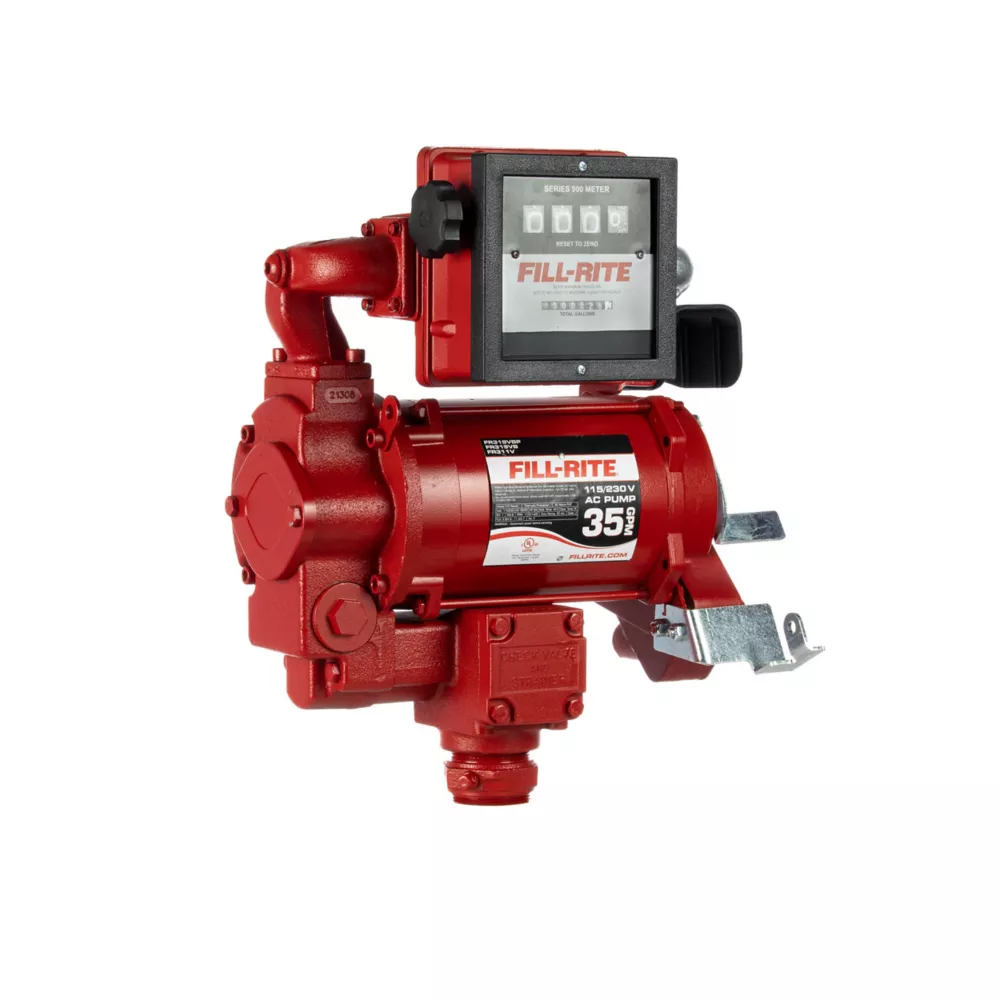

Fill-Rite 3/4 HP 115/230 Volt AC Electric Fuel Transfer Pump with Mechanical Gallon Counter 35 GPM Fuel Transfer Pumps Truck & Automotive

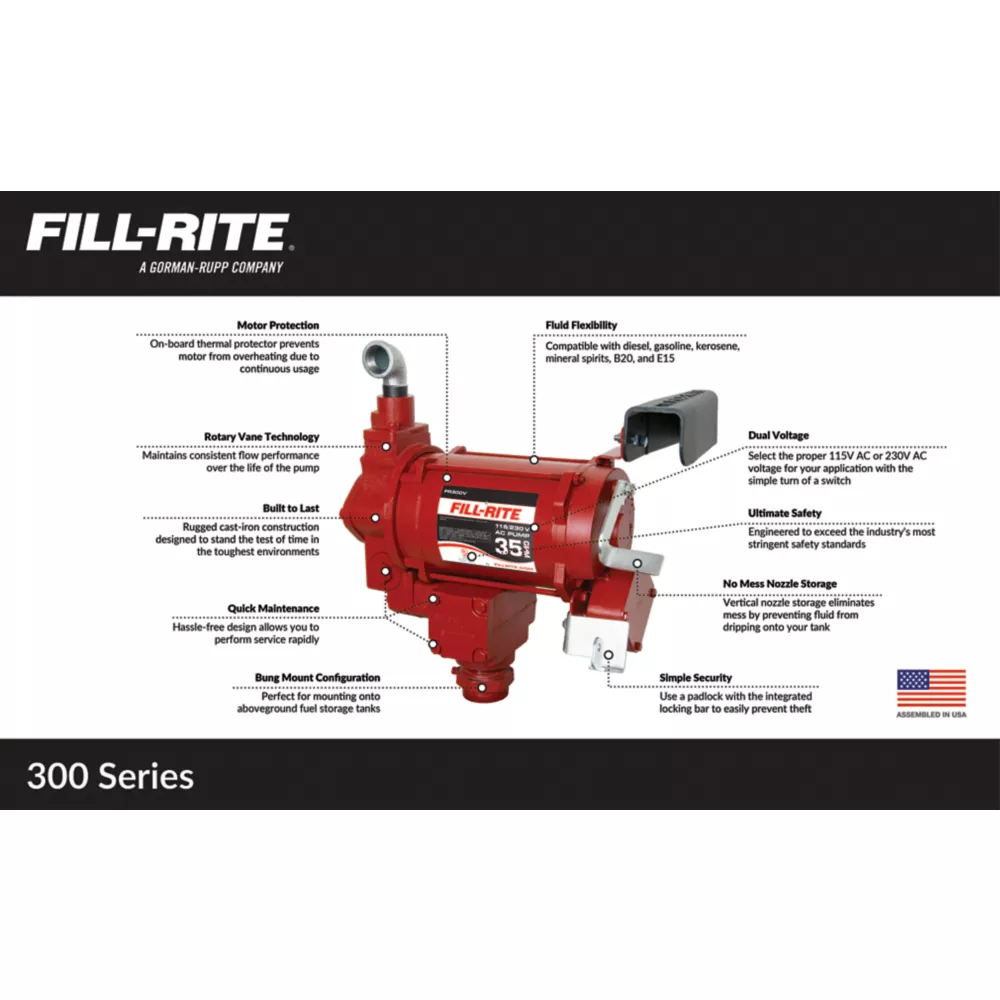

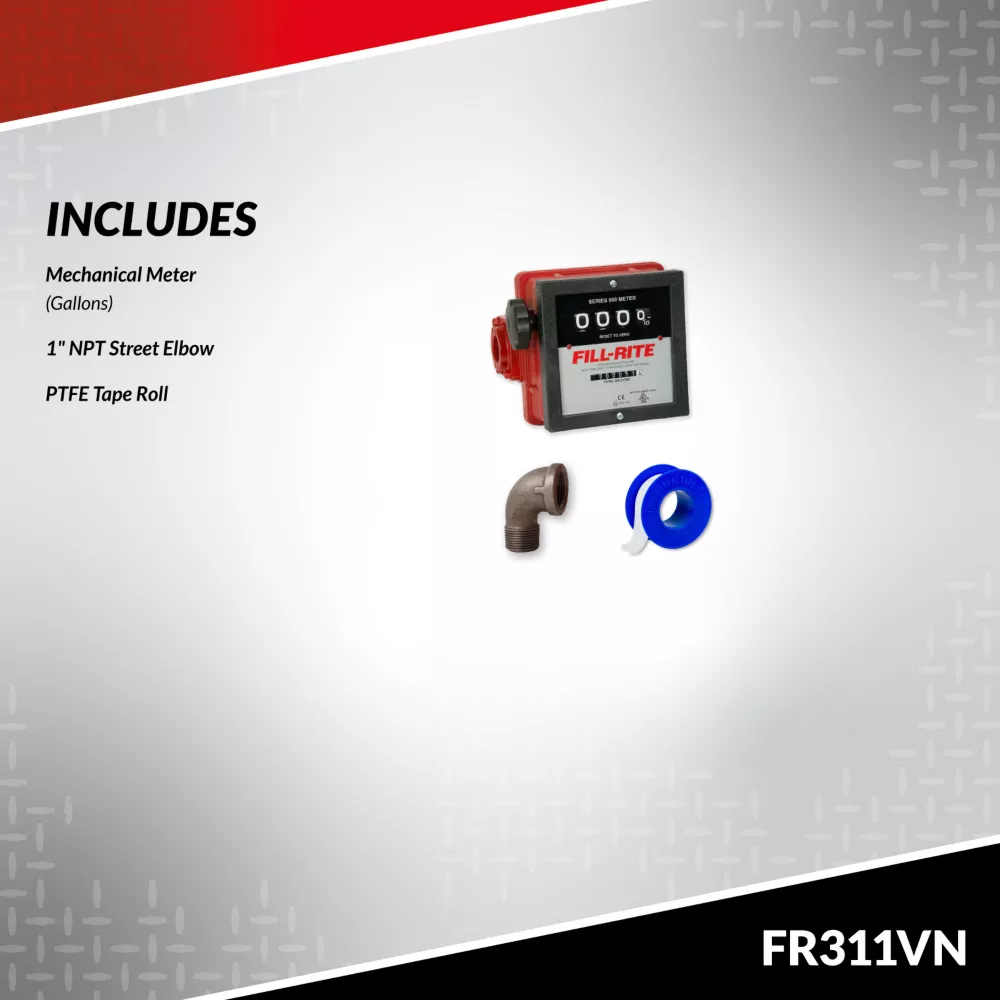

The Fill-Rite 115/230VAC 35 GPM Fuel Transfer Pump with Mechanical Gallon Meter is a 35 GPM, heavy-duty fuel transfer pump you can count on. This Fill-Rite pump and accessory bundle comes complete with a meter and installation components. Built with all cast-iron construction, thermal overload protection, and Fill-Rite's highest flow rate at 35 GPM, it leads the industry in elite performance and rugged durability. Whether fueling construction or mining equipment or tractors and combines, the reliability of the 310V Series provides the quick fueling and dependability you can only achieve with Fill-Rite. The 310V Series is compatible with gasoline, diesel, biodiesel up to B20, E-15 and kerosene and holds the industries top safety certifications like UL/cUL, ATEX, and CE. This model is equipped with 1 in. NPT threads and a 1 in. 900C gal. mechanical meter.- High-volume AC pump transfers fuel at 35 GPM, making it ideal for filling heavy equipment from aboveground storage tanks
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
- Thermally-protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
- Dual-voltage design allows you to select either 115V or 230VAC power with the simple turn of a switch
- Limited lifetime warranty to protect your purchase and your business
- Equipped with a 2 in. bung mount, this pump is ideal for installing onto stationary aboveground tanks
- Designed for daily use with diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20
- Rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
- Built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
Fill-Rite 3/4 HP 115/230 Volt AC Electric Fuel Transfer Pump with Mechanical Gallon Counter 35 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
Specification | Description |
---|---|
Brand | Fill-Rite |
Country of Origin | Made in USA |
AC or DC Powered | AC |
Amperage | 5A |
Body Materials | Cast Iron |
Compatible Fluids | Gasoline |
Discharge Connection | Threaded Female |
Discharge Diameter | 1 in. |
Duty Cycle | 30 min. |
Features | Self Priming |
Horsepower | 0.75 HP |
Hose Diameter | 1 in. |
Inlet Connection | Threaded Female |
Inlet Diameter | 1.25 in. |
Intended Use Grade | Commercial |
Maximum Flow Rate | 35 GPM |
Maximum Head Lift | 60 in. |
Maximum Operating Pressure | 26 PSI |
Maximum Operating Temperature | 140 deg. |
Minimum Operating Pressure | 0 PSI |
Minimum Operating Temperature | -17 deg. |
Power Cord Length | 0 in. |
Power Type | Electric |
Product Height | 18.5 in. |
Product Length | 9.25 in. |
Product Weight | 74.5 lb. |
Product Width | 17 in. |
Voltage | 115/230V |
Warranty | Limited Lifetime |
Manufacturer PartNumber | FR311VN |
