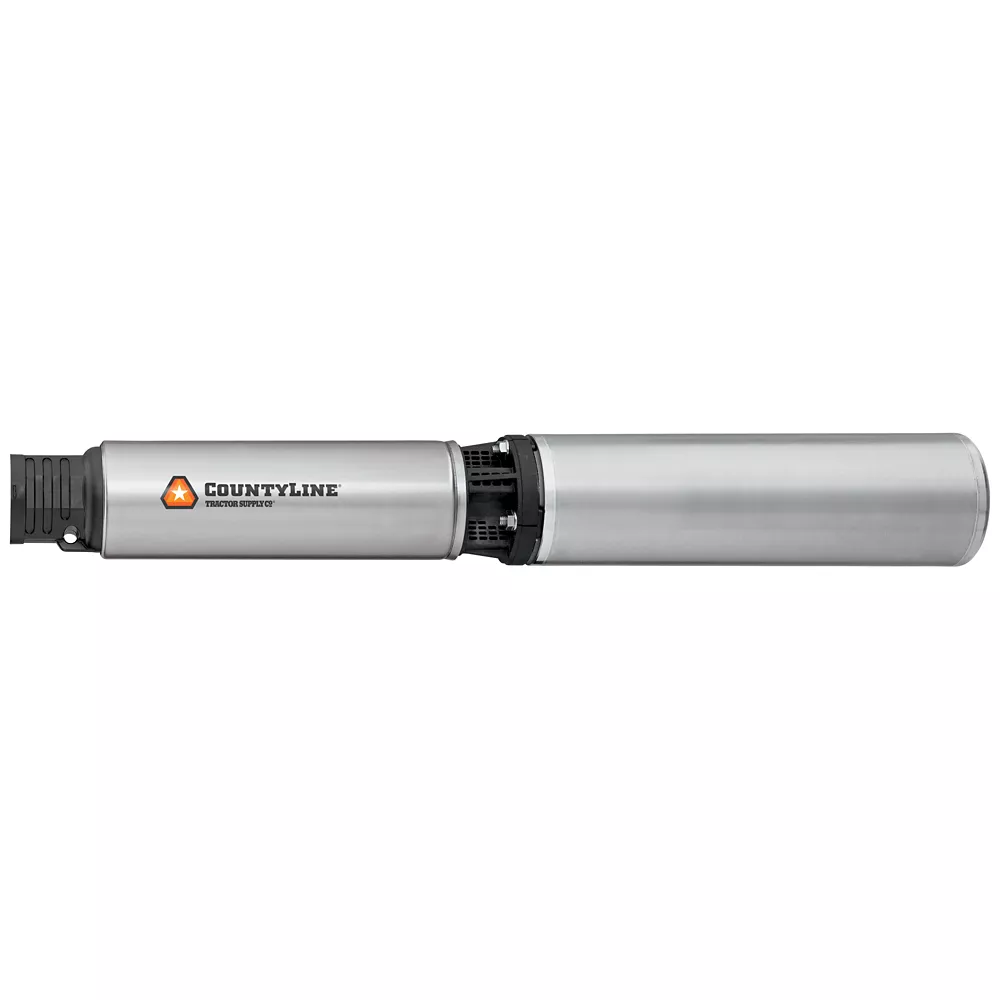

CountyLine 3-Wire Electric Submersible Pump 1 HP 230 V 4 in 14.7 GPM Well Pumps Home Improvement

The CountyLine 3-Wire 1 HP 10 GPM Series 4 in. Submersible Pump is ideal for residential water systems and agricultural applications 300 ft. deep or less. Featuring a proven floating stack impeller design for sand resistance and reduced sand locking, this heavy-duty stainless steel pump is built to last. The pump is rated for 230V and is backed by a 3 year limited warranty.

1 HP
Maximum depth to water: 300 ft.
230V
6 in. x 4-5/8 in. x 40 in.
39 lb.
Stainless steel body
CSA approved
Includes: Control Box
Tractor Supply is proud to introduce CountyLine, our brand of high quality, competitively priced agricultural products; with a full line of 3-point equipment for your tractor, as well an assortment of sub-compact pieces
3 year limited warranty

CountyLine 3-Wire Electric Submersible Pump 1 HP 230 V 4 in 14.7 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Made in USA
Amperage	10.8 Amps
Body Material	Stainless steel
Compatible Pipe Material	Other
Compatible Well Diameter	4 in.
Discharge Connection	Threaded Female
Discharge Diameter	1.25 in.
Discharge Rate at 0 ft.	14.7 GPM
Discharge Rate at 25 ft.	N/A
Discharge Rate at 50 ft.	15 GPM
Features	Control Box Included
Head Pressure	130 PSI
Horsepower	1 HP
Impeller Material	Engineered thermoplastic
Inlet Connection	None
Inlet Diameter	N/A
Maximum Flow Rate	14.7 GPM
Maximum Head Lift	N/A
Maximum Operating Depth	300 ft.
Maximum Operating Temperature	86 degrees F
Minimum Operating Temperature	32 degrees F
Power Type	Electric
Product Height	40 in.
Product Length	6 in.
Product Weight	37 lb.
Product Width	5 in.
Motor Type	Submersible
Voltage	230V
Warranty	3 Year Limited
Manufacturer PartNumber	CL30610

CountyLine 1 HP 230V Electric 3-Wire Series 4 in. Submersible Pump, 14.7 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Made in USA Amperage 10.8 amps Body Material Stainless Steel Compatible Pipe Material Other Compatible Well Diameter 4 in. Discharge fitting Female threaded Discharge diameter 1.25 in. Discharge rate at 0 ft. 14.7 GPM Discharge Rate at 25 Feet N/A Discharge Rate at 50 Feet 15 GPM Features Control Box Included Head Pressure 130 PSI Power 1 HP Impeller Material Engineered Thermoplastic Inlet Connection None Impeller Diameter Inlet N/A Maximum Flow 14.7 GPM Maximum Head Lift N/A Maximum Operating Depth 300 feet Maximum Operating Temperature 86 degrees F Minimum Operating Temperature 32 degrees F Power Type Electric Product Height 40 in. Product Length 6 in. Product weight 37 lb. Product width 5 in. Motor type Submersible Voltage 230 V 3-year limited manufacturer's warranty Barepart number CL30610
