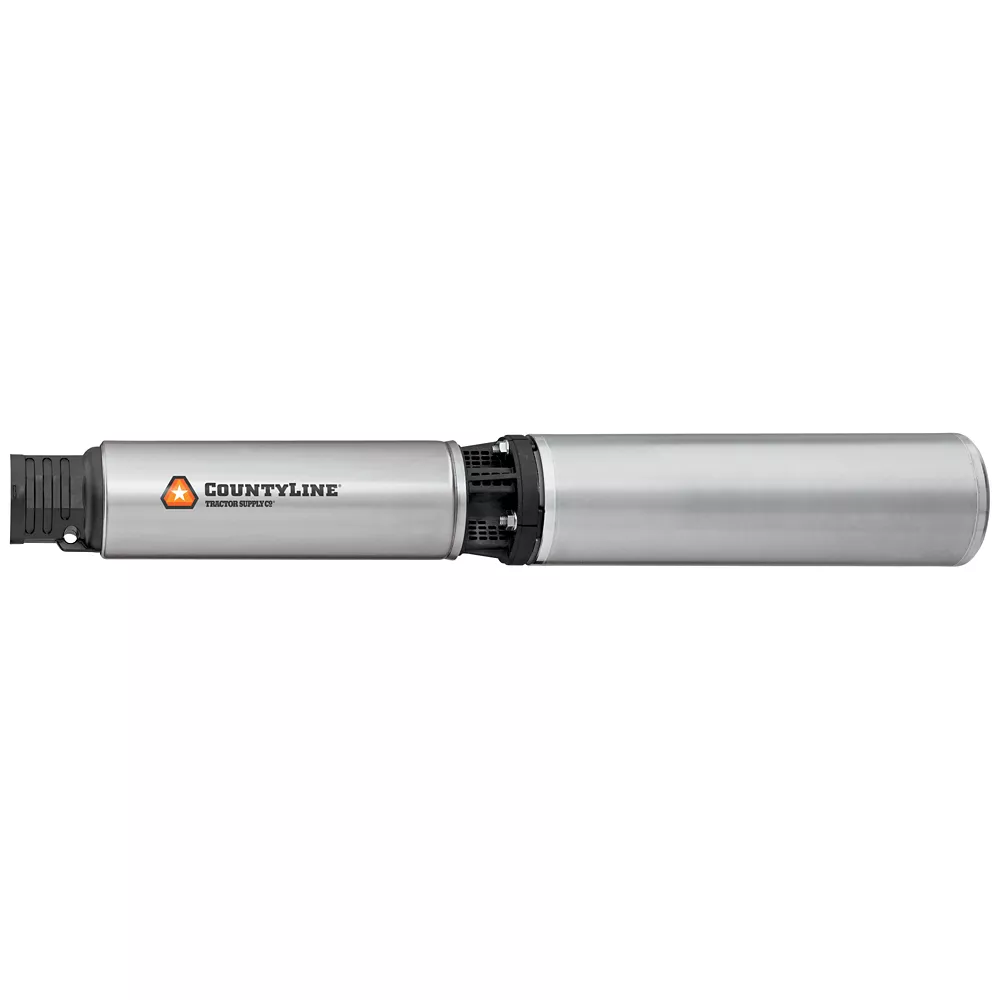

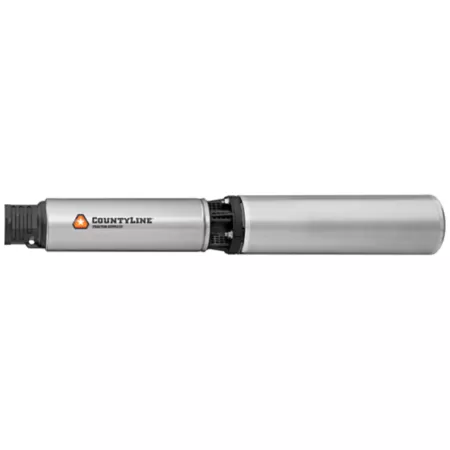

CountyLine 3/4 HP 230V 2-Wire Electric Series 4 in Submersible Pump 14.8 GPM Well Pumps Home Improvement

The CountyLine 2-Wire 3/4 HP 10 GPM Series 4 in. Submersible Pump is ideal for residential water systems and agricultural applications to 200 ft. depth to water or less. Made of heavy duty steel and featuring a proven floating stack impeller design, this sand resistance pump is built for high performance. The pump is rated for 230V and is backed by a 3 year limited warranty.

3/4 HP
Maximum depth to water: 200 ft.
230V
4 in. x 4-3/4 in. x 34-1/4 in.
32 lb.
Stainless steel body
CSA approved
Tractor Supply is proud to introduce CountyLine, our brand of high quality, competitively priced agricultural products; with a full line of 3-point equipment for your tractor, as well an assortment of sub-compact pieces
3 year limited warranty

CountyLine 3/4 HP 230V 2-Wire Electric Series 4 in Submersible Pump 14.8 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Made in USA
Amperage	6 Amp
Body Material	Stainless steel
Compatible Pipe Material	Other
Compatible Well Diameter	4 in.
Discharge Connection	Threaded Female
Discharge Diameter	1.25 in.
Discharge Rate at 0 ft.	14.8 GPM
Discharge Rate at 25 ft.	14.8 GPM
Discharge Rate at 50 ft.	14 GPM
Features	N/A
Head Pressure	87 PSI
Horsepower	3/4 HP
Impeller Material	Engineered thermoplastic
Inlet Connection	None
Inlet Diameter	0 N/A
Maximum Flow Rate	14.8 GPM
Maximum Head Lift	0 N/A
Maximum Operating Depth	200 ft.
Maximum Operating Temperature	86 degrees F
Minimum Operating Temperature	32 degrees F
Power Type	Electric
Product Height	35 in.
Product Length	5 in.
Product Weight	32 lb.
Product Width	5 in.
Motor Type	Submersible
Voltage	230V
Warranty	3 Year Limited Warranty
Manufacturer PartNumber	CLA202

CountyLine 3/4 HP 230V Electric 2-Wire Series 4 in. Submersible Pump, 14.8 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Made in USA Amperage 6 Amp Body Material Stainless Steel Compatible Pipe Material Other Compatible Well Diameter 4 in. Discharge fitting Female threaded Discharge diameter 1.25 in. Discharge rate at 0 ft. 14.8 GPM Discharge Rate at 25 ft. 14.8 GPM Discharge Rate at 50 ft. 14 GPM Specifications N/A Discharge Pressure 87 PSI Power 3/4 HP Impeller Material Engineering Thermoplastic Inlet Connection None Diameter Inlet 0 N/A Maximum Flow 14.8 GPM Maximum Head Lift 0 N/A Maximum Operating Depth 200 feet Maximum Operating Temperature 86 degrees F Minimum Operating Temperature 32 degrees F Power Type Electric Product Height 35 in. Product length 5 in. Product weight 32 lbs. Product width 5 in. Motor Type Submersible Voltage 230V Warranty 3 Year Limited Warranty Part Numberfrom the manufacturer CLA202
