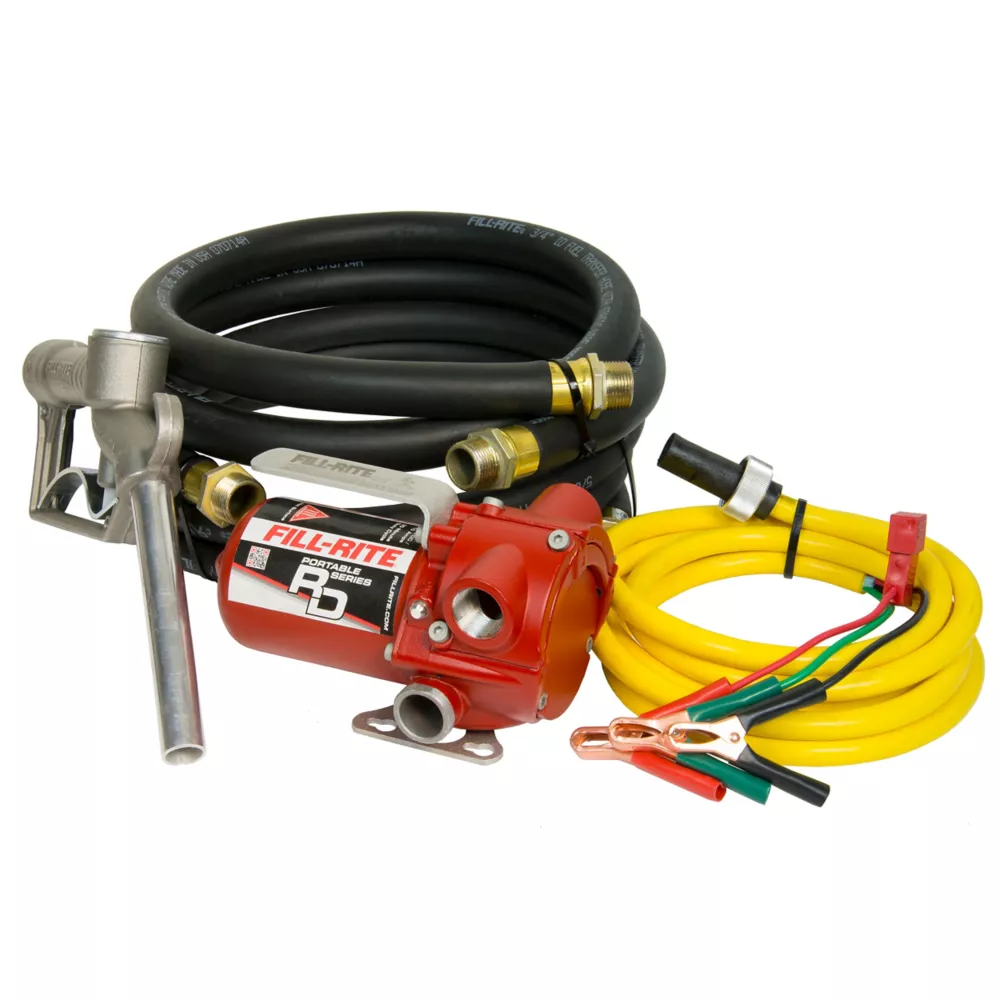

Fill-Rite 0.17 HP 12V Portable Fuel Transfer Pump with Hand Nozzle 8 GPM 8' Discharge Hose Suction Hose Fuel Transfer Pumps Truck & Automotive

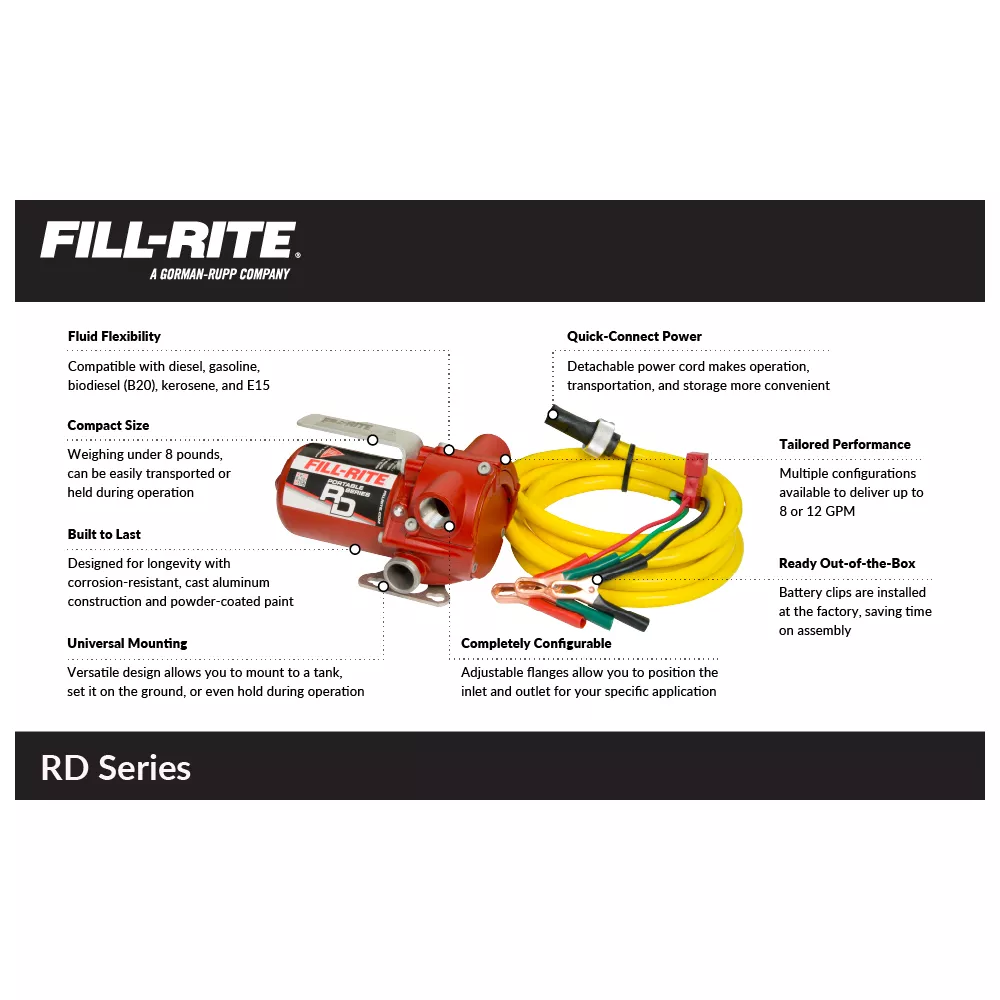

The Fill-Rite 12V 8 GPM Portable Fuel Transfer Pump with Manual Nozzle, 8 ft. Discharge Hose, Suction Hose and Power Cord is a portable fuel transfer pump. This fuel transport pump and the accessory bundle comes complete with a suction discharge hose, nozzle, suction hose, and installation components. The quick connecting power is easy to use and features a detachable power cord that makes operation, transporting, and storage more convenient and adds more security. This portable fuel pump offers versatile mounting that allows you to mount the pump directly to a tank, set it on the ground, or hold it while filling. The powder-coated exterior uses a thick powder coating to provide elite protection from corrosion and tough environmental conditions. This portable fuel transfer pump is 8 ft. long. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.- Powder-coated exterior fuel transport pump offers protection from corrosion and tough environmental conditions
- Portable fuel pump is made with cast-aluminum construction built to last and designed for maximum durability and lifetime corrosion resistance
- Completely configurable and adjustable design allows you to position inlet and outlet flanges for your specific application, making the RD perfect for tight spaces
- Versatile design allows you to mount the fuel pump directly to a tank, set it on the ground, or even hold it during filling
- Detachable power cord makes operation, transportation, and storage more convenient, while also providing additional security measure
- Weighing under 8 lb., the fuel transfer pump can be easily transported or held during operation
- Great fuel transfer pump for low volume commercial or recreational applications

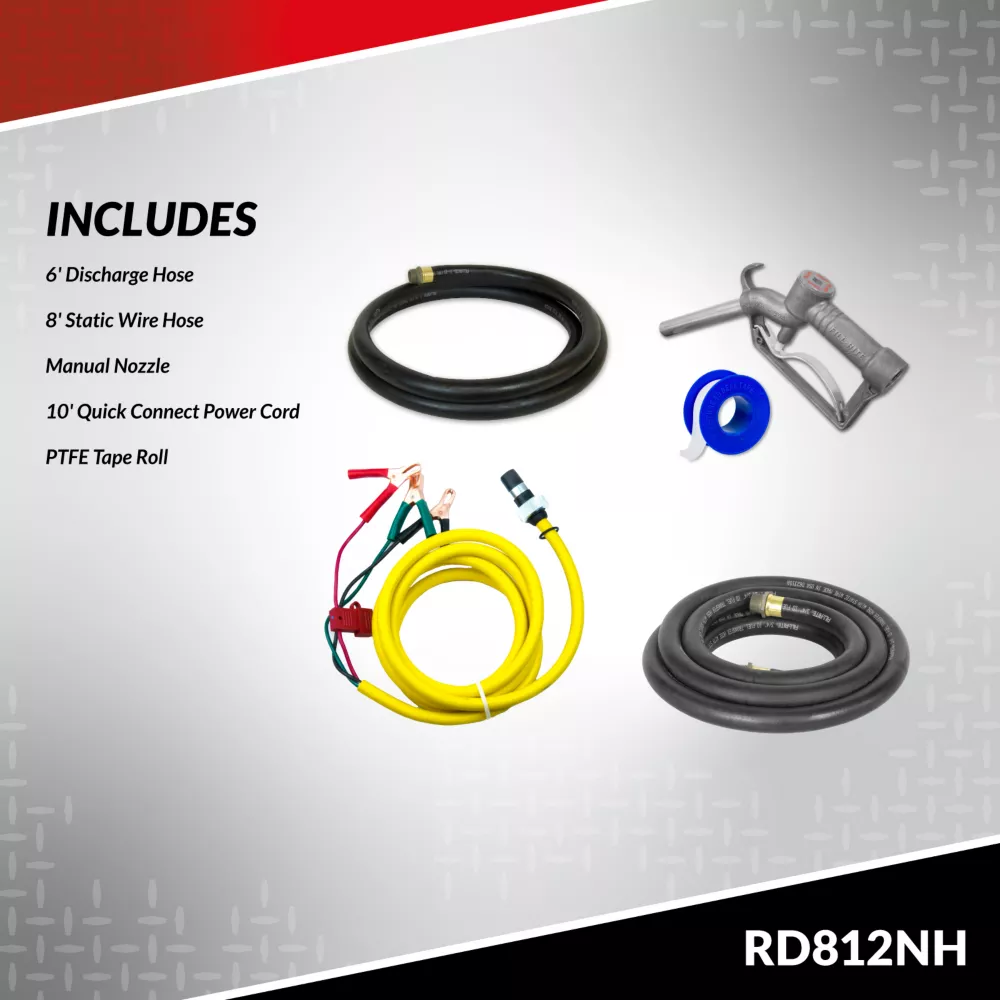

- Suction hose: 3/4 in. x 6 ft. UL listed suction hose
- Discharge hose: 5/8 in. x 8 ft. UL listed hose with static ground wire
- Nozzle: 3/4 in. cast aluminum manual nozzle
- Cable length: 10 ft.
- Cable connection: battery clips
Fill-Rite 0.17 HP 12V Portable Fuel Transfer Pump with Hand Nozzle 8 GPM 8' Discharge Hose Suction Hose Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
| Specification | Description |
|---|---|
| Brand | Fill-Rite |
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 14A |
| Body Materials | Aluminum |
| Compatible Fluids | Mineral Spirits |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Self-Priming |
| Horsepower | 0.17 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 0.75 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 8 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 150 deg. |
| Minimum Operating Pressure | 16 PSI |
| Minimum Operating Temperature | -40 deg. |
| Power Cord Length | 8 ft. |
| Power Type | 12 Volt |
| Product Height | 5 in. |
| Product Length | 8 in. |
| Product Weight | 8.6 lb. |
| Product Width | 4.75 in. |
| Voltage | 12V |
| Warranty | 2 Year |
| Manufacturer PartNumber | RD812NH |
