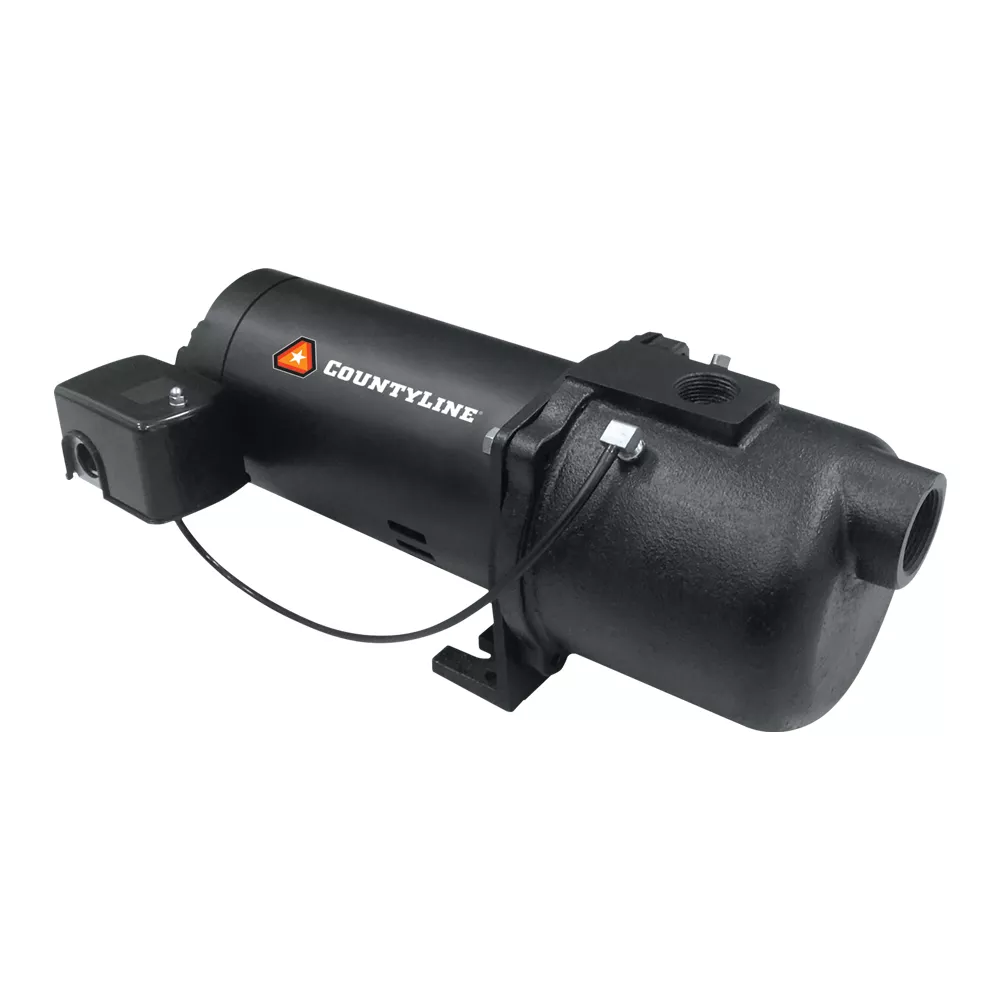

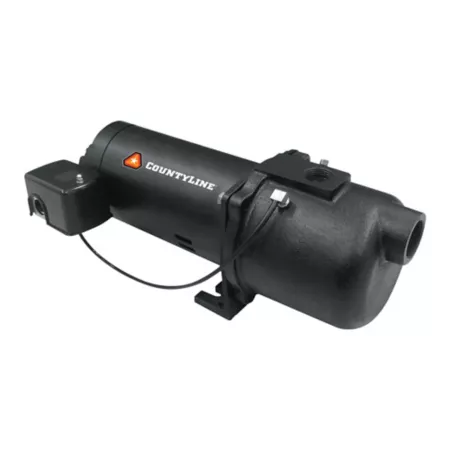

CountyLine 3/4 HP 115/230V Cast Iron Electric Shallow Well Jet Pump 8.1 GPM Well Pumps Home Improvement

The CountyLine 3/4 HP 115/230V Cast-Iron Shallow Well Jet Pump delivers superior performance at depths to water of 25 ft. or less. Featuring rugged cast-iron construction and a heavy-duty, dual-voltage motor, this jet pump is designed for long-lasting, reliable use.

Pumps 11.5 GPM at 0 degrees lift; 9.1 GPM at 10 ft. lift
Powered by a heavy-duty, 3/4 HP dual-voltage motor
Shallow well jet pump delivers superior performance at depths to water of 25 ft. or less
Rugged cast-iron construction ensures lasting use
Moderate level installation (plumbing skills required)
For operation, a check valve, hacksaw, screwdriver, fuse box or circuit breaker, adjustable wrench, well seal, pipe wrench, tank tee and PVC cement may be needed (sold separately)
Backed by a 2-year warranty

To install the jet pump, plumbing skills are required.

CountyLine 3/4 HP 115/230V Cast Iron Electric Shallow Well Jet Pump 8.1 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	CountyLine
Country of Origin	Imported
Amperage	11.1,5.1 Amps
Body Material	Cast iron
Compatible Pipe Material	Poly, PVC
Compatible Well Diameter	3 in.
Discharge Connection	Threaded Female
Discharge Diameter	1.14 in.
Discharge Rate at 0 ft.	10.3 GPM
Discharge Rate at 25 ft.	5.5 GPM
Discharge Rate at 50 ft.	0 GPM
Features	Capacity to 11.5 GPM; Cast iron pump head; Built-in shallow well jet has corroson-resistant nozzle and venturi; Stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal and insulated windings; 30/50 Presssure switch
Head Pressure	64 PSI
Horsepower	34 HP
Impeller Material	Plastic
Inlet Connection	Threaded Female
Inlet Diameter	1.14 in.
Maximum Flow Rate	8.1 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	32 deg. F
Power Type	Electric
Product Height	7.87 in.
Product Length	24 in.
Product Weight	28.2 lb.
Product Width	11.4 in.
Motor Type	PSC
Voltage	115V230V
Warranty	2 Year
Manufacturer PartNumber	CL7SWJ

CountyLine 3/4 HP 115/230V Electric Cast Iron Shallow Well Jet Pump, 8.1 GPM Specifications expand/collapse Specification Description Brand CountyLine Country of Origin Imported Amperage 11.1.5.1 Amps Body Material Cast Iron Compatible Pipe Material Poly, PVC Compatible Well Diameter 3 in. Discharge Connection Female Threaded Discharge Diameter 1.14 in. Discharge rate at 0 ft. 10.3 GPM Discharge rate at 25 ft. 5.5 GPM Discharge rate at 50 ft. 0 GPM Features Capacity up to 11.5 GPM; Cast iron pump head; The integrated shallow well jet features a corrosion-resistant nozzle and venturi; Stainless steel shaft, heavy duty bearings, balanced rotor, mechanical seal and insulated windings; 30/50 Pressure Switch Head Pressure 64 PSI Power 34 HP Impeller Material Plastic Inlet Fitting Female Threaded Inlet Diameter 1.14 in. Maximum flow 8.1 GPM Maximum head lift 25 feet. Maximum operating depth 25 feet. Maximum operating temperature 104 deg. F Operating temperatureminimum temperature 32 degrees. F Power Supply Type Product Height 7.87 in. Product length 24 in. Product weight 28.2 lb. Product width 11.4 in. Motor Type PSC Voltage 115V 230V Warranty 2 Years Manufacturer Part Number CL7SWJ
