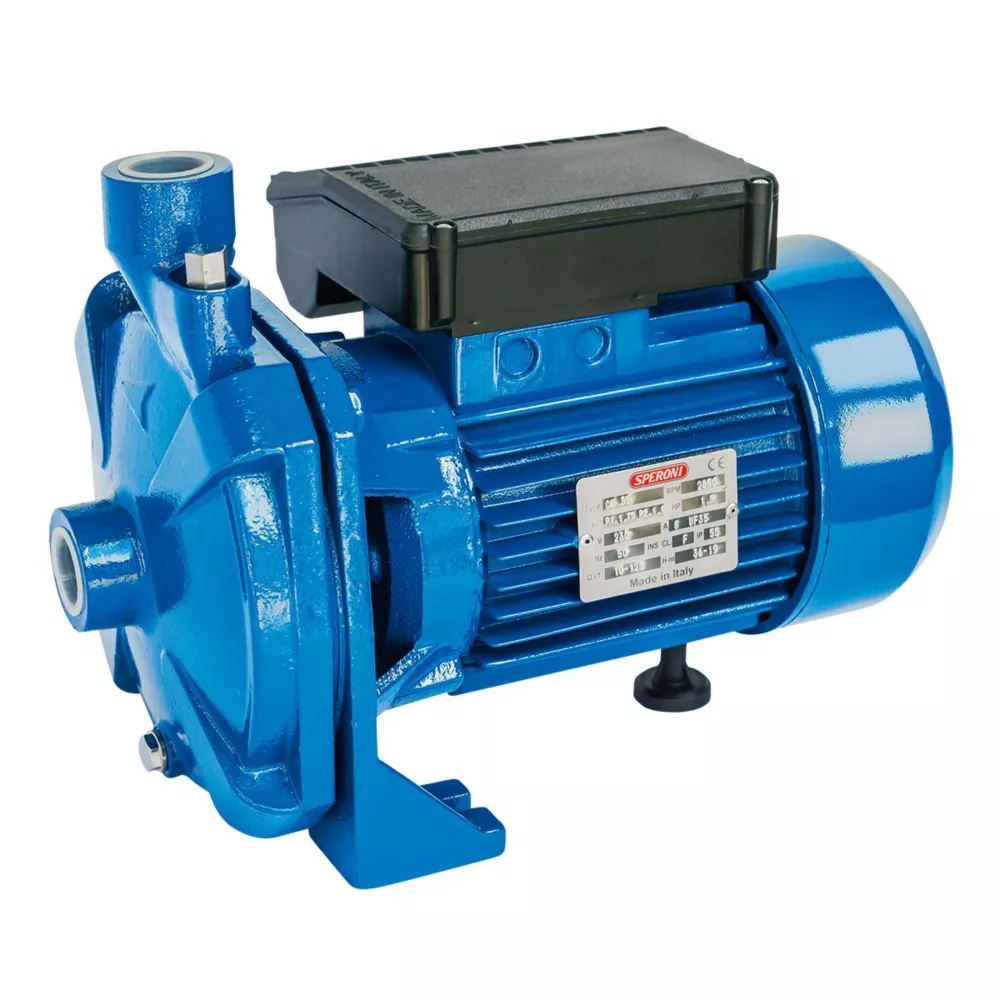

Speroni 1/2 HP110/220V Electric 1 in 66 ft CM22 Cast Iron Centrifugal Pump 26 GPM Well Pumps Home Improvement

The Speroni CM 22 is a single impeller, centrifugal pump that is great for small and large scale, domestic, agricultural and industrial purposes.

Pump body Cast Iron
Impeller Stainless Steel AISI 304
Mechanical seal Ceramic/Graphite/NBR
Voltage 110V/220V 60Hz

Speroni 1/2 HP110/220V Electric 1 in 66 ft CM22 Cast Iron Centrifugal Pump 26 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	Speroni
Country of Origin	Imported
Amperage	7/2.8A
Body Material	Cast iron
Compatible Pipe Material	Universal
Compatible Well Diameter	2 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	26.4 ft.
Discharge Rate at 25 ft.	26 GPM
Discharge Rate at 50 ft.	15.8 GPM
Features	CONTINUOUS DUTY
Head Pressure	66 ft.
Horsepower	0.5 HP
Impeller Material	Stainless Steel
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Maximum Flow Rate	26 GPM
Maximum Head Lift	23 ft.
Maximum Operating Depth	0 ft.
Maximum Operating Temperature	140 deg. F
Minimum Operating Temperature	32 deg. F
Power Type	Electric
Product Height	9.1 in.
Product Length	7.2 in.
Product Weight	21 lb.
Product Width	9.3 in.
Motor Type	ELECTRICAL
Voltage	110V/220V
Warranty	1 year Limited Warranty
Manufacturer PartNumber	1813100

Speroni 1/2 HP110/220V Electric 1 in. 66 ft. CM22 Centrifugal Cast Iron Pump, 26 GPM Specifications expand/collapse Specification Description Brand Speroni Country of Origin Imported Amperage 7/2.8 A Body Material Cast Iron Compatible Pipe Material Universal Compatible Well Diameter 2 in. Discharge fitting Female threaded Discharge diameter 1 in. Discharge flow at 0 ft. 26.4 ft. Flow Rate at 25 Feet 26 GPM Discharge Flow Rate at 50 Feet 15.8 GPM Features CONTINUOUS SERVICE Head Pressure 66 Feet Power 0.5 HP Impeller Material Stainless Steel Inlet Connection Female Threaded Inlet Diameter 1 in. Maximum flow 26 GPM Maximum head lift 23 feet. Maximum operating depth 0 feet. Maximum operating temperature 140 degrees. F Minimum operating temperature 32 degrees. F Power Type Electric Product Height 9.1 in. Product Length 7.2 in. Product Weight 21 lb. Product Width 9.3 in. Motor Type ELECTRIC Voltage 110V/220V Warranty 1 Year Limited Warranty Part Number manufacturer part 1813100
