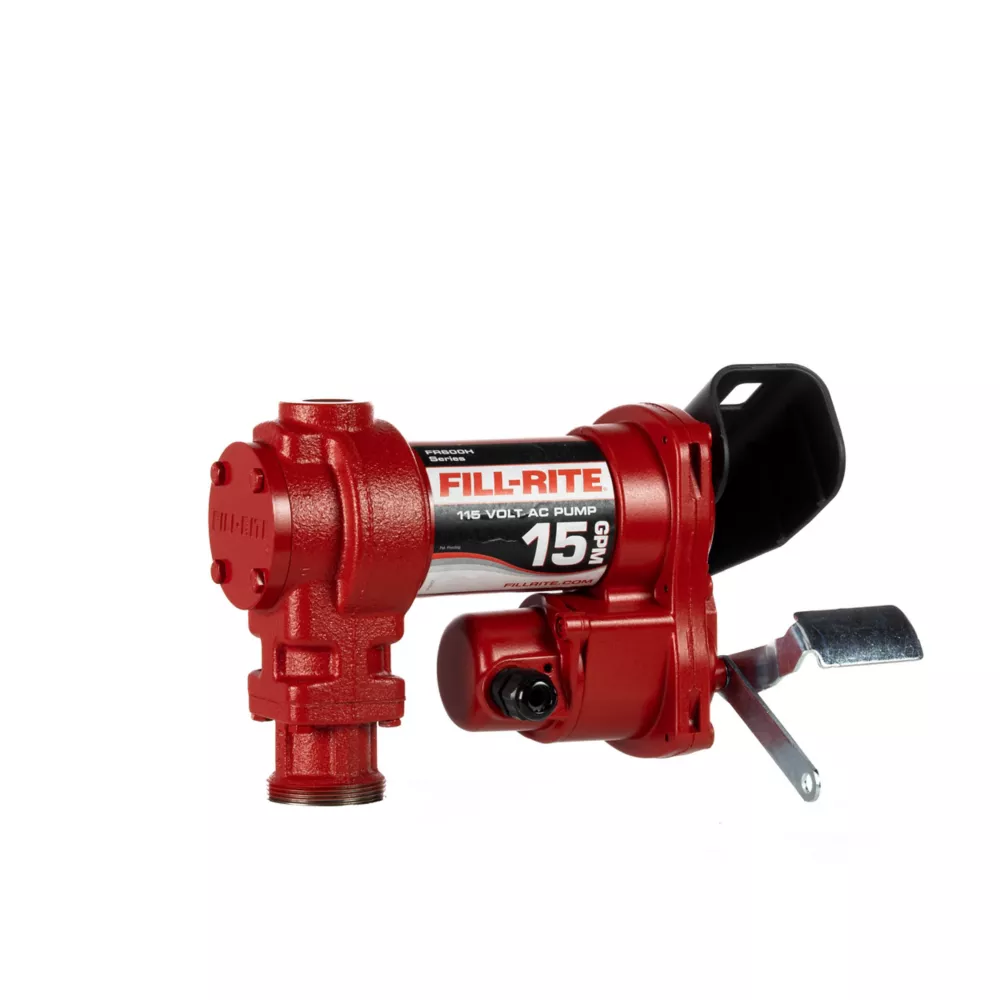

Fill-Rite 0.17 HP 115V 15 GPM Electric Fuel Transfer Pump Pump Only Fuel Transfer Pumps Truck & Automotive

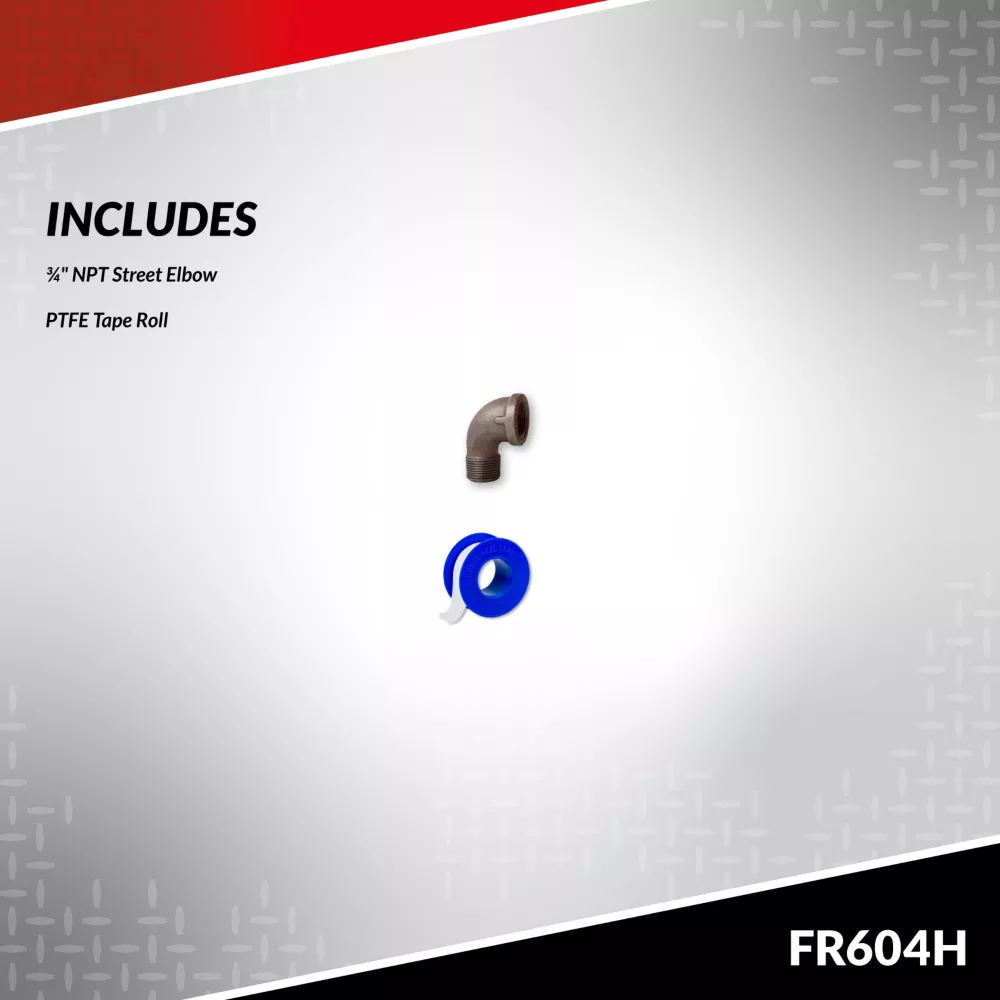

The Fill-Rite 115V 15 GPM (57 LPM) Fuel Transfer Pump is a heavy-duty fuel transfer pump. This Fill-Rite pump includes limited installation components and no additional accessories.

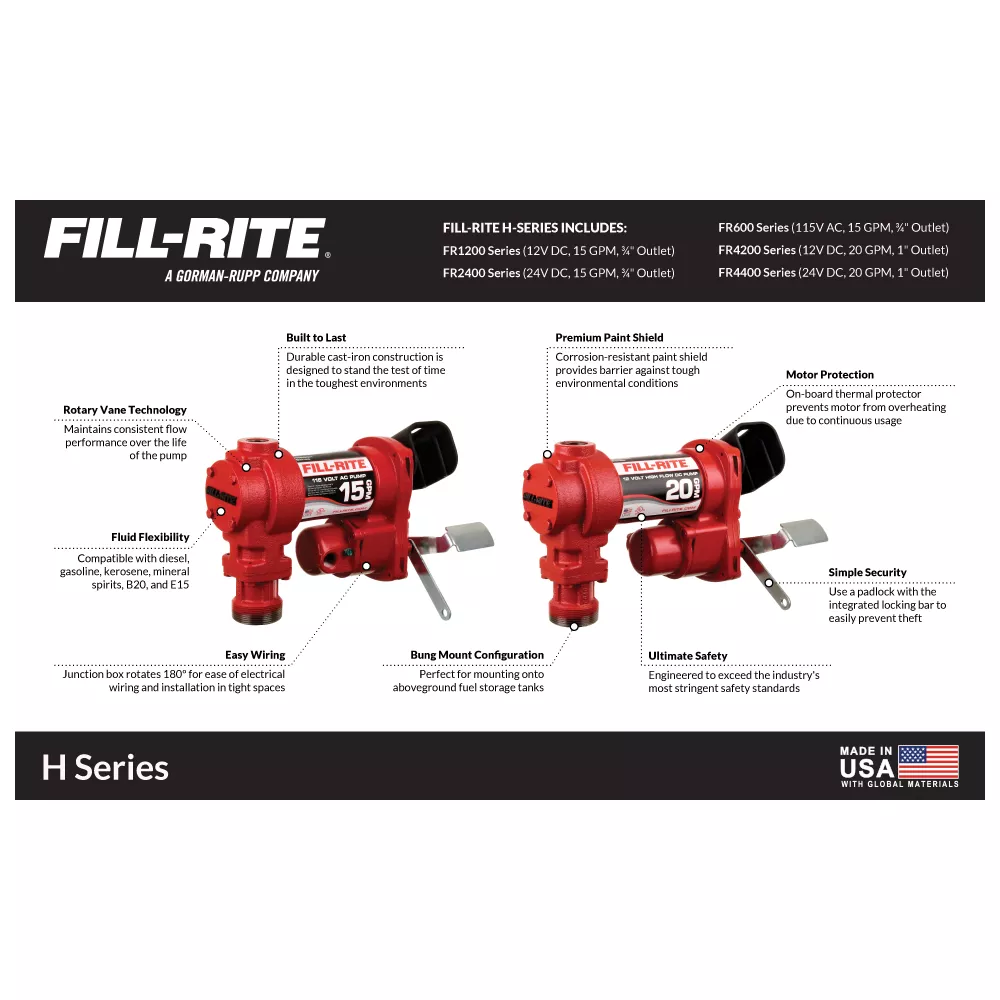

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally-protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
Limited lifetime warranty to protect your purchase and your business
Fill-Rite Pump is designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
Powered by a 115VAC motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks

Fill-Rite 0.17 HP 115V 15 GPM Electric Fuel Transfer Pump Pump Only Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	2A
Body Materials	Cast Iron
Compatible Fluids	Mineral Spirits
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Self Priming
Horsepower	0.17 HP
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	444 in.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Type	Electric
Product Height	9 in.
Product Length	5.25 in.
Product Weight	18 lb.
Product Width	13.25 in.
Voltage	115V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR604H

Fill-Rite 0.17 HP 115V Electric Fuel Transfer Pump, 15 GPM, Pump Only Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power Supply AC Amps 2A Body Materials Cast Iron Compatible Fluids Mineral Spirits Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. Features Self-priming power 0.17 HP Hose diameter 1 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow 15 GPM Maximum Head Lift 444 in. Maximum operating pressure 16 PSI Maximum operating temperature 140 deg. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power Type Electric Product Height 9 in. Product Length 5.25 in. Product Weight 18 lb. Product Width 13.25 in. Voltage 115 V Limited Lifetime Warranty Manufacturer Part Number FR604H
