ECO-FLO Products Inc Electric Submersible Deep Well Pump 1/2 HP 115V 4 in 11 GPM 2 Wire Well Pumps Home Improvement

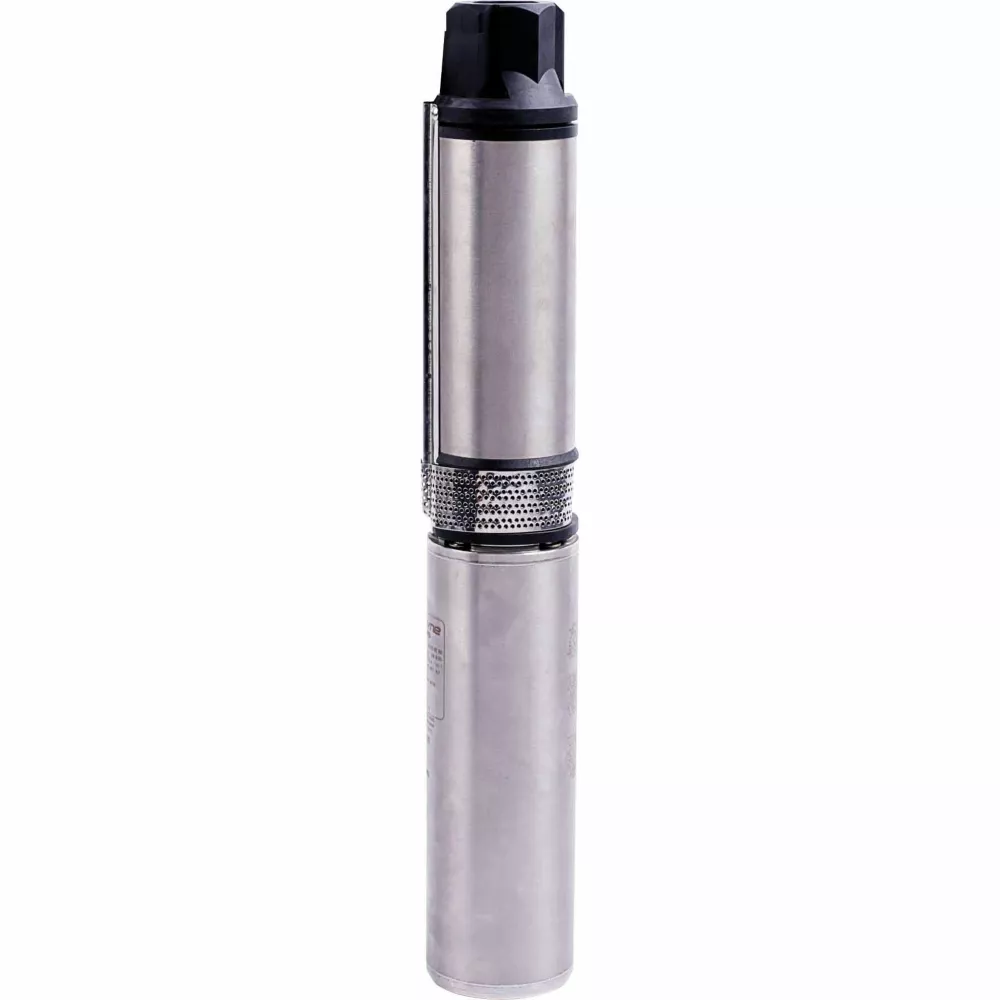

The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. The submersible well pump offers a self-healing resin system and hermetically sealed windings. The stainless-steel pump housing offers maximum protection against corrosion.

Stainless-steel deep well pump shaft is precision-ground for exact bearing fit and straightness
Precision-molded impellers and diffusers
Stainless-steel pump housing for maximum protection against corrosion
Stainless-steel splined shaft
Well pump replacement with hermetically sealed windings
Self-healing resin system
Integrated check valve
Kingsbury-type thrust bearing
Pressure equalizing diaphragm
Removable water-bloc lead connector

ECO-FLO Products Inc Electric Submersible Deep Well Pump 1/2 HP 115V 4 in 11 GPM 2 Wire Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	ECO-FLO Products Inc.
Country of Origin	Imported
Amperage	4.3 Amp
Body Material	Stainless steel
Compatible Pipe Material	PVC
Compatible Well Diameter	4 in.

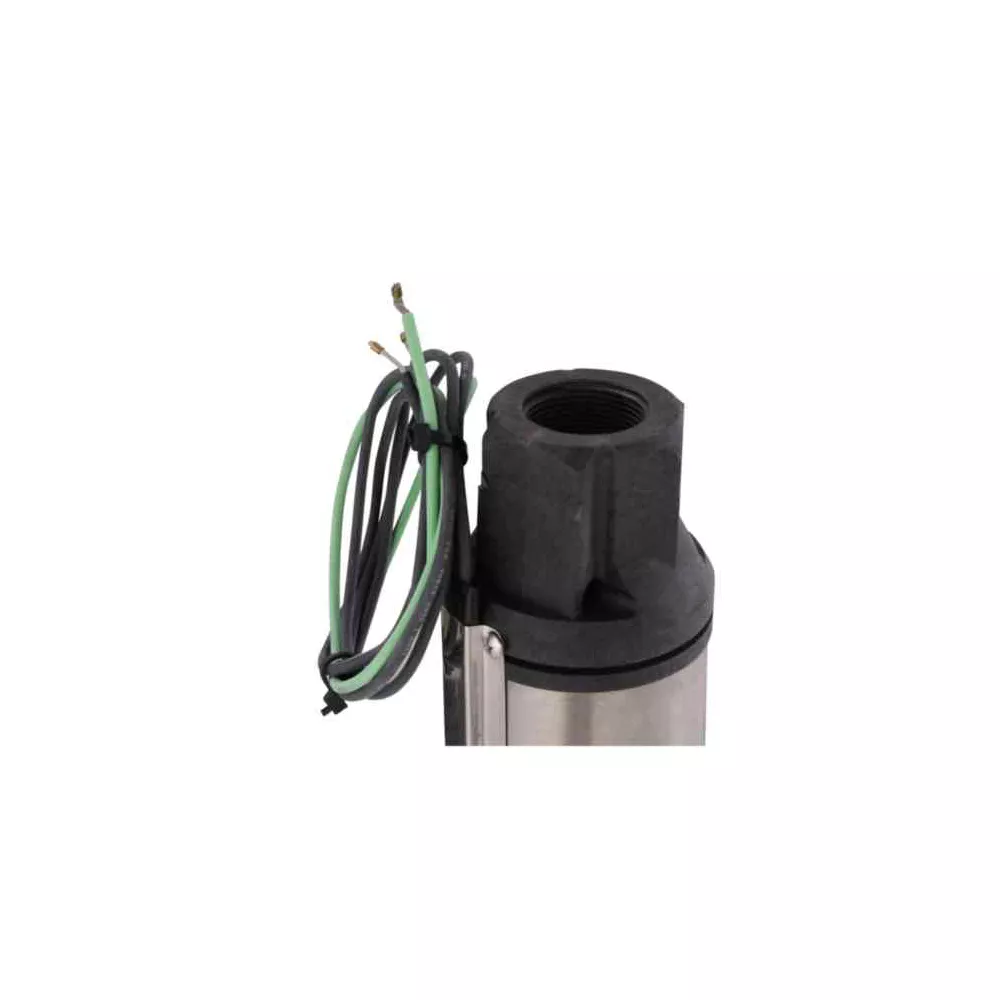

Discharge Connection	Threaded Female
Discharge Diameter	1-1/4 in.
Discharge Rate at 0 ft.	0 N/A
Discharge Rate at 25 ft.	0 N/A
Discharge Rate at 50 ft.	11GPM
Features	1/2 HP, 115V - 10 GPM Provides Smooth Water Passages for Maximum Efficiency 11/4 in. FNPT Discharge Cast Iron Discharge Connection, includes Built-in Check Valve Stainless Steel Pump Shaft is Precision Ground for Exact Bearing Fit and Straightness
Horsepower	0.5HP
Inlet Connection	None
Inlet Diameter	0 N/A
Maximum Flow Rate	11GPM
Maximum Head Lift	100 ft.
Maximum Operating Depth	100 ft.
Maximum Operating Temperature	104 deg. F
Minimum Operating Temperature	33 deg. F
Power Type	Electric
Product Height	23.4 in.
Product Length	23.4 in.
Product Weight	23.8 lb.
Product Width	3.5 in.
Motor Type	Faradyne
Voltage	115V
Warranty	1 Year
Manufacturer PartNumber	EFSUB5-122-1
