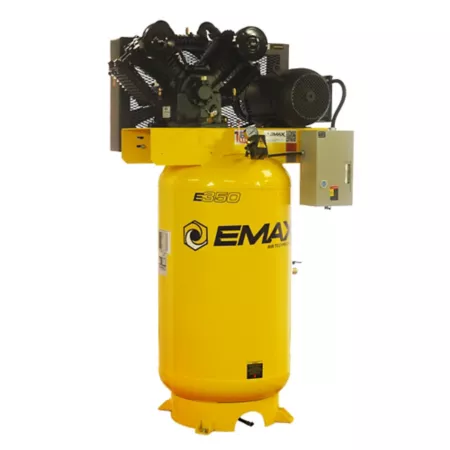

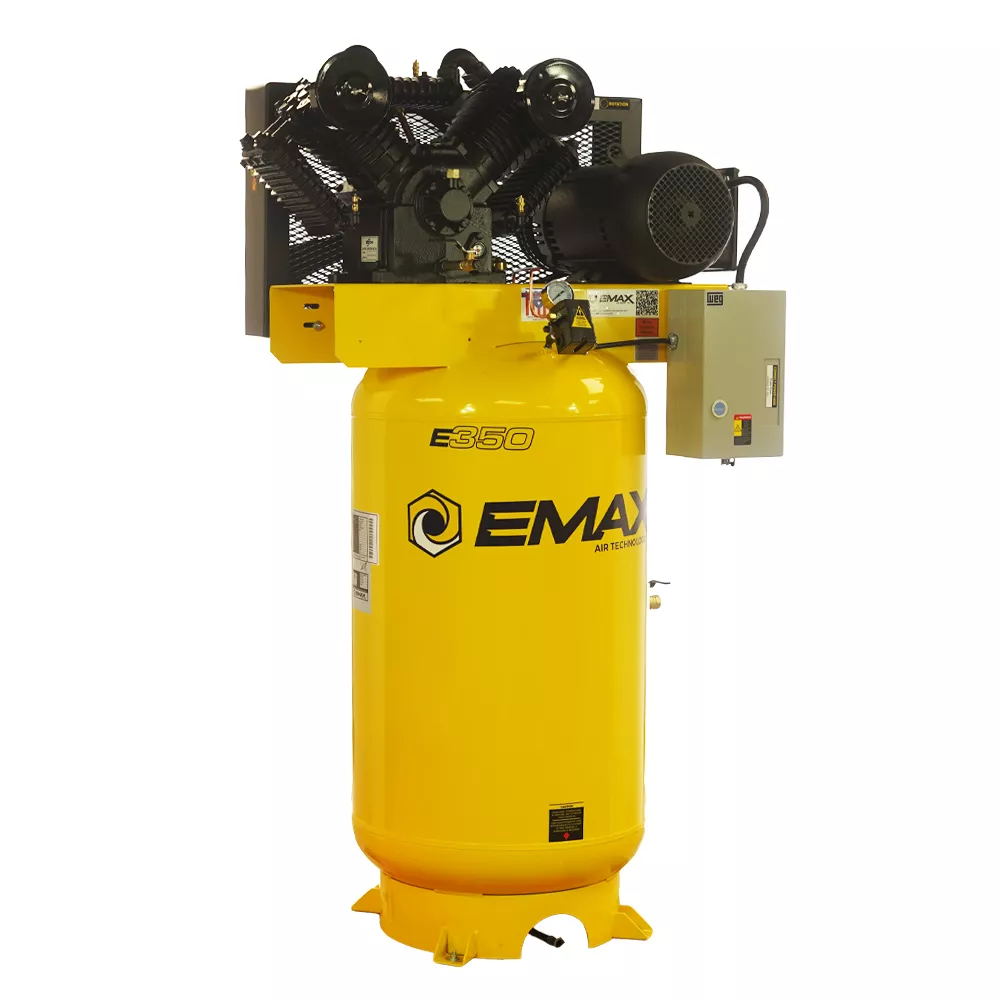

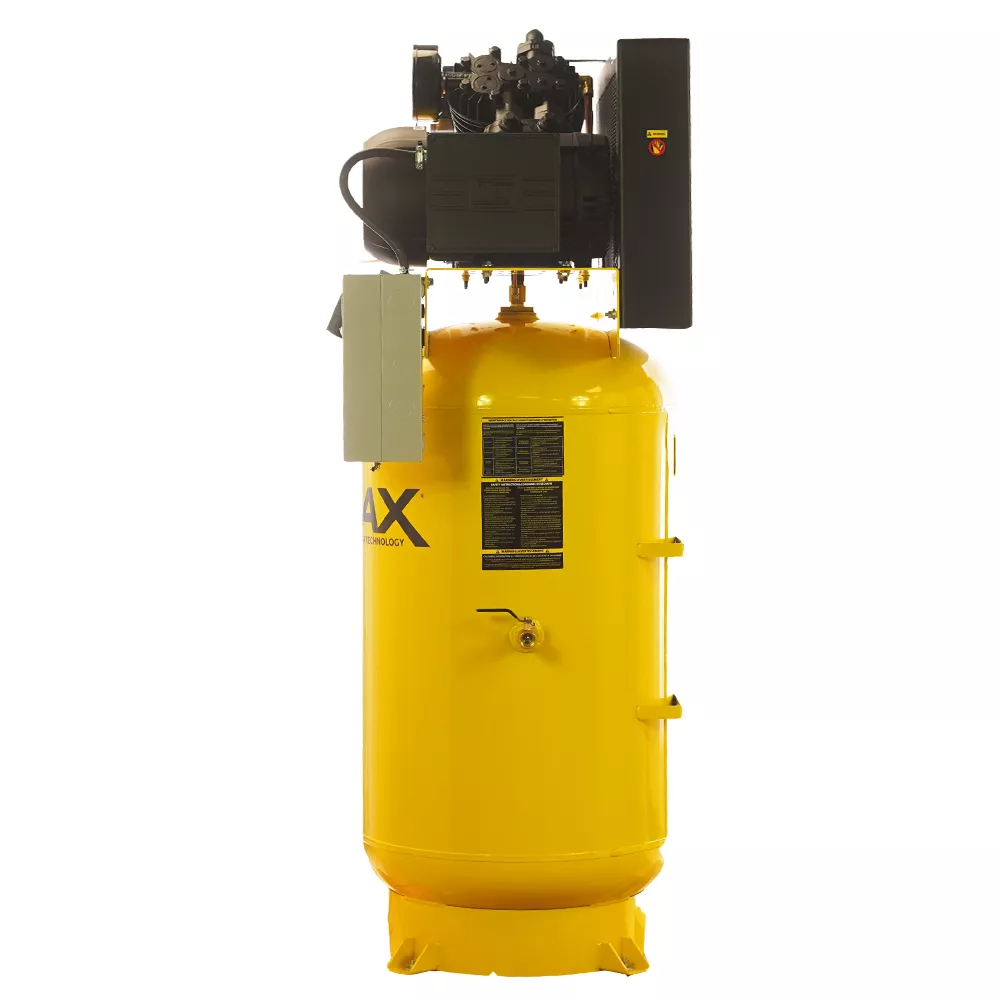

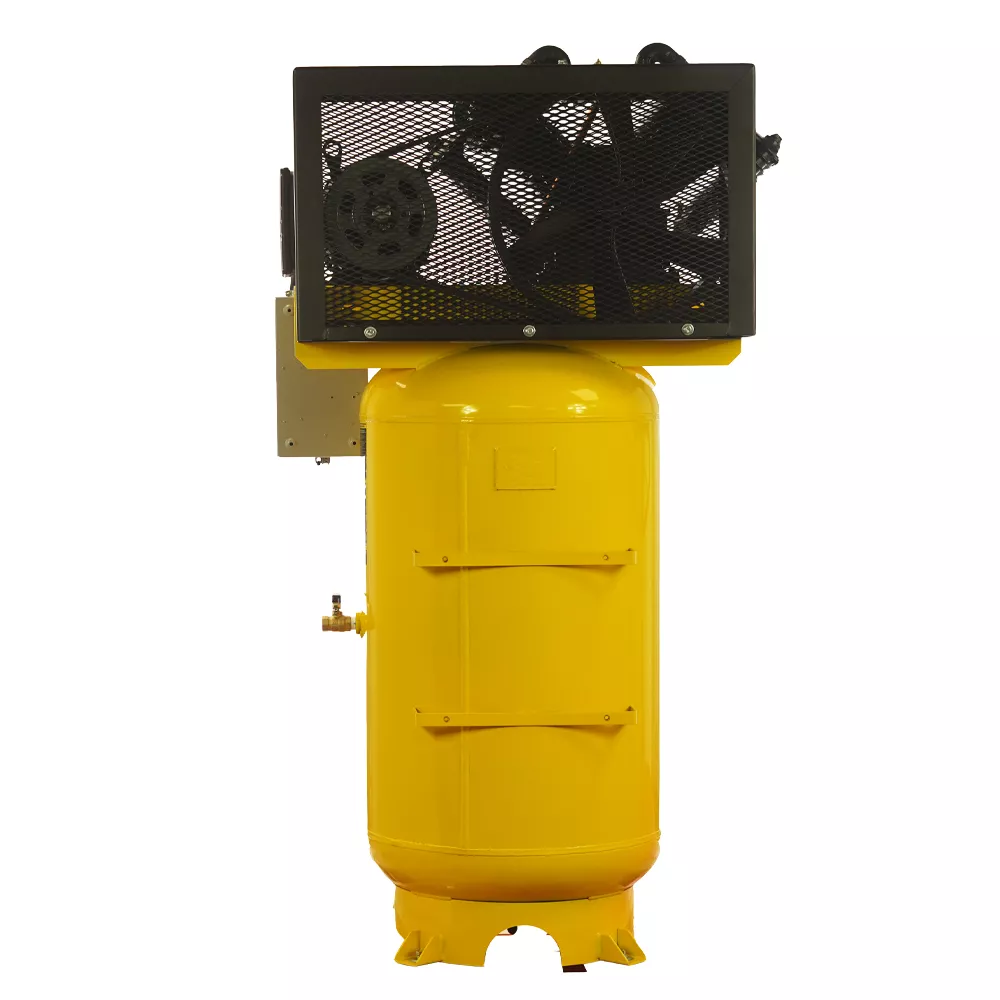

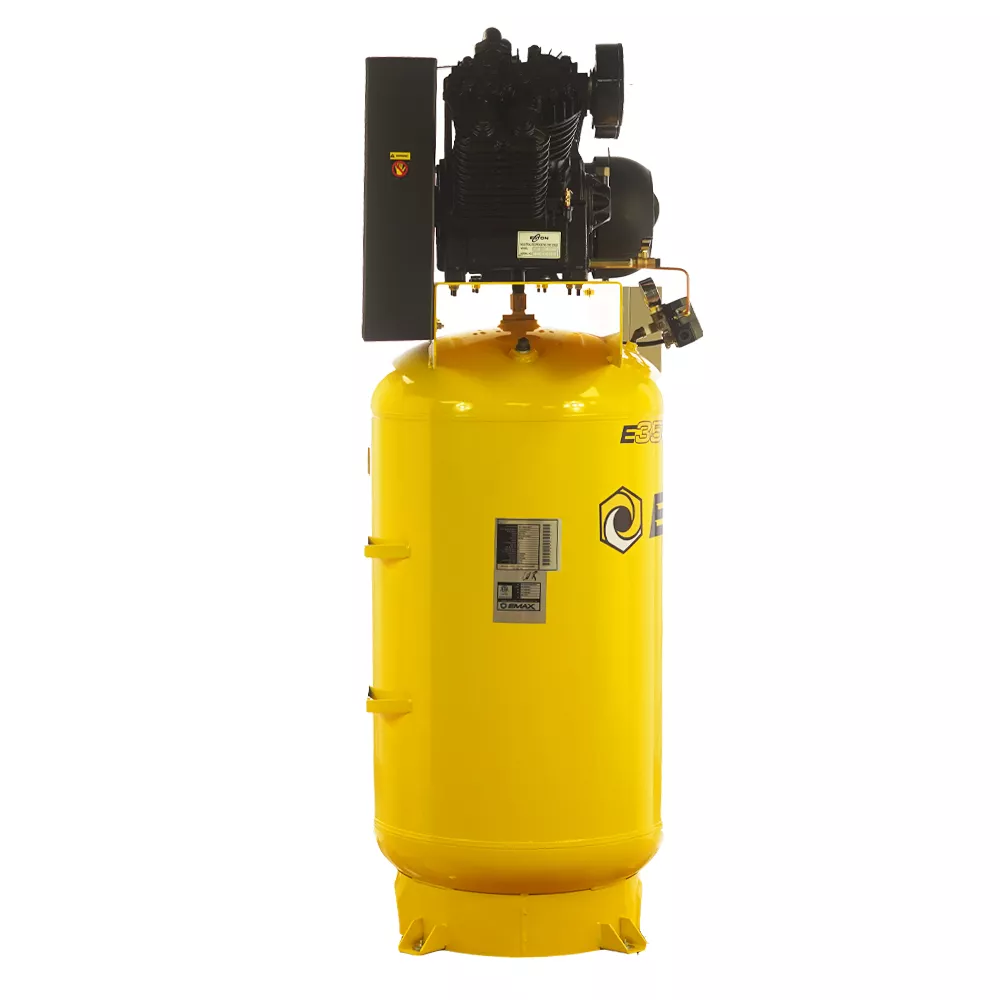

EMAX 10 HP 80 gal V4 2-Stage Industrial Electric Air Compressor Splash Lubricated Cast Iron Pump 175 PSI Single Phase Stationary Air Compressors Air Compressors

The EMAX 250 Series 10HP 80 Gal. 2-stage V4, single phase air compressor is designed for up to 50,000-hours of use with proper maintenance. This EMAX air compressor is equipped with an all-cast iron splash lubricated pump producing 38 CFM at 100 PSI. It also features industrial grade 1.1 Service Factor 1740 RPM electric motor, magnetic starter, manual drain valve, 80 Gal. powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 G steel belt guard, 3/4 in. air outlet, all back by the best warranty around. EMAX air compressors are built and tested in Ohio with reliability and durability in mind.

38 CFM @ 100 PSI
Max PSI: 175
Pump Life: 50,000 hours

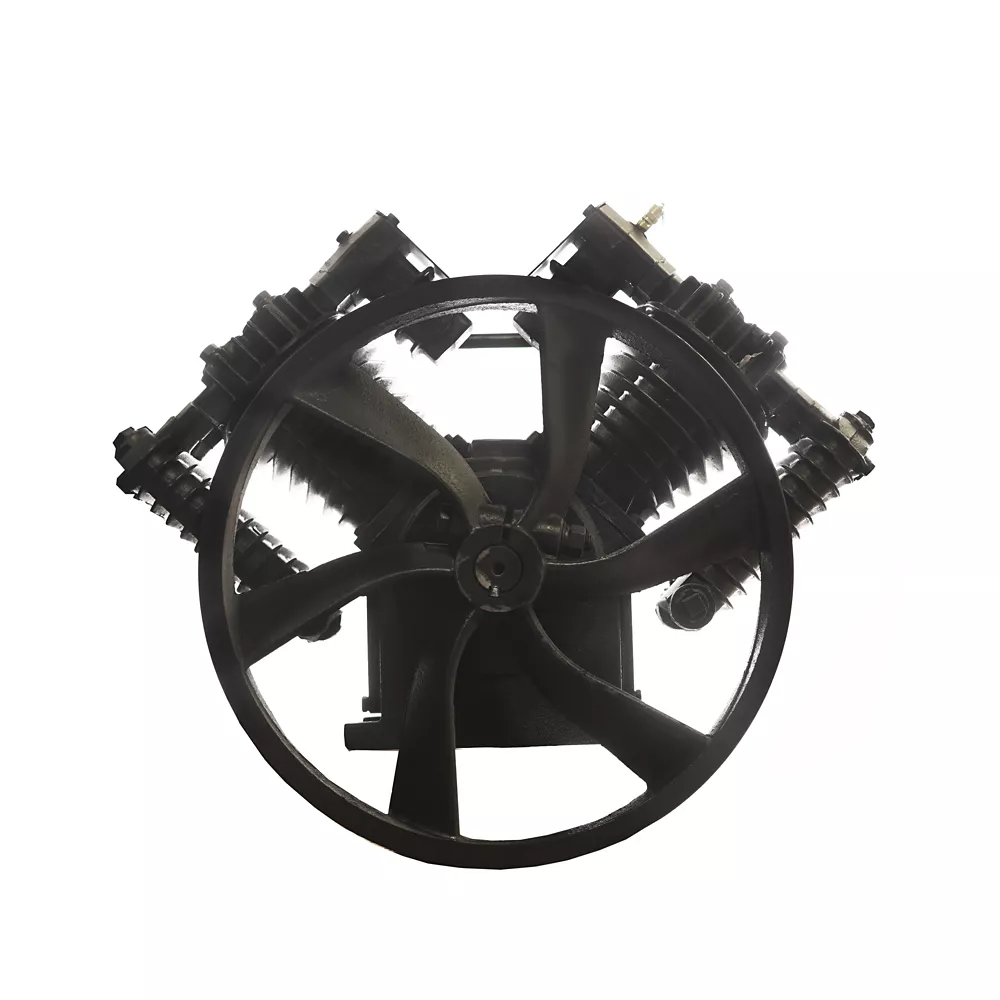

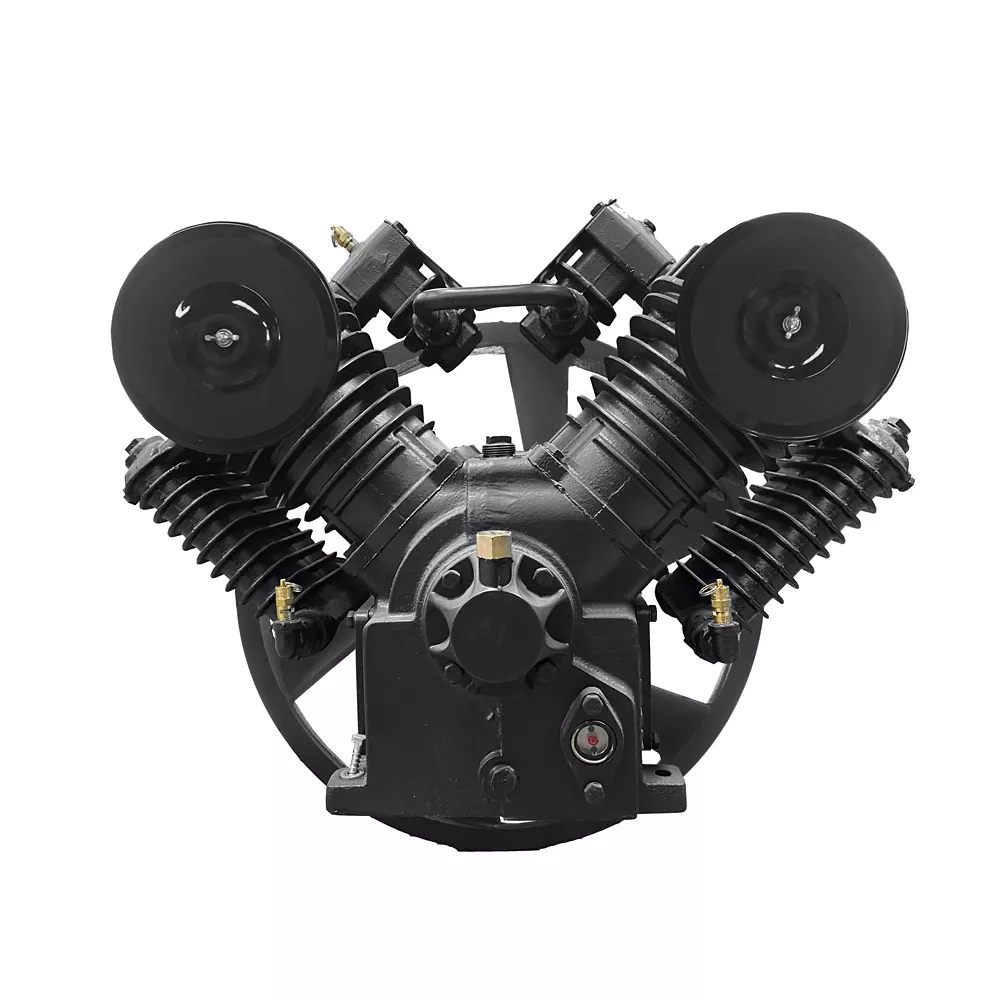

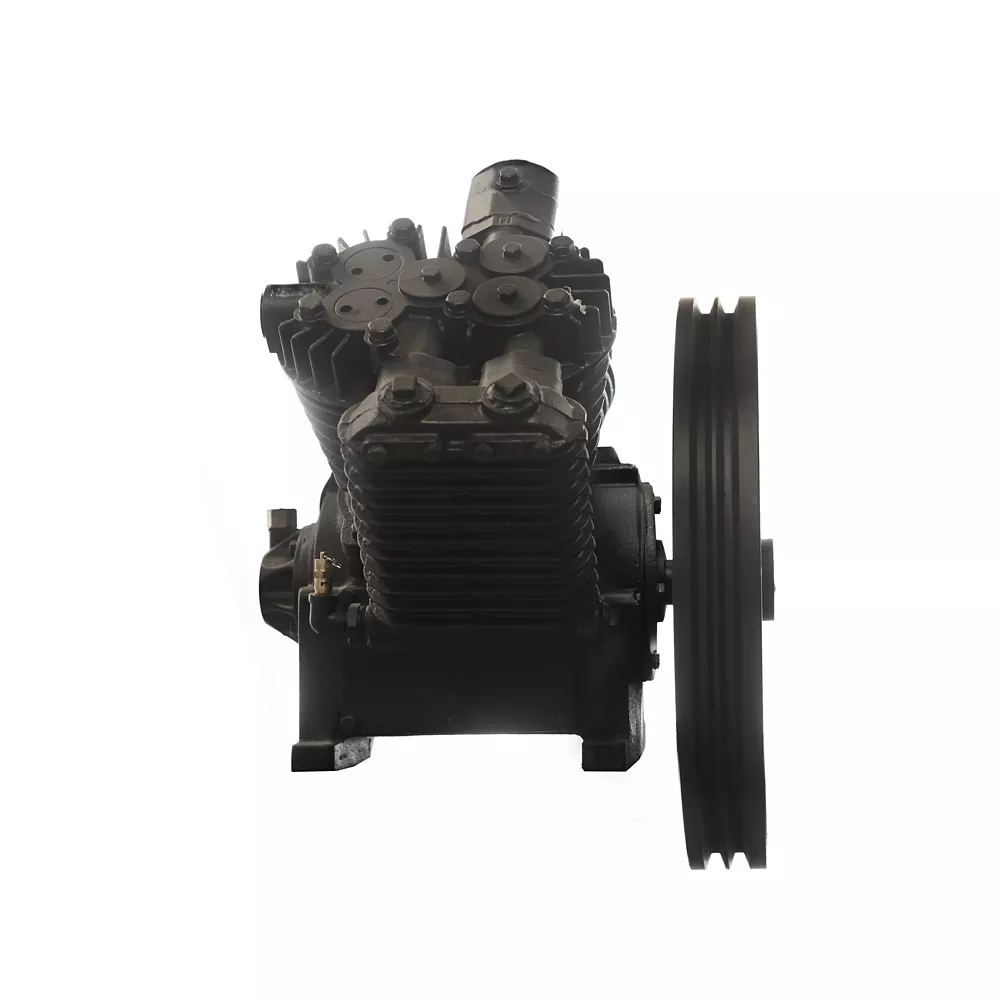

Solid Cast Iron Splash lubricated Pump
Pump Low RPM: 730
Low Motor RPM: 1750
230 Volt
Running Amps: 40
Manual Tank Drain
1 Year Standard, 5 Year Extended, Lifetime Extended with Maintenance kit
Certifications: ETL & ASME Tank - Approved in all 50 states
Product dimensions: 31" x 24.5" x 72" (LxWxH)
Weight: 890 lbs
Compressor operation: Automatic start/stop, Single Speed
MADE IN USA
Solid steel pump rods, Industrial removable Disc Valves
50,000 hours pump life
Open Drip Proof (ODP) Industrical 1.1 service factor, electric motor
Silent air Compatible (sold separately)

Includes: 1 quart oil, anti-vibration Isolator Pads, ASME certified 200 Max PSI steel Tank - Approved in all 50 states

EMAX 10 HP 80 gal V4 2-Stage Industrial Electric Air Compressor Splash Lubricated Cast Iron Pump 175 PSI Single Phase Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	38 CFM 100 PSI
Airflow Volume	38 CFM
Air Outlet Size	0.75 in.
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	Manual tank drain
Drive Type	Belt drive
Features	Includes: Solid cast iron pump, Anti vibration isolator pads
Maximum RPM	Low 800 Pump RPM
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	31 in.
Product Weight	890 lb.
Product Width	24.5 in.
Pump Life	50,000 hr.
Pump Material	Cast iron
Pump Oil Capacity	2 qt.
Stage Type	Two-Stage
Tank Fill Time	4-5 min.
Tank Orientation	Vertical
Warranty	1 Year Standard, 5 Year Extended, Lifetime Extended with maintenance kit
Manufacturer PartNumber	ESL10V080V1

EMAX 10 HP 80 gal. 2-Stage Industrial V4 Splash lubricated Cast Iron Pump Electric Air Compressor, 175 PSI, 1-Phase Specifications expand/collapse Specification Description Brand EMAX Country of Origin Made in USA Air Flow SCFM at 90 PSI 38 CFM 100 PSI Air Flow Volume 38 CFM Air Outlet Size 0.75 in. Compressor Power 10 HP Compressor Maximum PSI 175 PSI Compressor Operation Compressor Auto Start/Stop Tank Capacity 80 gal Compressor Type Oil Lubricated Compressor Voltage 230 V Connection Type NPT Drain System Manual Tank Drain Type d Drive Belt Drive Features Including: Solid Cast Iron Pump, Anti-Vibration Isolating Pads Maximum RPM Low 800 Pump RPM Phase Single Number of Power Speeds Single Power Type Electric Primary Color Yellow Primary Material Steel Product Height 72 in. Product length 31 in. Product weight 890 lbs. Product width 24.5 in. Pump life 50,000 hours. Pump Material Cast Iron Capacitypump oil 2 quarts. Stage type Two-stage tank filling time 4-5 min. Tank Orientation Vertical Warranty 1 Year Standard, 5 Year Extended, Extended Life with Maintenance Kit Manufacturer Part Number ESL10V080V1
