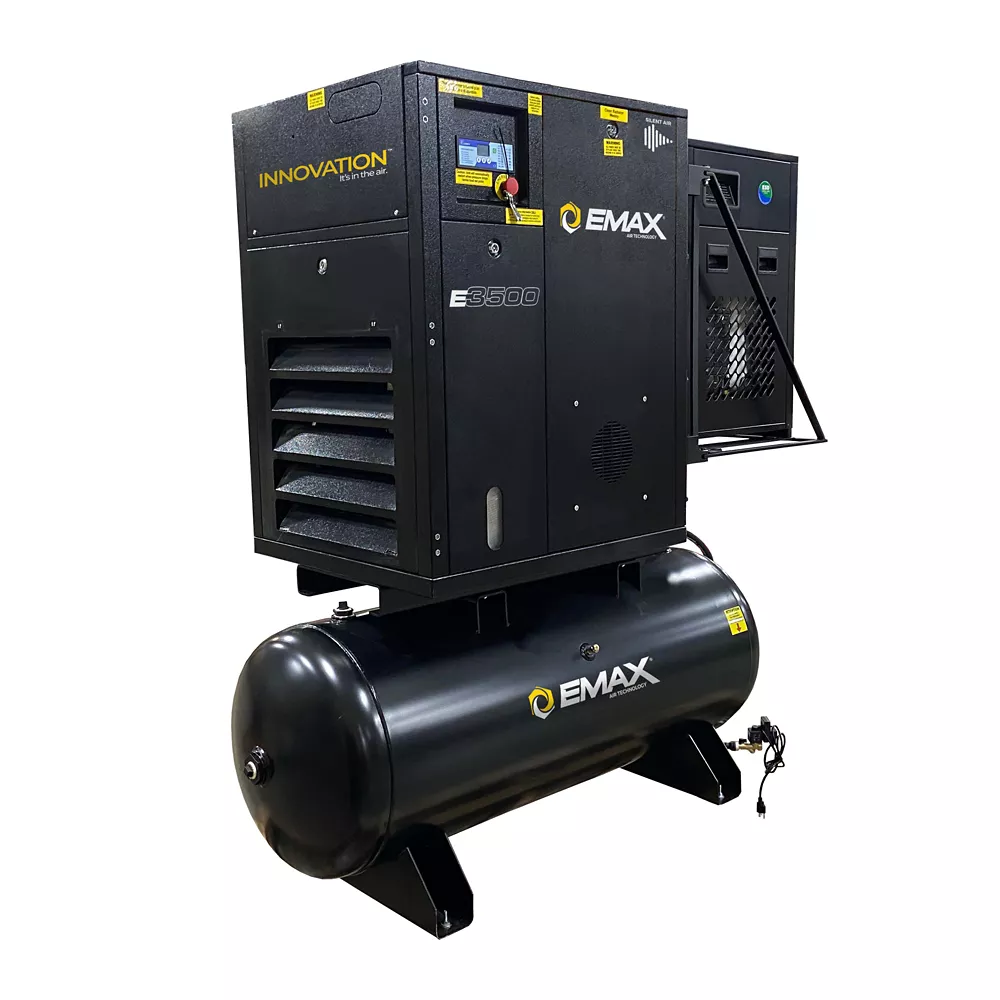

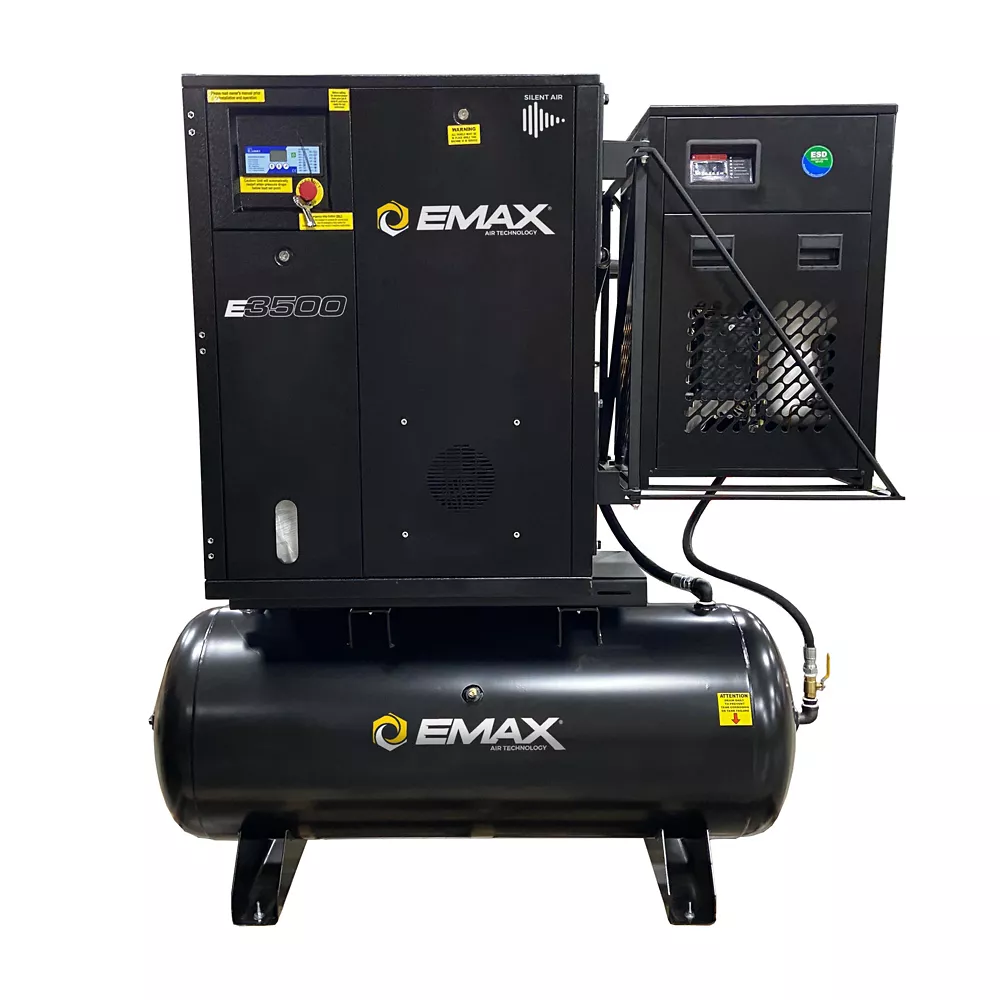

EMAX 10HP 1PH 45CFM @ 100PSI 230V Motor 1750 RPM Soft Start Industrial Rotary Screw Compressor-120G Tank Rack with Air Dryer Rotary Screw Air Compressors Air Compressors

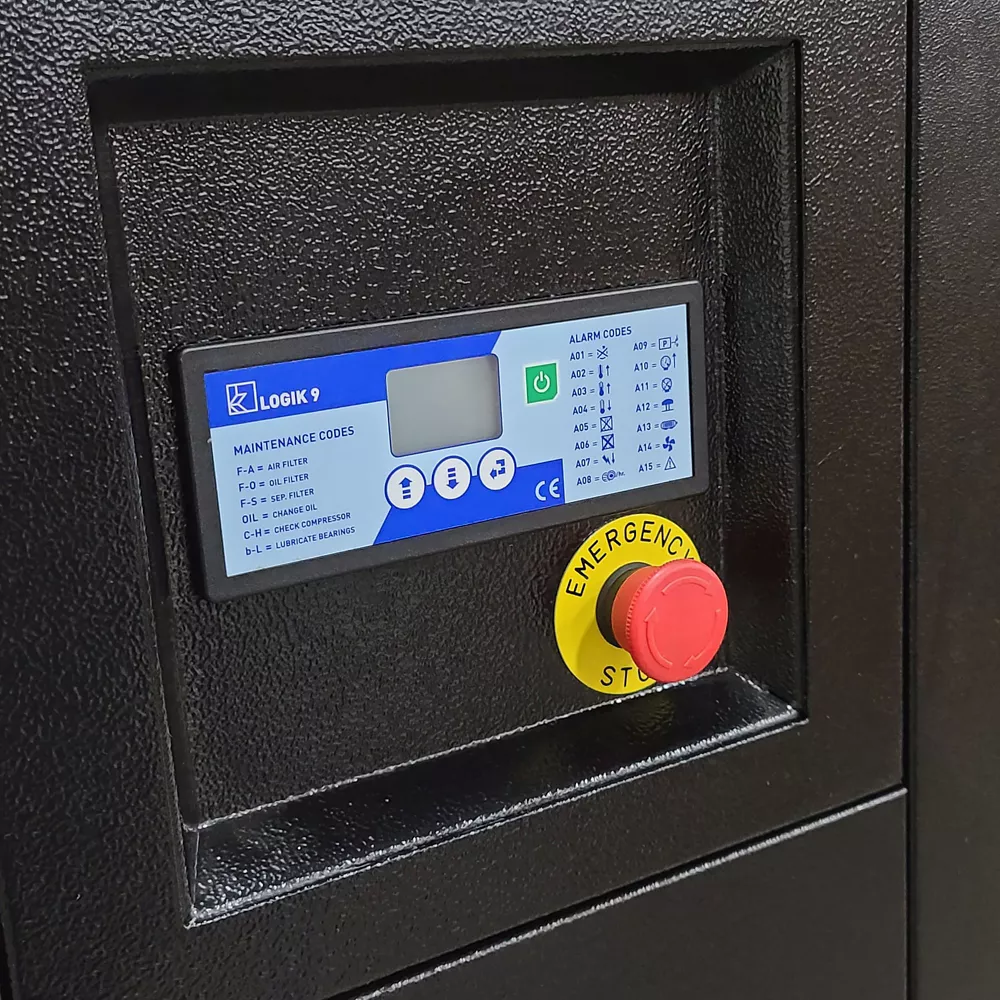

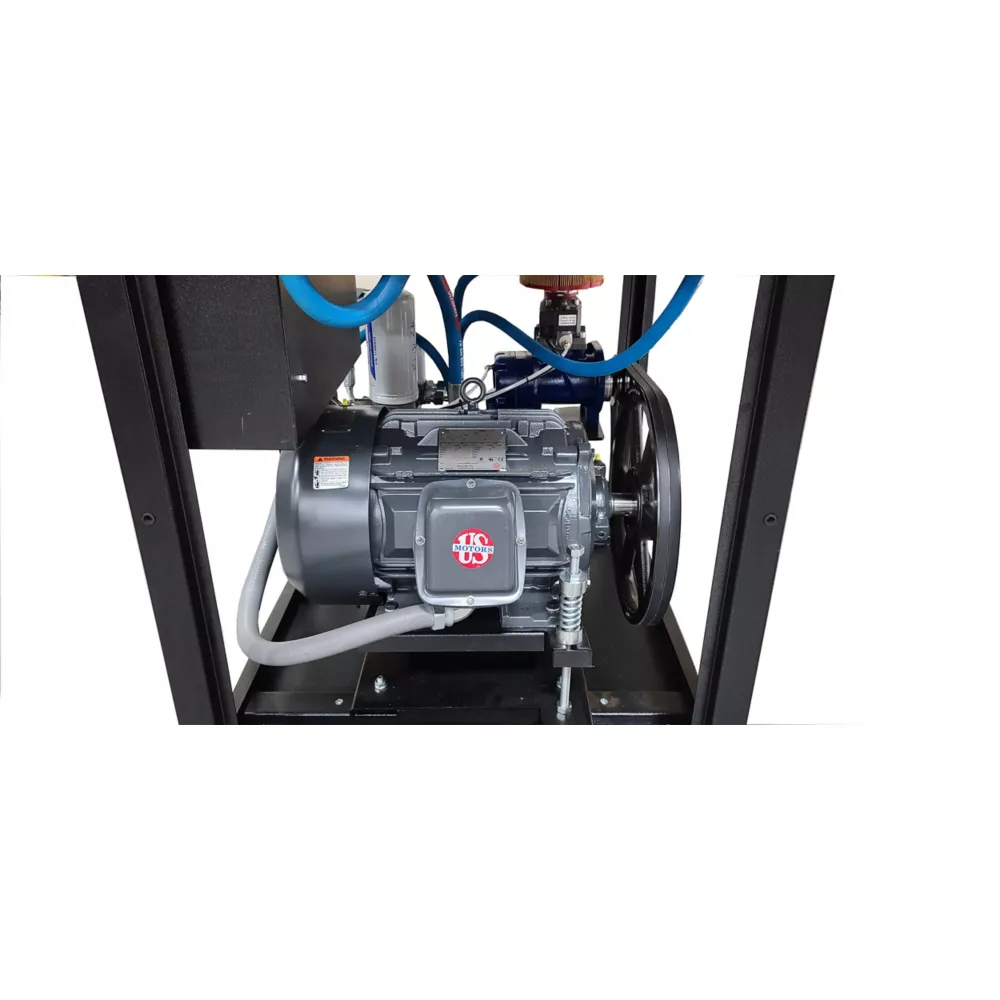

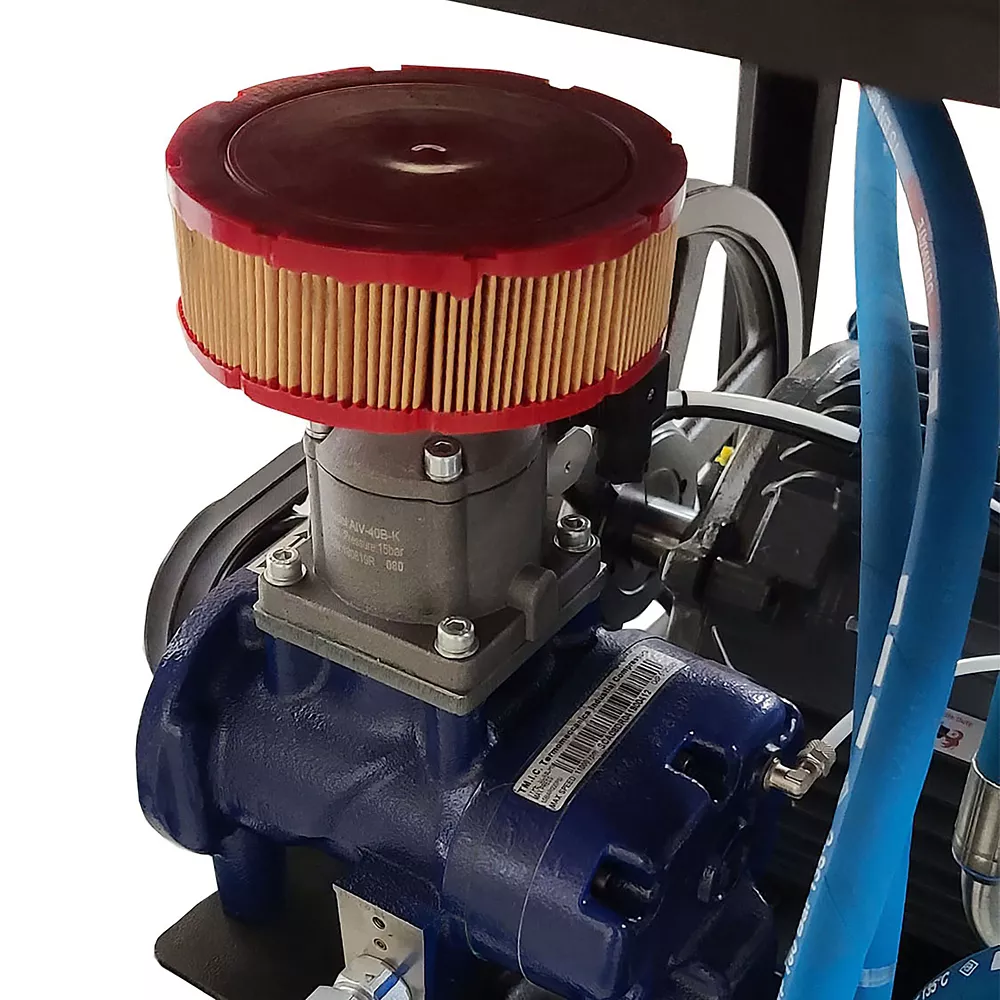

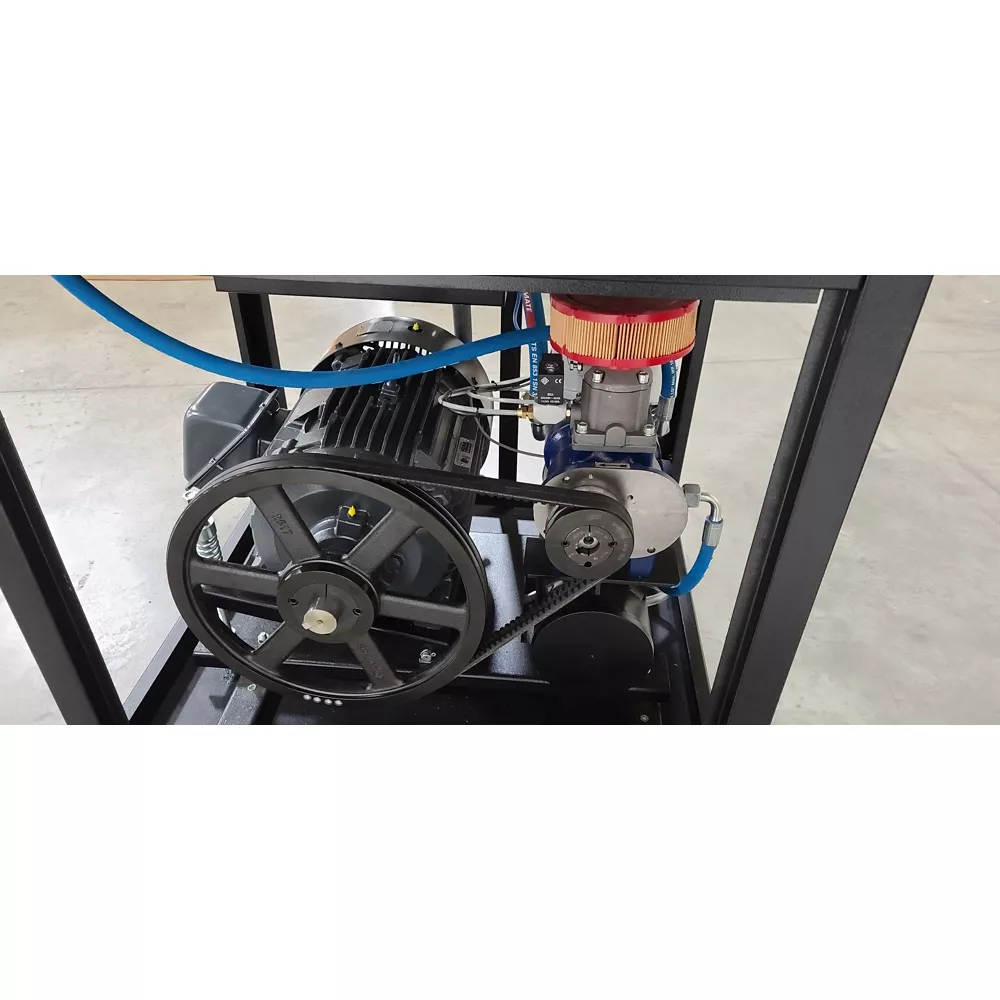

EMAX Compressors 10HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a receiving tank with a patented swingarm mounted air dryer for small foot print and easy maintenance. 1 Year Standard, extended 5 Year with maintenance kit

EMAX 10HP 1PH 45CFM @ 100PSI 230V Motor 1750 RPM Soft Start Industrial Rotary Screw Compressor-120G Tank Rack with Air Dryer Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	45 CFM
Airflow Volume	100 PSI
Air Outlet Size	0.75 in.
Compressor Horsepower	10 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	120 gal
Compressor Type	Oil lubricated
Compressor Voltage	230V
Connection Type	NPT
Drain System	Auto Tank drain
Drive Type	Belt
Engine Brand	Industrial USA
Features	Logik 9 controller, Low 1750RPM industrial motor, 60,000 pump lifetime hours
Maximum RPM	Motor 1,750 rpm
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	104 in.
Product Length	106 in.
Product Weight	900 lb.
Product Width	45 in.
Pump Life	60,000 hr.
Pump Material	Steel
Tank Orientation	Horizontal
Warranty	1 Year Standard, extended 5 Year with maintenance kit
Manufacturer PartNumber	ERIK010001
