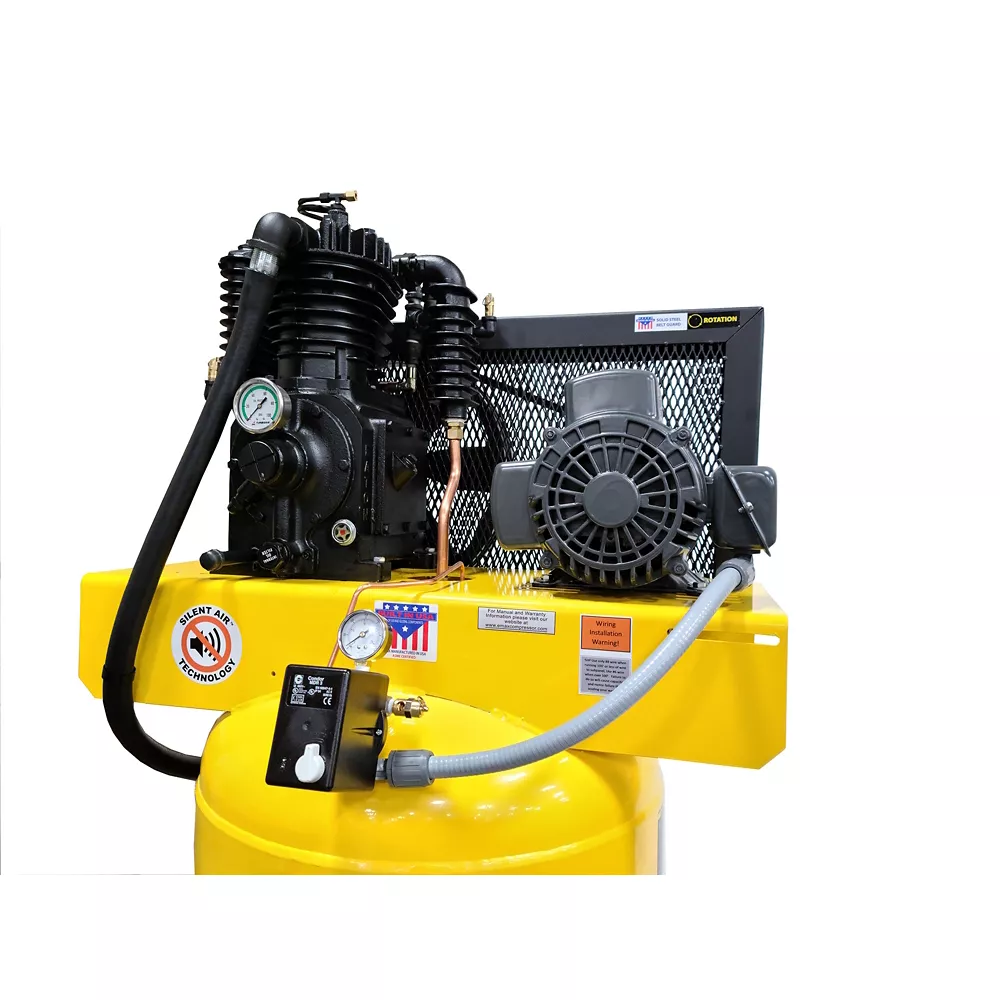

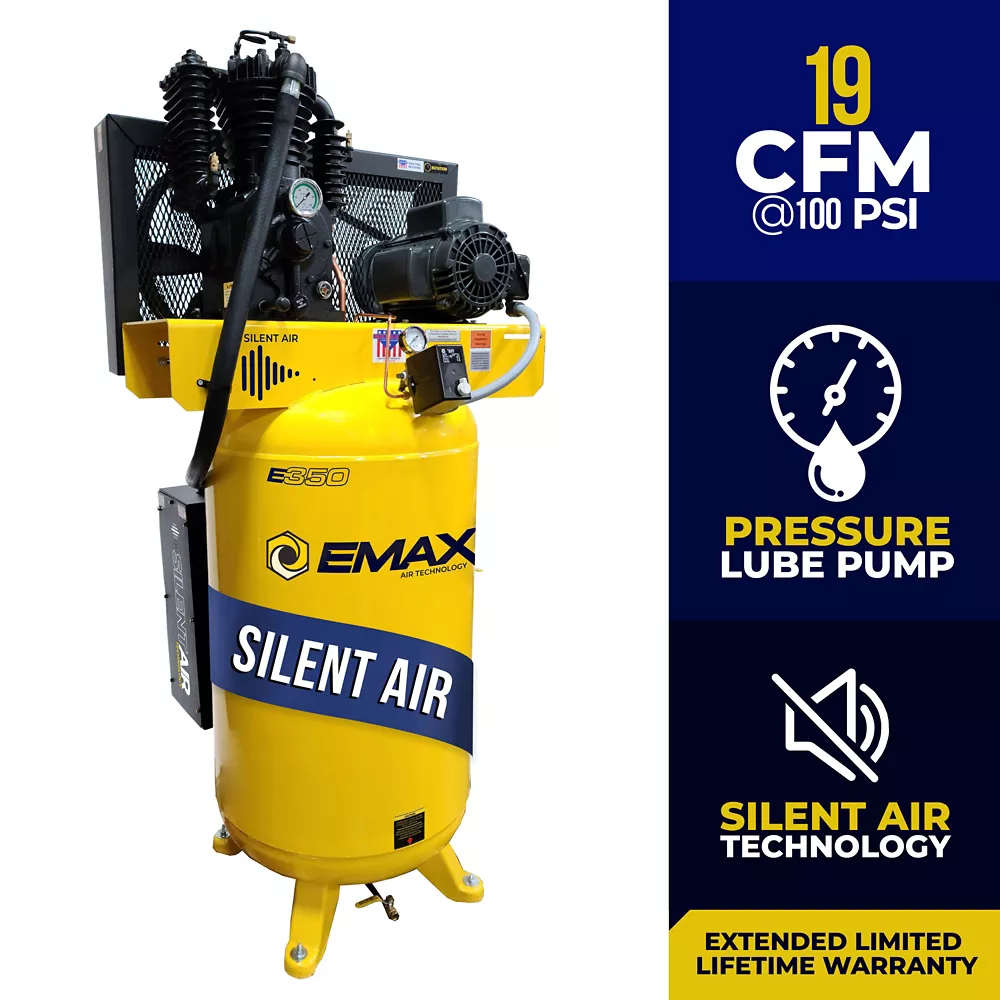

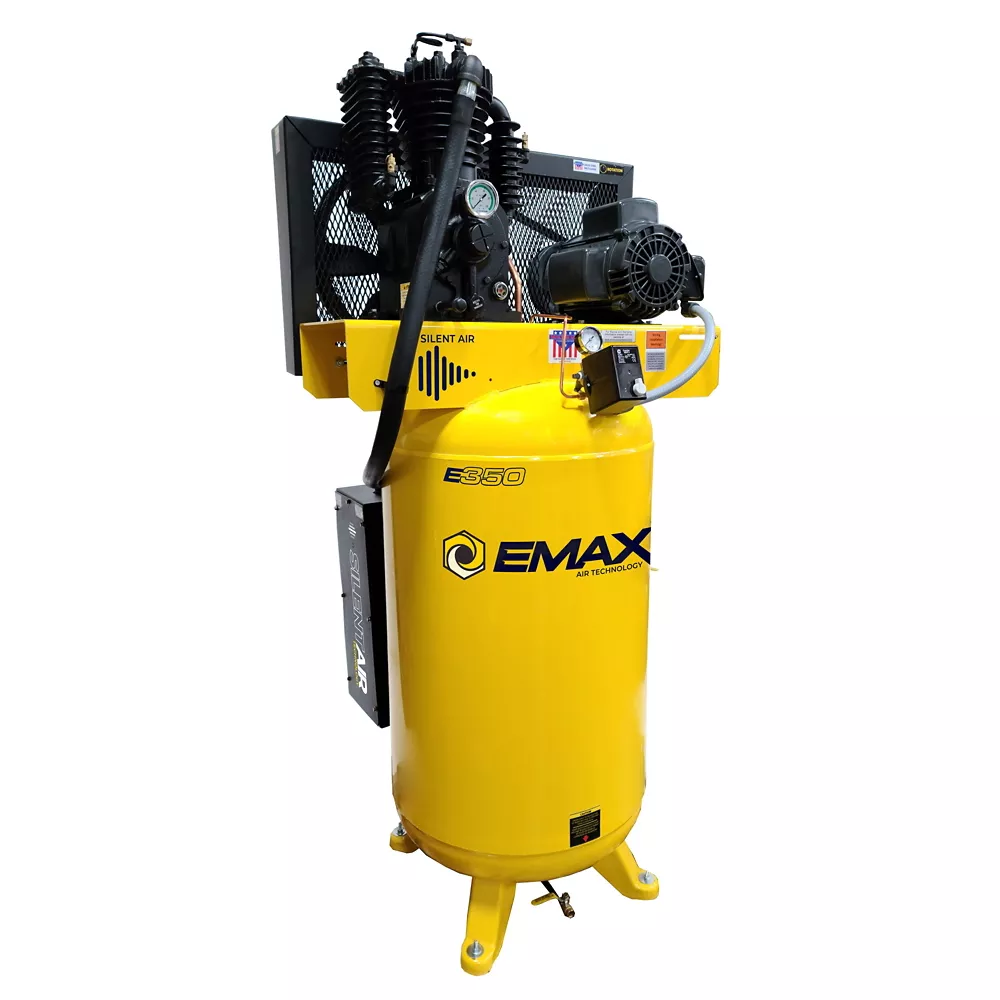

EMAX 5 HP 80 gal 2-Stage Lubricated In-Line Industrial Pump SILENT Air Compressor 175 PSI Single Phase Stationary Air Compressors Air Compressors

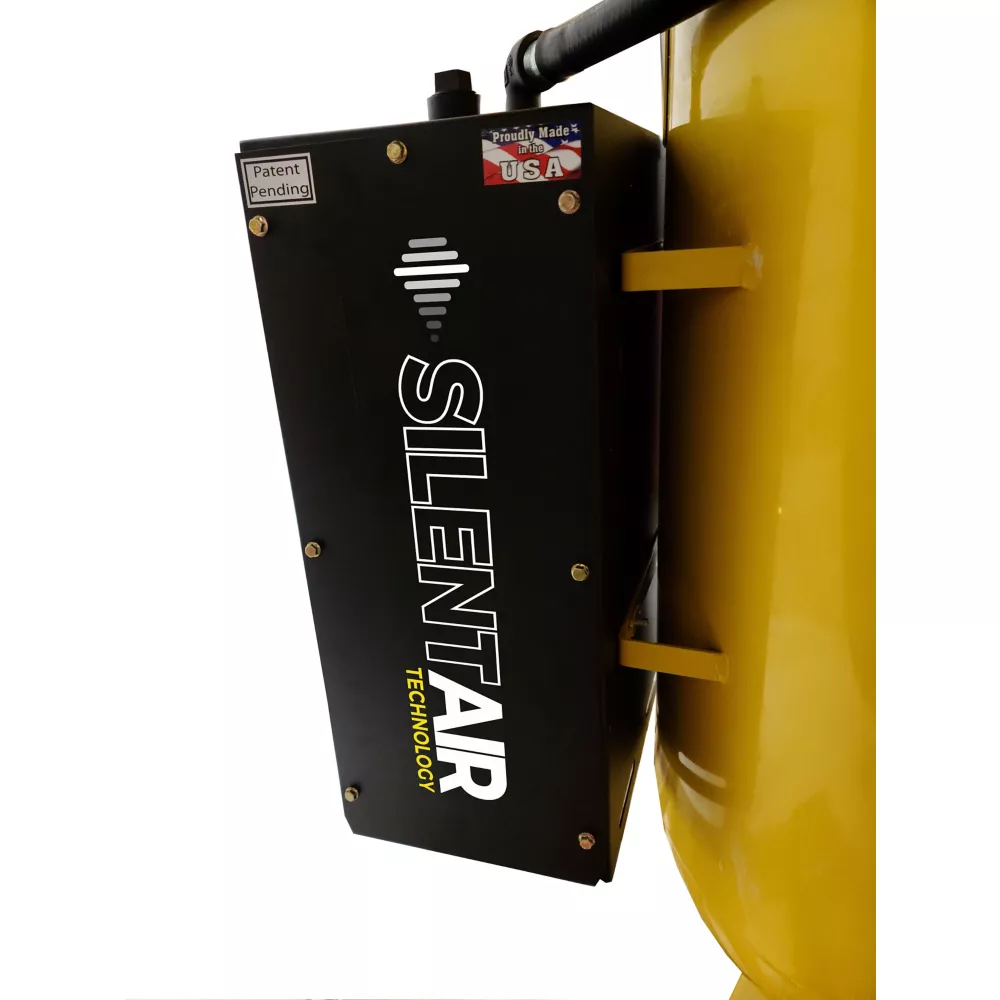

This EMAX 5 HP 80 gal. Industrial Air Compressor is a 2 stage, single-phase vertical air compressor designed for up to 60,000 hours of commercial or industrial use with proper maintenance. Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 60,000 hours. This EMAX air compressor delivers 19 CFM at 100 PSI, Maximum PSI 175. The unit features industrial grade electric motor at 800 maximum RPM and 24 running AMPS, Condor pressure switch, Re-usable oil filter, manual ball valve tank drain, and powder coated ASME tank, rated at 200PSI. This air compressor is paired with an all-cast iron, 60,000 Hours rated, patented pressure lubricated reciprocating pump. This unit includes our patented, MADE IN THE USA, SILENT AIR SILENCER system, installed. EMAX SILENT AIR SILENCER system Dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry! ETL, UL, CSA, ASME Certified. Eligible for LIFETIME WARRANTY, 1 Year Standard, 5 Year Extended.- MADE IN USA
- Patented Pressure Lubricated 2-stage Inline cast iron pump with dual control design allows for automatic or continuous run rated at up to 60,000 hours based on B-10 bearing life rating
- Condor switch
- Silent Air Technology helps this air compressor run quietly
- All steel connecting rods with replaceable rod bearing inserts can be rebuilt
- Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat
- All cast iron cylinder heads are more durable and dependable
- Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
- Precision ground pistons machined to tight tolerances ensures low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
- Built-in head unloaders
- Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank
- Large 1-3/8 in. output shaft
- Dynamically balanced armature for low vibration levels
- Eligible for EXTENDED lifetime pump warranty
- 1 year Standard, 5 Year EXTENDED warranty available
- Maximum Pump RPM: 800, for extended life
- Running Amperage: 24
- Condor pressure switch
- Industrial Motor RPM: 1750

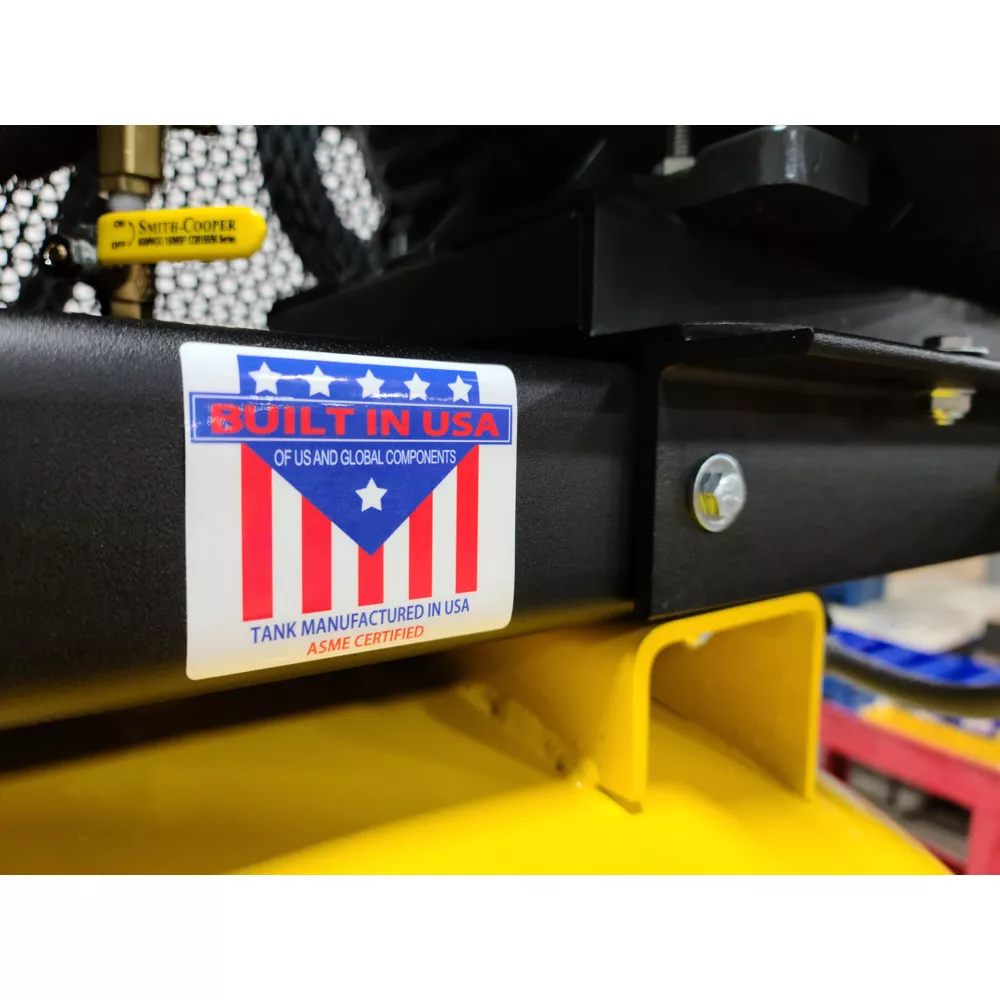

- Powder coated ASME 200 PSI certified 80 gal. Air Tank - Approved for ALL 50 states
- Certifications: ETL, UL, CSA, ASME
- Air Outlet size: 3/4 in.
- Single Phase 208/230 volt
- Pump Oil Capacity: 2 Quarts

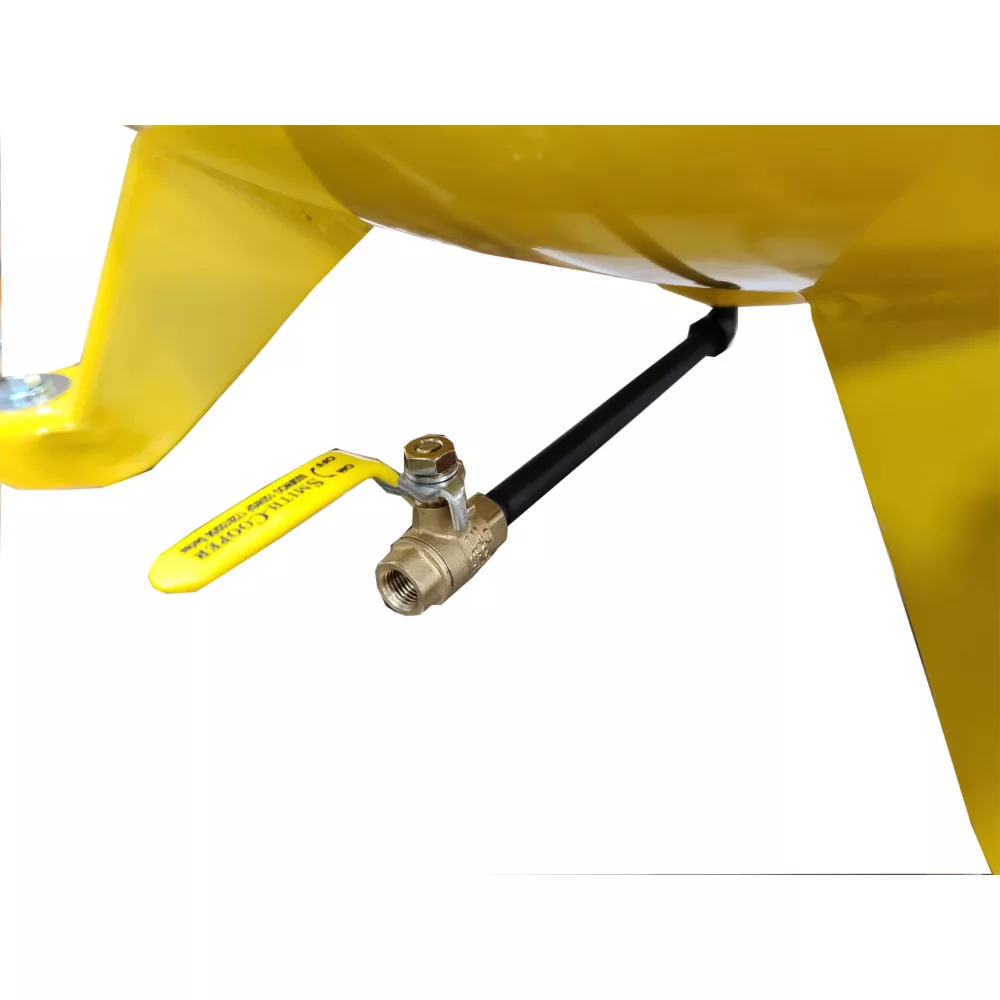

- Manual ball valve tank drain
- Dimensions: 42 in. x 34 in. x 75 in. (LxWxH)
- Weight: 620 lbs

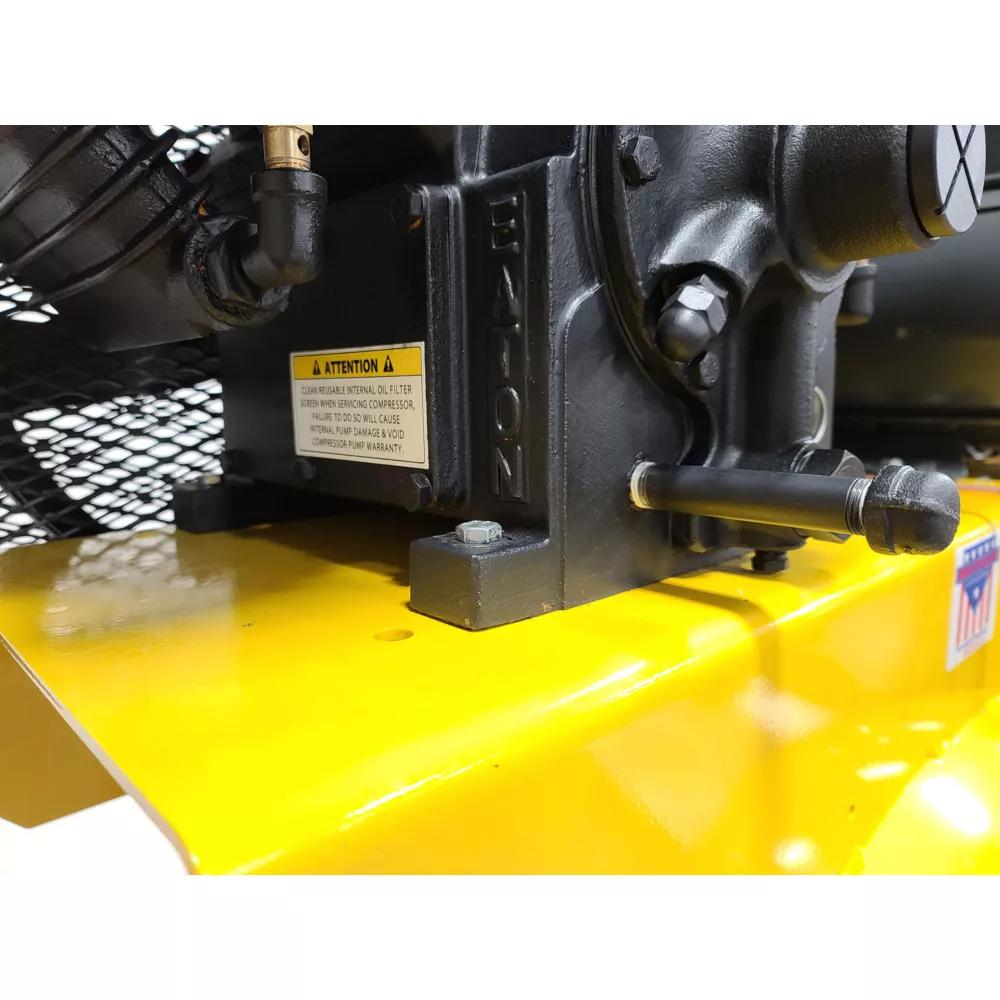

- Reusable Oil filter
- Oil Pressure Gauge
- Solid Cast Iron Crankcase with oil sight glass NOT Aluminum
- Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
- Discovery Channel Innovations mini documentary: https://www.youtube.com/watch?v=EuWepRdjD4w
EMAX 5 HP 80 gal 2-Stage Lubricated In-Line Industrial Pump SILENT Air Compressor 175 PSI Single Phase Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | EMAX |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 40 PSI | 25 CFM |
| Air Delivery SCFM At 90 PSI | 22 CFM |
| Airflow Volume | 19 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 24A |
| Compressor Horsepower | 5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 80 gal |
| Compressor Type | Oil lubricated |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Electric Motor |
| Features | Two Stage, single phase, industrial air compressor, 5HP, Vertical air compressor, silent air |
| Fuel Tank Capacity | 0 N/A |
| Hose Fitting Size | 3/4 in. |
| Maximum RPM | 800 RPM |
| Phase | Single |
| Nozzle Fitting Size | 3/4 in. |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 75 in. |
| Product Length | 42 in. |
| Product Weight | 625 lb. |
| Product Width | 34 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4.5 minutes |
| Tank Orientation | Vertical |
| Warranty | 1 Year Standard, 5 Year extended, Lifetime Pump Extended |
| Manufacturer PartNumber | ES05V080I1 |
