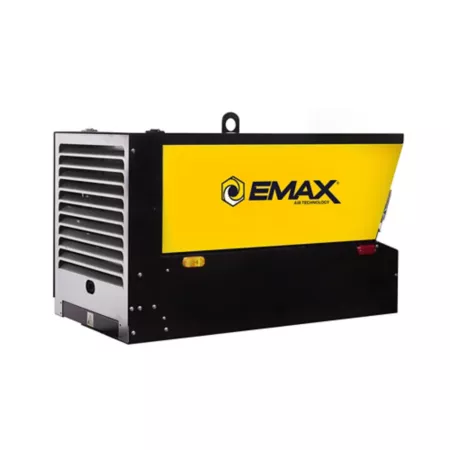

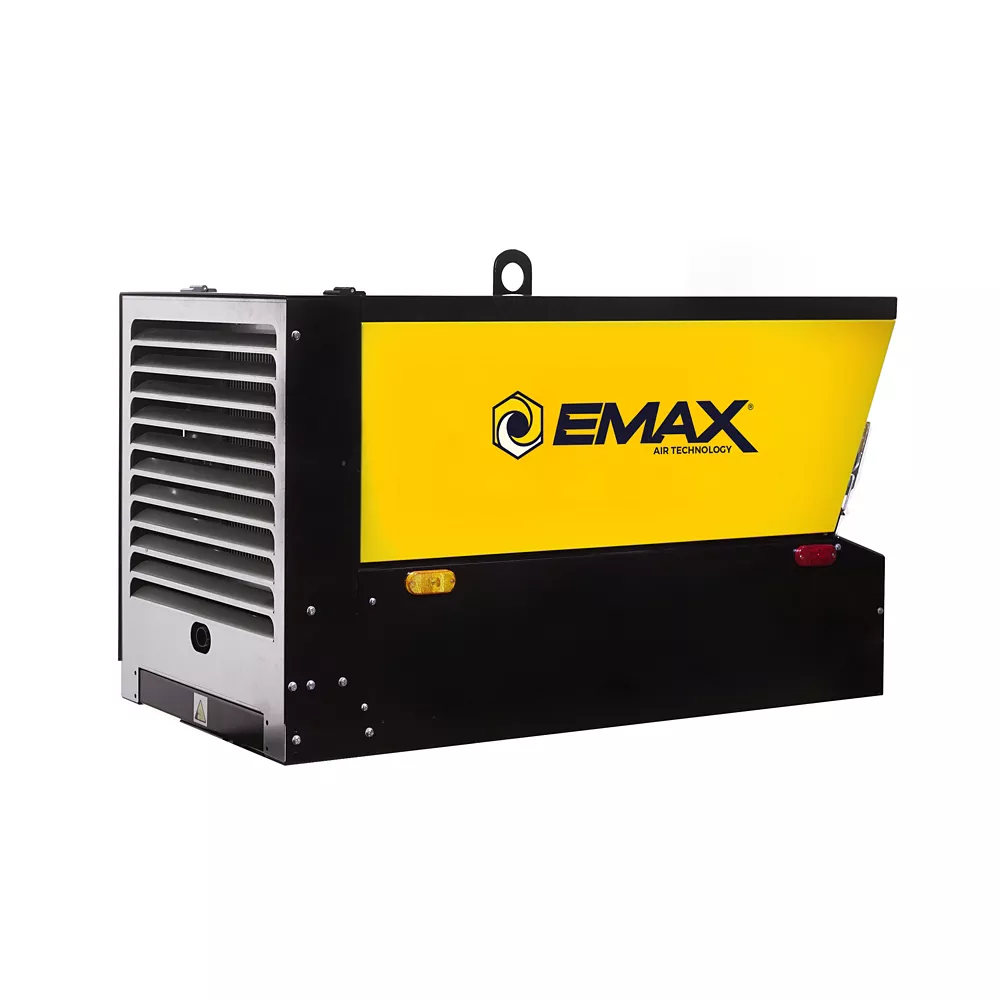

Kubota EMAX 45 HP Diesel Engine Stationary Industrial Rotary Screw Air Compressor with Electric Start 185 CFM Rotary Screw Air Compressors Air Compressors

EMAX Compressor 45 HP electric start 185CFM Stationary Mounted Rotary Screw Air Compressor w/ Diesel Kubota 45HP Engine has a compact design with big power! This Diesel Rotary delivers 185CFM @ 100 PSI with a max 125 PSI. Our EMAX Diesel Rotary features on demand variable speed regulation, gradual flow control from idle to full load, Electric diesel fuel pump, easily accessible air outlets and 21-gallon fuel tank. The control panel allows for simple display of your essential information such as pressure, speed etc.

Tough & Proven Rotary screw pump air end: MADE IN Italy (since 1970s)
Maximum CFM: 165 @ 145 PSI
Kubota Diesel Engine: 45 Horsepower, Model: V1505-T
Kubota Diesel Engine: Made in Japan https://www.kubotamanual.com/store/products/kubota-v1505-t-b-diesel-engine-service-manual-download/
Fuel Tank: 21 gal.
Fork passages allowing easy lifting from 4 sides
Weight: 1400 lb.
Ideal Installation on the back of a truck or pickup
Hood easy lifted by 2 cylinders and removable for easy maintenance
Quiet operating exhaust and weather-proof canopy
Top rated liquid cooled 4 cylinder Kubota Diesel engine: V1505-CR-T
Cold weather starting glow plugs
Variable speed on demand engine control reduces load for efficient fuel consumption
100% duty cycle
Easy Spin ON/OFF MANN brand fuel, oil & air filters
Heavy duty but lightweight and balanced
Large Radiator cooling capacity
Adjustable hitch will adjust in seconds to any hitch height
Model # EDS185TR/ TSC Model #1974832 with Trailer option that is D.O.T. Certified Highway rated (Includes title for registration)
Center position lifting ring for easy loading and unloading
2 oversized LED tail lights
Hot dipped galvanized under suspension/grill, ball hitch attachment, tail light and instrument panel
2 qty- Suction air filter with silencer, reusable standard cartridge
Air cooling with light alloy radiator, designed to operate safely in a temperature range from 14 degrees Fahrenheit, up to 122 degrees Fahrenheit
Electric start: Closed valve empty start managed automatically
Regulation: Gradual flow control from idle to full load. Auto unloading phase at engine stop
Digital control panel IP67: Maintenance tracking, Displays pressure, speed, etc. Key switch for secure storage & compressor start
Start up management, automated shutdown and emergency stop
Direct Drive
Register your KUBOTA Engine: https://www.kubotaengine.com/warranties/
KUBOTA SAE 10W-30, Dual Purpose #70000-10201
Trailer and Hitch not included: Trailer and hitch models: EDS090TR, EDS115TR, EDS185TR, EGS070PT
Dual 0.75 twist lock air outlets
Diesel fuel running hours: 2600rpm = 8.96 L/h at 10 bar, 2800rpm = 9.37 L/h at 8.5 bar, 3000rpm = 9.65 L/h at 7 bar

3 year On KUBOTA engine, 1 year standard, Optional 10 Year Extended Air end screw pump warranty

Kubota EMAX 45 HP Diesel Engine Stationary Industrial Rotary Screw Air Compressor with Electric Start 185 CFM Rotary Screw Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Rotary Screw Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Imported
Air Delivery SCFM At 40 PSI	185 SCFM
Air Delivery SCFM At 90 PSI	185 SCFM
Airflow Volume	145 PSI
Air Outlet Size	3/4 in.
Compressor Horsepower	45 HP
Compressor Maximum PSI	145 PSI
Compressor Operation	Dual control
Compressor Type	Oil lubricated
Compressor Voltage	12V
Connection Type	NPT
Drain System	None
Drive Type	Direct drive
Engine Brand	Kubota Diesel
Features	Variable Speed
Fuel Tank Capacity	21 gal.
Hose Fitting Size	1 @ 1 in. 2 @ 3/4 in. TRIPLE twist lock air outlets
Maximum RPM	3,000 RPM
Nozzle Fitting Size	3/4 in.
Number Of Power Speeds	Variable
Number Of Wheels	0
Power Type	Diesel
Primary Color	Yellow
Primary Material	Steel
Product Height	47 in.
Product Length	71 in.
Product Weight	1400 lb.
Product Width	35 in.
Pump Material	Steel
Pump Oil Capacity	15 qt.
Tank Orientation	Horizontal
Warranty	1 Year standard, 3 year Kubota engine, Eligible for purchase of 10 year extended and Lifetime Warranties
Manufacturer PartNumber	EDS185ST

EMAX 45 HP Electric Start Stationary Kubota Diesel-Powered 185 CFM Rotary Screw Industrial Air Compressor Specifications Expand/Collapse Specification Description Brand EMAX Country of Origin Imported Air Flow SCFM at 40 PSI 185 SCFM Air Flow SCFM at 90 PSI 185 SCFM Air Flow Volume 145 PSI Air Outlet Size 3/4 in. Compressor Power 45 HP Compressor Maximum PSI 145 PSI Compressor Operation Dual Control Compressor Type Oil Lubricated Compressor Voltage 12V Connection Type NPT Drain System None Drive Type Direct Drive Engine Brand Kubota Diesel Features Variable Speed Capacity fuel tank capacity 21 gal. Hose Connection Size 1 to 1 in. 2 to 3/4 in. Twist Lock Air Outlets TRIPLE Maximum RPM 3000 RPM Nozzle Connection Size 3/4 in. Number of Power Speeds Variable Number of Impellers 0 Power Type Diesel Primary Color Yellow Primary Material Steel Product Height 47 in. Product length 71 in. Product weight 1400 lbs. Product width 35 in. Material of thepump Steel Pump oil capacity 15 qt. Tank orientation Horizontal warranty 1 year standard, 3 years Kubota engine, eligible to purchase 10 year extension and lifetimeWarranties Manufacturer part number EDS185ST
