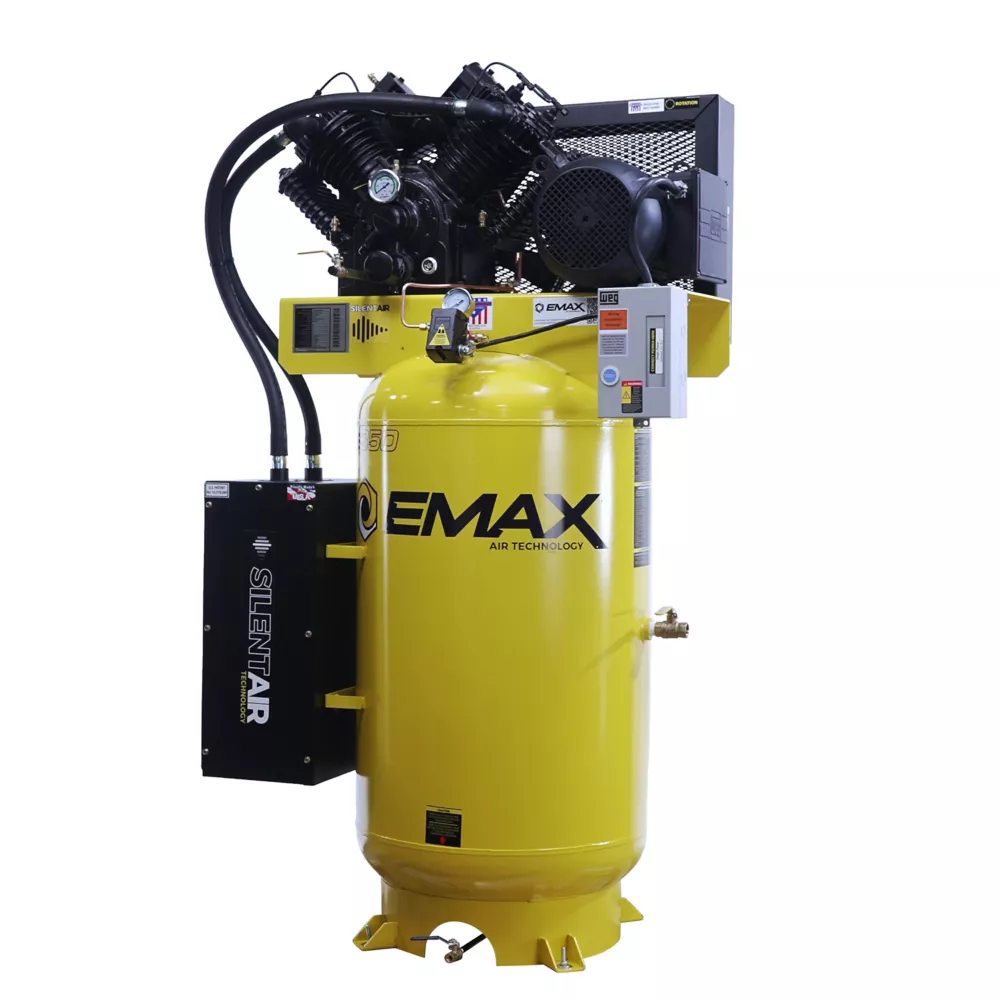

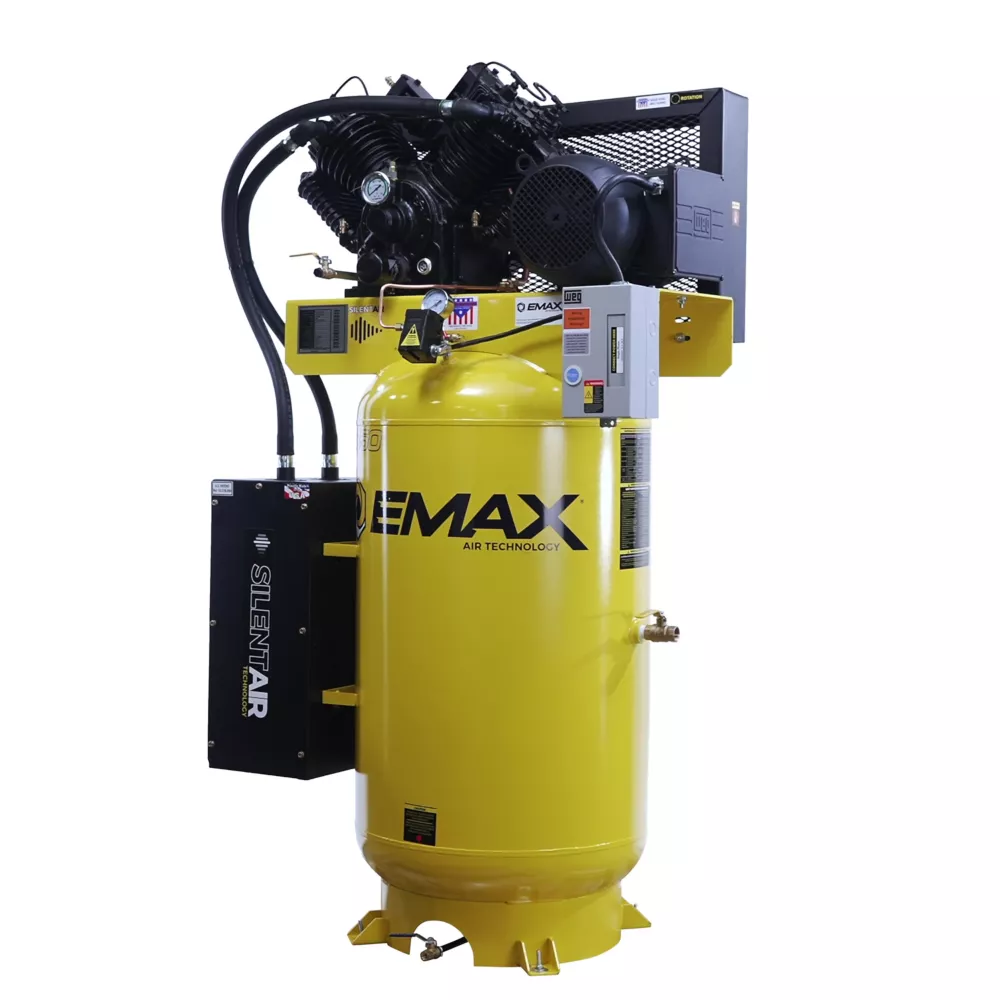

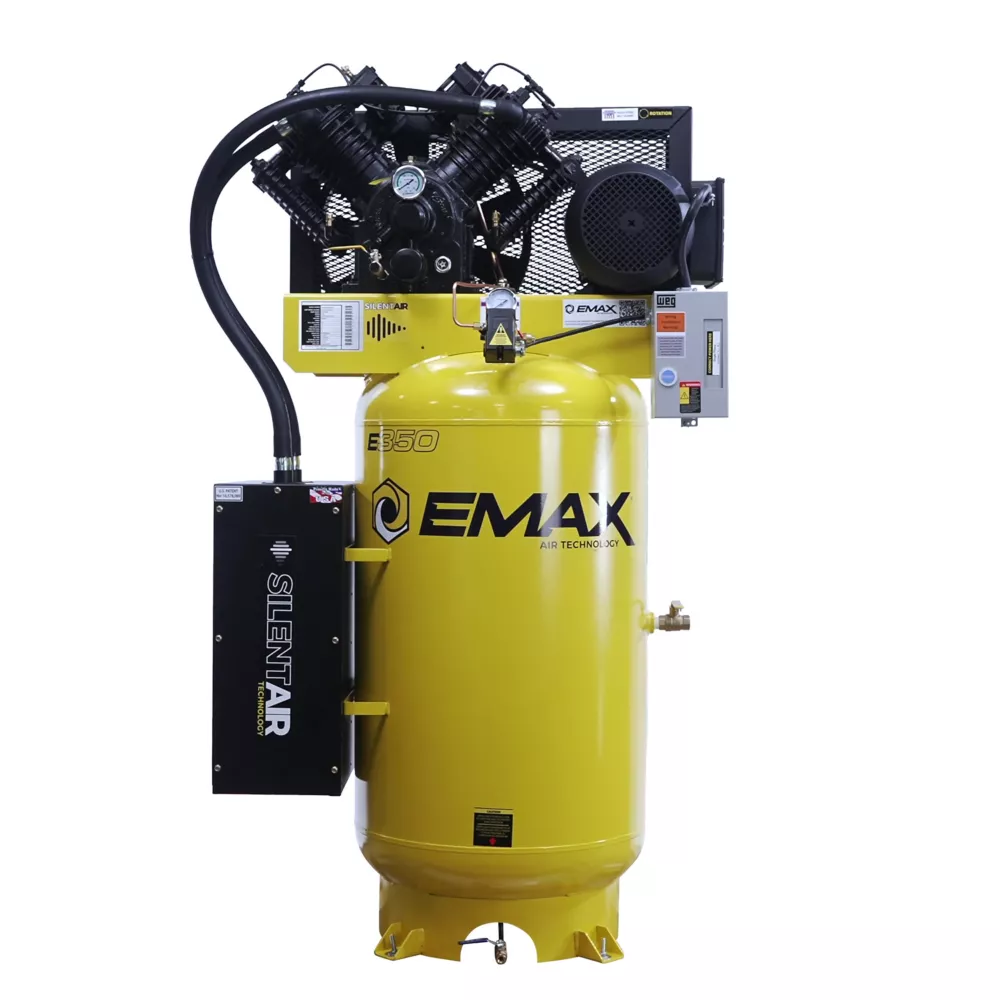

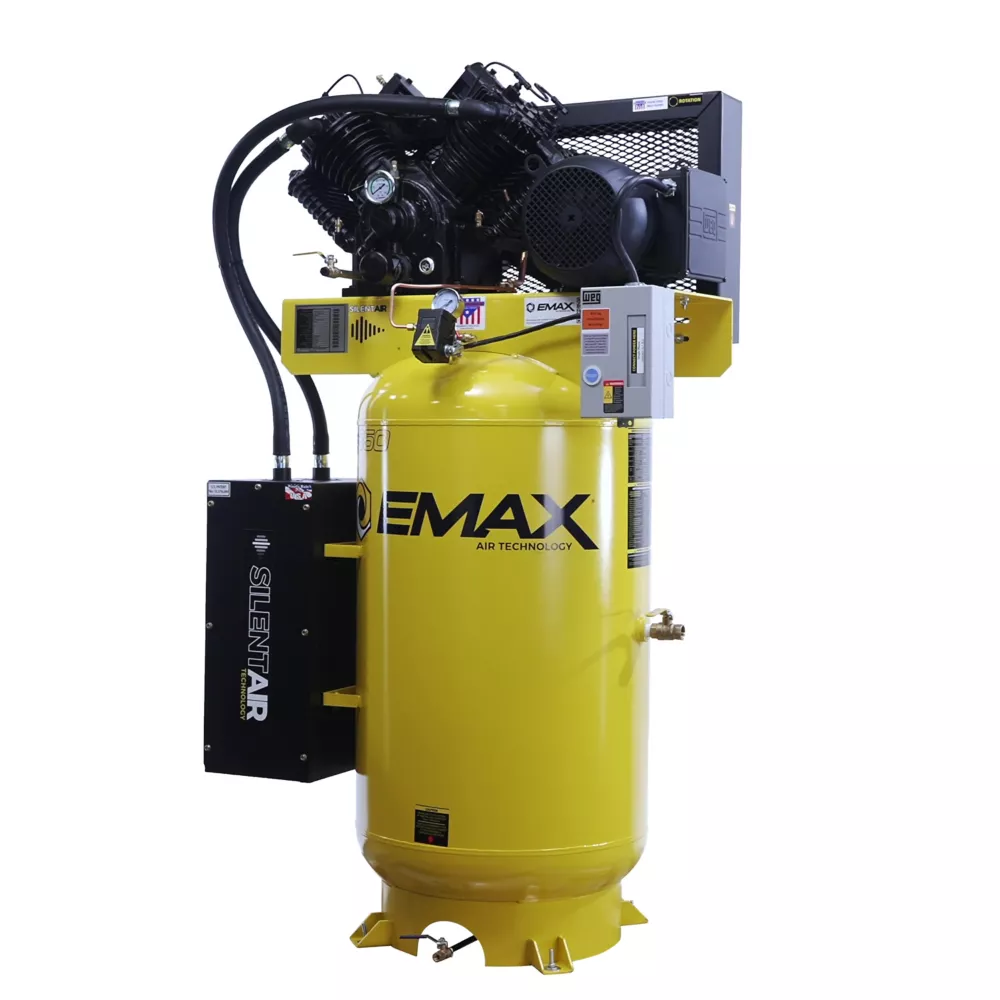

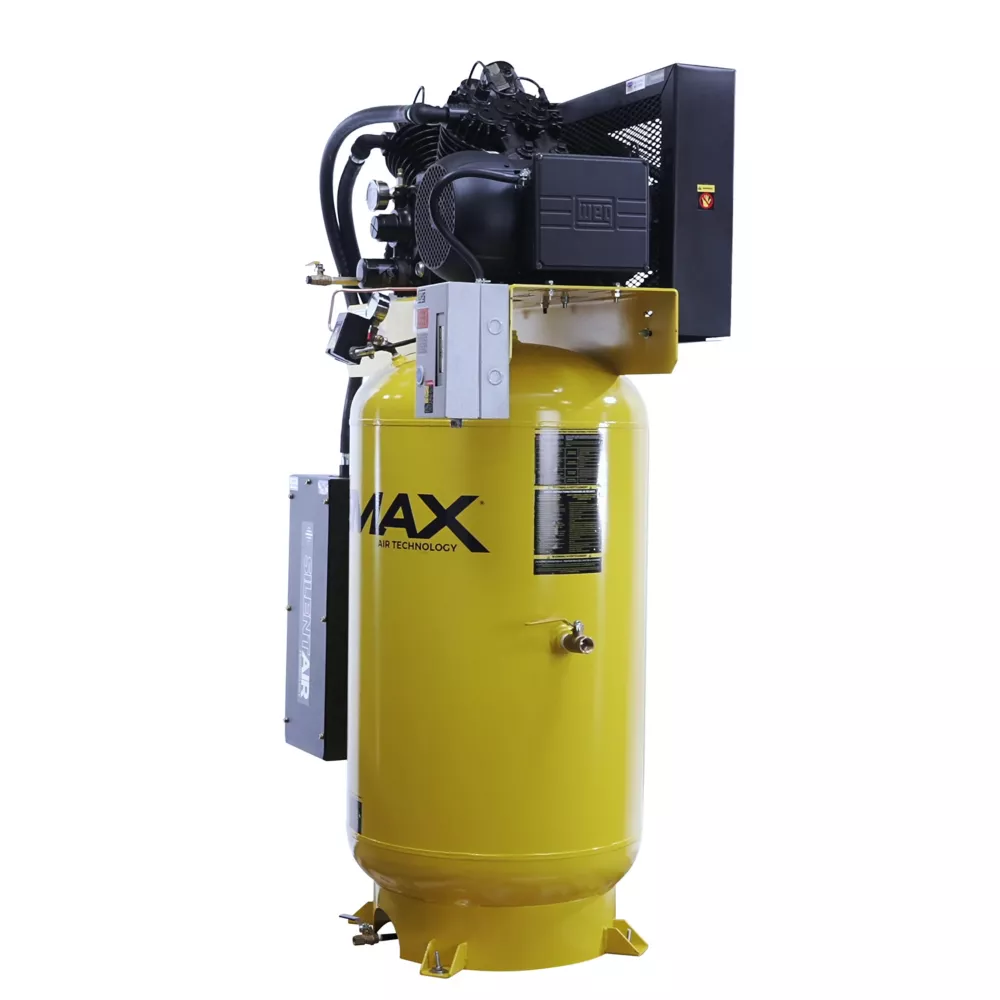

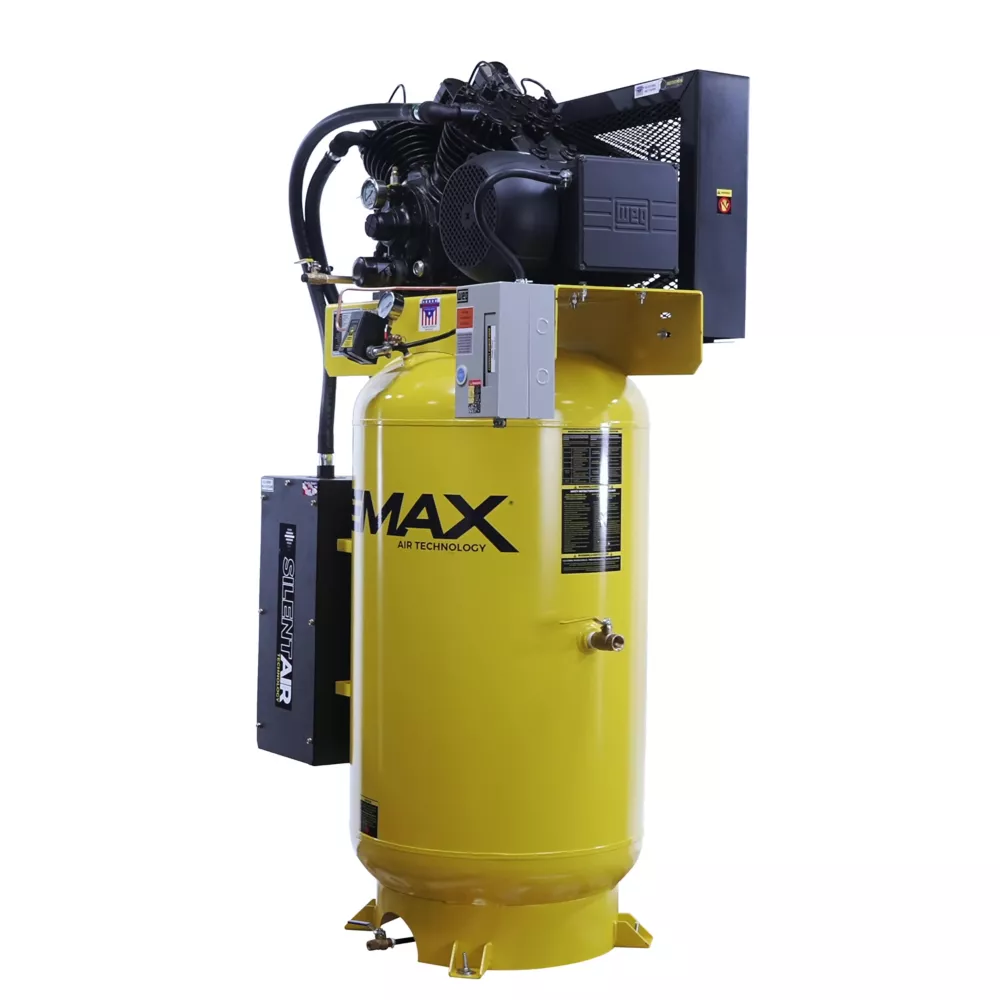

EMAX 7.5 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump SILENT Air Compressor 175 PSI Single Phase 31 CFM to 100 PSI Stationary Air Compressors Air Compressors

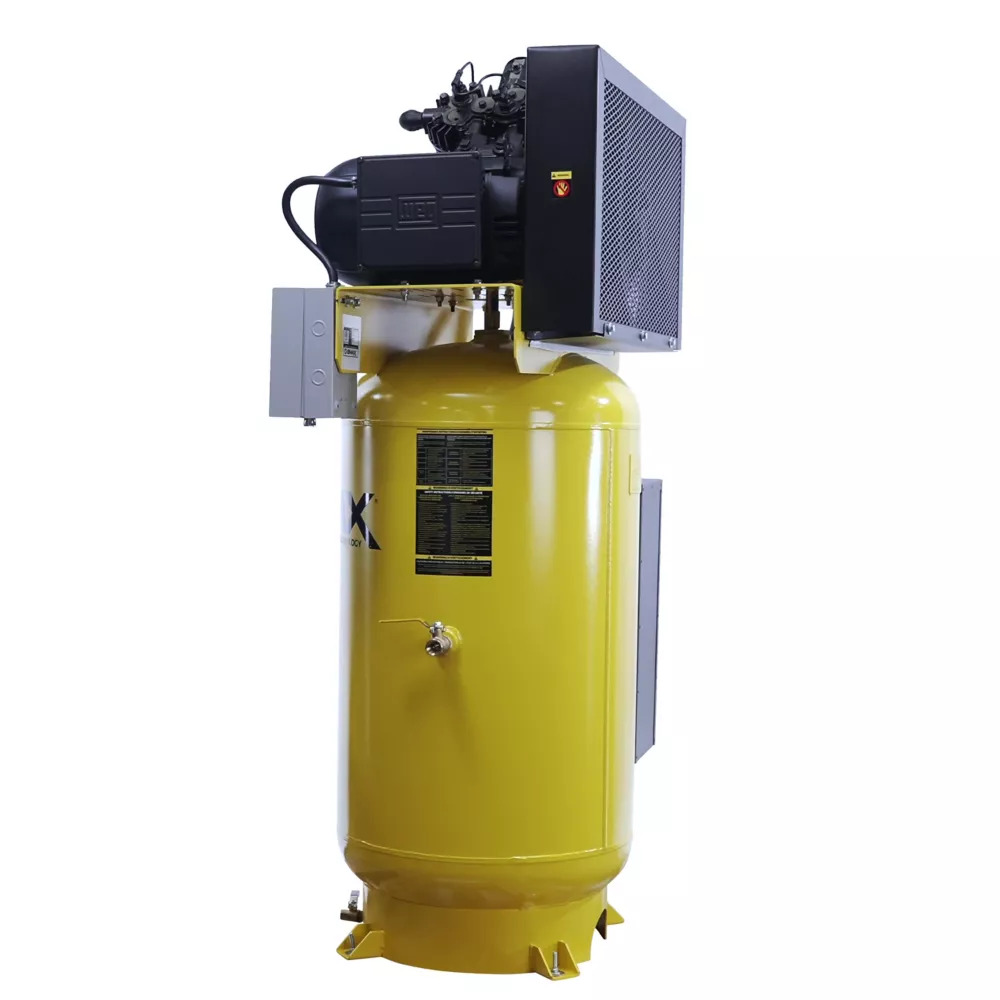

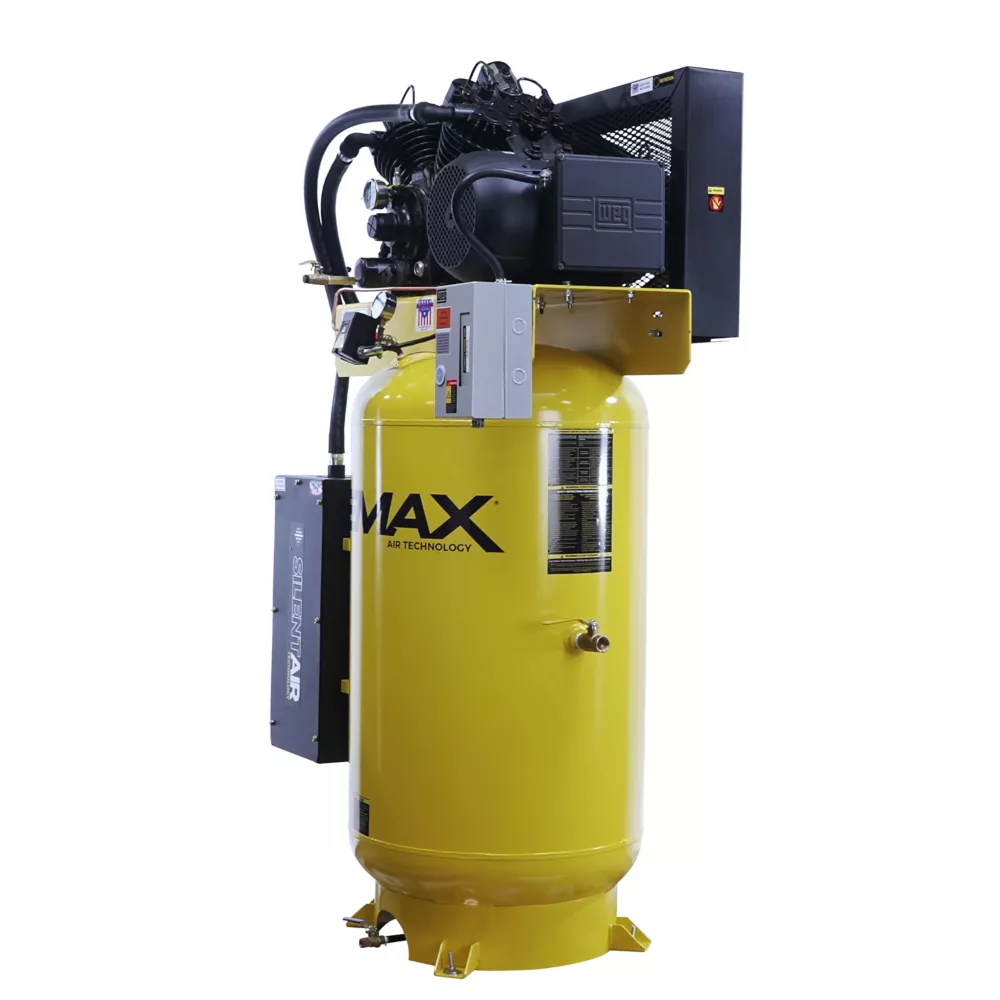

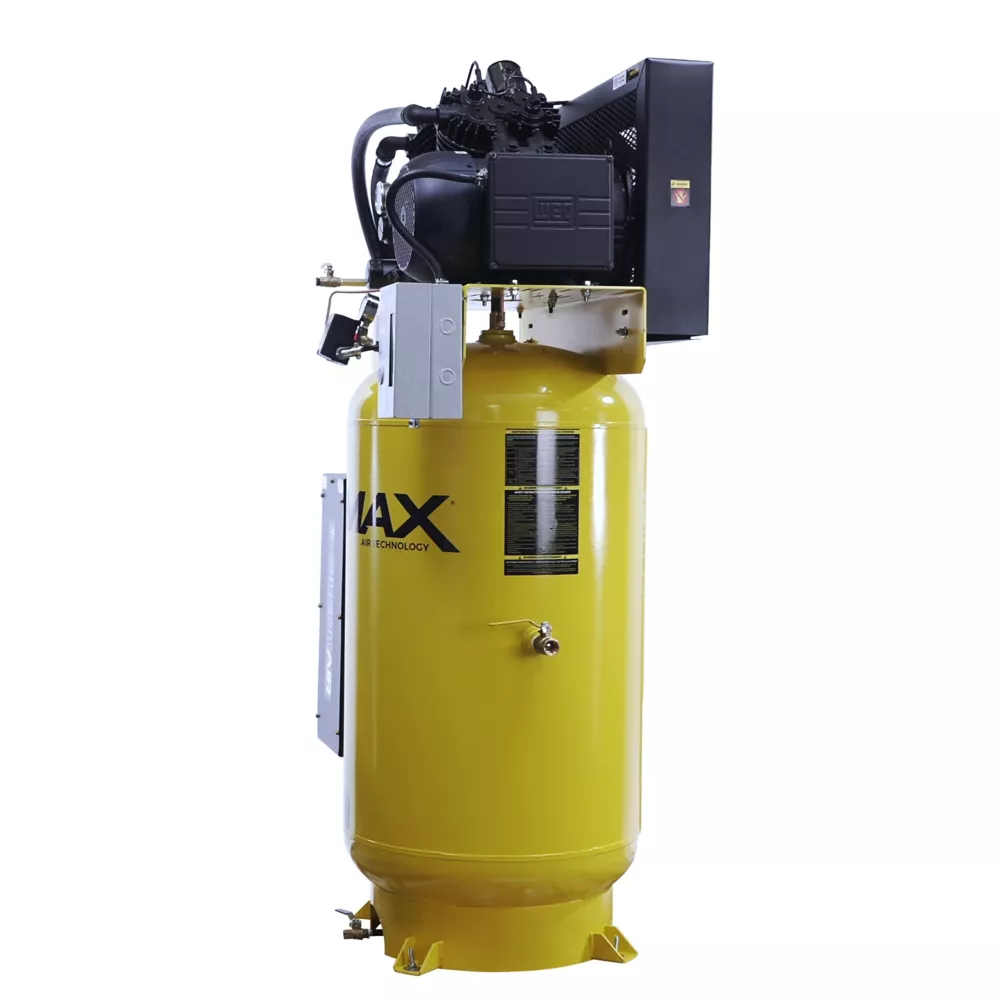

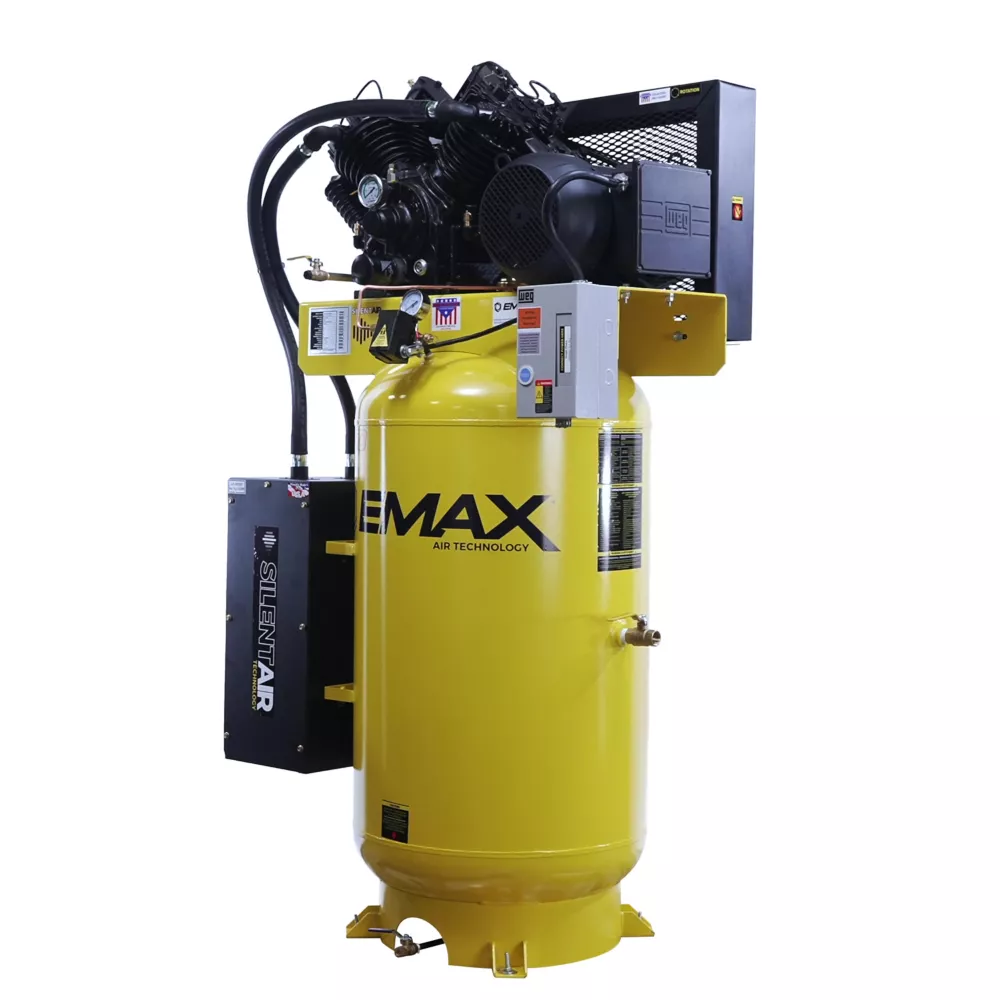

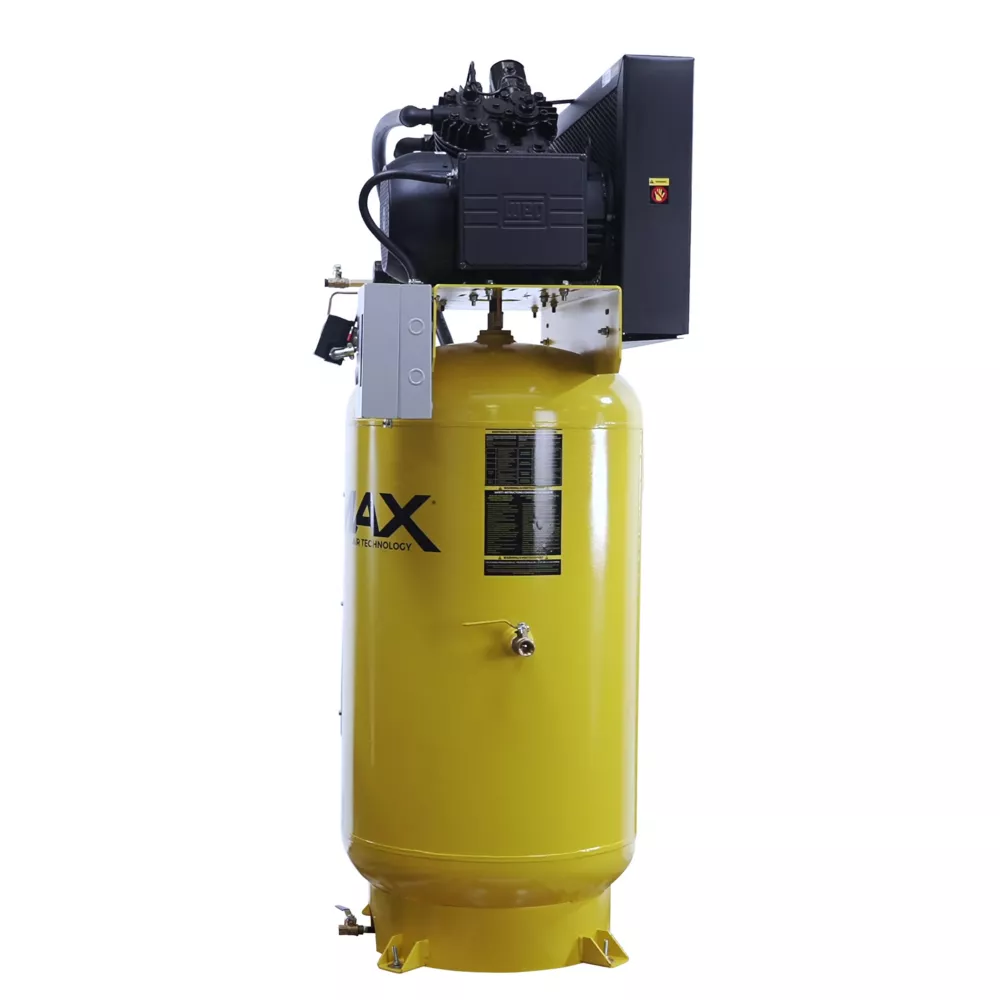

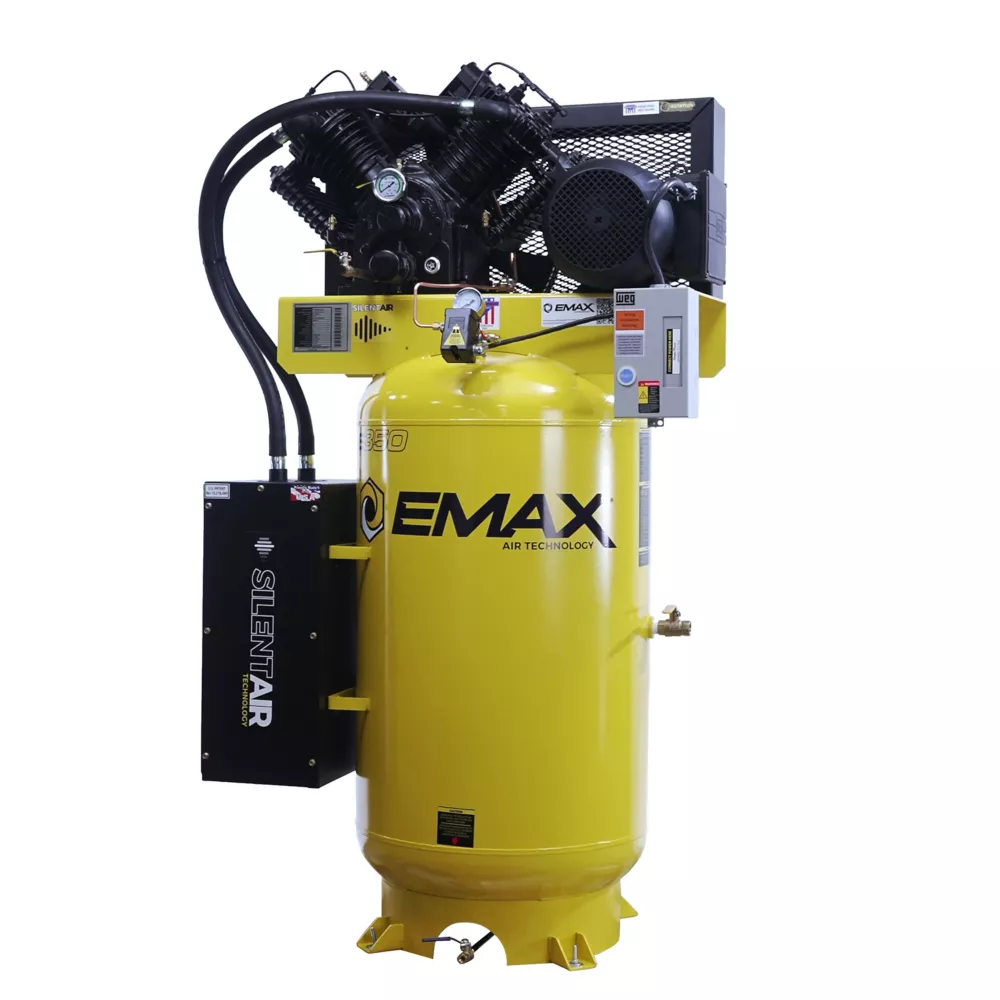

The EMAX 7.5HP 80G Industrial Air Compressor is a 2-stage V4 Pressure lubricated, single-phase vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Our Industrial Series offers all the same quality and durability as our Plus series without all the extra cost of added features. Patented Pressure Lubricated 2-stage solid cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating. This heavy-duty air compressor delivers 31 CFM at 100 PSI, Maximum PSI 175. The unit features industrial electric motors at 1750 maximum RPM and 32 running AMPS, magnetic starters, Condor pressure switch, manual ball valve tank drain, and powder coated ASME tank, 175 PSI rating. This air compressor is paired with all cast iron, 70,000 Hours rated, patented pressure lubricated reciprocating pump. Solid cast iron pump maxium RPM 640. The EMAX Silent air compressor, features our patented, Engineered and manufactured in the USA. Includes installed, SILENT AIR system. SILENT AIR Dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. Proudly ETL, UL, CSA, ASME Certified. ASME tank certified up to 200 Max PSI, approved in ALL 50 states. All backed by the warranty in the industry! LIFETIME PUMP WARRANTY eligible, with maintenance kit, 1 Year Standard, 5 Year Extended.

MADE IN USA

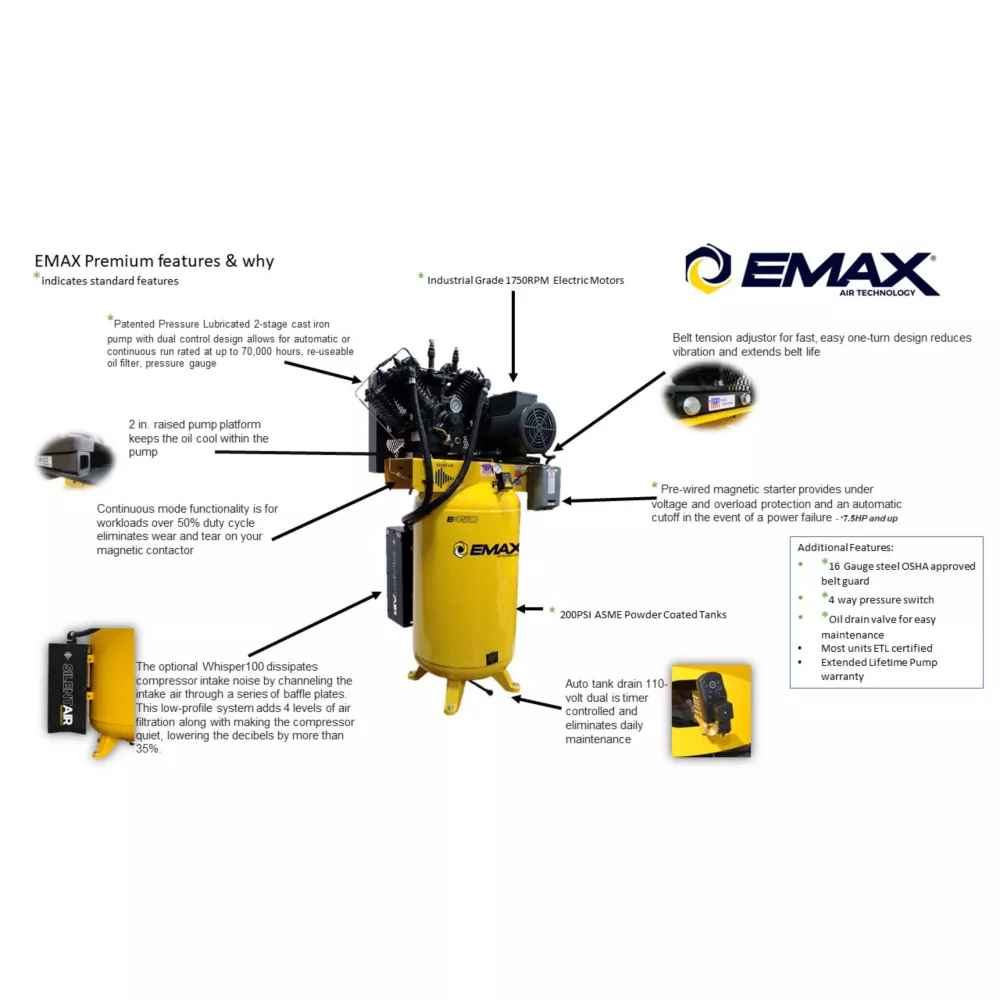

Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours.

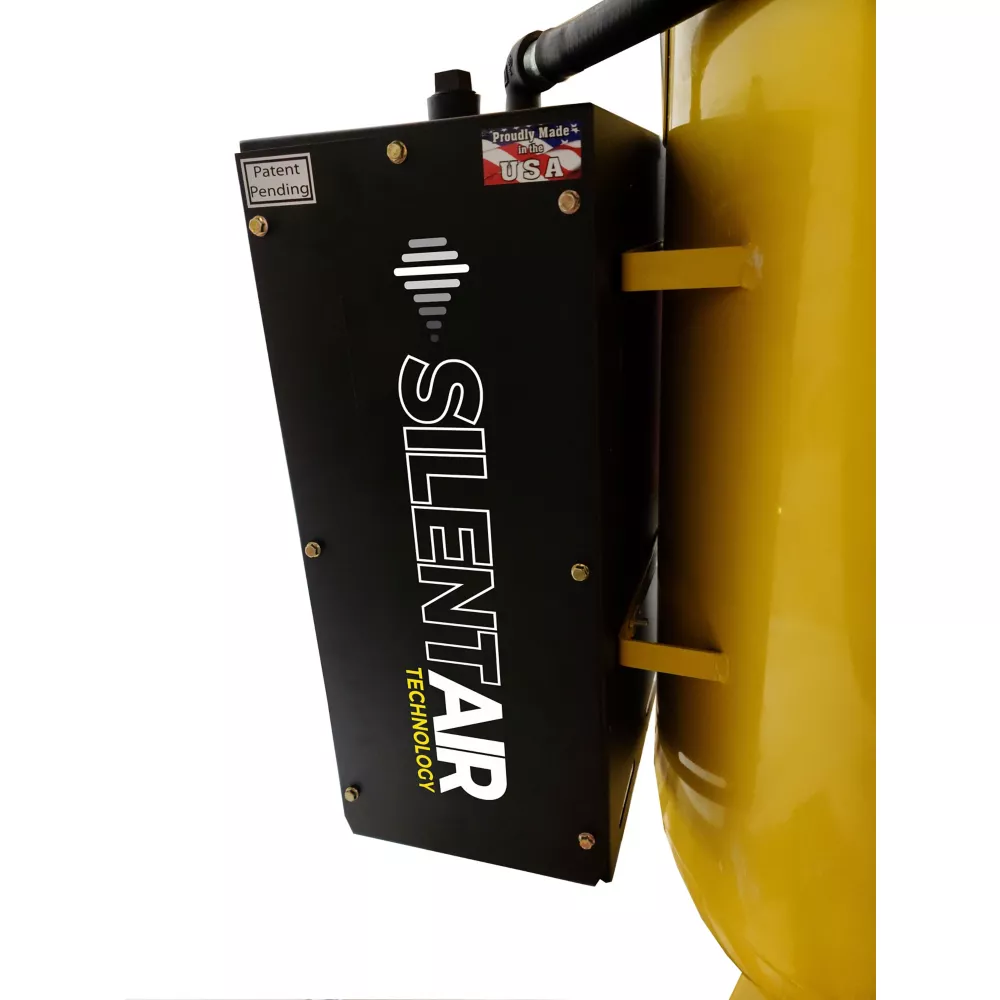

SILENT AIR Technology helps this air compressor run 35% more quiet
All steel connecting rods with replaceable rod bearing inserts can be rebuilt
Removable 100% Solid cast iron cylinder heads are more stable, durable & dependable under heavy workloads and do not warp from heat
All cast iron cylinder heads are more durable and dependable
Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
Precision ground pistons machined to tight tolerances ensures low oil carry over
Premium non-absorbent gaskets prevent oil seepage from pump
All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
Built-in head unloaders
Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank
Large 1-3/8 in. output shaft
Dynamically balanced armature for low vibration levels
1 Year Standard, 5 Year EXTENDED warranty available
Low Pump RPM: 640 extends life
Running Amps: 32
Industrial Motor RPM:1750
ETL, UL, CSA, ASME Certified
Manual tank drain
Spin off Re-usable oil filter
ASME Certified Max PSI: 200, tank in ALL 50 states
35% Quieter
Dimensions: 38 in. x 42 in. x 72 in. (LxWxH)
Weight: 743 lb.

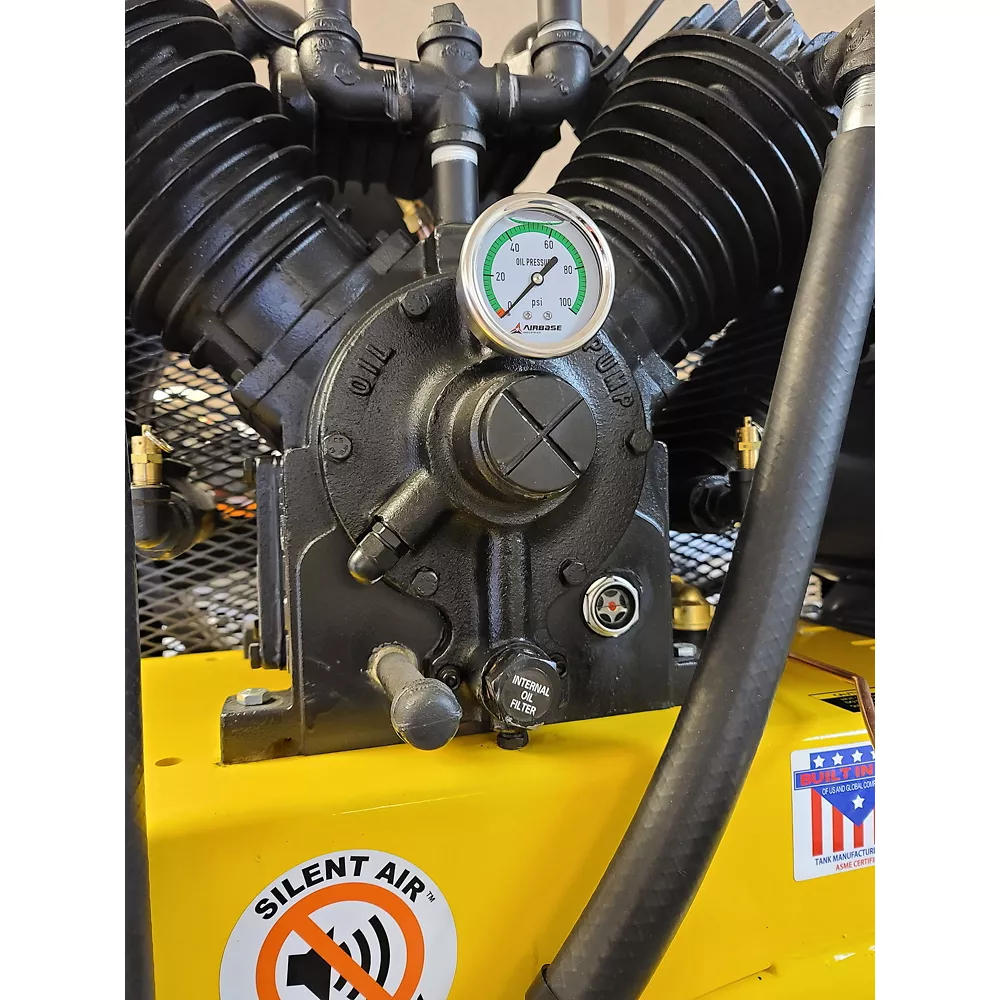

Oil Pressure Gauge & level site glass
Powder Coated ASME Certified 200 PSI rated tank
Voltage:230
Recommended Breaker: 50A
Max PSI:175
80Gal Vertical Tank
Tank outlet Size: 3/4 inch
Belt Drive
Oil Capacity: 2.5 Quart
31CFM @ 100 PSI
Disclaimer: Video depicts 10HP version # ES10V080V1 https://www.tractorsupply.com/tsc/product/emax-10-hp-80-gal-industrial-single-phase-silent-compressor-es10v080v1

1 Year Standard, 5 Year EXTENDED warranty available, Eligible for lifetime warranty with maintenance kit

EMAX 7.5 HP 80 gal V4 2-Stage Industrial Pressure Lubricated Pump SILENT Air Compressor 175 PSI Single Phase 31 CFM to 100 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	38 CFM
Air Delivery SCFM At 90 PSI	33 CFM
Airflow Volume	31 CFM
Air Outlet Size	3/4 in.
Amperage	32A
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	230V
Connection Type	NPT
Drain System	Manual Valve
Drive Type	Belt Driven
Engine Brand	Industrial 1750 RPM electrical motor
Features	Limited Lifetime Pump warranty eligible with Maintenance kit, 35% more quiet Patented Silent air technolgy, ETL, UL, CSA, ASME certifications, ASME certified up to 200 PSI in all 50 states
Fuel Tank Capacity	0 qt.
Hose Fitting Size	3/4 in.
Maximum RPM	640 RPM
Phase	Single
Nozzle Fitting Size	3/4 in.
Number Of Power Speeds	Variable
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	38 in.
Product Weight	743 lb.
Product Width	42 in.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2.5 qt.
Stage Type	Two-Stage
Tank Fill Time	4 minutes
Tank Orientation	Vertical
Warranty	1 Year Standard Warranty, 5 Year Extended- Extended Lifetime Pump Warranty
Manufacturer PartNumber	ES07V080V1
