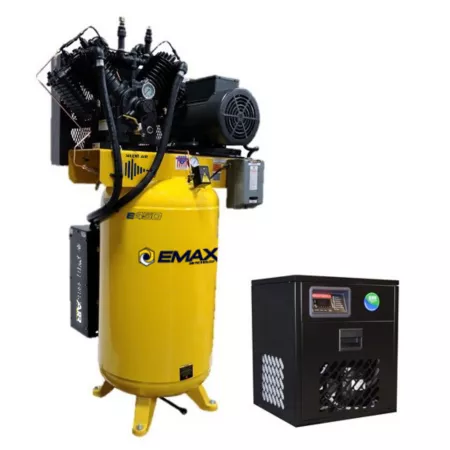

EMAX 7.5HP 80G 2Stg 3 Phase V4 Pressure Lubricated Pump 31CFM @ 100PSI Quiet Air Compressor and 30CFM Dryer-ESP07V080V3PK Stationary Air Compressors Air Compressors

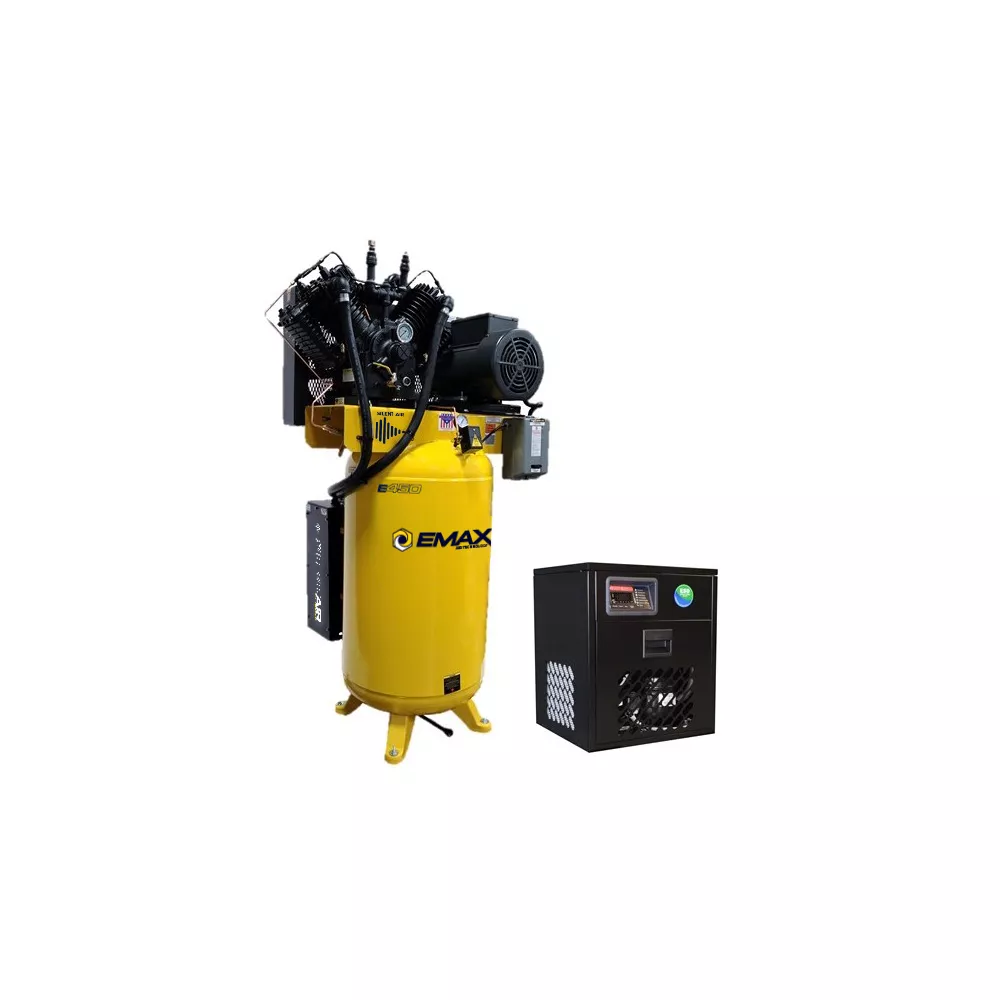

EMAX Bundle comes with our Industrial Plus 7.5 HP 2 Stage V4 3 Phase vertical 80 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron patented pressure lubricated reciprocating pump. This unit features our patented Silent air silencerWhisper100 silent air system already installed. The patented SILENT air silencer compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. We have paired this compressor with our 30CFM energy efficient refrigerated air dryer to make your buying experience seamless! Our EMAX air dryer filters air solid particles down to 0.01 microns leaving your air dry and reducing contamination to your equipment. These bundles are backed by the best warranty in the industry!

31 CFM @ 100 PSI. Maximum PSI 175
AIRBASE Solid cast iron pump: Model# APP4V1043TP
Pump RPM: 640, Industrial Motor RPM: 1750
Pump Oil Capacity: 2.5 qt.
Three Phase 208/230/460 option set up
Compressor: 18 AMP @ 208/230V - Dryer: 9 AMP @ 460V
Tank Outlet Size: 3/4 in.
Automatic Tank Drain
80 Gallon vertical ASME UV Powder coated tank. 200PSI. Approved in all 50 states
Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, 3 Phase Industrial Grade motor
Certifications: ETL, UL,CSA, ASME
Weight: compressor 701 lbs, Dryer 110 lb.
Sound level: dBA 64

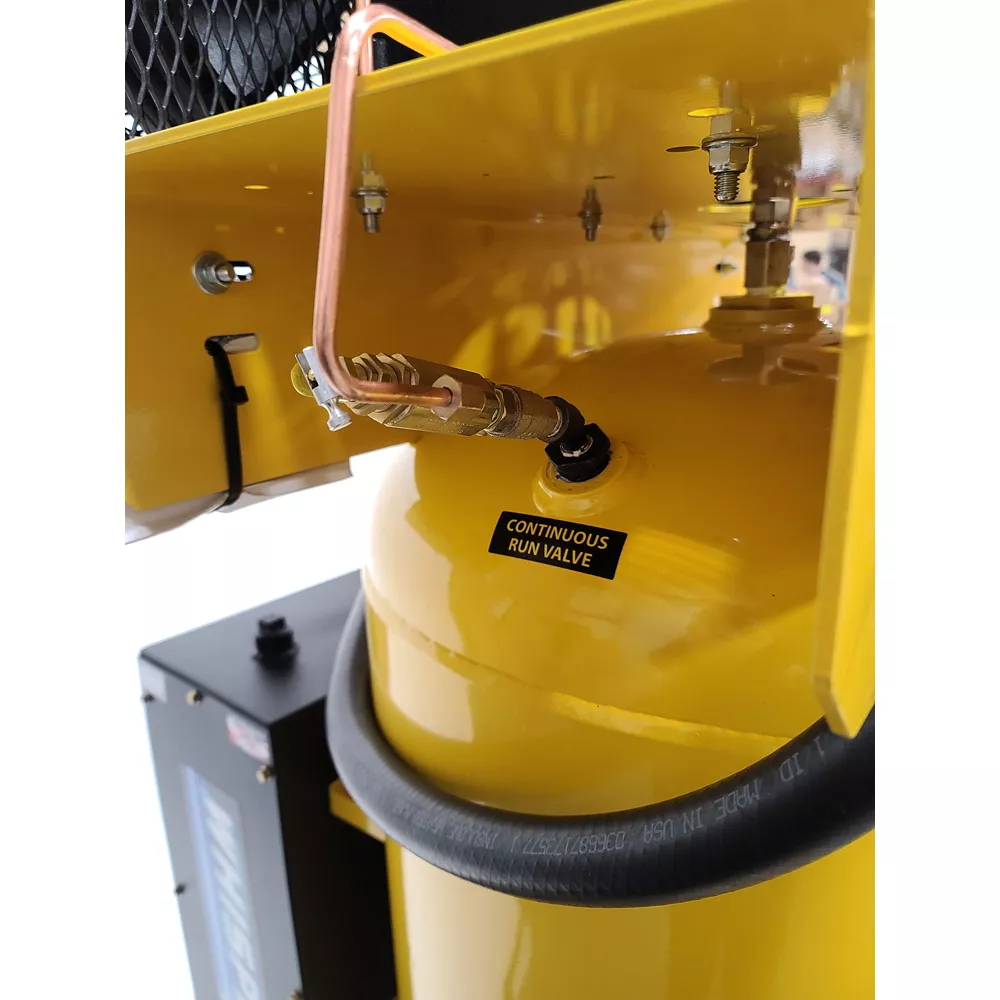

Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
Built in Inner-cooler and After cooler

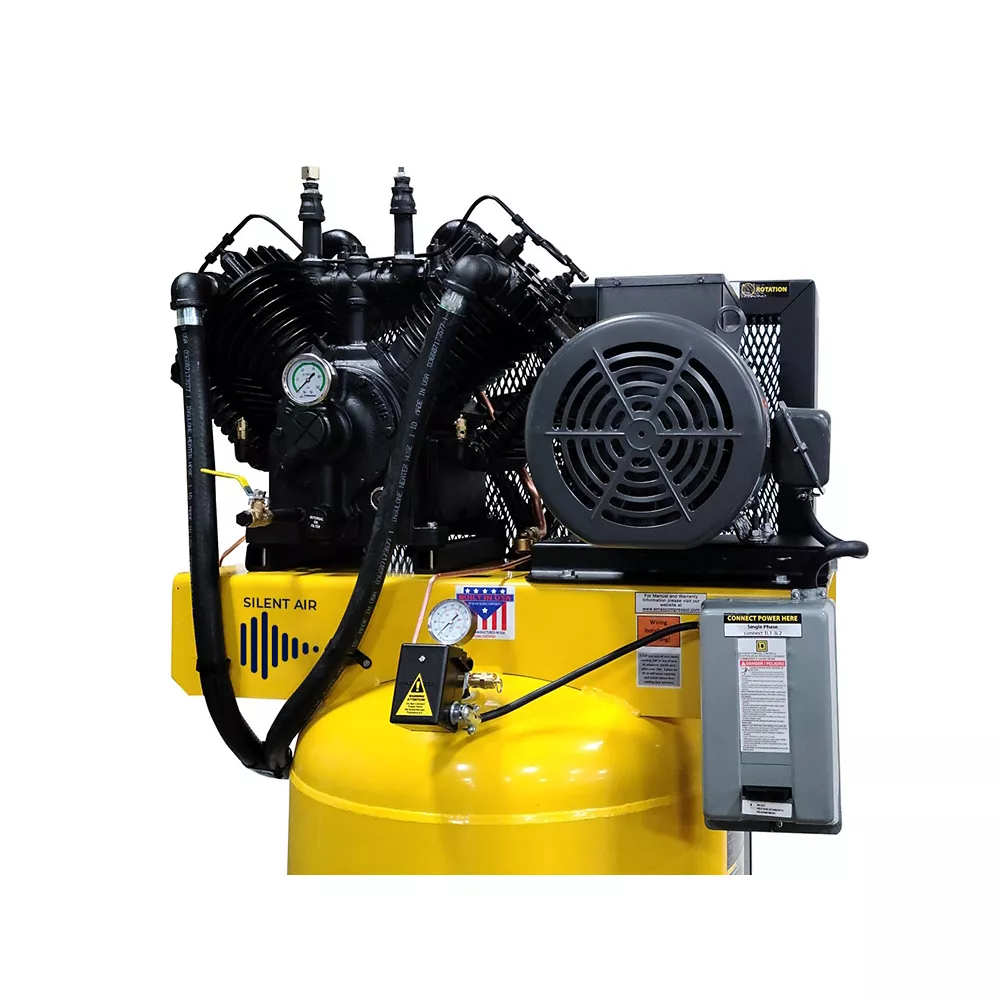

Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours

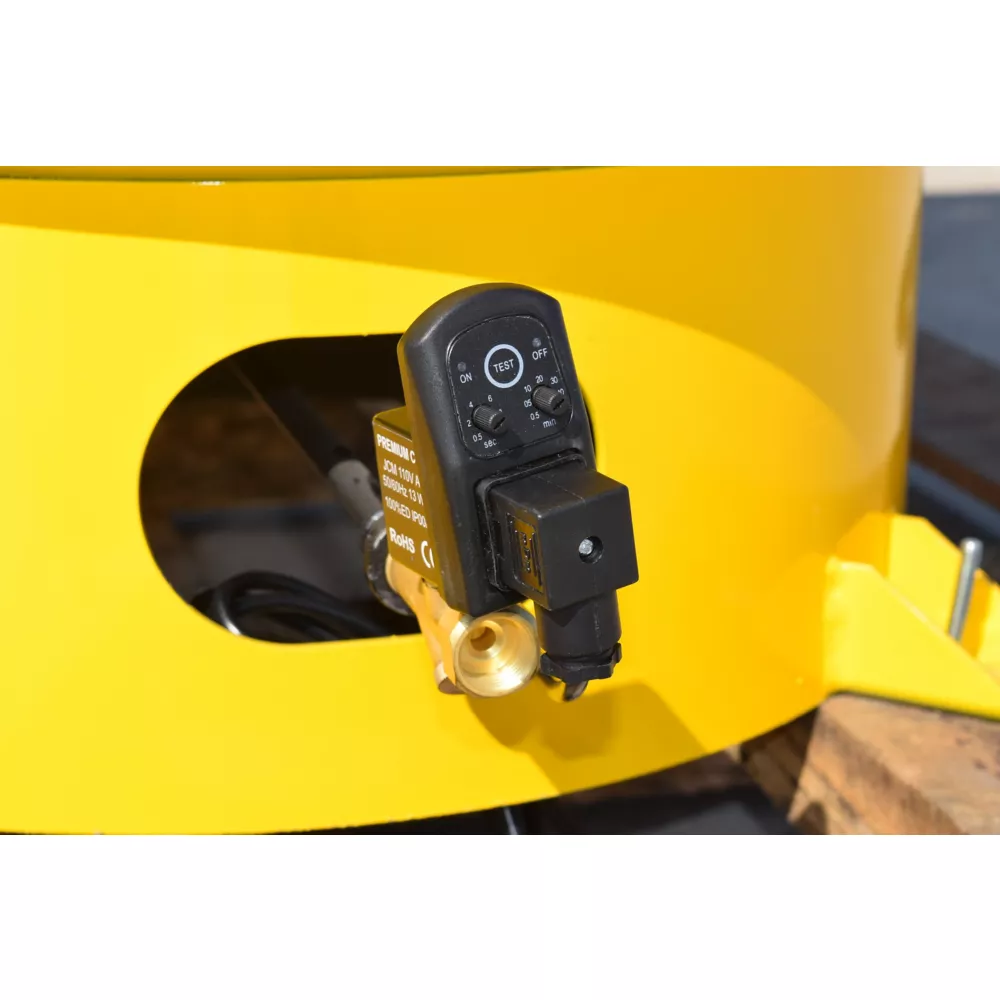

Auto tank drain 110V dual timer controlled, eliminates daily maintenance
Gate valve oil drain provides quick, clean oil changes
Re-usable oil filter , re-usable oil filter

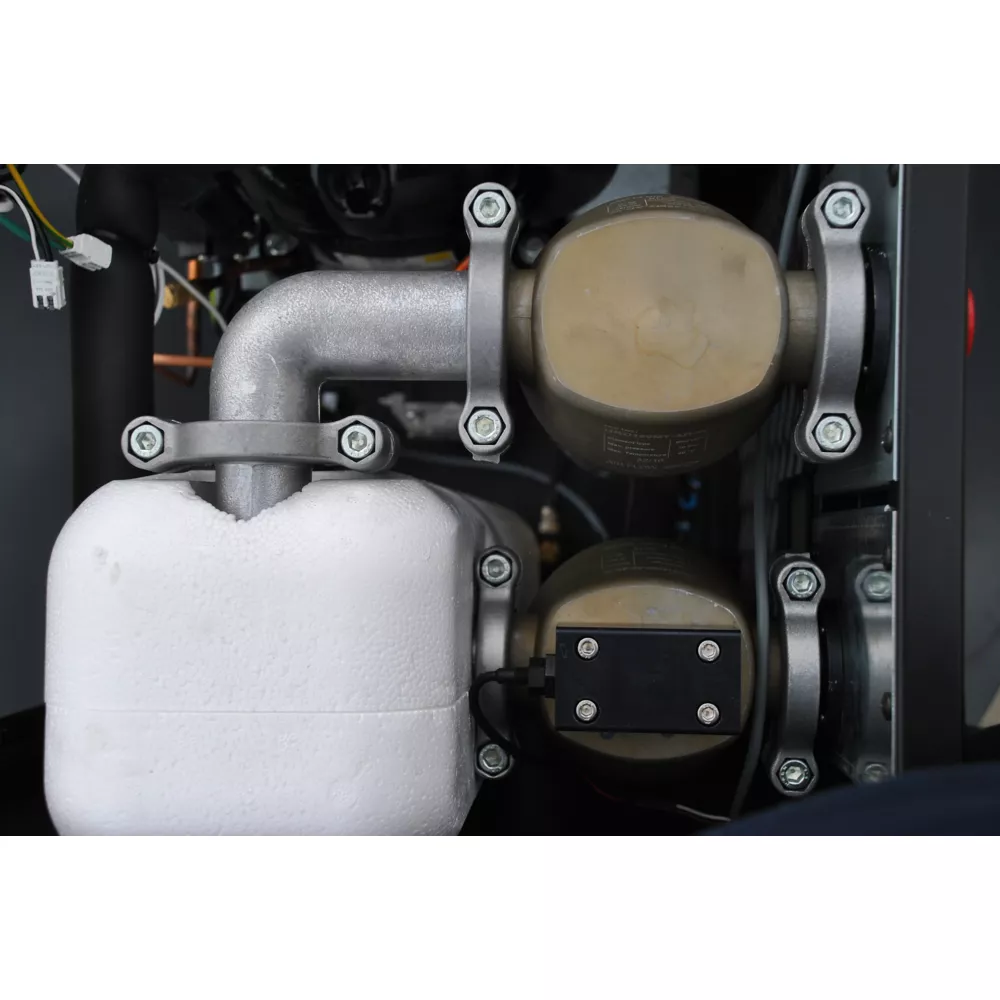

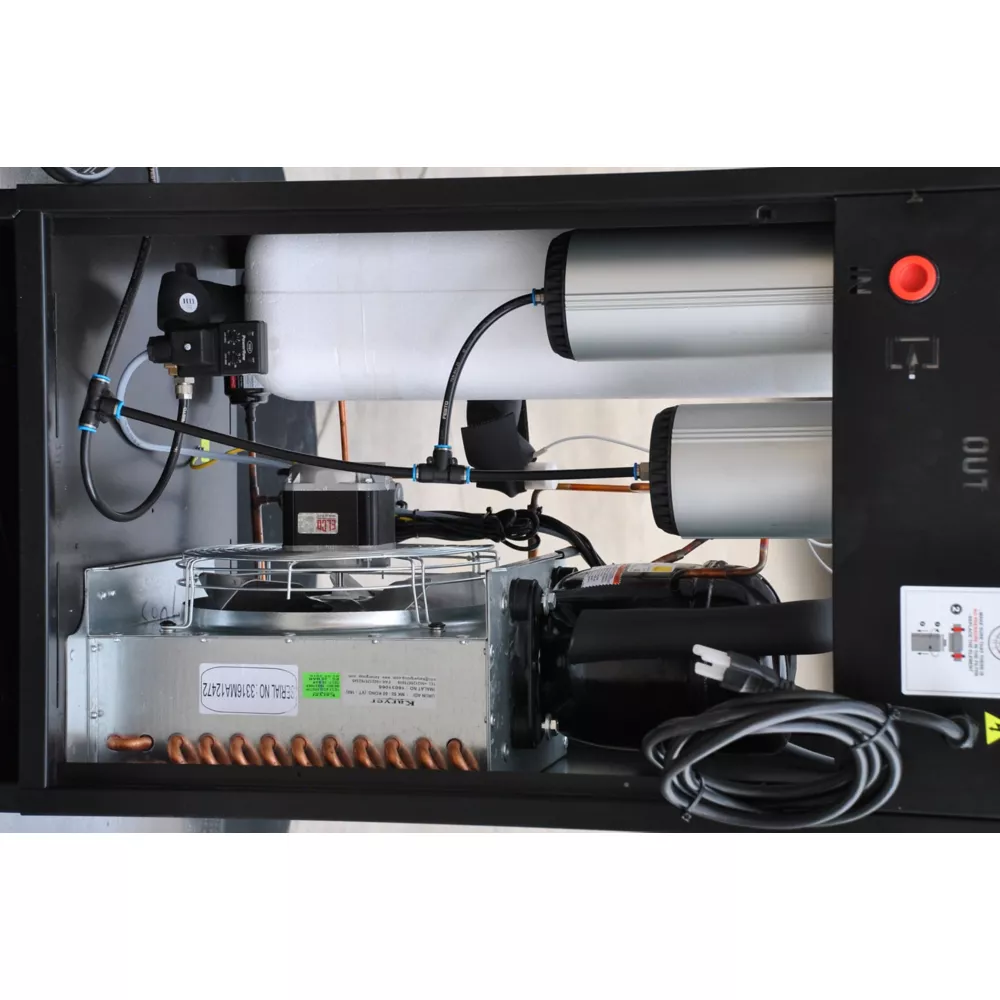

Air Dryer: EMAX model# EDRCF1150030: 30CFM 115V Refrigerated Air Dryer
Dryer: 134A regrigerant type, Built in auto drain & coalescing filter
Dryer dew point: 37-50, Pipe size: 1/2 in. NPT
Max rated inlet temp: 140 degrees, Max ambient temp: 122 degrees
MADE IN THE USA

Warranty: Compressor-1 Yr. Standard, 5 Yr. Extended, Eligible for Lifetime Pump warranty. Dryer: 1 Yr standard, 3 year extended

EMAX 7.5HP 80G 2Stg 3 Phase V4 Pressure Lubricated Pump 31CFM @ 100PSI Quiet Air Compressor and 30CFM Dryer-ESP07V080V3PK Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	EMAX
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	33 CFM
Airflow Volume	31 CFM @ 100 PSI
Air Outlet Size	0.75 in.
Amperage	18 Amps 208,230 V 9 Amps 460 V optional
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Operation	Dual control
Compressor Tank Capacity	80 gal
Compressor Type	Oil lubricated
Compressor Voltage	208V/230V/460V
Connection Type	NPT
Decibel Rating	64 dBA
Drain System	Auto tank drain
Drive Type	Belt drive
Engine Brand	Industrial branded motor
Features	Patented SILENT AIR compressor technology, Auto tank drain, Industrial electric Motor, Solid cast iron V4 pump, Magnetic starter, refrigerated air dryer
Hose Fitting Size	0.5 in. NPT
Maximum RPM	1,750 Motor RPM
Phase	Triple
Number Of Power Speeds	Variable
Number Of Wheels	0
Power Type	Electric
Primary Color	Yellow
Primary Material	Steel
Product Height	72 in.
Product Length	28 in.
Product Weight	701 lb.
Product Width	42 in.
Pump Life	70,000 hours
Pump Material	Cast iron
Pump Oil Capacity	2.5 qt.
Stage Type	Two-Stage
Tank Fill Time	5 min.
Tank Orientation	Vertical
Warranty	1 Yr. Standard, 5 Yr. Extended, Eligible for Lifetime Pump
Manufacturer PartNumber	ESP07V080V3PK
