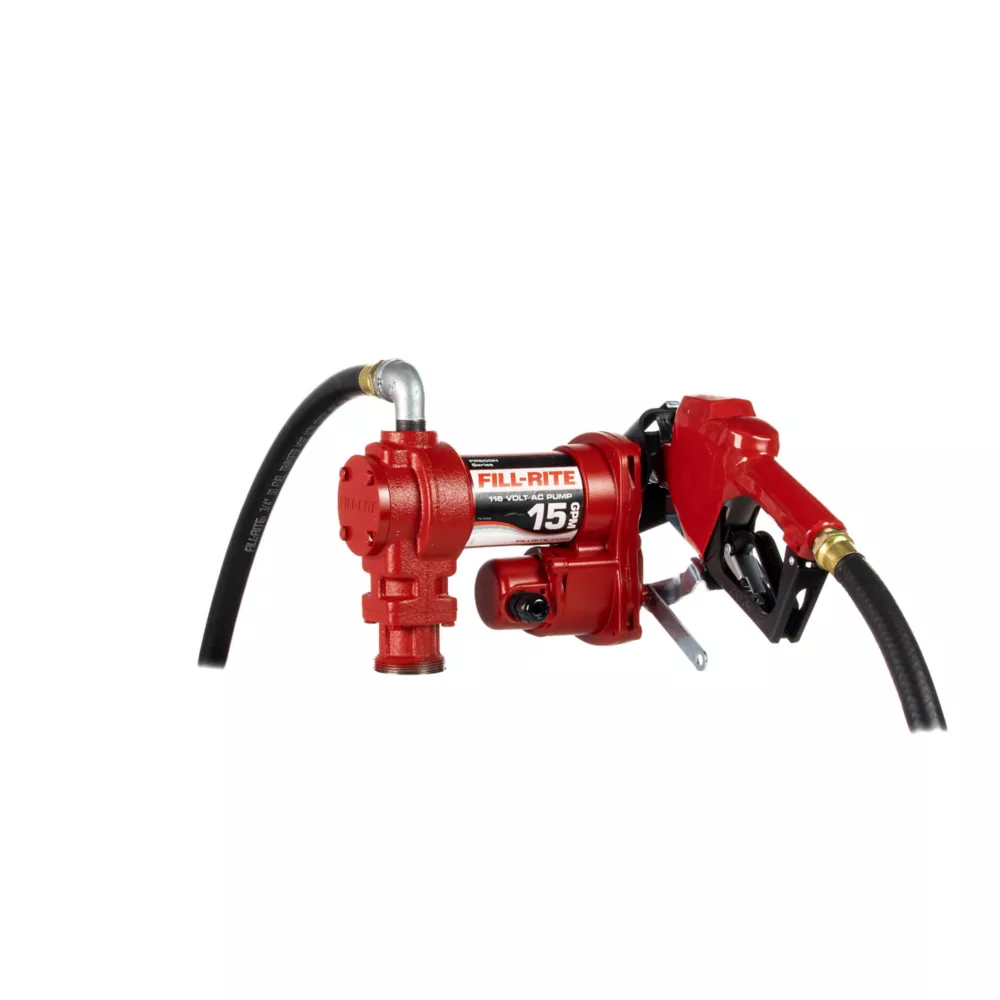

Fill-Rite 0.17 HP 115V Electric Fuel Transfer Pump with Auto Nozzle 15 GPM Discharge Hose and Suction Hose Fuel Transfer Pumps Truck & Automotive

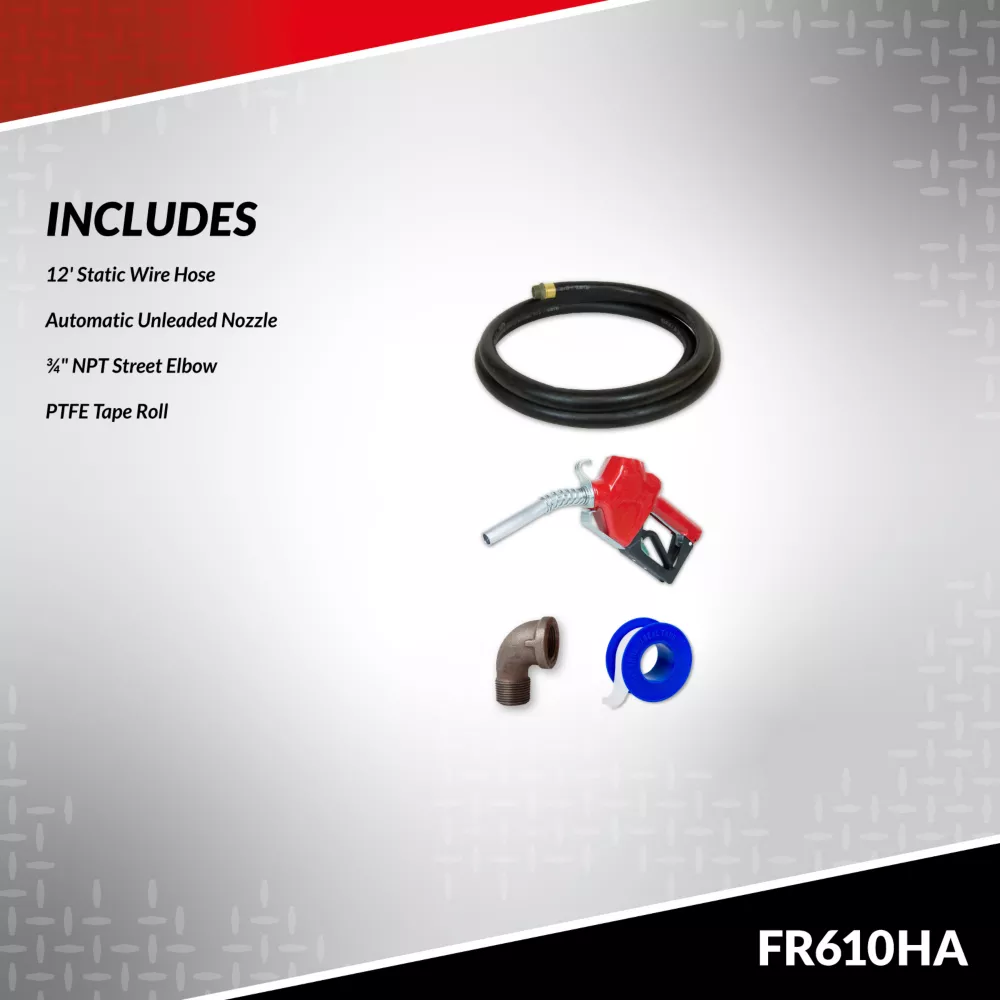

The Fill-Rite 115V 15 GPM Fuel Transfer Pump with Automatic Nozzle, Discharge Hose and Suction Pipe is a dependable, heavy-duty fuel transfer pump. This Fill-Rite pump and accessory bundle comes complete with a hose, an automatic nozzle, and installation components.

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally-protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
Limited lifetime warranty to protect your purchase and your business
Rotary vane pump technology delivers 15 GPM, perfect for filling equipment with fuel tanks from 15-60 gal.
Powered by a 115VAC motor and equipped with a 2 in. bung mount, this Fill-Rite pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks
Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits

Fill-Rite 0.17 HP 115V Electric Fuel Transfer Pump with Auto Nozzle 15 GPM Discharge Hose and Suction Hose Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
Amperage	2A
Body Materials	Cast Iron
Compatible Fluids	Mineral Spirits
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Self Priming
Horsepower	0.17 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	444 in.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-15 deg.
Power Type	Electric
Product Height	9 in.
Product Length	5.25 in.
Product Weight	19.1 lb.
Product Width	13.25 in.
Voltage	115V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR610HA
