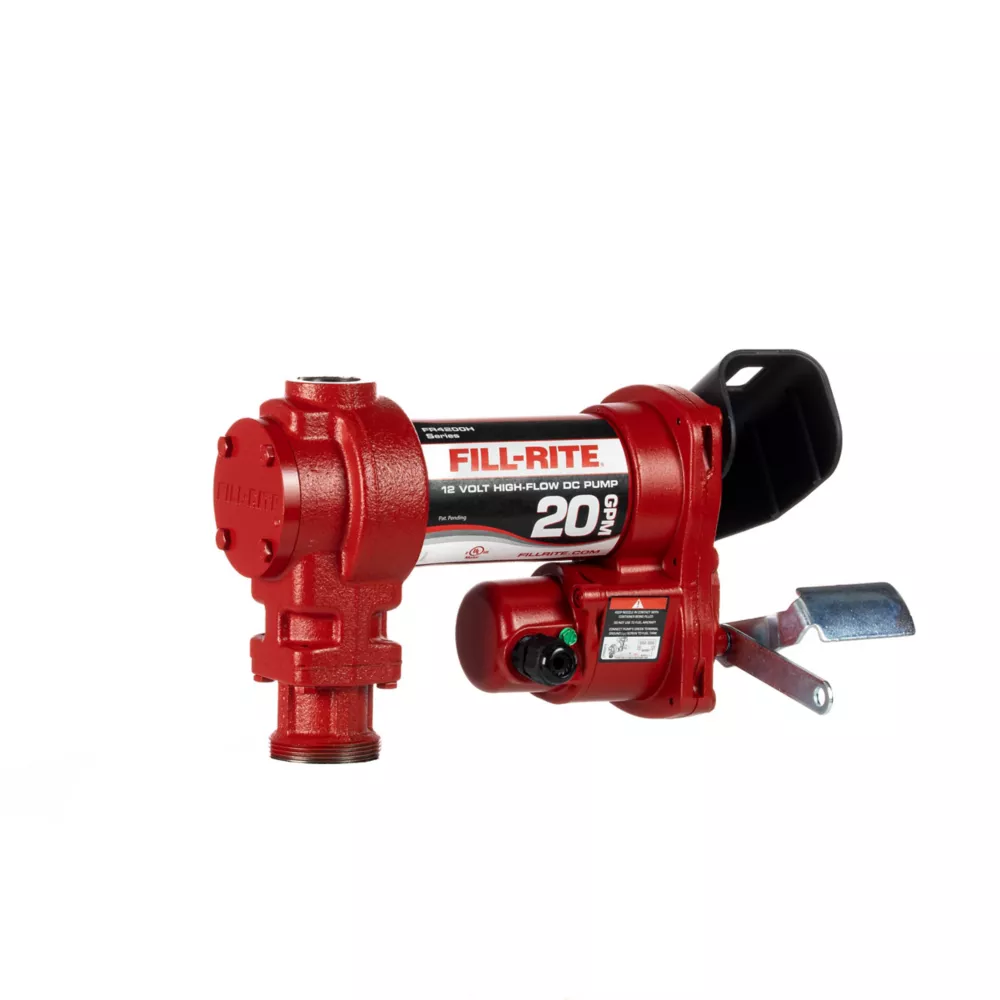

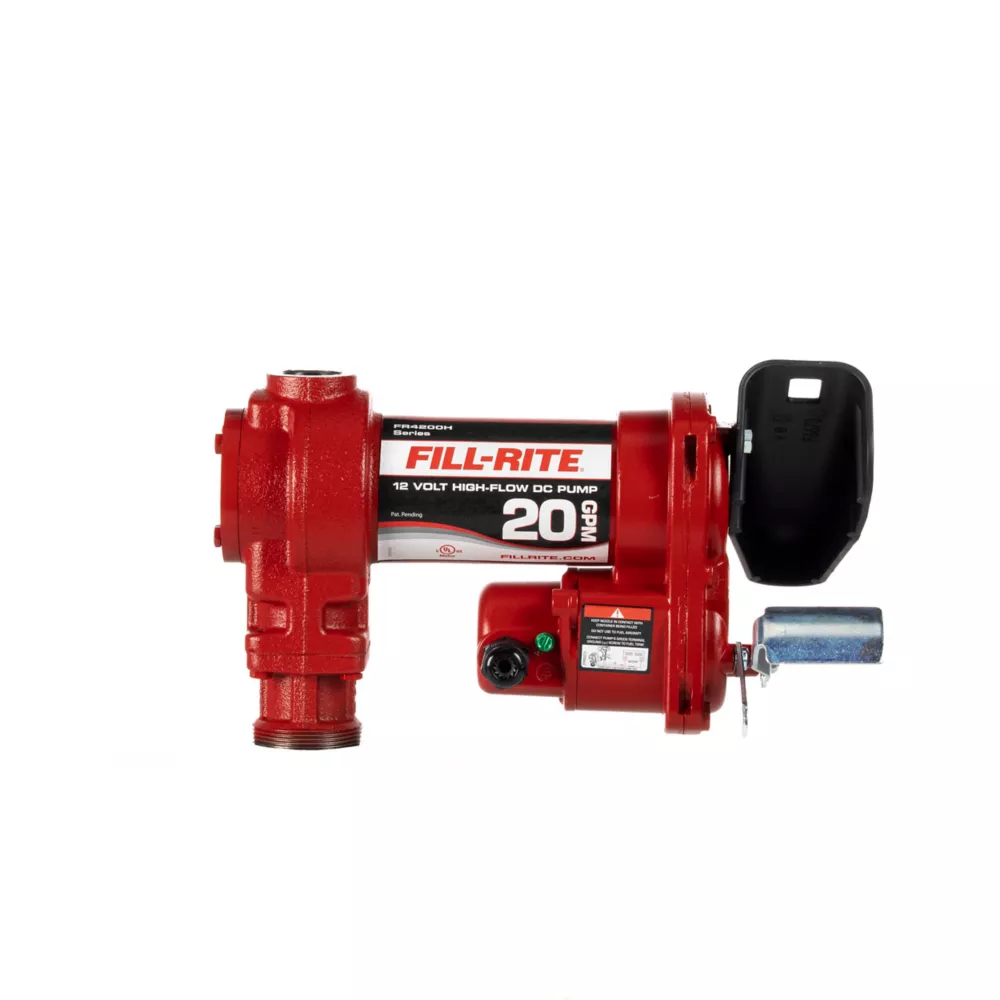

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump 20 GPM Fuel Transfer Pumps Truck & Automotive

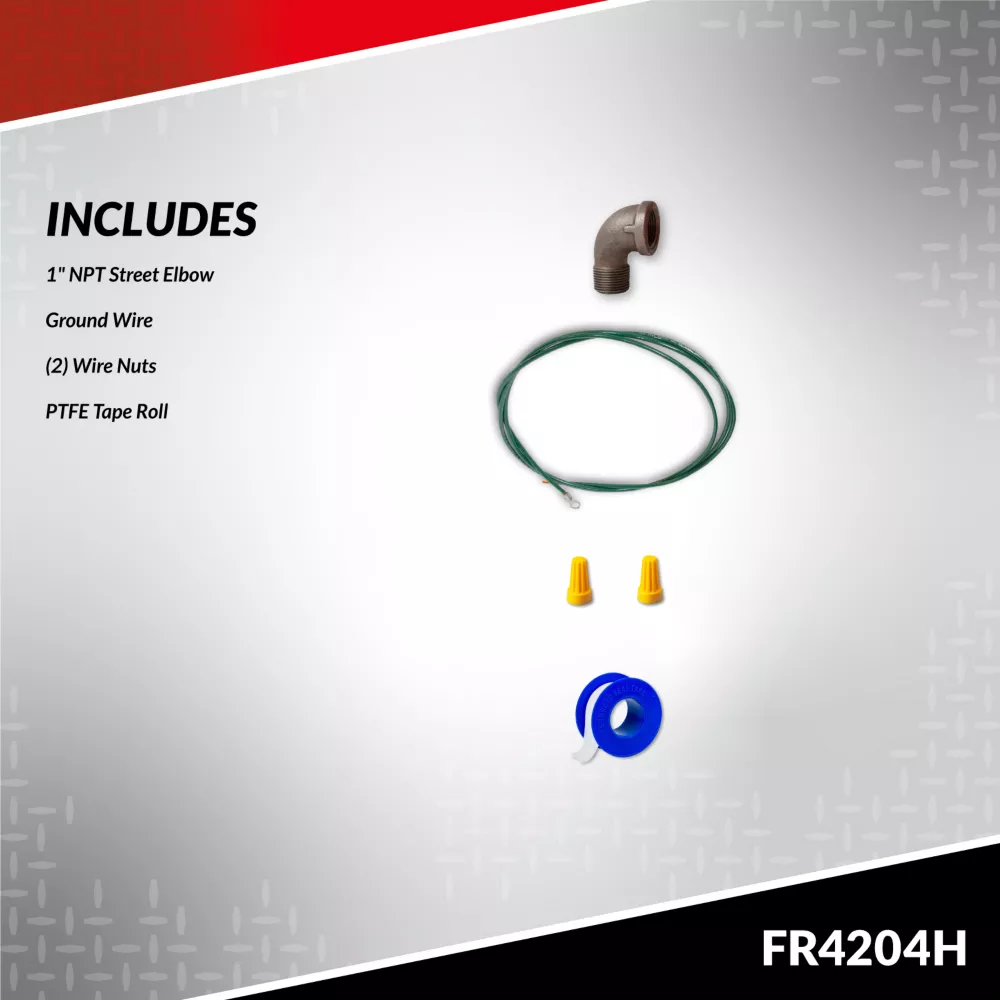

The Fill-Rite 12VDC 20 GPM Fuel Transfer Pump is a heavy-duty fuel transfer pump you can count on. This Fill-Rite pump includes installation components and no additional accessories.

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
Fuel transfer pump is backed by a limited lifetime warranty to protect your purchase and your business
Rotary vane pump technology delivers 20 GPM, which is perfect for filling equipment with fuel tanks from 20-80 gal.
Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump 20 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	19A
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	0 N/A
Horsepower	0.25 hp
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	20 gal./min.
Maximum Head Lift	8 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	0.17 deg.
Power Type	12 Volt
Product Height	6.5 in.
Product Length	15.5 in.
Product Weight	19.1 lb.
Product Width	13 in.
Voltage	12V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR4204H
