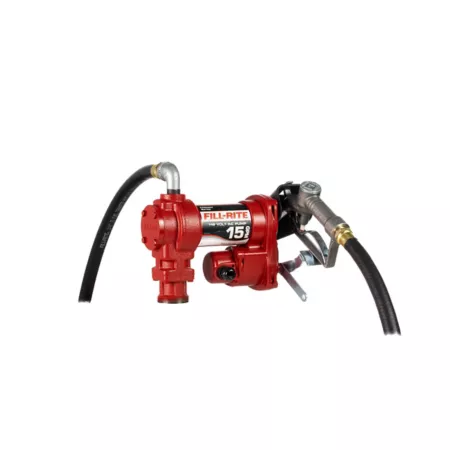

Fill-Rite 0.17 HP 115VAC Electric Fuel Transfer Pump 15 GPM Fuel Transfer Pumps Truck & Automotive

The Fill-Rite 115VAC 15 GPM Fuel Transfer Pump is a heavy-duty fuel transfer pump you can count on. This Fill-Rite pump and accessory bundle comes complete with a hose, a manual nozzle, and installation components.

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
Fuel transfer pump is backed by a limited lifetime warranty to protect your purchase and your business
Rotary vane pump technology delivers 15 GPM, which is perfect for filling equipment with fuel tanks from 15-60 gal.
Powered by a 115VAC motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to a standard 115V AC electrical supply and installing onto stationary aboveground tanks
Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits

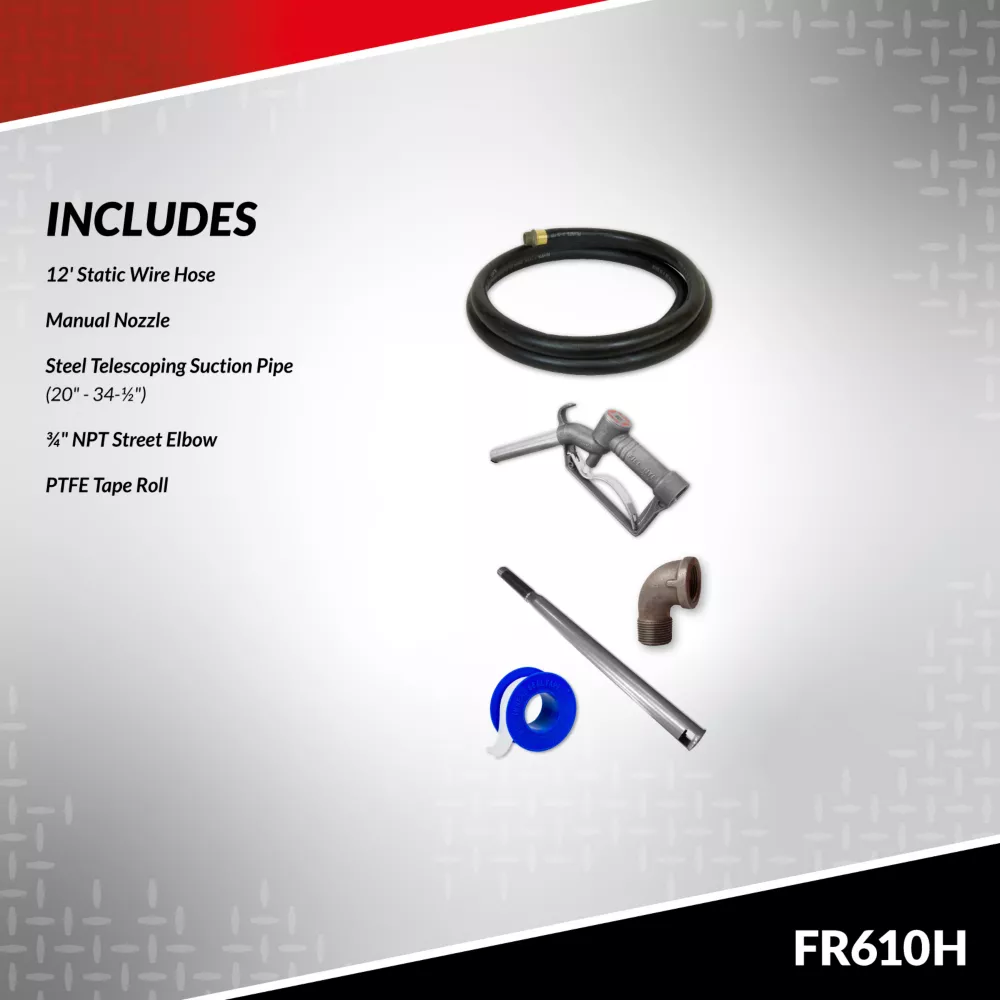

Includes a 3/4 in. x 12 ft. UL-listed hose with static ground wire and a 3/4 in. cast-aluminum manual nozzle

Fill-Rite 0.17 HP 115VAC Electric Fuel Transfer Pump 15 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	2A
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Compatible with
Horsepower	0.17 hp
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	15GPM
Maximum Head Lift	8 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	0.17 deg.
Power Type	Electric
Product Height	9 in.
Product Length	5.25 in.
Product Weight	18 lb.
Product Width	13.25 in.
Voltage	115V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR610H
