Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump with Nozzle 13 GPM Fuel Transfer Pumps Truck & Automotive

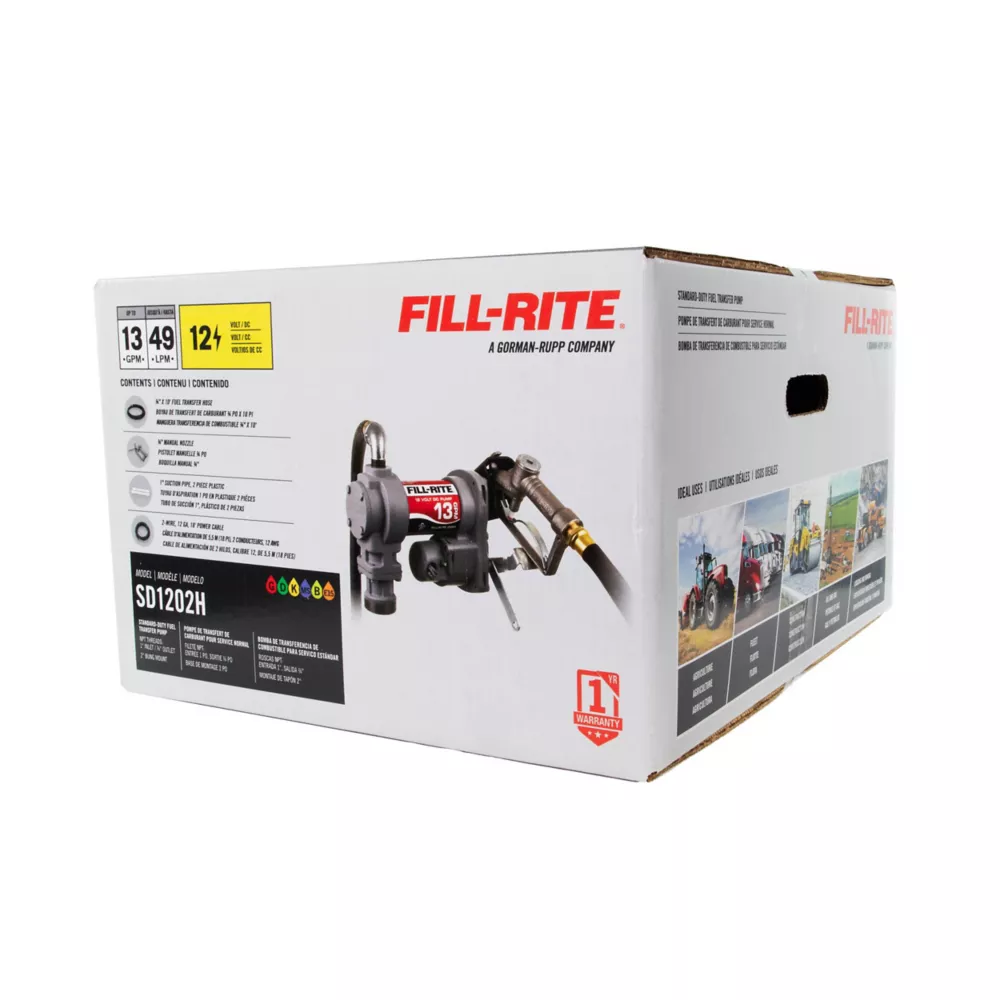

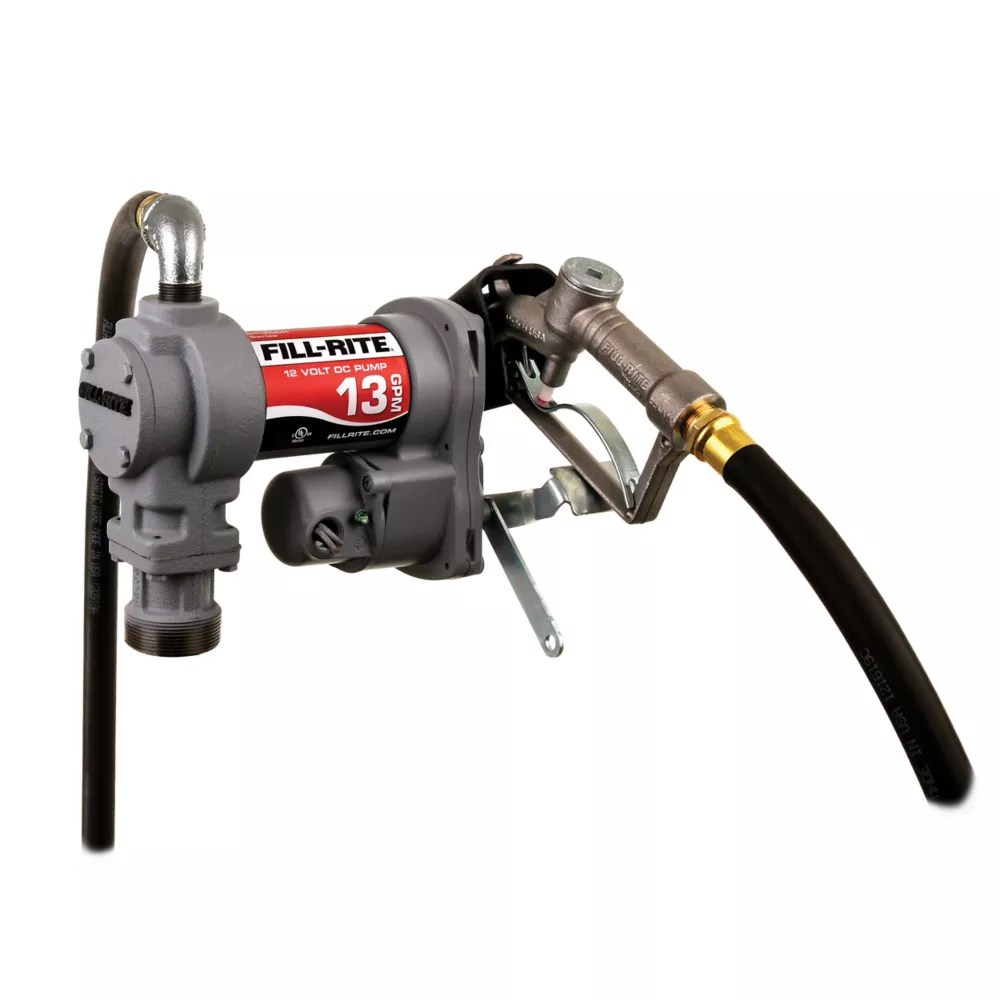

The Fill-Rite 12VDC 13 GPM Fuel Transfer Pump with Nozzle is an economy fuel transfer pump. This Fill-Rite pump and accessory bundle comes complete with a hose, a nozzle, a suction pipe, and installation components.

Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
Fuel pump is backed by a limited lifetime warranty to protect your purchase and your business
Rotary vane pump technology delivers 15 GPM, which is perfect for filling equipment with fuel tanks from 15-60 gal.
Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
37 ft. discharge head
Includes a 3/4 in. cast-aluminum manual nozzle and a 15 ft. 12 gauge cable

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump with Nozzle 13 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20A
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Compatible with Diesel,Gasoline,Biodiesel up to B20,Mineral Spirits
Horsepower	0.25 hp
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	13 gal./min.
Maximum Head Lift	8 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	105 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Cord Length	15 ft.
Power Type	12 Volt
Product Height	8.5 in.
Product Length	6.5 in.
Product Weight	18 lb.
Product Width	13 in.
Voltage	12V
Warranty	1 Year
Manufacturer PartNumber	SD1202H

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump with Nozzle, 13 GPM Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power DC Amperage 20 Amp Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty cycle 30 min. Features Compatible with diesel, gasoline, biodiesel up to B20, mineral spirits Horsepower 0.25 hp Hose diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Residential Grade Maximum Flow 13 gal./min. Maximum head lift 8 feet. Maximum operating pressure 16 PSI Maximum operating temperature 105 degrees. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power cord length 15 ft. Power Type 12 Volt Product Height 8.5 in. Product length 6.5 in. Product weight 18 lbs. Product width 13 in. Voltage 12 V Guarantee 1 an Manufacturer part number SD1202H
