GPI Manual Rotary Action Fluid Transfer Pump 10 gal./100 RPM Fuel Transfer Pumps Truck & Automotive

The GPI RP-10 fluid transfer hand pump is a rotary action pump designed for direct mounting on portable tanks, drums, or barrels for the transfer of gasoline, diesel fuel, kerosene, oil (up to 30W), and hydraulic fluid. This hand pump delivers up to 10 gallons (38 Litres) per 100 revolutions. The RP-10 is the perfect pump for construction, agriculture, and other industries where maximum versatility and portability are important.

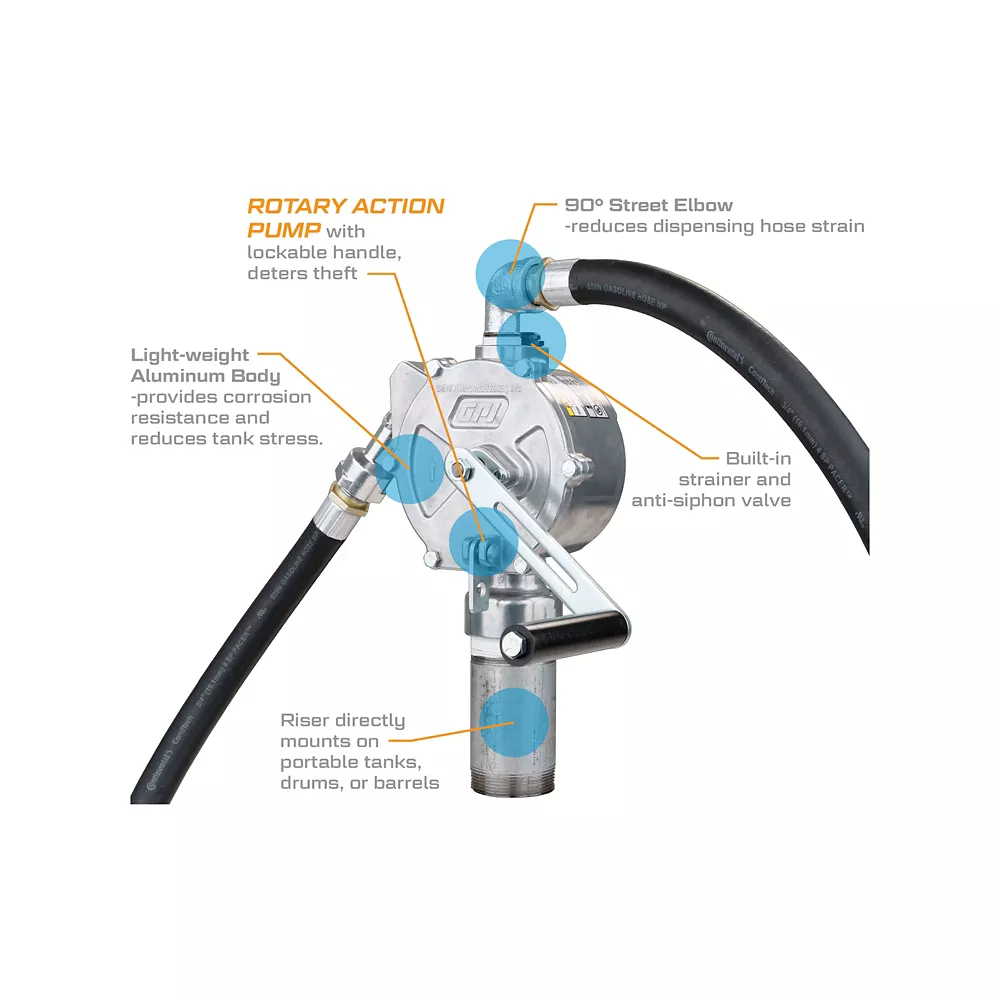

Built-in strainer and anti-siphon valve.
Handle lock deters fluid theft.
Light-weight aluminum body provides corrosion resistance and reduces tank stress.
90° street elbow reduces dispensing hose strain.
Fits a 2 in. NPT bung.
Comes with 3/4 in. x 8 ft. (2.44 m) Buna-N statically grounded dispensing hose and aluminum alloy unleaded nozzle.
For use with gasoline (alcohol blends up to E15), diesel fuel (diesel blends to B20), kerosene, oil (up to 30W), and hydraulic fluid.
UL Listed & 2 year warranty.
3/4 in. threaded female discharge connection
For industrial, commercial and residential use

GPI Manual Rotary Action Fluid Transfer Pump 10 gal./100 RPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
Body Materials	Aluminium
Compatible Fluids	Kerosene
Discharge Connection	Threaded Male
Discharge Diameter	3/4 in.
Duty Cycle	10 gallons per 100 revolutions
Features	Rotary action pump designed for direct mounting on portable tanks, drums, or barrels for the transfer of gasoline, diesel fuel, kerosene, oil (up to 30W), and hydraulic fluid.
Horsepower	0 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	10 gallons per 100 revolutions
Maximum Head Lift	0 in.
Maximum Operating Pressure	100 rotations
Maximum Operating Temperature	125deg f
Minimum Operating Pressure	1 rotation
Minimum Operating Temperature	-20deg f
Power Type	Manual

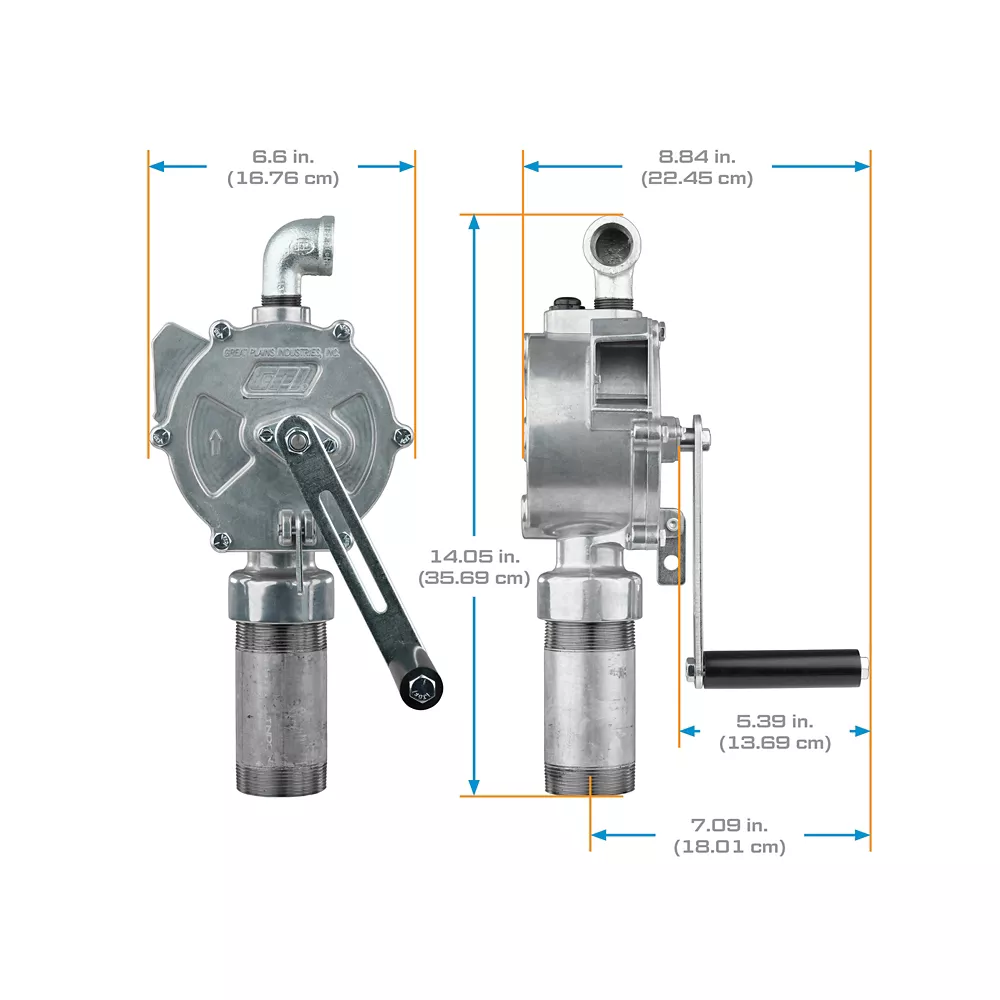

Product Height	13 in.
Product Length	8 in.
Product Weight	16.81 in.
Product Width	6 in.
Voltage	0 v
Warranty	2 Year
Manufacturer PartNumber	123000-06TSC

GPI Manual Rotary Action Fluid Transfer Hand Pump, 10 gal./100 Revolutions Specifications expand/collapse Specification Description Brand GPI Country of Origin Made in USA Body Materials Aluminum Compatible Fluids Kerosene Discharge Connection Male Threaded Discharge Diameter 3/4 in. Duty Cycle 10 gallons per 100 revolutions Features Rotary action pump designed for direct mounting on portable tanks, drums or barrels for transferring gasoline, diesel fuel, kerosene, oil (up to 30 W) and hydraulic fluid. Horsepower 0 HP Pipe Diameter 0.75 in. Inlet Connection Threaded Male Inlet Diameter 1 in. Intended Use Commercial Grade Maximum Flow 10 gallons per 100 revolutions Maximum Head Lift 0 in. Maximum Operating Pressure 100 rotations Maximum Operating Temperature 125 degrees f Minimum Operating Pressure 1 rotation Minimum Operating Temperature -20 degrees f Power Type Manual Product Height 13 in. Product Length 8 in. Weightproduct 16.81 in. Product width 6 in. Voltage 0 V Warranty 2 years Manufacturer part number 123000-06TSC
