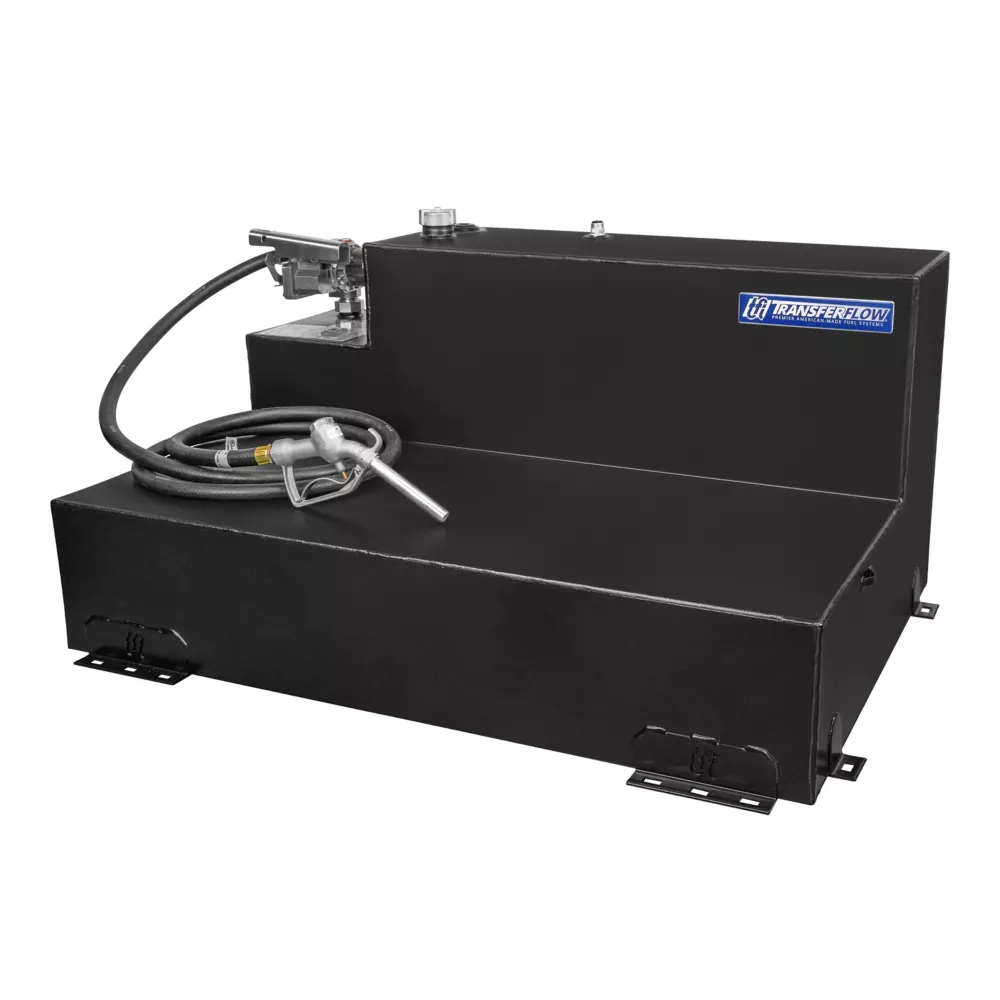

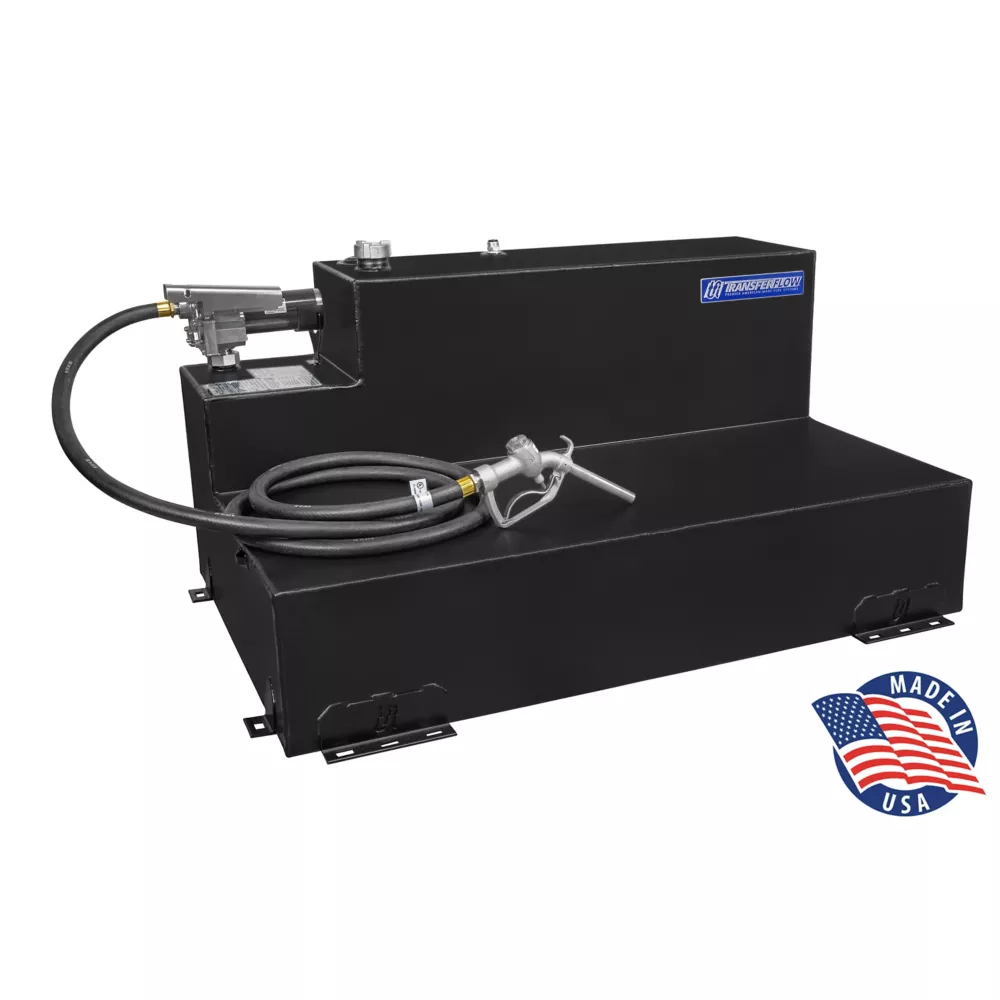

Transfer Flow Inc 100 gal L-shaped refueling tank system Fuel Transfer Tanks Truck & Automotive

The unique design of the 100-gallon L-shaped refueling tank fits under most over-the-rail tool box configurations while providing 100 extra gallons of fuel for your adventures. The 100-gallon refueling tank system is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, and kerosene. The easy-to-use hose-purge feature allows you to pull any fuel left in the hose back into the refueling tank to eliminate messes in the truck bed and stretch your extra fuel capacity even further. Transfer Flow's 100-gallon refueling tank is made from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength; and powder-coated black for a durable satin finish. As with all Transfer Flow fuel tank systems, this refueling tank comes complete with all parts needed for installation

Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles

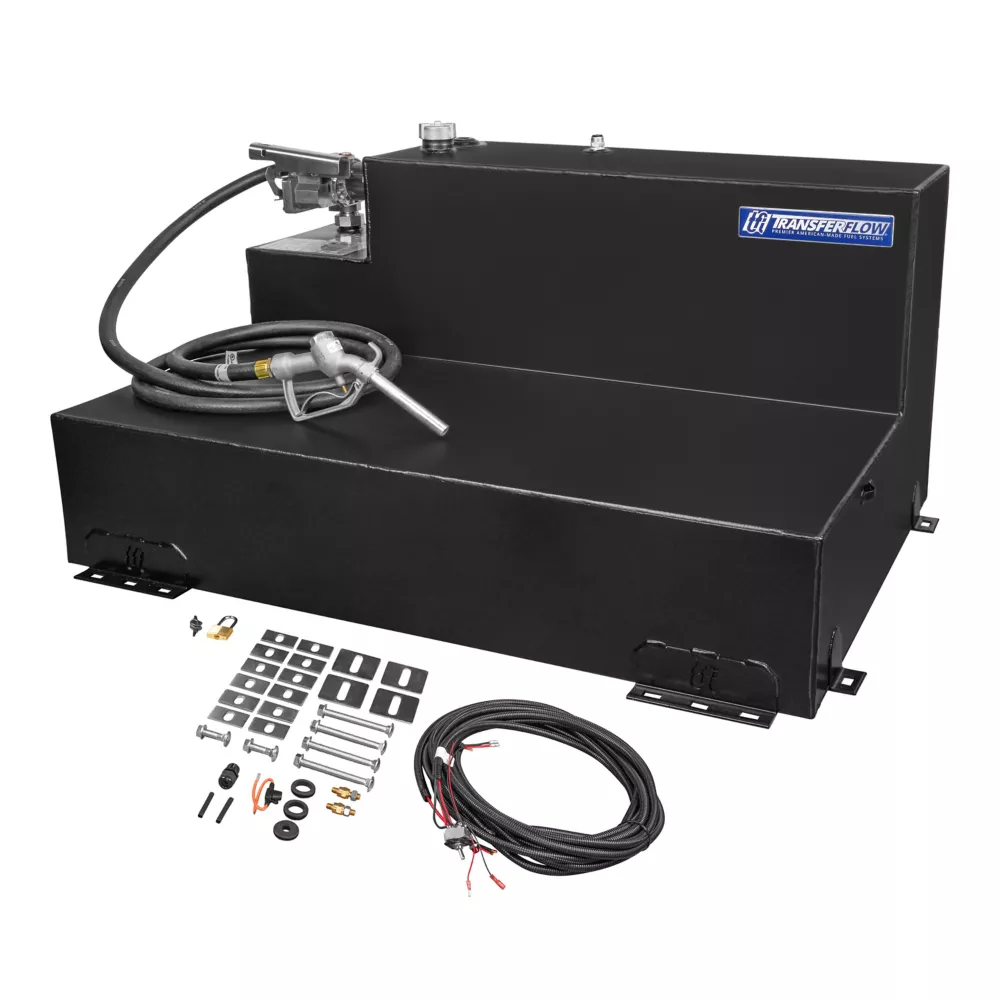

Fuel tank comes with 12V GPI fuel pump, 12 ft. hose, nozzle, fuel cap, wiring harness with cab-mounted power switch, and mounting hardware
DOT legal for gasoline, diesel, methanol/ethanol, and kerosene
Built from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength
L-shaped to maximize bed space
Diesel fuel transfer tank system is powder coated black for durable satin finish
Made in the USA
Portable fuel transfer tank system pumps up to 15 GPM
Fuel transfer tank system is baffled to prevent fuel sloshing
6 year, unlimited mile warranty
Unique design of the L-shaped refueling tank fits under most over-the-rail tool box configurations
Dimensions of the fuel storage tank: 53.75 in. L x 36.75 in. W x 28 in. H
Fits all full-size trucks
NOTE: Product dimensions include 3 in. in length and width for the mounting brackets and 3 in. in height for the filler neck
NOTE: Accuracy of optional Rochester fuel gauge may be less depending upon tank shape and if tank is on a level surface; accuracy may be less near full and empty.

Transfer Flow Inc 100 gal L-shaped refueling tank system Fuel Transfer Tanks Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tanks

Specification	Description
Brand	Transfer Flow Inc.
Country of Origin	Made in USA
Features	Mounting Kit Included
Fill Opening Diameter	2 in.
Maximum Fill Capacity	100 gal.
Maximum Tank Fill Capacity	100 gal
Outlet Diameter	2 in.
Primary Color	Black
Primary Material	Steel
Product Height	27.62 in.
Product Length	53.75 in.
Product Weight	329 lb.
Product Width	35.87 in.
Tank Shape	L-Shaped
Warranty	6 Year, Unlimited Mile
Manufacturer PartNumber	800109418

Transfer Flow Inc. 100 gal. L-Shaped Refueling Tank System Specifications expand/collapse Specification Description Brand Transfer Flow Inc. Country of Origin Made in USA Features Mounting kit included Fill opening diameter 2 in. Maximum fill capacity 100 gal. Maximum tank fill capacity 100 gal Outlet diameter 2 in. Main Color Black Main Material Steel Product Height 27.62 in. Product length 53.75 in. Product weight 329 lbs. Product width 35.87 in. Tank shape L-shaped warranty 6 years, unlimited mileage Manufacturer part number 800109418
