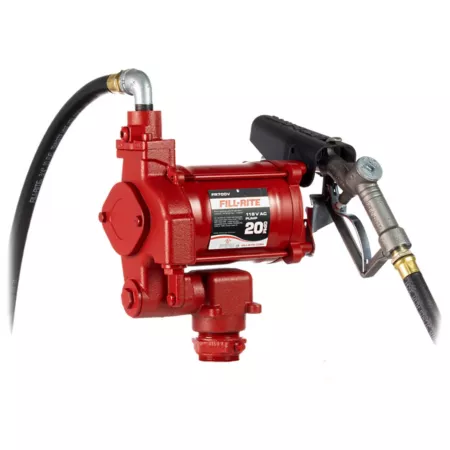

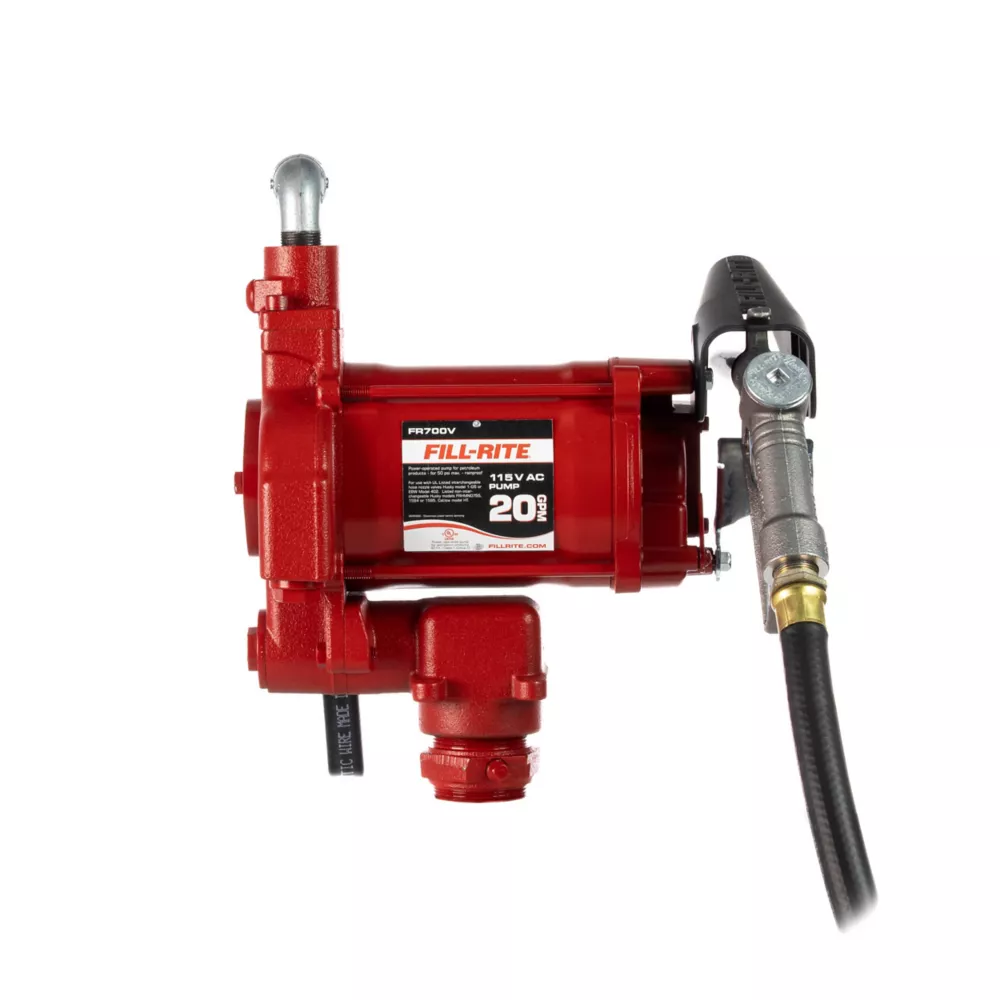

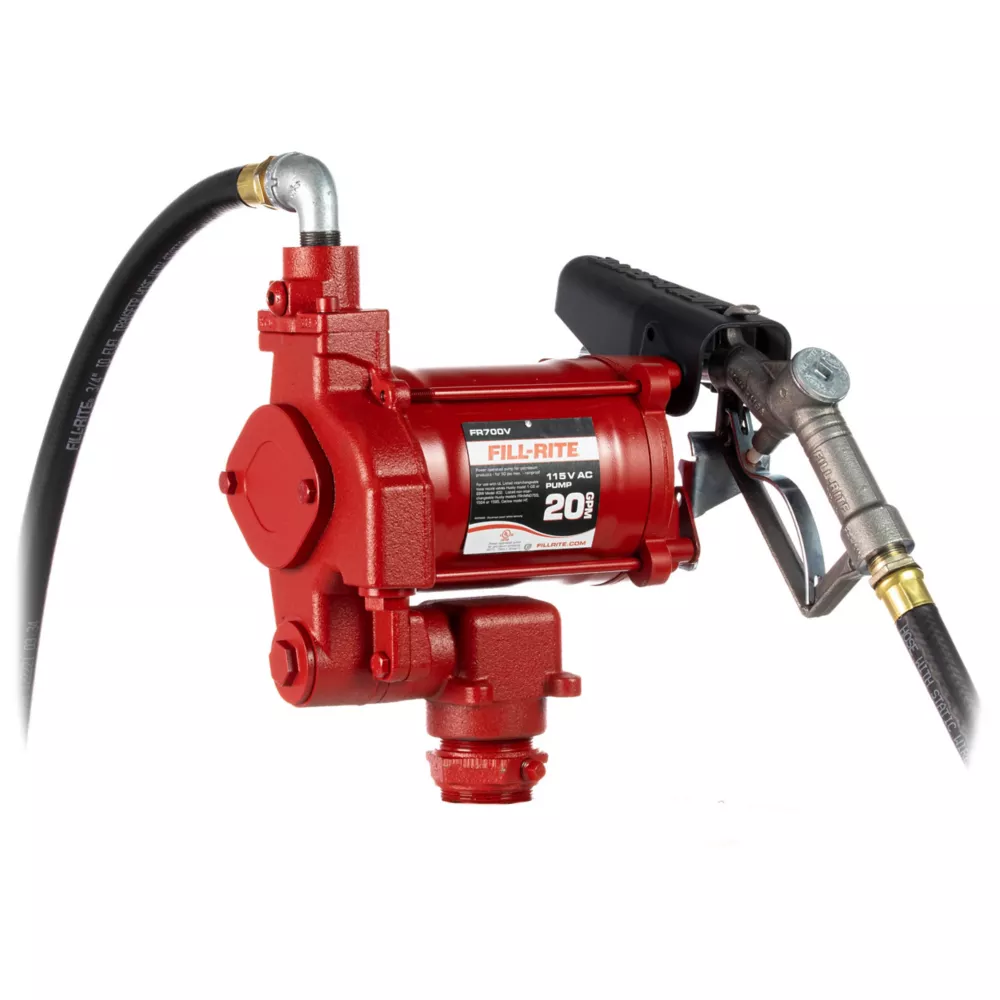

Fill-Rite 1/3 HP 115VAC Electric Fuel Transfer Pump with Nozzle 20 GPM Fuel Transfer Pumps Truck & Automotive
The Fill-Rite 115VAC 20 GPM Fuel Transfer Pump with Nozzle is a heavy-duty fuel transfer pump you can count on. This Fill-Rite pump and accessory bundle comes complete with a hose, a nozzle, and installation components.- AC pump that transfers fuel at 20 GPM, a tremendous entry-level option that is ideal for filling medium-sized equipment from aboveground storage tanks
- Rotary vane technology produces consistent flow performance over the entire life of your pump
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
- Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
- Limited lifetime warranty to protect your purchase and your business
- Powered by a 115VAC motor and equipped with a 2 in. bung mount, this fuel transfer pump is ideal for wiring to a standard 115VAC electrical supply and installing onto stationary aboveground tanks
- Built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
- Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits

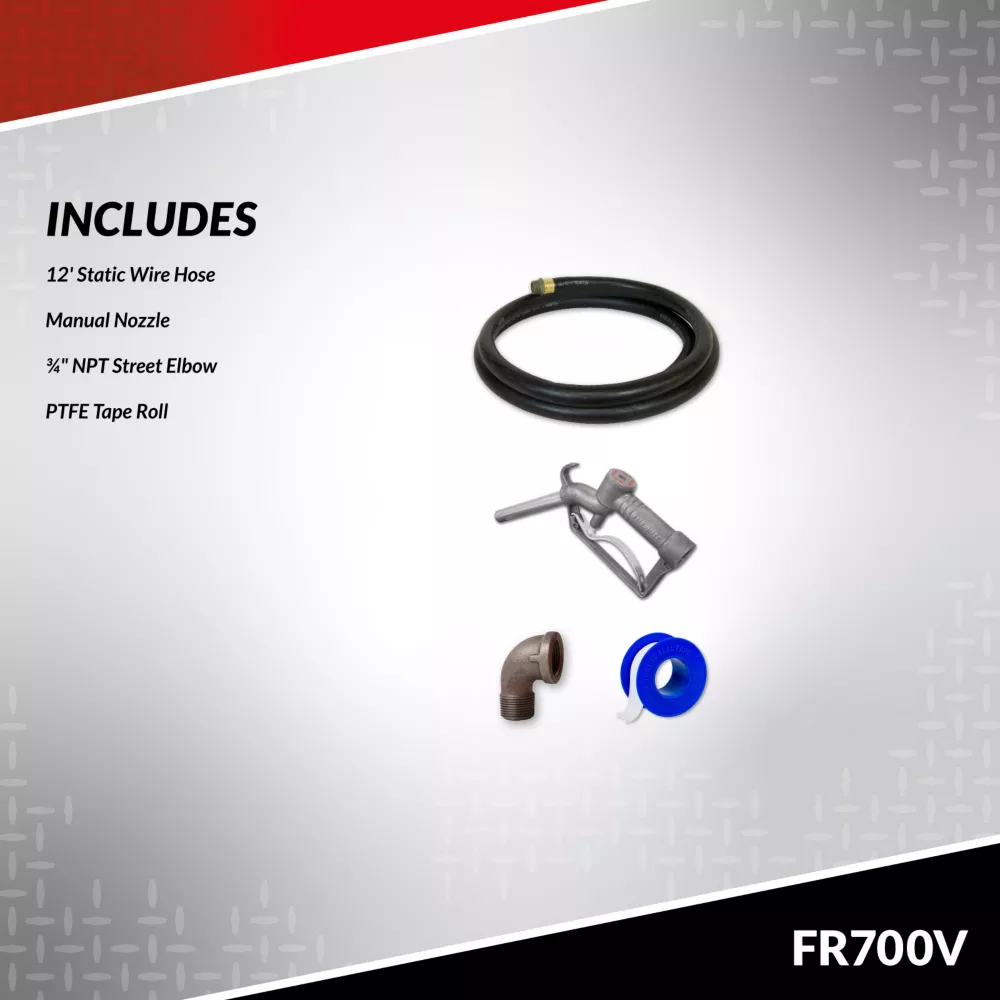

- Includes 3/4 in. x 12 ft. hose with static wire and 3/4 in. manual nozzle
- 53 ft. discharge head
Fill-Rite 1/3 HP 115VAC Electric Fuel Transfer Pump with Nozzle 20 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
| Specification | Description |
|---|---|
| Brand | Fill-Rite |
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 5.5A |
| Body Materials | Cast Iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Compatible with Diesel and Gasoline |
| Horsepower | 0.33 hp |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 20 gal./min. |
| Maximum Head Lift | 15 ft. |
| Maximum Operating Pressure | 23 PSI |
| Maximum Operating Temperature | 105 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -17 deg. |
| Power Type | Electric |
| Product Height | 15 in. |
| Product Length | 17 in. |
| Product Weight | 44.4 lb. |
| Product Width | 17 in. |
| Voltage | 115V |
| Warranty | Limited Lifetime |
| Manufacturer PartNumber | FR700V |
