Fill-Rite 120V 25 GPM Cont Duty NPT Threaded Foot Mounted Fuel Transfer Pump (Pump Only) Fuel Transfer Pumps Truck & Automotive

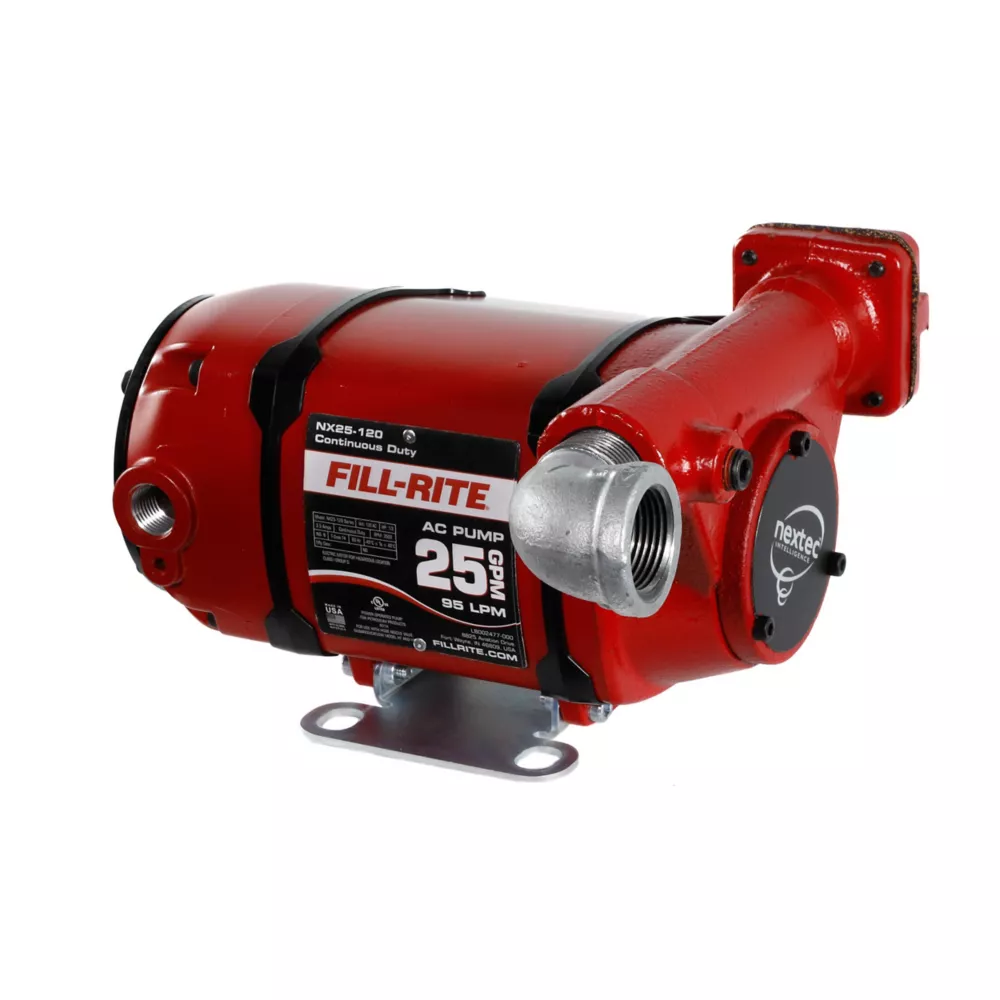

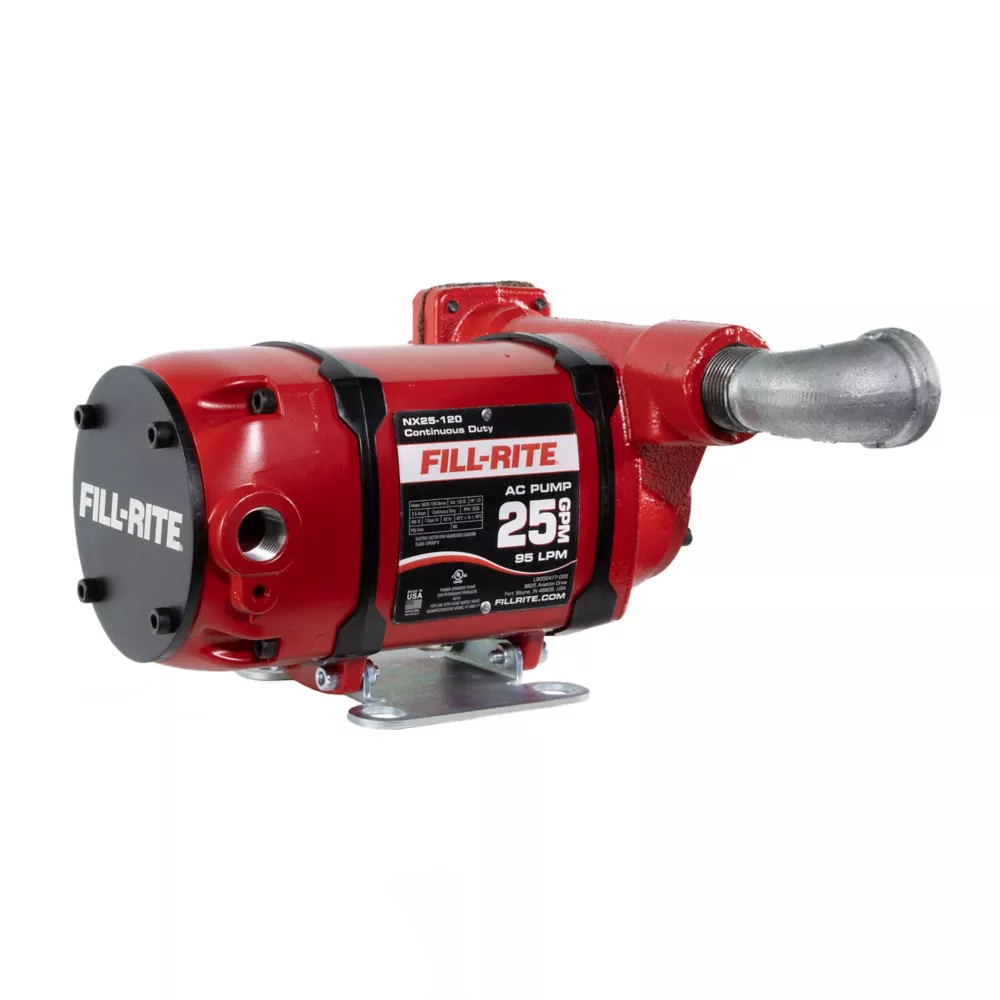

The NX25-120NF-PX model is a 120V AC, 25 GPM premiere fuel transfer pump. This model includes installation components and no additional accessories.

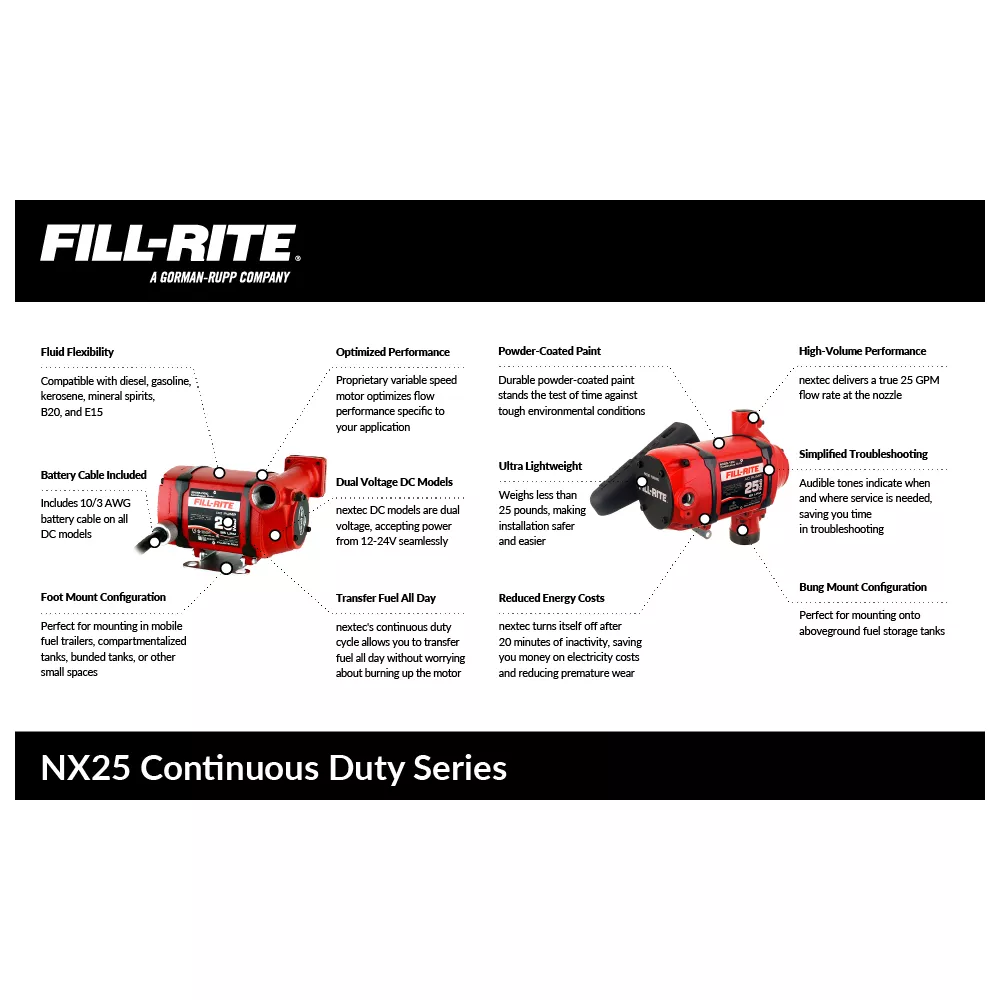

Unmatched Performance - Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment
Continuous Operation brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime
Energy Efficient - Consumes up to 45% less electricity, slashing operating costs and boosting efficiency
Ultra-Lightweight pump weighs 60% less at only 25 pounds, making installation faster and strain free
Reduced Maintenance Costs 75% reduction in common field repair costs through patented design and robust construction
Powder-Coated Exterior thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions
Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Fill-Rite 120V 25 GPM Cont Duty NPT Threaded Foot Mounted Fuel Transfer Pump (Pump Only) Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	AC
Body Materials	Cast Iron
Compatible Fluids	Diesel, Kerosene
Discharge Connection	Female
Discharge Diameter	1 in.
Duty Cycle	9,999 hrs
Features	Pump Only
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Intended Use Grade	Commercial, Industrial, Residential
Maximum Flow Rate	25 GPM
Maximum Head Lift	48 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	125 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-20 deg.
Power Type	Other
Product Height	9.5 in.
Product Length	6 in.
Product Weight	21.9 lb.
Product Width	10.5 in.
Warranty	Limited Lifetime
Manufacturer PartNumber	NX25-120NF-PX
