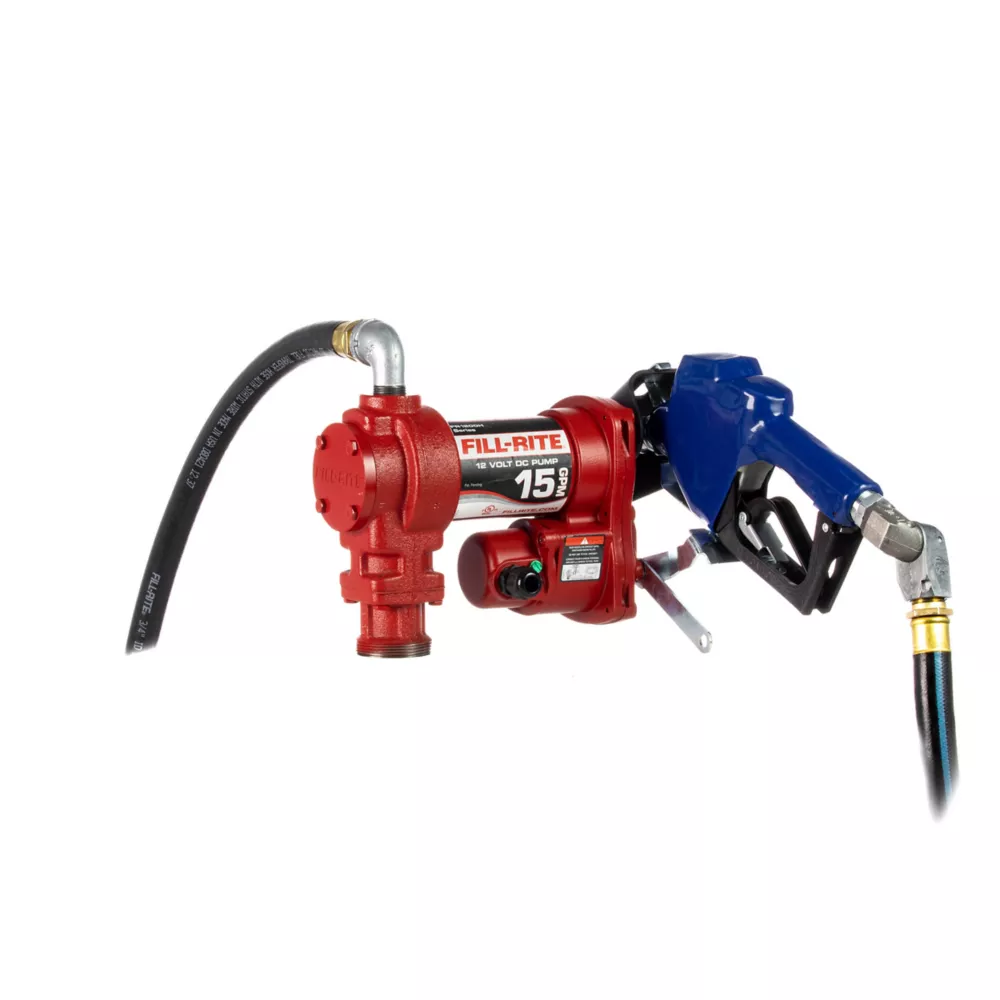

Fill-Rite 12V 15 GPM Fuel Transfer Pump with Arctic Package Fuel Transfer Pumps Truck & Automotive

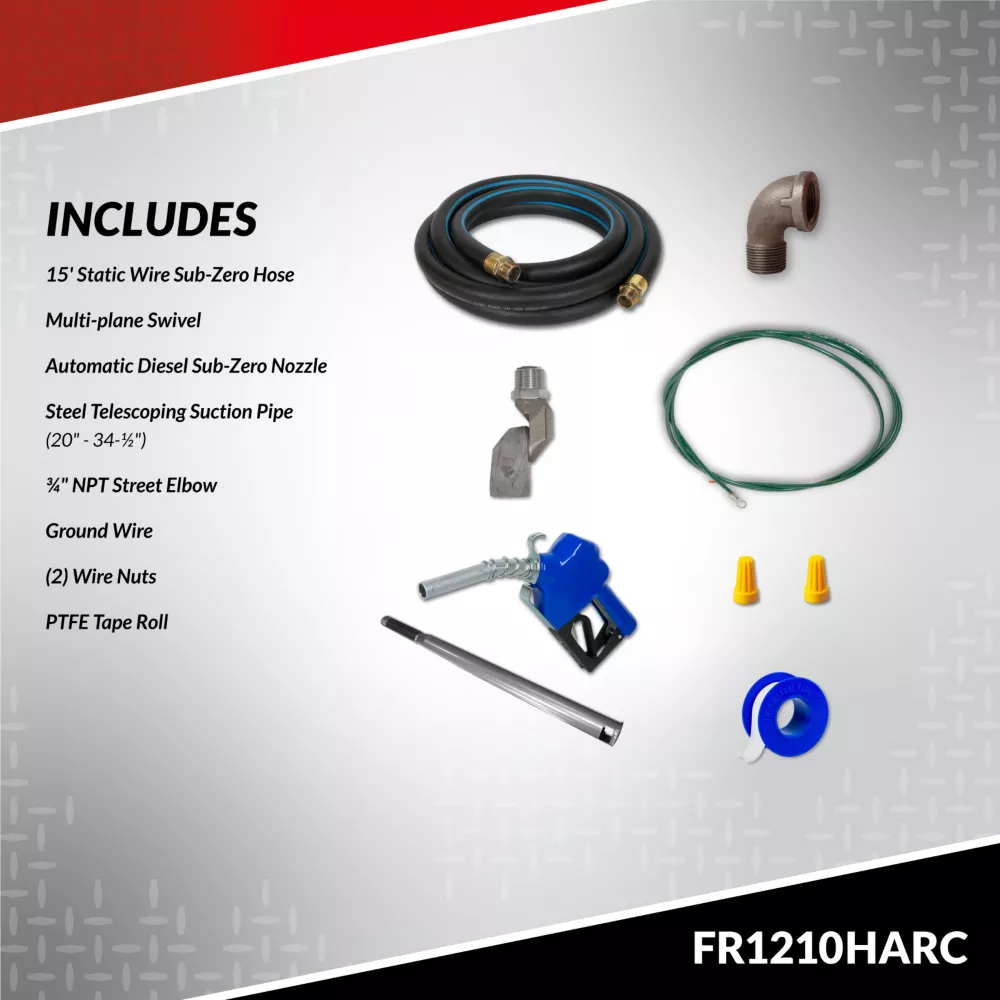

The Fill-Rite 12V 15 GPM Fuel Transfer Pump with Arctic Package is a heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components. Proudly manufactured in the USA, this Fill-Rite fuel transfer pump is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.

Durable cast-iron construction provides heavy-duty performance and allows the fuel transfer pump to withstand daily use in mobile tank applications
Adjustable electrical junction box rotates 180 for added flexibility while wiring and improved installation in tight spaces
Thermally-protected motor prevents the fuel transfer pump from overheating, ensuring your pump withstands the test of time
Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
On/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
We stand behind our fuel transfer pump with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
Flow rate range of the fuel transfer pump: 0 to 15 GPM (57 LPM)
Discharge hose: 0.75 in. x 15 ft. Arctic rated hose with static ground wire
Nozzle: 0.75 in. automatic diesel cold weather nozzle
Thread type: 0.75 in. multi-plane swivel
18 ft. long cable
Bare leads
Duty cycle of the fuel pump: 30 minutes
Suction lift: 8 ft.

Fill-Rite 12V 15 GPM Fuel Transfer Pump with Arctic Package Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	DC
Amperage	20A
Body Materials	Cast iron
Compatible Fluids	Diesel, Gasoline, Biodiesel, Mineral Spirits
Discharge Diameter	0.75 in.
Duty Cycle	30 min.
Features	Self-Priming
Horsepower	0.25 HP
Hose Diameter	3/4 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial, Industrial, Residential
Maximum Flow Rate	15 GPM
Maximum Head Lift	8 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	105°F
Minimum Operating Temperature	-17°F
Power Cord Length	18 ft.
Power Type	12 Volt
Product Height	9 in.
Product Length	5.75 in.
Product Weight	19.3 lb.
Product Width	13 in.
Voltage	12V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR1210HARC
