Fill-Rite 3/4 HP 115/230 Volt AC Electric Fuel Transfer Pump with Discharge Hose and Auto Nozzle 35 GPM Fuel Transfer Pumps Truck & Automotive

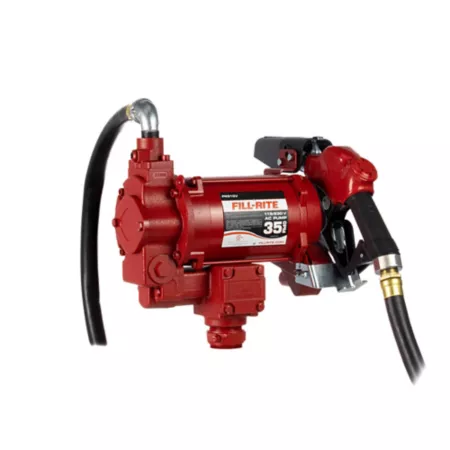

The Fill-Rite 115/230VAC 35 GPM Fuel Transfer Pump with Discharge Hose and Automatic Nozzle is a reliable, 35 GPM, heavy-duty fuel transfer pump. This Fill-Rite pump and accessory bundle comes complete with a hose, a nozzle, and installation components.

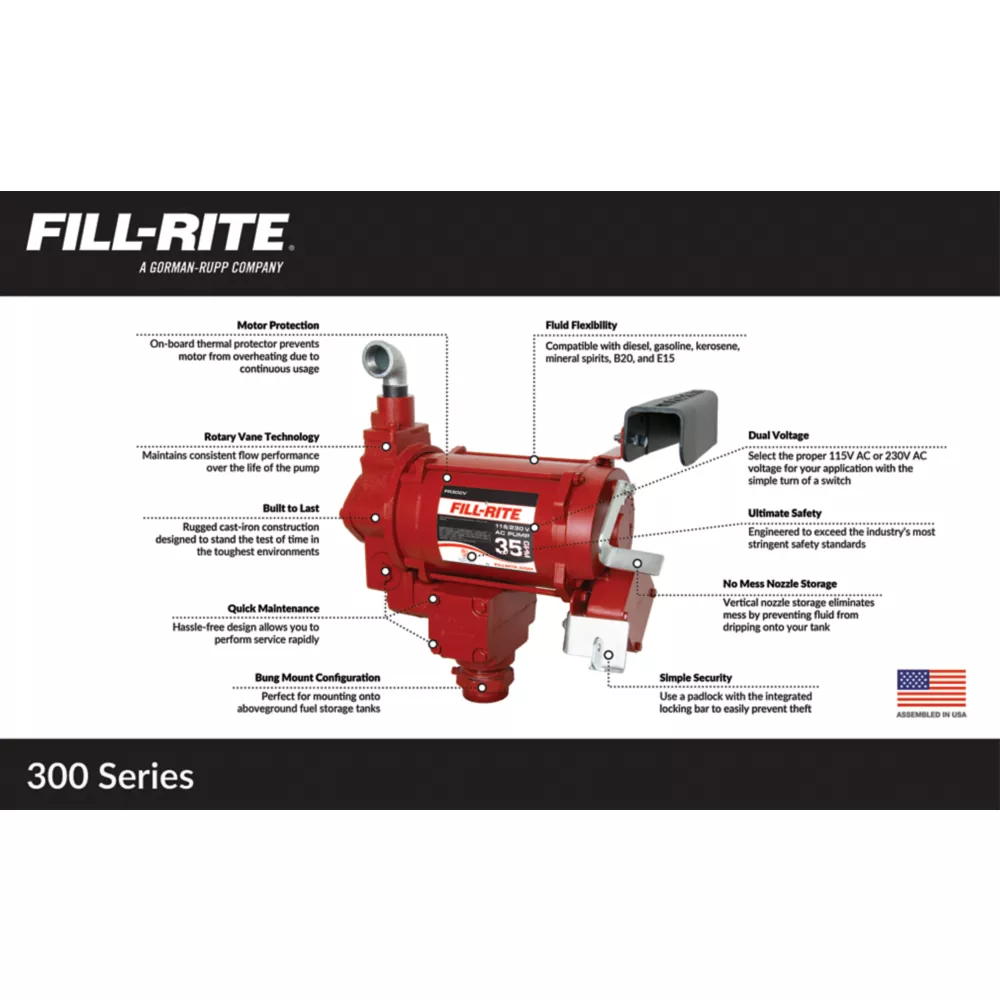

High-volume AC pump transfers fuel at 35 GPM, making it ideal for filling heavy equipment from aboveground storage tanks
Durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
Thermally-protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
Dual-voltage design allows you to select either 115V or 230VAC power with the simple turn of a switch
Limited lifetime warranty to protect your purchase and your business
Compatible with gasoline, diesel, biodiesel up to B20, E-15 and kerosene
UL/cUL, ATEX, and CE certified

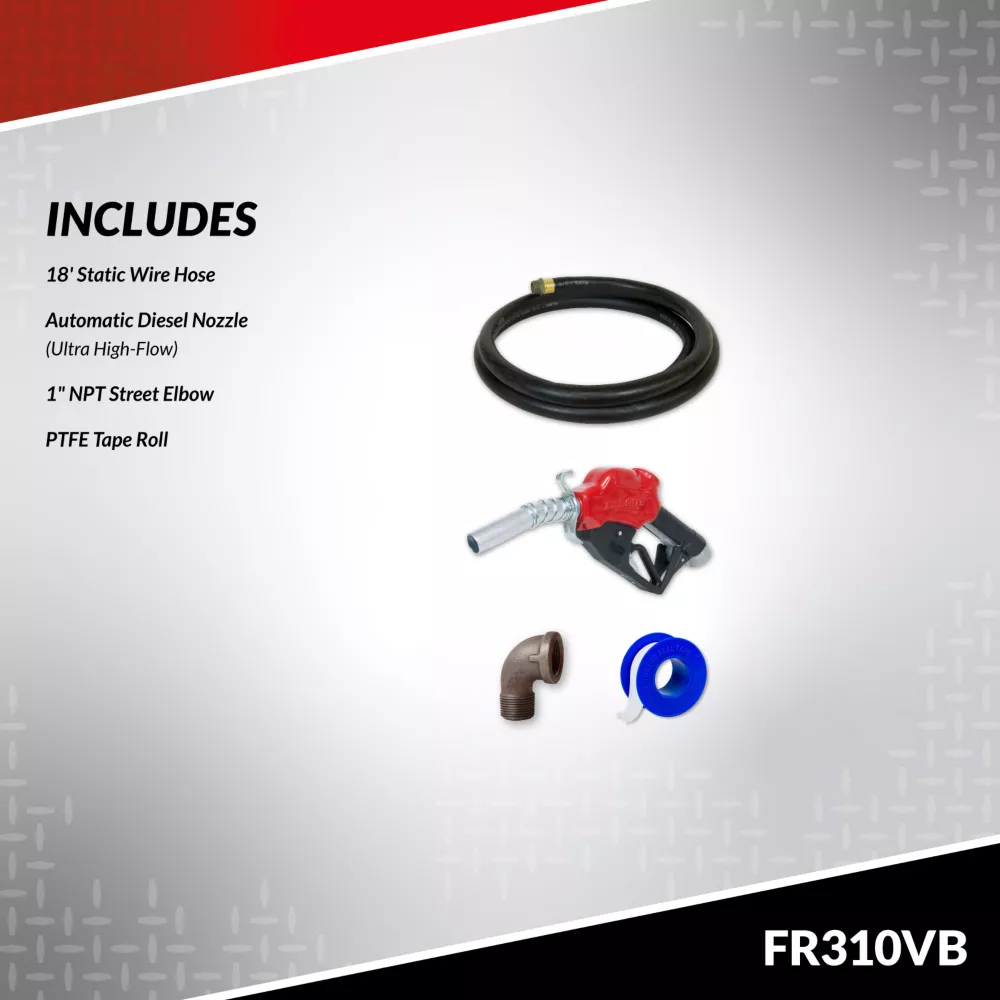

Model is equipped with 1 in. NPT threads, a 1 in. x 18 ft. UL-listed discharge hose and Fill-Rite's 1 in. Ultra Hi-Flow automatic nozzle
Equipped with a 2 in. bung mount, this pump is ideal for installing onto stationary aboveground tanks
Rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
Built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment

Fill-Rite 3/4 HP 115/230 Volt AC Electric Fuel Transfer Pump with Discharge Hose and Auto Nozzle 35 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Fill-Rite
Country of Origin	Made in USA
AC or DC Powered	AC
Amperage	5A
Body Materials	Cast Iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	Self Priming
Horsepower	0.75 HP
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.25 in.
Intended Use Grade	Commercial
Maximum Flow Rate	35 GPM
Maximum Head Lift	60 in.
Maximum Operating Pressure	26 PSI
Maximum Operating Temperature	140 deg.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-17 deg.
Power Cord Length	0 in.
Power Type	Electric
Product Height	13.75 in.
Product Length	9 in.
Product Weight	64.2 lb.
Product Width	17 in.
Voltage	115/230V
Warranty	Limited Lifetime
Manufacturer PartNumber	FR310VB

Fill-Rite 3/4 HP 115/230VAC Electric Fuel Transfer Pump with Discharge Hose and Automatic Nozzle, 35 GPM Specifications expand/collapse Specification Description Brand Fill-Rite Country of Origin Made in USA AC or DC Power Supply AC Amps 5A Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Female Threaded Discharge Diameter 1 in. Duty cycle 30 min. Features Self-Priming Power 0.75 HP Hose Diameter 1 in. Inlet fitting Female threaded Inlet diameter 1.25 in. Intended Use Commercial Grade Maximum Flow 35 GPM Maximum Lift Height 60 in. Maximum operating pressure 26 PSI Maximum operating temperature 140 degrees. Minimum Operating Pressure 0 PSI Minimum Operating Temperature -17 deg. Power cord length 0 in. Power Supply Type Product Height 13.75 in. Product length 9 in. Product weight 64.2 lbs. Product width 17 in. Voltage 115/230 V Limited lifetime warranty Manufacturer part number FR310VB
