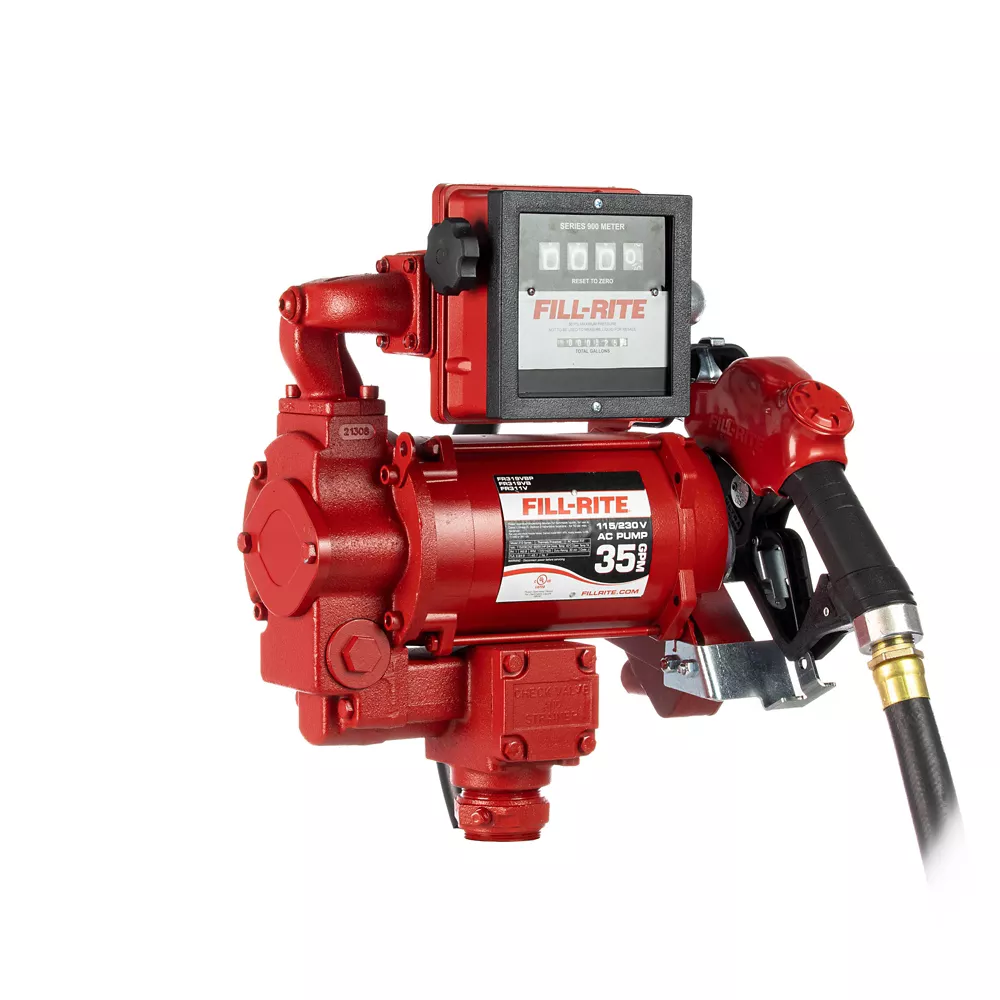

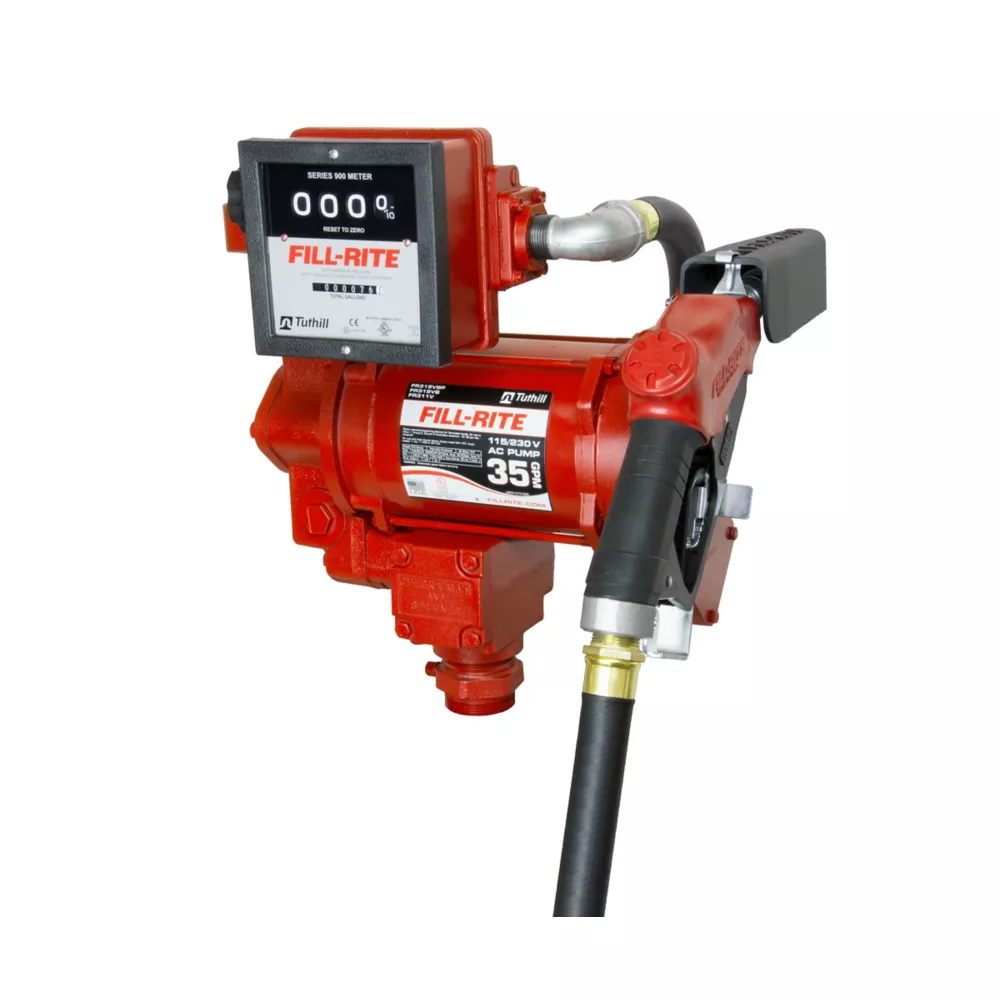

Fill-Rite 3/4 HP 115/230V Electric Fuel Transfer Pump with Discharge Hose 35 GPM Auto Nozzle and Mechanical Meter Fuel Transfer Pumps Truck & Automotive
The Fill-Rite 115/230VAC 35 GPM Fuel Transfer Pump with Discharge Hose, Automatic Nozzle and Mechanical Meter is a heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.- Our highest volume AC pump that transfers fuel at 35 GPM, ideal for filling heavy equipment from aboveground storage tanks
- Durable cast-iron construction provides heavy-duty performance and allows the fuel pump to withstand daily use in high-volume, stationary applications
- Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Dual voltage design allows you to select either 115V or 230V AC power with the simple turn of a switch
- We stand behind our fuel transfer pump with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

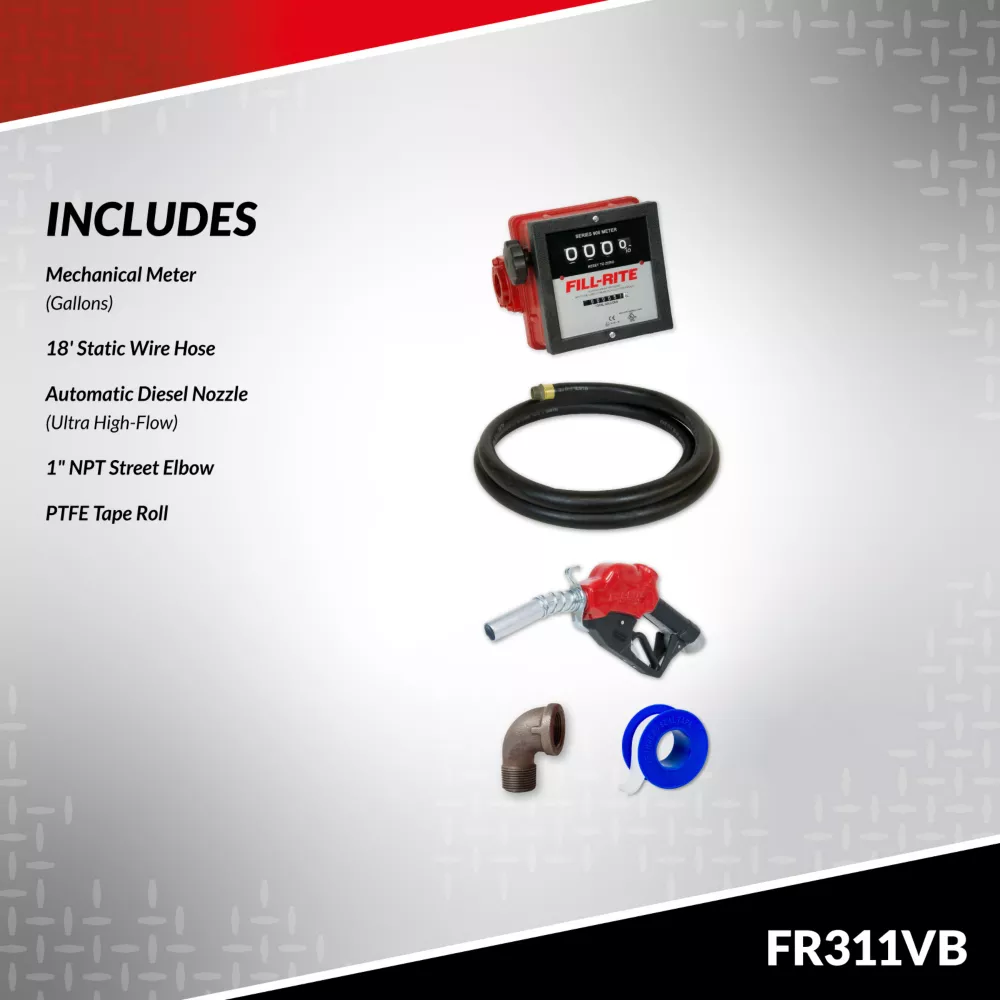

- Meter type included with the fuel pump: 901C Mechanical Meter (gal.)
- Discharge hose: 1 in. x 18 ft. UL Listed Hose with Static Ground Wire
- Nozzle: 1 in. Ultra Hi-Flow Automatic Diesel Nozzle (Red)
- Cable connection: bare leads
Fill-Rite 3/4 HP 115/230V Electric Fuel Transfer Pump with Discharge Hose 35 GPM Auto Nozzle and Mechanical Meter Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
| Specification | Description |
|---|---|
| Brand | Fill-Rite |
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 5A |
| Body Materials | Cast iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min. |
| Features | Self-Priming |
| Horsepower | 0.75 HP |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Intended Use Grade | Industrial |
| Maximum Flow Rate | 35 GPM |
| Maximum Head Lift | 18 ft. |
| Maximum Operating Pressure | 26 PSI |
| Maximum Operating Temperature | 150 deg. |
| Minimum Operating Pressure | 26 PSI |
| Minimum Operating Temperature | -40 deg. |
| Power Type | Electric |
| Product Height | 19.4 in. |
| Product Length | 17 in. |
| Product Weight | 91 lb. |
| Product Width | 17 in. |
| Voltage | 115/230V |
| Warranty | Limited Lifetime |
| Manufacturer PartNumber | FR311VB |
