Piusi USA SuzzaraBlue 12V 9GPM Drum PRO Kit (Auto/Meter) Fuel Transfer Pumps Truck & Automotive

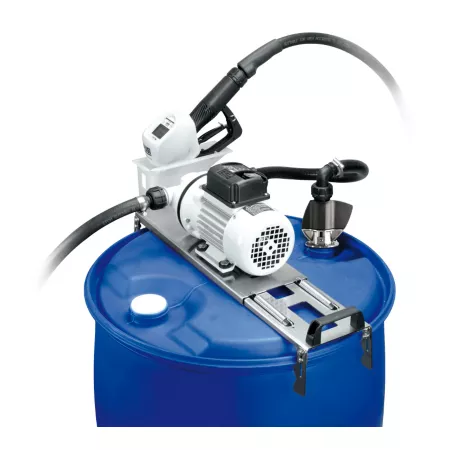

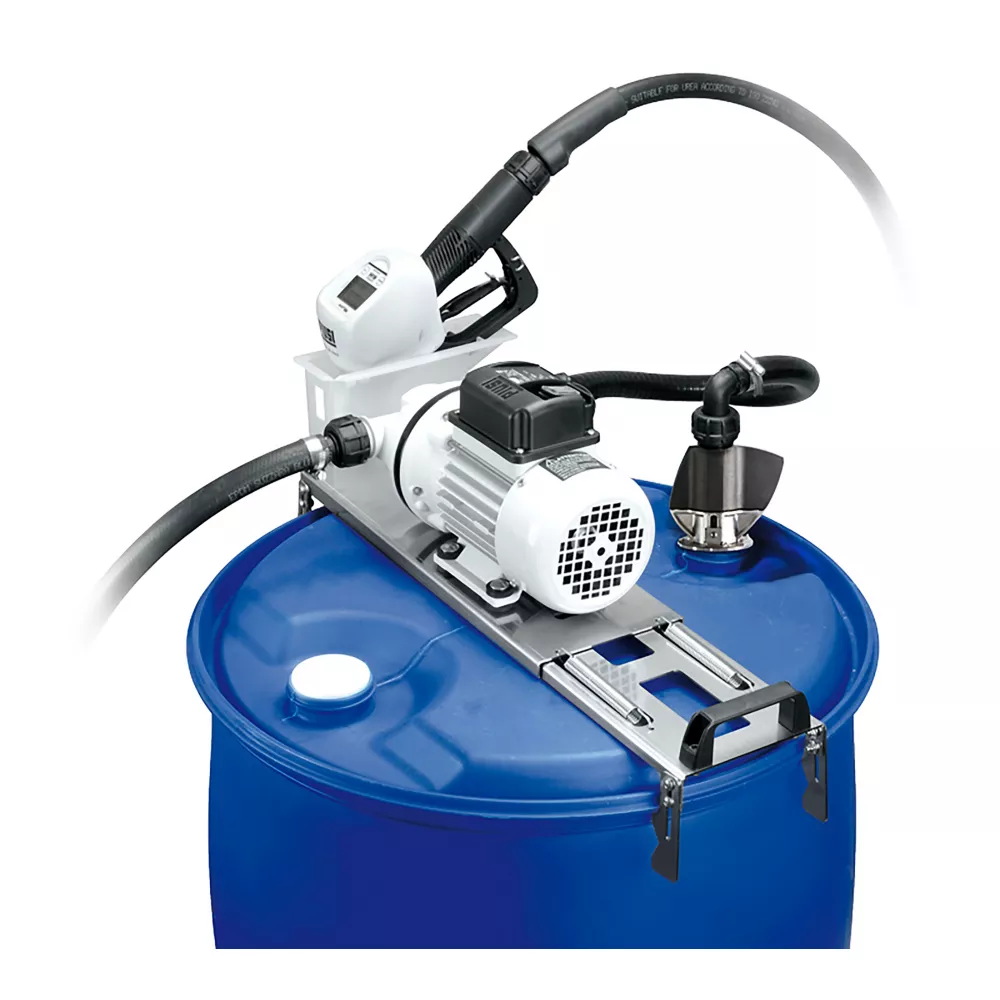

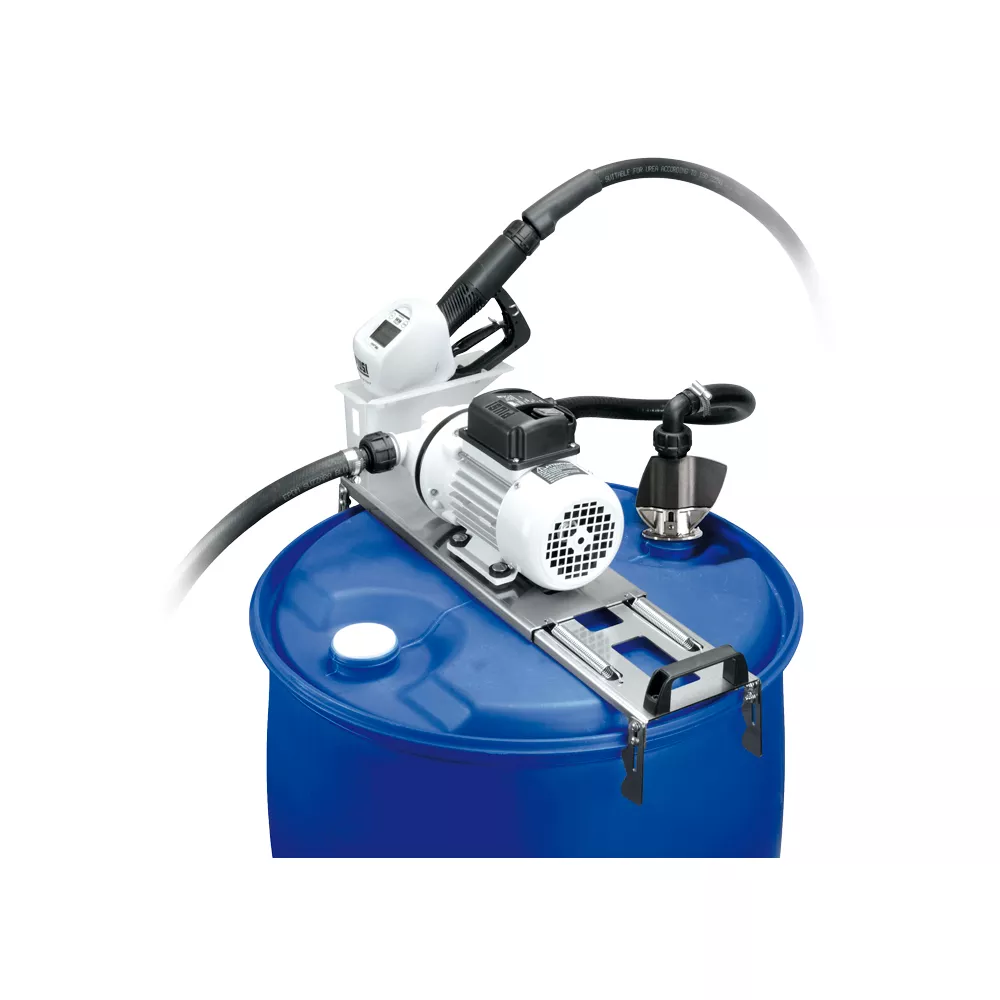

The Piusi SuzzaraBlue DEF Pro Drum 12VDC Kit is the perfect solution for a mobile DEF drum application. The system is readily equipped with a heavy-duty 9GPM DEF transfer pump, an easily transferable top-mount bracket, an automatic metered nozzle, 20 ft. of dispense hose and 1.5 ft of suction hose.

7-9 GPM flow rate for efficiency
12VDC DEF membrane pump
20 min. on/ 20 min. off duty cycle
25 PSI operating pressure
20 ft. delivery hose makes refueling easy
DEF pro drum kit includes a 1.5 ft. suction hose
6.5 ft. suction height
3/4 in. inner hose diameter
SB 325 automatic metered nozzle

Piusi USA SuzzaraBlue 12V 9GPM Drum PRO Kit (Auto/Meter) Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	DC
Amperage	0.083A
Body Materials	Polypropylene
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	20 min. on20 min. off
Features	Self-Priming
Horsepower	0.5 HP
Hose Diameter	34 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	120 deg. F
Minimum Operating Pressure	5 PSI
Minimum Operating Temperature	14 deg. F
Power Cord Length	6.5 ft.
Power Type	12 Volt
Product Height	11 in.
Product Length	19 in.
Product Weight	24 lb.
Product Width	15 in.
Voltage	12V
Warranty	2 year
Manufacturer PartNumber	F00201AMB

Piusi USA SuzzaraBlue 12V 9GPM Drum PRO Kit (Auto/Meter) Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply DC Amps 0.083 A Body Materials Polypropylene Compatible Fluids Diesel Exhaust Fluid Discharge Fitting Male Threaded Discharge Diameter 1 in. Duty cycle 20 min. over 20 min. off Features Self-priming power 0.5 HP Hose diameter 34 in. Inlet Connection Threaded Male Inlet Diameter 1 in. Intended Use Commercial Grade Maximum Flow Rate 9 GPM Maximum Head Lift 6 Feet Maximum Operating Pressure 25 PSI Maximum Operating Temperature 120 deg. F Minimum operating pressure 5 PSI Minimum operating temperature 14 deg. F Power cord length 6.5 feet. Power Type 12 Volt Product Height 11 in. Product length 19 in. Product weight 24 lbs. Product width 15 in. Voltage 12 V Warranty 2 years Manufacturer part number F00201AMB
